#include "lpc_types.h"
#include "sys_config.h"
#include "cmsis.h"
#include "pmu_11xx.h"
#include "fmc_11xx.h"
#include "sysctl_11xx.h"
#include "clock_11xx.h"
#include "iocon_11xx.h"
#include "timer_11xx.h"
#include "uart_11xx.h"
#include "wwdt_11xx.h"
#include "ssp_11xx.h"
#include "romapi_11xx.h"
#include "adc_11xx.h"
#include "gpio_11xx_1.h"
#include "gpiogroup_11xx.h"
#include "pinint_11xx.h"
#include "i2c_11xx.h"

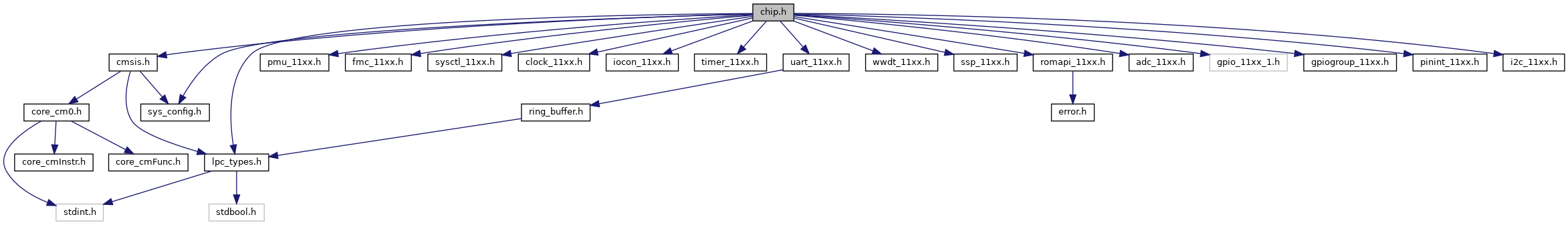

Include dependency graph for chip.h:

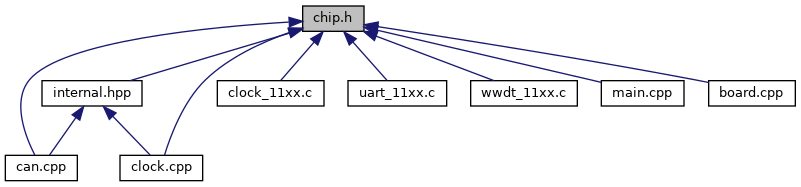

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	IAP_ENTRY_LOCATION 0X1FFF1FF1

#define	LPC_ACMP_BASE 0x40028000

#define	LPC_ADC ((LPC_ADC_T *) LPC_ADC_BASE)

#define	LPC_ADC_BASE 0x4001C000

#define	LPC_CAN0_BASE 0x40050000

#define	LPC_DAC_BASE 0x40024000

#define	LPC_FLASH_BASE 0x4003C000

#define	LPC_FMC ((LPC_FMC_T *) LPC_FLASH_BASE)

#define	LPC_GPIO ((LPC_GPIO_T *) LPC_GPIO_PORT0_BASE)

#define	LPC_GPIO_PORT0_BASE 0x50000000

#define	LPC_GPIO_PORT1_BASE 0x50010000

#define	LPC_I2C ((LPC_I2C_T *) LPC_I2C_BASE)

#define	LPC_I2C_BASE 0x40000000

#define	LPC_IOCON ((LPC_IOCON_T *) LPC_IOCON_BASE)

#define	LPC_IOCON_BASE 0x40044000

#define	LPC_PMU ((LPC_PMU_T *) LPC_PMU_BASE)

#define	LPC_PMU_BASE 0x40038000

#define	LPC_ROM_API (((LPC_ROM_API_T *) LPC_ROM_API_BASE_LOC))

#define	LPC_ROM_API_BASE_LOC 0x1FFF1FF8

#define	LPC_SSP0 ((LPC_SSP_T *) LPC_SSP0_BASE)

#define	LPC_SSP0_BASE 0x40040000

#define	LPC_SSP1_BASE 0x40058000

#define	LPC_SYSCTL ((LPC_SYSCTL_T *) LPC_SYSCTL_BASE)

#define	LPC_SYSCTL_BASE 0x40048000

#define	LPC_TIMER16_0 ((LPC_TIMER_T *) LPC_TIMER16_0_BASE)

#define	LPC_TIMER16_0_BASE 0x4000C000

#define	LPC_TIMER16_1 ((LPC_TIMER_T *) LPC_TIMER16_1_BASE)

#define	LPC_TIMER16_1_BASE 0x40010000

#define	LPC_TIMER32_0 ((LPC_TIMER_T *) LPC_TIMER32_0_BASE)

#define	LPC_TIMER32_0_BASE 0x40014000

#define	LPC_TIMER32_1 ((LPC_TIMER_T *) LPC_TIMER32_1_BASE)

#define	LPC_TIMER32_1_BASE 0x40018000

#define	LPC_USART ((LPC_USART_T *) LPC_USART_BASE)

#define	LPC_USART_BASE 0x40008000

#define	LPC_USB ((LPC_USB_T *) LPC_USB0_BASE)

#define	LPC_USB0_BASE 0x40080000

#define	LPC_WWDT ((LPC_WWDT_T *) LPC_WWDT_BASE)

#define	LPC_WWDT_BASE 0x40004000

Functions
void	Chip_SystemInit (void)
	Set up and initialize hardware prior to call to main() More...

void	SystemCoreClockUpdate (void)
	Update system core clock rate, should be called if the system has a clock rate change. More...

Variables
const uint32_t	ExtRateIn
	Clock rate on the CLKIN pin This value is defined externally to the chip layer and contains the value in Hz for the CLKIN pin for the board. If this pin isn't used, this rate can be 0. More...

const uint32_t	OscRateIn
	System oscillator rate This value is defined externally to the chip layer and contains the value in Hz for the external oscillator for the board. If using the internal oscillator, this rate can be 0. More...

uint32_t	SystemCoreClock
	Current system clock rate, mainly used for sysTick. More...

Variable Documentation

◆ ExtRateIn

const uint32_t ExtRateIn

Clock rate on the CLKIN pin This value is defined externally to the chip layer and contains the value in Hz for the CLKIN pin for the board. If this pin isn't used, this rate can be 0.

Definition at line 16 of file board.cpp.

◆ OscRateIn

const uint32_t OscRateIn

System oscillator rate This value is defined externally to the chip layer and contains the value in Hz for the external oscillator for the board. If using the internal oscillator, this rate can be 0.

Definition at line 15 of file board.cpp.
