Implements the Runge-Kutta-12 scheme for integrating ODEs. More...

#include <integrator_runge_kutta12.hpp>

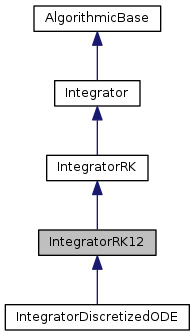

Inheritance diagram for IntegratorRK12:
Inheritance graph
[legend]

Public Member Functions

virtual Integratorclone () const

virtual returnValue init (const DifferentialEquation &rhs_)

 IntegratorRK12 ()

 IntegratorRK12 (const DifferentialEquation &rhs_)

 IntegratorRK12 (const IntegratorRK12 &arg)

virtual IntegratorRK12operator= (const IntegratorRK12 &arg)

virtual returnValue step (int number)

virtual ~IntegratorRK12 ()

- Public Member Functions inherited from IntegratorRK
virtual returnValue freezeAll ()

virtual returnValue freezeMesh ()

virtual int getNumberOfRejectedSteps () const

virtual int getNumberOfSteps () const

virtual double getStepSize () const

returnValue init (const DifferentialEquation &rhs_, const Transition &trs_)

 IntegratorRK ()

 IntegratorRK (int dim_, double power_)

 IntegratorRK (const DifferentialEquation &rhs_, int dim_, double power_)

 IntegratorRK (const IntegratorRK &arg)

virtual IntegratorRKoperator= (const IntegratorRK &arg)

virtual returnValue setDxInitialization (double *dx0)

virtual returnValue stop ()

virtual returnValue unfreeze ()

virtual ~IntegratorRK ()

- Public Member Functions inherited from Integrator
virtual BooleanType canHandleImplicitSwitches () const

virtual returnValue deleteAllSeeds ()

returnValue getBackwardSensitivities (DVector &Dx_x0, DVector &Dx_p, DVector &Dx_u, DVector &Dx_w, int order) const

virtual double getDifferentialEquationSampleTime () const

returnValue getForwardSensitivities (DVector &Dx, int order) const

returnValue getForwardSensitivities (VariablesGrid &Dx, int order) const

returnValue getI (VariablesGrid &I) const

returnValue getX (DVector &xEnd) const

returnValue getX (VariablesGrid &X) const

returnValue getXA (DVector &xaEnd) const

returnValue getXA (VariablesGrid &XA) const

returnValue init (const DifferentialEquation &rhs, const Transition &trs)

returnValue integrate (double t0, double tend, double *x0, double *xa=0, double *p=0, double *u=0, double *w=0)

returnValue integrate (const Grid &t, double *x0, double *xa=0, double *p=0, double *u=0, double *w=0)

returnValue integrate (double t0, double tend, const DVector &x0, const DVector &xa=emptyVector, const DVector &p=emptyVector, const DVector &u=emptyVector, const DVector &w=emptyVector)

returnValue integrate (const Grid &t, const DVector &x0, const DVector &xa=emptyVector, const DVector &p=emptyVector, const DVector &u=emptyVector, const DVector &w=emptyVector)

returnValue integrateSensitivities ()

 Integrator ()

 Integrator (const Integrator &arg)

virtual BooleanType isDifferentialEquationAffine () const

virtual BooleanType isDifferentialEquationDefined () const

virtual returnValue printRunTimeProfile () const

returnValue setBackwardSeed (const int &order, const DVector &seed)

returnValue setForwardSeed (const int &order, const DVector &xSeed, const DVector &pSeed=emptyVector, const DVector &uSeed=emptyVector, const DVector &wSeed=emptyVector)

returnValue setTransition (const Transition &trs)

virtual ~Integrator ()

- Public Member Functions inherited from AlgorithmicBase
int addLogRecord (LogRecord &_record)

returnValue addOption (OptionsName name, int value)

returnValue addOption (OptionsName name, double value)

returnValue addOption (uint idx, OptionsName name, int value)

returnValue addOption (uint idx, OptionsName name, double value)

returnValue addOptionsList ()

 AlgorithmicBase ()

 AlgorithmicBase (UserInteraction *_userInteraction)

 AlgorithmicBase (const AlgorithmicBase &rhs)

returnValue get (OptionsName name, int &value) const

returnValue get (OptionsName name, double &value) const

returnValue get (OptionsName name, std::string &value) const

returnValue get (uint idx, OptionsName name, int &value) const

returnValue get (uint idx, OptionsName name, double &value) const

returnValue getAll (LogName _name, MatrixVariablesGrid &values) const

returnValue getFirst (LogName _name, DMatrix &firstValue) const

returnValue getFirst (LogName _name, VariablesGrid &firstValue) const

returnValue getLast (LogName _name, DMatrix &lastValue) const

returnValue getLast (LogName _name, VariablesGrid &lastValue) const

Options getOptions (uint idx) const

BooleanType haveOptionsChanged () const

BooleanType haveOptionsChanged (uint idx) const

AlgorithmicBaseoperator= (const AlgorithmicBase &rhs)

returnValue plot (PlotFrequency _frequency=PLOT_IN_ANY_CASE)

returnValue printLogRecord (std::ostream &_stream, int idx, LogPrintMode _mode=PRINT_ITEM_BY_ITEM) const

returnValue replot (PlotFrequency _frequency=PLOT_IN_ANY_CASE)

returnValue set (OptionsName name, int value)

returnValue set (OptionsName name, double value)

returnValue set (OptionsName name, const std::string &value)

returnValue set (uint idx, OptionsName name, int value)

returnValue set (uint idx, OptionsName name, double value)

returnValue setAll (LogName _name, const MatrixVariablesGrid &values)

returnValue setLast (LogName _name, int lastValue, double time=-INFTY)

returnValue setLast (LogName _name, double lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const DVector &lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const DMatrix &lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const VariablesGrid &lastValue, double time=-INFTY)

returnValue setOptions (const Options &arg)

returnValue setOptions (uint idx, const Options &arg)

virtual ~AlgorithmicBase ()


Protected Member Functions

virtual void initializeButcherTableau ()

- Protected Member Functions inherited from IntegratorRK
void allocateMemory ()

void constructAll (const IntegratorRK &arg)

void deleteAll ()

double determineEta45 ()

double determineEta45 (int number)

void determineEtaGForward (int number)

void determineEtaGForward2 (int number)

void determineEtaHBackward (int number)

void determineEtaHBackward2 (int number)

virtual returnValue evaluate (const DVector &x0, const DVector &xa, const DVector &p, const DVector &u, const DVector &w, const Grid &t_)

virtual returnValue evaluateSensitivities ()

virtual int getDim () const

virtual returnValue getProtectedBackwardSensitivities (DVector &Dx_x0, DVector &Dx_p, DVector &Dx_u, DVector &Dx_w, int order) const

virtual returnValue getProtectedForwardSensitivities (DMatrix *Dx, int order) const

virtual returnValue getProtectedX (DVector *xEnd) const

void initializeVariables ()

void interpolate (int jj, double *e1, double *d1, double *e2, VariablesGrid &poly)

void logCurrentIntegratorStep (const DVector &currentX=emptyConstVector)

void printIntermediateResults ()

virtual returnValue setBackwardSeed2 (const DVector &seed)

returnValue setForwardSeed2 (const DVector &xSeed, const DVector &pSeed, const DVector &uSeed, const DVector &wSeed)

virtual returnValue setProtectedBackwardSeed (const DVector &seed, const int &order)

virtual returnValue setProtectedForwardSeed (const DVector &xSeed, const DVector &pSeed, const DVector &uSeed, const DVector &wSeed, const int &order)

- Protected Member Functions inherited from Integrator
virtual returnValue diffTransitionBackward (DVector &DX, DVector &DP, DVector &DU, DVector &DW, int &order)

virtual returnValue diffTransitionForward (DVector &DX, const DVector &DP, const DVector &DU, const DVector &DW, const int &order)

virtual returnValue evaluateTransition (const double time, DVector &xd, const DVector &xa, const DVector &p, const DVector &u, const DVector &w)

virtual int getDimX () const

void initializeOptions ()

virtual returnValue setupLogging ()

virtual returnValue setupOptions ()


Additional Inherited Members

- Protected Attributes inherited from IntegratorRK
double ** A

double * b4

double * b5

DVector bseed

DVector bseed2

double * c

int dim

double err_power

double * eta4

double * eta4_

double * eta5

double * eta5_

double * etaG

double * etaG2

double * etaG3

double * etaH

double * etaH2

double * etaH3

DVector fseed

DVector fseed2

double * G

double * G2

double * G3

double * H

double * H2

double * H3

double ** k

double ** k2

double ** l

double ** l2

int maxAlloc

double t

double * x

- Protected Attributes inherited from Integrator
int * alg_index

int * control_index

int count

int count2

int count3

int * ddiff_index

VariablesGrid ddxStore

int * diff_index

DVector diff_scale

int * disturbance_index

DVector dP

DVector dPb

DVector dU

DVector dUb

DVector dW

DVector dWb

DVector dX

DVector dXb

VariablesGrid dxStore

RealClock functionEvaluation

double * h

double hini

double hmax

double hmin

int * int_control_index

int * int_parameter_index

VariablesGrid iStore

int las

short int m

short int ma

int maxNumberOfSteps

short int md

short int mdx

short int mn

short int mp

short int mpi

short int mu

short int mui

short int mw

int nBDirs

int nBDirs2

int nFcnEvaluations

int nFDirs

int nFDirs2

int * parameter_index

int PrintLevel

DifferentialEquationrhs

StateOfAggregation soa

int time_index

Grid timeInterval

double TOL

RealClock totalTime

Transitiontransition

double tune

DVector xE

VariablesGrid xStore

- Protected Attributes inherited from AlgorithmicBase
int outputLoggingIdx

BooleanType useModuleStandalone

UserInteractionuserInteraction


Detailed Description

Implements the Runge-Kutta-12 scheme for integrating ODEs.

The class IntegratorRK12 implements the Runge-Kutta-12 scheme for integrating ordinary differential equations (ODEs).

Author
Boris Houska, Hans Joachim Ferreau

Definition at line 54 of file integrator_runge_kutta12.hpp.

Constructor & Destructor Documentation

BEGIN_NAMESPACE_ACADO IntegratorRK12::IntegratorRK12 ( )

Default constructor.

Definition at line 52 of file integrator_runge_kutta12.cpp.

IntegratorRK12::IntegratorRK12 ( const DifferentialEquation rhs_)

Default constructor.

Definition at line 58 of file integrator_runge_kutta12.cpp.

IntegratorRK12::IntegratorRK12 ( const IntegratorRK12 arg)

Copy constructor (deep copy).

Definition at line 64 of file integrator_runge_kutta12.cpp.

IntegratorRK12::~IntegratorRK12 ( )
virtual

Destructor.

Definition at line 67 of file integrator_runge_kutta12.cpp.

Member Function Documentation

Integrator * IntegratorRK12::clone ( ) const
virtual

The (virtual) copy constructor

Implements IntegratorRK.

Reimplemented in IntegratorDiscretizedODE.

Definition at line 79 of file integrator_runge_kutta12.cpp.

returnValue IntegratorRK12::init ( const DifferentialEquation rhs_)
virtual

The initialization routine which takes the right-hand side of
the differential equation to be integrated.

Parameters
rhsthe right-hand side of the ODE/DAE.

Returns
SUCCESSFUL_RETURN if all dimension checks succeed.
otherwise: integrator dependent error message.

Reimplemented from IntegratorRK.

Reimplemented in IntegratorDiscretizedODE.

Definition at line 86 of file integrator_runge_kutta12.cpp.

void IntegratorRK12::initializeButcherTableau ( )
protectedvirtual

This routine initializes the coefficients of the Butcher Tableau.

Implements IntegratorRK.

Definition at line 100 of file integrator_runge_kutta12.cpp.

IntegratorRK12 & IntegratorRK12::operator= ( const IntegratorRK12 arg)
virtual

Assignment operator (deep copy).

Definition at line 70 of file integrator_runge_kutta12.cpp.

returnValue IntegratorRK12::step ( int  number)
virtual

Executes the next single step. This function can be used to
call the integrator step wise. Note that this function is e.g.
useful in real-time simulations where after each step a time
out limit has to be checked. This function will usually return

Returns
RET_FINAL_STEP_NOT_PERFORMED_YET
for the case that the final step has not been
performed yet, i.e. the integration routine is not yet
at the time tend.
Otherwise it will either return
SUCCESSFUL_RETURN
or any other error message that might occur during
an integration step.
In most real situations you can define the maximum number of
step sizes to be 1 before calling the function integrate
Then the function integrate should return after one step with
the message
RET_MAXIMUM_NUMBER_OF_STEPS_EXCEEDED. After that you can call
step() until the final time is reached.
(You can use the PrintLevel NONE to avoid that the message
RET_MAXIMUM_NUMBER_OF_STEPS_EXCEEDED is printed.)
Parameters
numberthe step number

Reimplemented from IntegratorRK.

Reimplemented in IntegratorDiscretizedODE.

Definition at line 93 of file integrator_runge_kutta12.cpp.


The documentation for this class was generated from the following files:


acado
Author(s): Milan Vukov, Rien Quirynen
autogenerated on Mon Jun 10 2019 12:35:25
