The generic class for MTi devices. More...
#include <mtibasedevice.h>

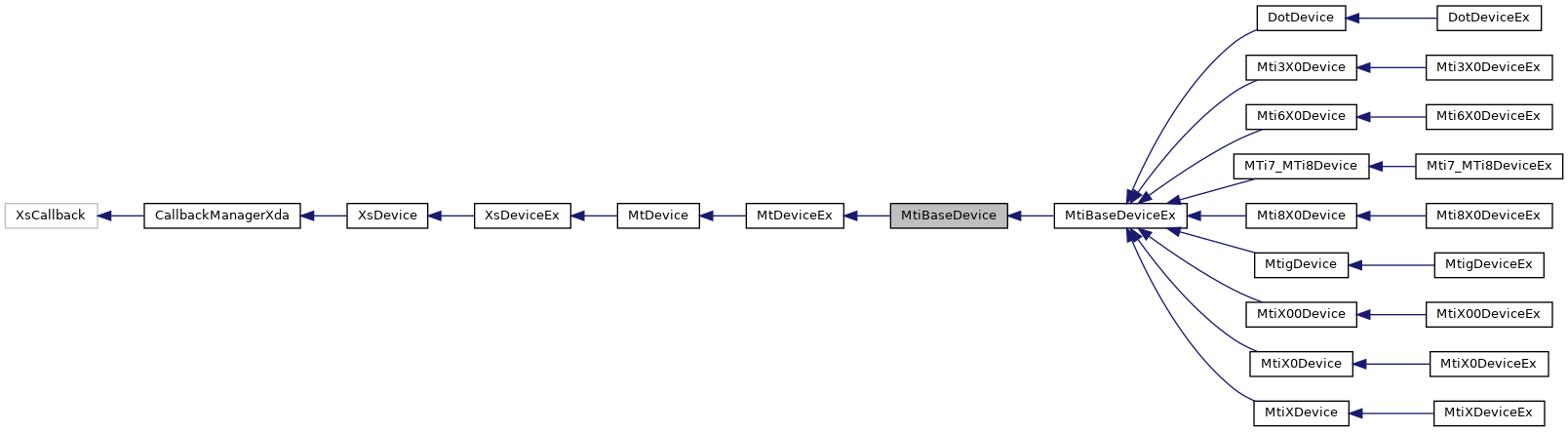

Inheritance diagram for MtiBaseDevice:
Classes | |
| struct | BaseFrequencyResult |
| A struct for base frequency result. More... | |
Public Member Functions | |
| XsMatrix | alignmentRotationMatrix (XsAlignmentFrame frame) const override |
| Retrieve the alignment rotation matrix to rotate S to the chosen frame S'. More... | |
| XsQuaternion | alignmentRotationQuaternion (XsAlignmentFrame frame) const override |
| Retrieve the alignment rotation quaternion. More... | |
| XsErrorMode | errorMode () const override |
| Returns the error mode of the device. More... | |
| int | getBaseFrequency (XsDataIdentifier dataType=XDI_None) const override |
| MtiBaseDevice (Communicator *comm) | |
| Constructs a device. More... | |
| MtiBaseDevice (XsDevice *master) | |
| Constructs a child device for a master device. More... | |
| XsOutputConfigurationArray | outputConfiguration () const |
| Returns the currently configured output of the device. More... | |
| bool | representativeMotionState () override |
| uint16_t | rs485TransmissionDelay () const |
| Returns the transmission delay used for RS485 transmissions. More... | |
| bool | setAlignmentRotationMatrix (XsAlignmentFrame frame, const XsMatrix &matrix) override |
| Set an arbitrary alignment rotation matrix Use to rotate either L to the chosen frame L' or S to the chosen frame S'. More... | |
| bool | setAlignmentRotationQuaternion (XsAlignmentFrame frame, const XsQuaternion &quat) override |
| Set an arbitrary alignment rotation matrix Use to rotate either L to the chosen frame L' or S to the chosen frame S'. More... | |
| bool | setErrorMode (XsErrorMode errorMode) override |
| Sets the error mode of the device. More... | |
| bool | setHeadingOffset (double offset) |
| Set the 'heading offset' setting of the device. More... | |
| bool | setInitialPositionLLA (const XsVector &lla) |
| Sets the 'Latitude Longitude Altitude' setting of the device to the given vector. More... | |
| bool | setNoRotation (uint16_t duration) |
| Set the no rotation period to duration. More... | |
| XsResultValue | setOutputConfigurationInternal (XsOutputConfigurationArray &o) override |
| Set the output configuration for this device. More... | |
| bool | setRs485TransmissionDelay (uint16_t delay) |
| Set the transmission delay used for RS485 transmissions. More... | |
| bool | setSyncSettings (const XsSyncSettingArray &s) override |
| Set the synchronization settings of the device. More... | |
| bool | setUtcTime (const XsTimeInfo &time) |
| Sets the 'UTC Time' setting of the device to the given time. More... | |
| bool | startRepresentativeMotion () override |
| Starts the representative motion. More... | |
| XsIccRepMotionResult | stopRepresentativeMotion () override |
| Stops the representative motion. More... | |
| bool | storeIccResults () override |
| Stores the ICC results. More... | |
| std::vector< int > | supportedUpdateRates (XsDataIdentifier dataType=XDI_None) const override |
| Ask the device for its supported update rates for the given dataType. More... | |
| XsSyncSettingArray | syncSettings () const override |
| Get all the current synchronization settings of the device. More... | |
| XsTimeInfo | utcTime () const |
| Gets the 'UTC Time' setting of the device. More... | |
| virtual | ~MtiBaseDevice () |
 Public Member Functions inherited from MtDevice | |
| double | accelerometerRange () const |
| XsFilterProfileArray | availableOnboardFilterProfiles () const override |
| Return the list of filter profiles available on the device. More... | |
| virtual bool | canDoOrientationResetInFirmware (XsResetMethod method) |
| Checks if this device can do orientation reset in firmware. More... | |
| XsDeviceOptionFlag | deviceOptionFlags () const override |
| Returns the device option flags. More... | |
| XsIntArray | gnssReceiverSettings () const override |
| Gets some GNSS receiver settings. More... | |
| double | gyroscopeRange () const |
| XsVersion | hardwareVersion () const |
| Return the hardware version of the device. More... | |
| double | headingOffset () const |
| The heading offset set for this device. More... | |
| bool | initialize () override |
| Initialize the Mt device using the supplied filter profiles. More... | |
| XsVector | initialPositionLLA () const override |
| bool | isMotionTracker () const override |
| int | locationId () const |
| Get the location ID of the device. More... | |
| bool | messageLooksSane (const XsMessage &msg) const override |
| Checks for the sanity of a message. More... | |
| XsFilterProfile | onboardFilterProfile () const override |
| Gets the filter profile in use by the device for computing orientations. More... | |
| XsString | productCode () const |
| Return the product code of the device. More... | |
| bool | reinitialize () |
| Reinitialize the XsDevice. More... | |
| bool | requestData () |
| Request data from the motion tracker. More... | |
| bool | restoreFactoryDefaults () |
| Restore to factory default settings. More... | |
| XsSelfTestResult | runSelfTest () |
| Run a self test. More... | |
| virtual bool | scheduleOrientationReset (XsResetMethod method) |
| XsBaudRate | serialBaudRate () const override |
| The baud rate configured for cabled connection. More... | |
| bool | setGnssReceiverSettings (const XsIntArray &gnssReceiverSettings) override |
| Sets some GNSS receiver settings. More... | |
| virtual bool | setLocationId (int id) |
| Set the location ID of the device. More... | |
| bool | setOnboardFilterProfile (int profileType) override |
| Sets the filter profile to use for computing orientations on the device. More... | |
| bool | setOnboardFilterProfile (XsString const &profileType) override |
| Sets the filter profile to use for computing orientations on the device. More... | |
| bool | setUbloxGnssPlatform (XsUbloxGnssPlatform ubloxGnssPlatform) override |
| Set the device GNSS platform for u-blox GNSS receivers. More... | |
| virtual bool | storeAlignmentMatrix () |
| Store the current alignment matrix in the device. More... | |
| bool | storeFilterState () override |
| Store orientation filter state in the device. More... | |
| uint16_t | stringOutputType () const override |
| Returns the string output type. More... | |
| uint16_t | stringSamplePeriod () const override |
| Returns the sample period for string output. More... | |
| uint16_t | stringSkipFactor () const override |
| Returns the skipfactor for string output. More... | |
| uint32_t | supportedStatusFlags () const override |
| Returns a bitmask with all the status flags supported by this device. More... | |
| XsUbloxGnssPlatform | ubloxGnssPlatform () const override |
| Returns the device GNSS platform for u-blox GNSS receivers. More... | |
| int | updateRateForDataIdentifier (XsDataIdentifier dataType) const override |
| Returns the currently configured update rate for the supplied dataType. More... | |
| void | writeDeviceSettingsToFile () override |
| Write the emts of the device to the open logfile. More... | |
| virtual | ~MtDevice () |
| Destroys the MtDevice. More... | |
| bool | resetLogFileReadPosition () override |
| Set the read position of the open log file to the start of the file. More... | |
| Public Member Functions inherited from XsDevice | |
| virtual bool | abortFlushing () |
| Abort the wireless flushing operation and finalize the recording. More... | |
| virtual bool | abortLoadLogFile () |
| Aborts loading a logfile. More... | |
| virtual bool | acceptConnection () |
| Accept connections from the device on the parent/master device. More... | |
| virtual XsAccessControlMode | accessControlMode () const |
| Request the access control mode of the master device. More... | |
| virtual void | addRef () |
| Increase reference count of XsDevice pointer XsDevice pointers stay alive while reference counter is not zero Also increases the reference count of each child device with 1. More... | |
| virtual std::shared_ptr< ReplyObject > | addReplyObject (XsXbusMessageId messageId, uint8_t data) |
| virtual XsResultValue | applyConfigFile (const XsString &filename) |
| Loads a config file(.xsa) and configures the device accordingly. More... | |
| virtual bool | areOptionsEnabled (XsOption options) const |
| Returns true when all the specified processing options are enabled. More... | |
| virtual XsFilterProfileArray | availableXdaFilterProfiles () const |
| Return the list of filter profiles available on the host PC. More... | |
| virtual int | batteryLevel () const |
| Get the batterylevel of this device The battery level is a value between 0 and 100 that indicates the remaining capacity as a percentage. Due to battery characteristics, this is not directly the remaining time, but just a rough indication. More... | |
| virtual XsTimeStamp | batteryLevelTime () |
| Requests the time the battery level was last updated. More... | |
| virtual XsBaudRate | baudRate () const |
| Get the baud rate (communication speed) of the serial port on which the given deviceId is connected. More... | |
| virtual int | busId () const |
| The bus ID for this device. More... | |
| int | cacheSize () const |
| Get the number of items currently in the slow data cache for the device. More... | |
| virtual uint32_t | canConfiguration () const |
| Returns the currently configured CAN configuration of the device. More... | |
| virtual XsCanOutputConfigurationArray | canOutputConfiguration () const |
| Returns the currently configured CAN output of the device. More... | |
| virtual void XSNOEXPORT | checkDataCache () |
| virtual int | childCount () const |
| Return the number of child-devices this device has. For standalone devices this is always 0. More... | |
| virtual std::vector< XsDevice * > | children () const |
| Return a managed array containing the child-devices this device has. For standalone devices this is always an empty array. More... | |
| virtual bool | closeLogFile () |
| Close the log file. More... | |
| Communicator XSNOEXPORT * | communicator () const |
| virtual XsConnectivityState | connectivityState () const |
| Returns the connectivity state of the device. More... | |
| virtual XsResultValue | createConfigFile (const XsString &filename) |
| Stores the current device configuration in a config file(.xsa) More... | |
| XsResultValue | createLogFile (const XsString &filename) |
| Create a log file for logging. More... | |
| virtual XsDeviceIdArray | currentAccessControlList () const |
| Request the access control list of the master device. More... | |
| virtual int | dataLength () const |
| Returns the length of the data in the legacy MTData packets that the device will send in measurement mode. More... | |
| virtual void XSNOEXPORT | deinitializeSoftwareCalibration () |
| virtual XsDevice * | deviceAtBusId (int busid) |
| Return the device with bus ID busid. More... | |
| const XsDevice * | deviceAtBusIdConst (int busid) const |
| Return the device with bus ID busid. More... | |
| virtual uint32_t | deviceBufferSize () |
| Request the size of the interal buffer. More... | |
| XsDeviceConfiguration | deviceConfiguration () const |
| Returns the device configuration. More... | |
| virtual XsDeviceConfiguration const &XSNOEXPORT | deviceConfigurationConst () const |
| XsDeviceConfiguration &XSNOEXPORT | deviceConfigurationRef () |
| XsDeviceId const & | deviceId () const |
| Return the device ID of the device. More... | |
| virtual bool | deviceIsDocked (XsDevice *dev) const |
| Check if the device is docked. More... | |
| virtual XsResultValue | deviceParameter (XsDeviceParameter ¶meter) const |
| Retrieves the requested parameter's current value. More... | |
| virtual XsDeviceState | deviceState () const |
| Return the state of this device. More... | |
| virtual bool | disableProtocol (XsProtocolType protocol) |
| Disable a communication protocol previously added by XsDevice::enableProtocol. More... | |
| virtual bool | disableRadio () |
| Disables the radio for this station, resetting all children to disconnected state. More... | |
| virtual void | discardRetransmissions (int64_t firstNewPacketId) |
| Tell XDA and the device that any data from before firstNewPacketId may be lossy. More... | |
| virtual bool | enableProtocol (XsProtocolType protocol) |
| Enable an additional communication protocol when reading messages. More... | |
| virtual bool | enableRadio (int channel) |
| Set the radio channel to use for wireless communication. More... | |
| virtual XsDevice * | findDevice (XsDeviceId const &deviceid) const |
| Find the child device with deviceid. More... | |
| XsDevice const * | findDeviceConst (XsDeviceId const &deviceid) const |
| Find the child device with deviceid. More... | |
| virtual XsVersion | firmwareVersion () const |
| Return the firmware version. More... | |
| virtual void | flushInputBuffers () |
| Clear the inbound data buffers of the device. More... | |
| virtual XsDataPacket | getDataPacketByIndex (XsSize index) const |
| Return the cached data packet with index. More... | |
| XsSize | getDataPacketCount () const |
| Return the current size of the retained data packet cache. More... | |
| virtual XsDevice * | getDeviceFromLocationId (uint16_t locId) |
| Get the device given locId. More... | |
| XsOption | getOptions () const |
| Return the currently enabled options. More... | |
| int64_t | getStartRecordingPacketId () const |
| Return the ID of the first packet that should be recorded. More... | |
| int64_t | getStopRecordingPacketId () const |
| Return the ID of the last packet that should be recorded. More... | |
| virtual XsVector | gnssLeverArm () const |
| XSNOEXPORT XSDEPRECATED XsGnssPlatform | gnssPlatform () const |
| virtual bool | gotoConfig () |
| Put the device in config mode. More... | |
| virtual bool | gotoMeasurement () |
| Put this device in measurement mode. More... | |
| virtual double | gravityMagnitude () const |
| Returns the 'Gravity Magnitude' of the device. More... | |
| virtual XSNOEXPORT void | handleDataPacket (const XsDataPacket &packet) |
| virtual XSNOEXPORT void | handleErrorMessage (const XsMessage &msg) |
| virtual XSNOEXPORT void | handleMasterIndication (const XsMessage &message) |
| virtual XSNOEXPORT void | handleMessage (const XsMessage &msg) |
| virtual XSNOEXPORT void | handleNonDataMessage (const XsMessage &msg) |
| virtual XSNOEXPORT void | handleUnavailableData (int64_t frameNumber) |
| virtual XSNOEXPORT void | handleWakeupMessage (const XsMessage &msg) |
| virtual XSNOEXPORT void | handleWarningMessage (const XsMessage &msg) |
| virtual bool | hasDataEnabled (XsDataIdentifier dataType) const |
| Returns if the currently configured output contains dataType. More... | |
| virtual bool | hasProcessedDataEnabled (XsDataIdentifier dataType) const |
| Returns if the currently configured output contains dataType after processing on the host. More... | |
| virtual bool XSNOEXPORT | initializeSoftwareCalibration () |
| virtual bool | isBlueToothEnabled () const |
| Returns true if the device has its BlueTooth radio enabled. More... | |
| virtual bool | isBusPowerEnabled () const |
| Returns if the Xbus is powering its child devices or not. More... | |
| virtual bool | isContainerDevice () const |
| Returns true if this device can have child devices. More... | |
| virtual bool | isFixedGravityEnabled () const |
| Returns if the fixed gravity value should be used or if it should be computed from the initialPositionLLA value. More... | |
| virtual bool | isInitialBiasUpdateEnabled () const |
| Returns if the device does gyroscope bias estimation when switching to measurement mode. More... | |
| bool | isInitialized () const |
| Returns true when the device is initialized. More... | |
| virtual bool | isInStringOutputMode () const |
| Returns if the device is outputting data in string mode. More... | |
| virtual bool | isInSyncStationMode () |
| bool | isLoadLogFileInProgress () const |
| Returns true if the file operation started by loadLogFile is still in progress. More... | |
| bool | isMasterDevice () const |
| Returns true if this is the master device (not a child of another device) More... | |
| virtual bool | isMeasuring () const |
| Returns true if the device is currently in a measuring state. More... | |
| virtual bool | isOperational () const |
| virtual bool | isProtocolEnabled (XsProtocolType protocol) const |
| virtual bool | isRadioEnabled () const |
| Returns if the radio is enabled. More... | |
| virtual bool | isReadingFromFile () const |
| Returns true if the device is reading from a file. More... | |
| virtual bool | isRecording () const |
| Returns true if the device is currently in a recording state. More... | |
| bool | isStandaloneDevice () const |
| Returns true if this is a standalone device (not a child of another device and not a container device) More... | |
| virtual bool | isSyncMaster () const |
| returns whether this device is in a master role regarding the device synchronization More... | |
| virtual bool | isSyncSlave () const |
| returns whether this device is in a slave role regarding the device synchronization More... | |
| XsDataPacket | lastAvailableLiveData () const |
| Return the last available live data. More... | |
| virtual int16_t | lastKnownRssi () const |
| Returns the last known RSSI value of the device. More... | |
| XsResultValue | lastResult () const |
| Get the result value of the last operation. More... | |
| XsString | lastResultText () const |
| Get the accompanying error text for the value returned by lastResult() It may provide situation-specific information instead. More... | |
| virtual bool | loadLogFile () |
| Load a complete logfile. More... | |
| virtual DataLogger XSNOEXPORT * | logFileInterface (std::unique_ptr< xsens::Lock > &myLock) const |
| virtual XsString | logFileName () const |
| Get the name of the log file the device is reading from. More... | |
| XsFilePos | logFileReadPosition () const |
| Get the current read position of the open log file. More... | |
| XsFilePos | logFileSize () const |
| Get the size of the log file the device is reading from. More... | |
| virtual bool | makeOperational () |
| Sets the Awinda station to operational state. More... | |
| virtual XsDevice * | master () const |
| Return the master device of this device. More... | |
| virtual int | maximumUpdateRate () const |
| Get the maximum update rate for the device. More... | |
| xsens::GuardedMutex * | mutex () const |
| virtual XsMatrix | objectAlignment () const |
| Returns the object alignment matrix of the device. More... | |
| virtual XsOperationalMode | operationalMode () const |
| Returns the operational mode. More... | |
| bool | operator< (const XsDevice &dev) const |
| Compare device ID with that of dev. More... | |
| bool | operator< (XsDeviceId const &devId) const |
| Compare device ID with devId. More... | |
| bool | operator== (const XsDevice &dev) const |
| Compare device ID with that of dev. More... | |
| bool | operator== (XsDeviceId const &devId) const |
| Compare device ID with devId. More... | |
| virtual int | packetErrorRate () const |
| Returns the packet error rate for the for the device. More... | |
| virtual XsIntArray | portConfiguration () const |
| Get the current port configuration of a device. More... | |
| virtual XsPortInfo | portInfo () const |
| The port information of the connection. More... | |
| virtual XsString | portName () const |
| The port name of the connection. More... | |
| virtual bool | powerDown () |
| Tell the device to power down completely. More... | |
| virtual XSNOEXPORT void | prepareForTermination () |
| virtual XsOutputConfigurationArray | processedOutputConfiguration () const |
| Return the full output configuration including post processing outputs. More... | |
| virtual int | radioChannel () const |
| Returns the radio channel used for wireless communication. More... | |
| virtual XSNOEXPORT bool | readEmtsAndDeviceConfiguration () |
| virtual XsByteArray | readMetaDataFromLogFile () |
| Returns internal meta-data about the recording that some devices store in the mtb logfile. More... | |
| int | recordingQueueLength () const |
| Get the number of packets currently waiting in the slow data cache for the device based. More... | |
| XsSize | refCounter () const |
| The current reference counter. More... | |
| virtual bool | rejectConnection () |
| Reject connections from the device on the parent/master device. More... | |
| virtual XsRejectReason | rejectReason () const |
| Returns the reason why a device's connection was rejected. More... | |
| virtual void | removeRef () |
| Decrease this XsDevices reference counter with 1. More... | |
| virtual bool | reopenPort (bool gotoConfig, bool skipDeviceIdCheck=false) |
| Reopens a port Uses rescan method to redetect a device. Also if USB descriptor has changed. More... | |
| virtual bool | replaceFilterProfile (XsFilterProfile const &profileCurrent, XsFilterProfile const &profileNew) |
| Replaces profileCurrent by profileNew in the device. More... | |
| virtual bool | requestBatteryLevel () |
| Request the battery level from the device. More... | |
| virtual XSNOEXPORT bool | requestUtcTime () |
| virtual bool | reset () |
| Reset the device. More... | |
| virtual XSNOEXPORT bool | reset (bool skipDeviceIdCheck) |
| virtual bool | resetOrientation (XsResetMethod resetmethod) |
| Perform an orientation reset on the device using the given resetMethod. More... | |
| virtual void | restartFilter () |
| Restart the software filter used by this device. More... | |
| virtual bool | sendCustomMessage (const XsMessage &messageSend, bool waitForResult, XsMessage &messageReceive, int timeout=0) |
| Send a custom message messageSend to the device and possibly wait for a result. More... | |
| virtual XSNOEXPORT bool | sendCustomMessage (const XsMessage &messageSend, bool waitForResult, XsXbusMessageId messageId, XsMessage &messageReceive, int timeout=0) |
| virtual bool | sendRawMessage (const XsMessage &message) |
| Send a message directly to the communicator. More... | |
| virtual bool | setAccessControlMode (XsAccessControlMode mode, const XsDeviceIdArray &initialList) |
| Set the access control mode of the master device. More... | |
| virtual bool | setBlueToothEnabled (bool enabled) |
| Enable or disable the BlueTooth radio of the device. More... | |
| virtual bool | setBusPowerEnabled (bool enabled) |
| Tell the Xbus to provide power to its child devices or not. More... | |
| virtual bool | setCanConfiguration (uint32_t config) |
| Set the CAN configuration for this device. More... | |
| virtual bool | setCanOutputConfiguration (XsCanOutputConfigurationArray &config) |
| Set the CAN output configuration for this device. More... | |
| virtual bool | setDeviceAccepted (const XsDeviceId &deviceId) |
| Accepts a device. More... | |
| virtual bool | setDeviceBufferSize (uint32_t frames) |
| Request the device to set it's internal buffer to the specified size. More... | |
| virtual bool | setDeviceOptionFlags (XsDeviceOptionFlag setFlags, XsDeviceOptionFlag clearFlags) |
| Set the device option flags. More... | |
| virtual XsResultValue | setDeviceParameter (XsDeviceParameter const ¶meter) |
| Sets the given parameter for the device. More... | |
| virtual bool | setDeviceRejected (const XsDeviceId &deviceId) |
| Rejects a device. More... | |
| virtual bool | setFixedGravityEnabled (bool enable) |
| Sets whether the fixed gravity value should be used or if it should be computed from the initialPositionLLA value. More... | |
| virtual bool | setGnssLeverArm (const XsVector &arm) |
| Sets the GNSS Lever Arm vector. More... | |
| XSNOEXPORT virtual XSDEPRECATED bool | setGnssPlatform (XsGnssPlatform gnssPlatform) |
| void | setGotoConfigOnClose (bool gotoConfigOnClose) |
| On closePort the device will go to config by default, with this function it is possible to prevent that. More... | |
| virtual bool | setGravityMagnitude (double mag) |
| Sets the 'Gravity Magnitude' of the device to the given value mag. More... | |
| virtual bool | setInitialBiasUpdateEnabled (bool enable) |
| Set if the device does gyroscope bias estimation when switching to measurement mode. More... | |
| virtual bool | setObjectAlignment (const XsMatrix &matrix) |
| Sets the object alignment of the device to the given matrix. More... | |
| virtual bool | setOperationalMode (XsOperationalMode mode) |
| Set the device in the given operational mode. More... | |
| virtual void | setOptions (XsOption enable, XsOption disable) |
| Enable and disable processing options. More... | |
| bool | setOutputConfiguration (XsOutputConfigurationArray &config) |
| Set the output configuration for this device. More... | |
| virtual XSNOEXPORT void | setPacketErrorRate (int per) |
| virtual bool | setPortConfiguration (XsIntArray &config) |
| Change the port configuration of a device. More... | |
| virtual bool | setSerialBaudRate (XsBaudRate baudrate) |
| Change the serial baudrate to baudrate. More... | |
| XSNOEXPORT void | setSkipEmtsReadOnInit (bool skip) |
| virtual bool | setStealthMode (bool enabled) |
| Enable or disable stealth mode. More... | |
| virtual bool | setStringOutputMode (uint16_t type, uint16_t period, uint16_t skipFactor) |
| Sets the string output mode for this device. More... | |
| virtual bool | setSyncStationMode (bool enabled) |
| Set the Sync Station mode of the Awinda Station device. More... | |
| virtual bool | setTransportMode (bool transportModeEnabled) |
| Enable or disable the transport mode for the device. More... | |
| virtual bool | setUpdateRate (int rate) |
| Set the legacy update rate of the device. More... | |
| virtual bool | setWirelessPriority (int priority) |
| Sets the wireless priority of the device. More... | |
| virtual bool | setXdaFilterProfile (int profileType) |
| Sets the filter profile to use for computing orientations on the host PC. More... | |
| virtual bool | setXdaFilterProfile (XsString const &profileType) |
| Sets the filter profile to use for computing orientations on the host PC. More... | |
| virtual XsString | shortProductCode () const |
| Return the shortened product code of the device suitable for display. More... | |
| virtual bool | startRecording () |
| Start recording incoming data. More... | |
| virtual bool | stealthMode () const |
| Return the state of the stealth mode setting. More... | |
| virtual bool | stopRecording () |
| Stop recording incoming data. More... | |
| virtual XsDevice * | subDevice (int subDeviceId) const |
| Returns the sub-device at index index. More... | |
| virtual int | subDeviceCount () const |
| Returns the number of sub-devices of this device. More... | |
| virtual XsStringOutputTypeArray | supportedStringOutputTypes () const |
| Ask the device for its supported string output types. More... | |
| virtual XsSyncSettingArray | supportedSyncSettings () const |
| Get all supported synchronization settings available on the device. More... | |
| virtual XsSyncRole | syncRole () const |
| Returns the synchronization role of the device. More... | |
| XsDataPacket | takeFirstDataPacketInQueue () |
| Return the first packet in the packet queue or an empty packet if the queue is empty. More... | |
| template<typename T > | |
| XSNOEXPORT T * | toType () |
| virtual bool | transportMode () |
| Returns the current state of the transport mode feature. More... | |
| virtual bool | triggerStartRecording () |
| Start recording incoming data through generating a virtual input trigger. More... | |
| virtual bool | updateCachedDeviceInformation () |
| Updates the cached device information for all devices connected to this port. More... | |
| virtual XsResultValue | updatePortInfo (XsPortInfo const &newInfo) |
| Update the connection information, this is only useful for devices communicating over a dynamic link such as a TCP/IP connection. More... | |
| virtual int | updateRate () const |
| Get the legacy update rate of the device. More... | |
| virtual int | updateRateForProcessedDataIdentifier (XsDataIdentifier dataType) const |
| Returns the currently configured update rate for the supplied dataType. More... | |
| virtual bool | usesLegacyDeviceMode () const |
| Returns whether the device uses legacy device mode. More... | |
| virtual void | waitForAllDevicesInitialized () |
| Wait until are known devices are initialized. More... | |
| virtual XSNOEXPORT bool | waitForCustomMessage (std::shared_ptr< ReplyObject > reply, XsMessage &messageReceive, int timeout) |
| virtual XSNOEXPORT bool | waitForCustomMessage (XsXbusMessageId messageId, XsMessage &messageReceive, int timeout=0) |
| void | waitForLoadLogFileDone () const |
| Wait for the file operation started by loadLogFile to complete. More... | |
| virtual int | wirelessPriority () const |
| Returns the wireless priority of the device. More... | |
| virtual XSNOEXPORT bool | writeEmtsPage (uint8_t const *data, int pageNr, int bankNr) |
| virtual XsFilterProfile | xdaFilterProfile () const |
| Gets the filter profile in use for computing orientations on the host PC. More... | |
| virtual XSNOEXPORT | ~XsDevice () |
| Destroy the device. More... | |
| virtual XSNOEXPORT void | onMessageSent (const XsMessage &message) |
| virtual XSNOEXPORT void | onMessageReceived (const XsMessage &message) |
| virtual XSNOEXPORT void | onMessageDetected2 (XsProtocolType type, const XsByteArray &rawMessage) |
| virtual XSNOEXPORT void | onSessionRestarted () |
| virtual XSNOEXPORT void | onConnectionLost () |
| virtual XSNOEXPORT void | onEofReached () |
| virtual XSNOEXPORT void | onWirelessConnectionLost () |
| virtual XSNOEXPORT int64_t | deviceRecordingBufferItemCount (int64_t &lastCompletePacketId) const |
| Public Member Functions inherited from CallbackManagerXda | |
| void | addCallbackHandler (XsCallbackPlainC *cb, bool chain=true) |
| Add a handler to the list. More... | |
| void | addChainedManager (CallbackManagerXda *cm) |
| Add a chained manager to the list. More... | |
| CallbackManagerXda () | |
| Constructor, initializes the callback list. More... | |
| void | clearCallbackHandlers (bool chain=true) |
| Clear the callback list. More... | |
| void | clearChainedManagers () |
| Clear the chained manager list. More... | |
| void | copyCallbackHandlersFrom (CallbackManagerXda *cm, bool chain=true) |
| Copy all handlers from cm into this manager. More... | |
| void | copyCallbackHandlersTo (CallbackManagerXda *cm, bool chain=true) |
| Copy all handlers from this manager into cm. More... | |
| void | onAllBufferedDataAvailable (XsDevicePtrArray *devs, const XsDataPacketPtrArray *packets) override |
| The XsCallback::onAllBufferedDataAvailable() callback forwarding function. More... | |
| void | onAllDataAvailable (XsDevicePtrArray *devs, const XsDataPacketPtrArray *packets) override |
| The XsCallback::onAllDataAvailable() callback forwarding function. More... | |
| void | onAllLiveDataAvailable (XsDevicePtrArray *devs, const XsDataPacketPtrArray *packets) override |
| The XsCallback::onAllLiveDataAvailable() callback forwarding function. More... | |
| void | onAllRecordedDataAvailable (XsDevicePtrArray *devs, const XsDataPacketPtrArray *packets) override |
| The XsCallback::onAllRecordedDataAvailable() callback forwarding function. More... | |
| void | onBufferedDataAvailable (XsDevice *dev, const XsDataPacket *data) override |
| The XsCallback::onBufferedDataAvailable() callback forwarding function. More... | |
| void | onConnectivityChanged (XsDevice *dev, XsConnectivityState newState) override |
| The XsCallback::onConnectivityChanged() callback forwarding function. More... | |
| void | onDataAvailable (XsDevice *dev, const XsDataPacket *data) override |
| The XsCallback::onDataAvailable() callback forwarding function. More... | |
| void | onDataUnavailable (XsDevice *dev, int64_t packetId) override |
| The XsCallback::onDataUnavailable() callback forwarding function. More... | |
| void | onDeviceStateChanged (XsDevice *dev, XsDeviceState newState, XsDeviceState oldState) override |
| The XsCallback::onDeviceStateChanged() callback forwarding function. More... | |
| void | onError (XsDevice *dev, XsResultValue error) override |
| The Xscallback::onError() callback forwarding function. More... | |
| void | onInfoResponse (XsDevice *dev, XsInfoRequest request) override |
| The XsCallback::onInfoResponse() callback forwarding function. More... | |
| void | onLiveDataAvailable (XsDevice *dev, const XsDataPacket *packet) override |
| The XsCallback::onLiveDataAvailable() callback forwarding function. More... | |
| void | onMessageDetected (XsDevice *dev, XsProtocolType type, XsByteArray const *rawMessage) override |
| The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More... | |
| void | onMessageReceivedFromDevice (XsDevice *dev, XsMessage const *message) override |
| The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More... | |
| void | onMessageSentToDevice (XsDevice *dev, XsMessage const *message) override |
| The Xscallback::onMessageSentToDevice() callback forwarding function. More... | |
| void | onMissedPackets (XsDevice *dev, int count, int first, int last) override |
| The XsCallback::onMissedPackets() callback forwarding function. More... | |
| void | onNonDataMessage (XsDevice *dev, XsMessage const *message) override |
| The Xscallback::onNonDataMessage() callback forwarding function. More... | |
| void | onProgressUpdated (XsDevice *dev, int current, int total, const XsString *identifier) override |
| The XsCallback::onProgressUpdated() callback forwarding function. More... | |
| void | onRecordedDataAvailable (XsDevice *dev, const XsDataPacket *data) override |
| The XsCallback::onRecordedDataAvailable() callback forwarding function. More... | |
| void | onRestoreCommunication (const XsString *portName, XsResultValue result) override |
| The Xscallback::onRestoreCommunication callback forwarding function. More... | |
| void | onTransmissionRequest (int channelId, const XsByteArray *data) override |
| void | onWakeupReceived (XsDevice *dev) override |
| The XsCallback::onWakeupReceived() callback forwarding function. More... | |
| int | onWriteMessageToLogFile (XsDevice *dev, const XsMessage *message) override |
| The XsCallback::onWriteMessageToLogFile() callback forwarding function. More... | |
| void | removeCallbackHandler (XsCallbackPlainC *cb, bool chain=true) |
| Remove a handler from the list. More... | |
| void | removeChainedManager (CallbackManagerXda *cm) |
| Remove achained manager from the list. More... | |
| ~CallbackManagerXda () | |
| Destructor, clears the callback list. More... | |
Static Public Member Functions | |
| static XsDevice * | constructAsMaster (Communicator *comm) |
| Construct a device as a master. More... | |
| Static Public Member Functions inherited from MtDevice | |
| static int | calcFrequency (int baseFrequency, uint16_t skipFactor) |
| Calculates the frequency. More... | |
| Static Public Member Functions inherited from XsDevice | |
| static bool | isCompatibleSyncSetting (XsDeviceId const &deviceId, XsSyncSetting const &setting1, XsSyncSetting const &setting2) |
| Determines whether setting1 is compatible with setting2 for deviceId deviceId. More... | |
| static XsSyncSettingArray | supportedSyncSettings (XsDeviceId const &deviceId) |
| Return the supported synchronization settings for a specified deviceId or deviceId mask. More... | |
| static bool | supportsSyncSettings (XsDeviceId const &deviceId) |
| Determines whether the device specified by deviceId supports sync settings. More... | |
| static unsigned int | syncSettingsTimeResolutionInMicroSeconds (XsDeviceId const &deviceId) |
Protected Member Functions | |
| virtual int | calculateUpdateRate (XsDataIdentifier dataType) const |
| virtual int | calculateUpdateRateImp (XsDataIdentifier dataType, const XsOutputConfigurationArray &configurations) const |
| virtual bool | deviceUsesOnBoardFiltering () |
| void | fetchAvailableHardwareScenarios () override |
| Fetches available hardware scenarios. More... | |
| virtual BaseFrequencyResult | getBaseFrequencyInternal (XsDataIdentifier dataType=XDI_None) const |
| An internal function that gets the base frequency. More... | |
| virtual bool | hasIccSupport () const |
| bool | resetRemovesPort () const override |
| virtual uint8_t | syncLine (const XsSyncSetting &setting) const |
| Returns the sync line for a generic mti device. More... | |
| virtual XsSyncSettingArray | syncSettingsFromBuffer (const uint8_t *buffer) const |
| Create an XsSyncSttingsArray from the given buffer of sync configuration data. More... | |
| virtual XsSyncLine | syncSettingsLine (const uint8_t *buff, XsSize offset) const |
| Returns the sync settings line for a generic mti device. More... | |
| Protected Member Functions inherited from MtDeviceEx | |
| MtDeviceEx (Communicator *comm) | |
| Construct a device using comm for communication. More... | |
| MtDeviceEx (XsDevice *master, const XsDeviceId &childDeviceId) | |
| Construct a device with device id childDeviceId for master master. More... | |
| Protected Member Functions inherited from MtDevice | |
| MtDevice (Communicator *comm) | |
| Constructs a standalone MtDevice based on comm. More... | |
| MtDevice (XsDevice *, const XsDeviceId &) | |
| Constructs a standalone MtDevice based on master and childDeviceId. More... | |
| MtDevice (XsDeviceId const &id) | |
| Constructs a standalone MtDevice with device Id id. More... | |
| XsFilterProfileArray | readFilterProfilesFromDevice () const |
| Request the filter profiles headers from the hardware device and returns a vector with the found profiles. the order in the output vector is the same as the order in the hardware device. More... | |
| uint32_t | syncTicksToUs (uint32_t ticks) const |
| Convert mt sync ticks to microseconds. More... | |
| virtual void | updateFilterProfiles () |
| Updates the scenarios. More... | |
| uint32_t | usToSyncTicks (uint32_t us) const |
| Convert microseconds to mt sync ticks. More... | |
| Protected Member Functions inherited from XsDeviceEx | |
| XsDeviceEx (Communicator *comm) | |
| Construct a device using comm for communication. More... | |
| XsDeviceEx (XsDevice *master, const XsDeviceId &childDeviceId) | |
| Construct a device using a device id childDeviceId for master masterDevice. More... | |
| XsDeviceEx (XsDeviceId const &id) | |
| Construct a device using a device id id. More... | |
| virtual | ~XsDeviceEx () |
| Destroy the device. More... | |
| Protected Member Functions inherited from XsDevice | |
| virtual void | clearExternalPacketCaches () |
| virtual XsDevice const * | firstChild () const |
| virtual bool | interpolateMissingData (XsDataPacket const &pack, XsDataPacket const &prev, std::function< void(XsDataPacket *)> packetHandler) |
| void | retainPacket (XsDataPacket const &pack) |
| void | setCommunicator (Communicator *comm) |
| virtual void | setRecordingStartFrame (uint16_t startFrame) |
| virtual void | setRecordingStopFrame (uint16_t stopFrame) |
| virtual bool | shouldDataMsgBeRecorded (const XsMessage &msg) const |
| virtual bool | shouldDoRecordedCallback (XsDataPacket const &packet) const |
| bool | skipEmtsReadOnInit () const |
| void | updateLastAvailableLiveDataCache (XsDataPacket const &pack) |
| void | useLogInterface (DataLogger *logger) |
| Uses log interface for a given data logger. More... | |
| XSENS_DISABLE_COPY (XsDevice) | |
| void | extractFirmwareVersion (XsMessage const &message) |
| virtual void | setDeviceState (XsDeviceState state) |
| virtual void | updateDeviceState (XsDeviceState state) |
| void | removeIfNoRefs () |
| XsDevice (XsDeviceId const &id) | |
| Construct an empty device with device id id. More... | |
| XsDevice (Communicator *comm) | |
| Construct a device using inf for communication. More... | |
| XsDevice (XsDevice *master, const XsDeviceId &childDeviceId) | |
| Construct a device with device id childDeviceId for master masterDevice. More... | |
| const XsDeviceConfiguration & | deviceConfig () const |
| void | setDeviceId (const XsDeviceId &deviceId) |
| XsOutputConfiguration | findConfiguration (XsDataIdentifier dataType) const |
| virtual void | writeMessageToLogFile (const XsMessage &message) |
| virtual void | writeFilterStateToFile () |
| virtual void | processLivePacket (XsDataPacket &pack) |
| virtual void | processBufferedPacket (XsDataPacket &pack) |
| virtual bool | readDeviceConfiguration () |
| XsDataPacket & | latestLivePacket () |
| XsDataPacket & | latestBufferedPacket () |
| XsDataPacket const & | latestLivePacketConst () const |
| XsDataPacket const & | latestBufferedPacketConst () const |
| virtual int64_t | latestLivePacketId () const |
| virtual int64_t | latestBufferedPacketId () const |
| virtual void | resetPacketStamping () |
| void | updateConnectivityState (XsConnectivityState newState) |
| virtual XsConnectivityState | defaultChildConnectivityState () const |
| void | setInitialized (bool initialized) |
| Set the initialized state to initialized. More... | |
| void | setTerminationPrepared (bool prepared) NOEXCEPT |
| Set the "termination prepared" state to prepared. More... | |
| virtual bool | shouldWriteMessageToLogFile (const XsMessage &msg) const |
| virtual bool | shouldWriteMessageToLogFile (const XsDevice *dev, const XsMessage &message) const |
| bool | doTransaction (const XsMessage &snd) const |
| bool | doTransaction (const XsMessage &snd, XsMessage &rcv) const |
| bool | doTransaction (const XsMessage &snd, XsMessage &rcv, uint32_t timeout) const |
| bool | doTransaction (const XsMessage &snd, uint32_t timeout) const |
| bool | justWriteSetting () const |
| virtual void | clearProcessors () |
| virtual void | clearDataCache () |
| virtual void | insertIntoDataCache (int64_t pid, XsDataPacket *pack) |
| virtual void | reinitializeProcessors () |
| virtual bool | expectingRetransmissionForPacket (int64_t packetId) const |
| virtual bool | isSoftwareFilteringEnabled () const |
| virtual bool | isSoftwareCalibrationEnabled () const |
| virtual void | setStartRecordingPacketId (int64_t startFrame) |
| virtual void | setStopRecordingPacketId (int64_t stopFrame) |
| virtual void | endRecordingStream () |
| virtual void | clearCacheToRecordingStart () |
Additional Inherited Members | |
| Static Protected Member Functions inherited from MtDevice | |
| static XsString | stripProductCode (const XsString &code) |
| Helper function to strip the hardware type from the product code. More... | |
| Static Protected Member Functions inherited from XsDevice | |
| static bool | checkDataEnabled (XsDataIdentifier dataType, XsOutputConfigurationArray const &configurations) |
| static bool | packetContainsRetransmission (XsDataPacket const &pack) |
| Protected Attributes inherited from MtDevice | |
| XsFilterProfile | m_hardwareFilterProfile |
| A hardware filter profile. More... | |
| XsFilterProfileArray | m_hardwareFilterProfiles |
| A vector of hardware filter profiles. More... | |
| Protected Attributes inherited from XsDevice | |
| Communicator * | m_communicator |
| A communicator. More... | |
| XsDeviceConfiguration | m_config |
| A device configuration. More... | |
| XsConnectivityState | m_connectivity |
| A current device connectivity state. More... | |
| DataPacketCache | m_dataCache |
| A data cache. More... | |
| XsDeviceId | m_deviceId |
| An ID of the device. More... | |
| xsens::GuardedMutex | m_deviceMutex |
| The mutex for guarding state changes of the device. More... | |
| XsMessage | m_emtsBlob |
| An EMTS blob from device. More... | |
| XsVersion | m_firmwareVersion |
| A firmware version. More... | |
| bool | m_gotoConfigOnClose |
| Go to confing on close boolean variable. More... | |
| bool | m_isInitialized |
| Is intialized boolean variable. More... | |
| bool | m_justWriteSetting |
| Just write setting boolean variable. More... | |
| XsDataPacket * | m_lastAvailableLiveDataCache |
| A last available live data cache. More... | |
| XsTimeStamp | m_lastDataOkStamp |
| A time stamp for an OK last data. More... | |
| LastResultManager | m_lastResult |
| The last result of an operation. More... | |
| XsDataPacket * | m_latestBufferedPacket |
| A copy of the latest ready recording packet. This is the last packet that was popped off the front of m_dataCache. Use latestBufferedPacket() to access. More... | |
| XsDataPacket * | m_latestLivePacket |
| A copy of the latest ready live packet. This is the packet with the highest 64-bit sample counter so far. Use latestLivePacket() to access. More... | |
| std::deque< XsDataPacket * > | m_linearPacketCache |
| A linear data packet cache. More... | |
| DataLogger * | m_logFileInterface |
| A data logger for a file interface. More... | |
| xsens::Mutex | m_logFileMutex |
| The mutex for guarding access to the log file. More... | |
| XsDevice * | m_master |
| A device object. More... | |
| XsOption | m_options |
| The options. More... | |
| XsOutputConfigurationArray | m_outputConfiguration |
| A devices output configuration. More... | |
| PacketStamper | m_packetStamper |
| A packet stamper. More... | |
| volatile std::atomic_int | m_refCounter |
| A reference counter. More... | |
| bool | m_skipEmtsReadOnInit |
| Skip EMTS read on init boolean variable. More... | |
| int64_t | m_startRecordingPacketId |
| The ID of the first packet that should be / was recorded. More... | |
| XsDeviceState | m_state |
| A current device state. More... | |
| int64_t | m_stoppedRecordingPacketId |
| The ID of the last packet that was recorded. Remains valid after Flushing has ended, until a new recording is started. More... | |
| int64_t | m_stopRecordingPacketId |
| The ID of the last packet that should be / was recorded. Only valid in Recording/Flushing states. More... | |
| bool | m_terminationPrepared |
| Termination prepared boolean variable. More... | |
| DebugFileType * | m_toaDumpFile |
| To a dump file. More... | |
| int64_t | m_unavailableDataBoundary |
| A packet ID of the last sample we know to be unavailable. More... | |
| bool | m_writeToFile |
| Write to file boolean variable. More... | |
Detailed Description
The generic class for MTi devices.
Definition at line 74 of file mtibasedevice.h.
Constructor & Destructor Documentation
◆ MtiBaseDevice() [1/2]
|
explicit |
Constructs a device.
- Parameters
-
comm The communicator to construct with
Definition at line 85 of file mtibasedevice.cpp.
◆ MtiBaseDevice() [2/2]
|
explicit |
Constructs a child device for a master device.
- Parameters
-
master The master device to construct for
Definition at line 93 of file mtibasedevice.cpp.
◆ ~MtiBaseDevice()
|
virtual |
Definition at line 98 of file mtibasedevice.cpp.
Member Function Documentation
◆ alignmentRotationMatrix()
|
overridevirtual |
Retrieve the alignment rotation matrix to rotate S to the chosen frame S'.
Reimplemented from XsDevice.
Definition at line 181 of file mtibasedevice.cpp.
◆ alignmentRotationQuaternion()
|
overridevirtual |
Retrieve the alignment rotation quaternion.
Reimplemented from XsDevice.
Definition at line 159 of file mtibasedevice.cpp.
◆ calculateUpdateRate()
|
protectedvirtual |
- Returns
- the update rate for the specified XsDataIdentifier or 0 if no such data available
This function only looks at the output configuration configured in the device, not XDA calculated data
- Parameters
-
dataType The data identifier to use
- See also
- calculateUpdateRateImp
Definition at line 335 of file mtibasedevice.cpp.
◆ calculateUpdateRateImp()
|
protectedvirtual |
- Returns
- the update rate for the specified XsDataIdentifier in the configuration list or 0 if no such data available
- Parameters
-
dataType The data identifier for which the update rate is requested configurations The configuration list in which the specified dataType must be looked up
Definition at line 299 of file mtibasedevice.cpp.
◆ constructAsMaster()
|
inlinestatic |
Construct a device as a master.
- Parameters
-
comm The communicator to use
- Returns
- The constructed master device
Definition at line 81 of file mtibasedevice.h.
◆ deviceUsesOnBoardFiltering()
|
protectedvirtual |
- Returns
- True if device uses on board filtering
Definition at line 535 of file mtibasedevice.cpp.
◆ errorMode()
|
overridevirtual |
Returns the error mode of the device.
Reimplemented from MtDevice.
Definition at line 462 of file mtibasedevice.cpp.
◆ fetchAvailableHardwareScenarios()
|
overrideprotectedvirtual |
Fetches available hardware scenarios.
Reimplemented from MtDevice.
Definition at line 631 of file mtibasedevice.cpp.
◆ getBaseFrequency()
|
overridevirtual |
- Returns
- the base update rate (Hz) corresponding to the dataType. Returns 0 if no update rate is available
- Parameters
-
dataType The data identifier to use
Reimplemented from MtDevice.
Definition at line 343 of file mtibasedevice.cpp.
◆ getBaseFrequencyInternal()
|
inlineprotectedvirtual |
An internal function that gets the base frequency.
- Parameters
-
dataType The Data identifier to use
- Returns
- The base frequency result
Reimplemented in Mti6X0Device, Mti8X0Device, Mti3X0Device, MtiXDevice, MTi7_MTi8Device, DotDevice, MtiX00Device, MtiX0Device, and MtigDevice.
Definition at line 145 of file mtibasedevice.h.
◆ hasIccSupport()
|
protectedvirtual |
- Returns
- True if this device has an ICC support
Reimplemented in Mti6X0Device, Mti8X0Device, Mti3X0Device, MtiXDevice, and MTi7_MTi8Device.
Definition at line 626 of file mtibasedevice.cpp.
◆ outputConfiguration()
|
virtual |
Returns the currently configured output of the device.
Reimplemented from MtDevice.
Definition at line 111 of file mtibasedevice.cpp.
◆ representativeMotionState()
|
overridevirtual |
- Returns
- True if the representative motion is running
Reimplemented from XsDevice.
Definition at line 562 of file mtibasedevice.cpp.
◆ resetRemovesPort()
|
overrideprotectedvirtual |
Reimplemented from XsDevice.
Definition at line 486 of file mtibasedevice.cpp.
◆ rs485TransmissionDelay()
|
virtual |
Returns the transmission delay used for RS485 transmissions.
Reimplemented from MtDevice.
Definition at line 469 of file mtibasedevice.cpp.
◆ setAlignmentRotationMatrix()
|
overridevirtual |
Set an arbitrary alignment rotation matrix Use to rotate either L to the chosen frame L' or S to the chosen frame S'.
Reimplemented from XsDevice.
Definition at line 174 of file mtibasedevice.cpp.
◆ setAlignmentRotationQuaternion()
|
overridevirtual |
Set an arbitrary alignment rotation matrix Use to rotate either L to the chosen frame L' or S to the chosen frame S'.
Reimplemented from XsDevice.
Definition at line 147 of file mtibasedevice.cpp.
◆ setErrorMode()
|
overridevirtual |
Sets the error mode of the device.
Reimplemented from MtDevice.
Definition at line 453 of file mtibasedevice.cpp.
◆ setHeadingOffset()
|
virtual |
Set the 'heading offset' setting of the device.
Reimplemented from XsDevice.
Definition at line 104 of file mtibasedevice.cpp.
◆ setInitialPositionLLA()
|
virtual |
Sets the 'Latitude Longitude Altitude' setting of the device to the given vector.
Reimplemented from MtDevice.
Definition at line 383 of file mtibasedevice.cpp.
◆ setNoRotation()
|
virtual |
Set the no rotation period to duration.
Reimplemented from MtDevice.
Definition at line 376 of file mtibasedevice.cpp.
◆ setOutputConfigurationInternal()
|
overridevirtual |
Set the output configuration for this device.
- Parameters
-
config The desired output configuration
- Returns
- XRV_OK on success
- See also
- XsResultValue
Reimplemented from XsDevice.
Definition at line 137 of file mtibasedevice.cpp.
◆ setRs485TransmissionDelay()
|
virtual |
Set the transmission delay used for RS485 transmissions.
Reimplemented from MtDevice.
Definition at line 479 of file mtibasedevice.cpp.
◆ setSyncSettings()
|
overridevirtual |
Set the synchronization settings of the device.
Reimplemented from XsDevice.
Definition at line 190 of file mtibasedevice.cpp.
◆ setUtcTime()
|
virtual |
Sets the 'UTC Time' setting of the device to the given time.
Reimplemented from XsDevice.
Definition at line 428 of file mtibasedevice.cpp.
◆ startRepresentativeMotion()
|
overridevirtual |
Starts the representative motion.
- Returns
- True if successful
Reimplemented from XsDevice.
Definition at line 543 of file mtibasedevice.cpp.
◆ stopRepresentativeMotion()
|
overridevirtual |
Stops the representative motion.
- Returns
- The results of the representative motion
Reimplemented from XsDevice.
Definition at line 585 of file mtibasedevice.cpp.
◆ storeIccResults()
|
overridevirtual |
Stores the ICC results.
- Returns
- True if successful
Reimplemented from XsDevice.
Definition at line 612 of file mtibasedevice.cpp.
◆ supportedUpdateRates()
|
overridevirtual |
Ask the device for its supported update rates for the given dataType.
Reimplemented from XsDevice.
Definition at line 350 of file mtibasedevice.cpp.
◆ syncLine()
|
protectedvirtual |
Returns the sync line for a generic mti device.
Reimplemented in Mti6X0Device, and Mti8X0Device.
Definition at line 514 of file mtibasedevice.cpp.
◆ syncSettings()
|
overridevirtual |
Get all the current synchronization settings of the device.
Reimplemented from XsDevice.
Definition at line 249 of file mtibasedevice.cpp.
◆ syncSettingsFromBuffer()
|
protectedvirtual |
Create an XsSyncSttingsArray from the given buffer of sync configuration data.
Definition at line 260 of file mtibasedevice.cpp.
◆ syncSettingsLine()
|
protectedvirtual |
Returns the sync settings line for a generic mti device.
Definition at line 504 of file mtibasedevice.cpp.
◆ utcTime()
|
virtual |
Gets the 'UTC Time' setting of the device.
Reimplemented from XsDevice.
Definition at line 400 of file mtibasedevice.cpp.
The documentation for this class was generated from the following files:
