A base struct for a communication interface. More...

#include <communicator.h>

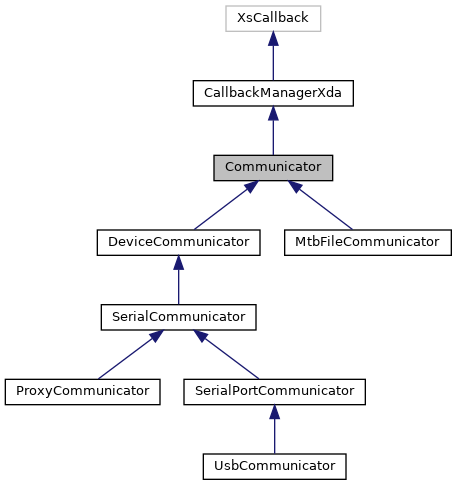

Inheritance diagram for Communicator:

[legend]

Classes
struct	Deleter
	The communicator deleter. More...

Public Types
template<typename T >
using	UniquePtr = std::unique_ptr< T, Deleter >
	Initializes of UniquePtr<T> More...

Public Member Functions
virtual void	abortLoadLogFile ()=0
	Aborts loading a logfile. More...

virtual void	addProtocolHandler (IProtocolHandler *handler)
	Adds a protocol handler. More...

std::shared_ptr< ReplyObject >	addReplyObject (ReplyObject *obj)
	Add a custom ReplyObject. More...

std::shared_ptr< ReplyObject >	addReplyObject (uint8_t mid)
	Add a MidReplyObject. More...

std::shared_ptr< ReplyObject >	addReplyObject (uint8_t mid, XsSize offset, XsSize size, uint8_t const *data)
	Add a MidAndDataReplyObject. More...

virtual bool	allowReprocessing () const

XsSize	childDeviceCount () const

virtual void	closeLogFile ()=0
	Close the log file. More...

virtual void	closePort ()=0
	Closes the open port. More...

	Communicator (void)
	Constructor, creates some management objects and clears the rest by calling initialize() More...

uint32_t	defaultTimeout () const

void	destroy ()
	Destroys the communicator. More...

bool	doTransaction (const XsMessage &message)
	Write a message and await the reply. More...

bool	doTransaction (const XsMessage &message, uint32_t timeout)
	Write a message and await the reply. More...

bool	doTransaction (const XsMessage &message, XsMessage &rcv)
	Write a message and await the reply. More...

virtual bool	doTransaction (const XsMessage &message, XsMessage &rcv, uint32_t timeout)=0
	Write a message and await the reply. More...

virtual void	flushPort ()=0
	Flushes all remaining data on the open port. More...

virtual XsResultValue	getDeviceId ()=0
	Request a device to get device ID. More...

virtual XsResultValue	gotoConfig (bool detectRs485=false)=0
	Request a device to go to config mode. More...

virtual XsResultValue	gotoMeasurement ()=0
	Request a device to go to measurement mode. More...

virtual void	handleMessage (const XsMessage &message)
	Handles a message. More...

bool	hasProtocol (XsProtocolType type) const

virtual bool	isDockedAt (Communicator *other) const =0
	Returns true if the other device is docked at this device. More...

virtual bool	isLoadLogFileInProgress () const

virtual bool	isPortOpen () const =0

virtual bool	isReadingFromFile () const =0

XsResultValue	lastResult () const
	Get the result value of the last operation. More...

XsString	lastResultText () const
	Get the accompanying error text for the value returned by lastResult() It may provide situation-specific information instead. More...

virtual void	loadLogFile (XsDevice *device)=0
	Load a complete logfile. More...

virtual XsTimeStamp	logFileDate () const =0

virtual XsString	logFileName () const =0

virtual XsFilePos	logFileReadPosition () const =0

virtual XsFilePos	logFileSize () const =0

XsDeviceId	masterDeviceId () const

virtual bool	openLogFile (const XsString &filename)=0
	Open the log file `. More...

virtual bool	openPort (const XsPortInfo &portInfo, OpenPortStage stage=OPS_Full, bool detectRs485=false)=0
	Opens a port. More...

virtual XsPortInfo	portInfo () const =0

virtual XsMessage	readMessage (uint8_t msgId=0)=0
	Read a message from the open file. More...

virtual XsMessage	readMessageFromStartOfFile (uint8_t msgId, int maxMsgs=0)=0
	Read a message from the start of the open file. More...

virtual std::deque< XsMessage >	readMessagesFromStartOfFile (uint8_t msgId, int maxMsgs=0)=0
	Read multiple similar messages from the start of the open file. More...

void	removeProtocolHandler (XsProtocolType type)
	Removes a protocol handler. More...

virtual bool	reopenPort (OpenPortStage stage=OPS_Full, bool skipDeviceIdCheck=false)=0
	Reopens the port. More...

virtual void	resetLogFileReadPosition (void)=0
	Resets the logfile read position. More...

bool	sanityCheck (XsMessage const &msg) const
	Do a sanity check on a potential message. More...

virtual void	scheduleClosePort ()
	Schedules to close the open port. More...

virtual void	setCredentials (XsString const &id, XsString const &key)
	Set the credentials required for using the device. More...

void	setDefaultTimeout (uint32_t timeout)
	Sets a default timeout. More...

virtual void	setGotoConfigTimeout (uint32_t timeout)=0
	Set the timeout for the gotoConfig function. More...

virtual void	setKeepAlive (bool enable)=0
	Either disable or enable (default) the keep alive mechanism (if supported by the device) More...

void	setMasterDevice (XsDevice *masterDevice)
	Sets a master device. More...

virtual void	waitForLastTaskCompletion ()=0
	Wait for the last processing task to complete in the threadpool. More...

virtual bool	writeMessage (const XsMessage &message)=0
	Write message to the device. More...

Public Member Functions inherited from CallbackManagerXda
void	addCallbackHandler (XsCallbackPlainC *cb, bool chain=true)
	Add a handler to the list. More...

void	addChainedManager (CallbackManagerXda *cm)
	Add a chained manager to the list. More...

	CallbackManagerXda ()
	Constructor, initializes the callback list. More...

void	clearCallbackHandlers (bool chain=true)
	Clear the callback list. More...

void	clearChainedManagers ()
	Clear the chained manager list. More...

void	copyCallbackHandlersFrom (CallbackManagerXda *cm, bool chain=true)
	Copy all handlers from cm into this manager. More...

void	copyCallbackHandlersTo (CallbackManagerXda *cm, bool chain=true)
	Copy all handlers from this manager into cm. More...

void	onAllBufferedDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllBufferedDataAvailable() callback forwarding function. More...

void	onAllDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllDataAvailable() callback forwarding function. More...

void	onAllLiveDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllLiveDataAvailable() callback forwarding function. More...

void	onAllRecordedDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllRecordedDataAvailable() callback forwarding function. More...

void	onBufferedDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onBufferedDataAvailable() callback forwarding function. More...

void	onConnectivityChanged (XsDevice *dev, XsConnectivityState newState) override
	The XsCallback::onConnectivityChanged() callback forwarding function. More...

void	onDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onDataAvailable() callback forwarding function. More...

void	onDataUnavailable (XsDevice *dev, int64_t packetId) override
	The XsCallback::onDataUnavailable() callback forwarding function. More...

void	onDeviceStateChanged (XsDevice *dev, XsDeviceState newState, XsDeviceState oldState) override
	The XsCallback::onDeviceStateChanged() callback forwarding function. More...

void	onError (XsDevice *dev, XsResultValue error) override
	The Xscallback::onError() callback forwarding function. More...

void	onInfoResponse (XsDevice *dev, XsInfoRequest request) override
	The XsCallback::onInfoResponse() callback forwarding function. More...

void	onLiveDataAvailable (XsDevice dev, const XsDataPacket packet) override
	The XsCallback::onLiveDataAvailable() callback forwarding function. More...

void	onMessageDetected (XsDevice dev, XsProtocolType type, XsByteArray const rawMessage) override
	The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More...

void	onMessageReceivedFromDevice (XsDevice dev, XsMessage const message) override
	The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More...

void	onMessageSentToDevice (XsDevice dev, XsMessage const message) override
	The Xscallback::onMessageSentToDevice() callback forwarding function. More...

void	onMissedPackets (XsDevice *dev, int count, int first, int last) override
	The XsCallback::onMissedPackets() callback forwarding function. More...

void	onNonDataMessage (XsDevice dev, XsMessage const message) override
	The Xscallback::onNonDataMessage() callback forwarding function. More...

void	onProgressUpdated (XsDevice dev, int current, int total, const XsString identifier) override
	The XsCallback::onProgressUpdated() callback forwarding function. More...

void	onRecordedDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onRecordedDataAvailable() callback forwarding function. More...

void	onRestoreCommunication (const XsString *portName, XsResultValue result) override
	The Xscallback::onRestoreCommunication callback forwarding function. More...

void	onTransmissionRequest (int channelId, const XsByteArray *data) override

void	onWakeupReceived (XsDevice *dev) override
	The XsCallback::onWakeupReceived() callback forwarding function. More...

int	onWriteMessageToLogFile (XsDevice dev, const XsMessage message) override
	The XsCallback::onWriteMessageToLogFile() callback forwarding function. More...

void	removeCallbackHandler (XsCallbackPlainC *cb, bool chain=true)
	Remove a handler from the list. More...

void	removeChainedManager (CallbackManagerXda *cm)
	Remove achained manager from the list. More...

	~CallbackManagerXda ()
	Destructor, clears the callback list. More...

Static Public Member Functions
static int	configurationMessageSearchLimit ()

template<typename T >
static UniquePtr< T >	createUniquePtr ()
	Constructs a new Communicator of type T and returns it as a UniquePtr<T> More...

template<typename T >
static UniquePtr< T >	createUniquePtr (T *communicator)
	Creates a UniquePtr<T> from a Communicator*. More...

Protected Member Functions
XsDevice *	masterDevice () const

virtual void	prepareForDestruction ()
	Prepares communicator for destruction. More...

std::shared_ptr< ProtocolManager >	protocolManager () const

XsResultValue	setAndReturnLastResult (XsResultValue lastResult, XsString const &text=XsString()) const
	Sets the last result and returns it. More...

void	setLastResult (XsResultValue lastResult, XsString const &text=XsString()) const
	Sets the last result. More...

void	setMasterDeviceId (const XsDeviceId &deviceId)
	Sets a master device ID. More...

virtual	~Communicator ()
	Destructor, waits for the last scheduled task to complete and then cleans up the object by calling clear() More...

Protected Attributes
uint32_t	m_defaultTimeout
	A default timeout variable. More...

xsens::Mutex	m_handleMux
	A handle mutex. More...

XsResultValue	m_lastResult
	A last result variable. More...

XsString	m_lastResultText
	A last result string. More...

XsDeviceId	m_masterDeviceId
	A master device ID. More...

XsDevice *	m_masterInfo
	A master device object. More...

bool	m_preparedForDestruction
	Prepared for destruction boolean variable. More...

std::shared_ptr< ProtocolManager >	m_protocolManager
	A shared pointer to protocl manager. More...

std::unique_ptr< xsens::ReplyMonitor >	m_replyMonitor
	An unique pointer to a reply monitor. More...

Detailed Description

A base struct for a communication interface.

Definition at line 95 of file communicator.h.

Member Typedef Documentation

◆ UniquePtr

template<typename T >

using Communicator::UniquePtr = std::unique_ptr<T, Deleter>

Initializes of UniquePtr<T>

Definition at line 113 of file communicator.h.

Constructor & Destructor Documentation

◆ Communicator()

Communicator::Communicator ( void )

Constructor, creates some management objects and clears the rest by calling initialize()

Definition at line 84 of file communicator.cpp.

◆ ~Communicator()

Communicator::~Communicator ( )

protectedvirtual

Destructor, waits for the last scheduled task to complete and then cleans up the object by calling clear()

Definition at line 105 of file communicator.cpp.

Member Function Documentation

◆ abortLoadLogFile()

virtual void Communicator::abortLoadLogFile ( )

pure virtual

Aborts loading a logfile.

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ addProtocolHandler()

void Communicator::addProtocolHandler ( IProtocolHandler * handler )

virtual

Adds a protocol handler.

Parameters

handler an IProtocolHandler

Reimplemented in MtbFileCommunicator.

Definition at line 303 of file communicator.cpp.

◆ addReplyObject() [1/3]

std::shared_ptr< ReplyObject > Communicator::addReplyObject ( ReplyObject * obj )

Add a custom ReplyObject.

Parameters

[in] obj The reply object to add

Returns: a shared pointer to the supplied reply object

Definition at line 297 of file communicator.cpp.

◆ addReplyObject() [2/3]

std::shared_ptr< ReplyObject > Communicator::addReplyObject ( uint8_t mid )

Add a MidReplyObject.

Parameters

[in] mid the id of the message to wait for

Returns: a shared pointer to a reply object

Definition at line 274 of file communicator.cpp.

◆ addReplyObject() [3/3]

std::shared_ptr< ReplyObject > Communicator::addReplyObject	(	uint8_t	mid,
		XsSize	offset,
		XsSize	size,
		uint8_t const *	data
	)

Add a MidAndDataReplyObject.

Parameters

[in]	mid	the message id of the message to wait for
[in]	offset	the offset in the data part of the message
[in]	size	the size of the data in the data part of the message
[in]	data	pointer to data to wait for (this object does not take ownership of the data)

Returns: a shared pointer to a reply object

Definition at line 287 of file communicator.cpp.

◆ allowReprocessing()

bool Communicator::allowReprocessing ( ) const

virtual

Returns: true if reprocessing is allowed

Reimplemented in ProxyCommunicator.

Definition at line 355 of file communicator.cpp.

◆ childDeviceCount()

XsSize Communicator::childDeviceCount ( ) const

Returns: a child device count

Definition at line 184 of file communicator.cpp.

◆ closeLogFile()

virtual void Communicator::closeLogFile ( )

pure virtual

Close the log file.

Returns: true if the log file was successfully closed or never open

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ closePort()

virtual void Communicator::closePort ( )

pure virtual

Closes the open port.

Implemented in MtbFileCommunicator, SerialCommunicator, and ProxyCommunicator.

◆ configurationMessageSearchLimit()

static int Communicator::configurationMessageSearchLimit ( )

inlinestatic

Returns: The maximum set of messages, from the beginning of a file, which must contain a Configuration message

Note: SerialCommunicator & MTi: 5 (GotoConfig, ReqDeviceId, GotoConfig, Initbus, ReqConfiguration); BodyPack requires more because we also may have some other meta-data in the file, but base is: 7 (ReqDeviceId, RequestControl, SetDataPort, GotoConfig [Communicator & XsDevice], Initbus, ReqConfiguration)

Definition at line 316 of file communicator.h.

◆ createUniquePtr() [1/2]

template<typename T >

static UniquePtr<T> Communicator::createUniquePtr ( )

inlinestatic

Constructs a new Communicator of type T and returns it as a UniquePtr<T>

Definition at line 117 of file communicator.h.

◆ createUniquePtr() [2/2]

template<typename T >

static UniquePtr<T> Communicator::createUniquePtr ( T * communicator )

inlinestatic

Creates a UniquePtr<T> from a Communicator*.

Definition at line 124 of file communicator.h.

◆ defaultTimeout()

uint32_t Communicator::defaultTimeout ( ) const

inline

Returns: a default timeout

Definition at line 145 of file communicator.h.

◆ destroy()

void Communicator::destroy ( )

Destroys the communicator.

Definition at line 344 of file communicator.cpp.

◆ doTransaction() [1/4]

bool Communicator::doTransaction ( const XsMessage & message )

Write a message and await the reply.

Definition at line 222 of file communicator.cpp.

◆ doTransaction() [2/4]

bool Communicator::doTransaction	(	const XsMessage &	message,
		uint32_t	timeout
	)

Write a message and await the reply.

Definition at line 214 of file communicator.cpp.

◆ doTransaction() [3/4]

bool Communicator::doTransaction	(	const XsMessage &	message,
		XsMessage &	rcv
	)

Write a message and await the reply.

Definition at line 229 of file communicator.cpp.

◆ doTransaction() [4/4]

virtual bool Communicator::doTransaction	(	const XsMessage &	message,
		XsMessage &	rcv,
		uint32_t	timeout
	)

pure virtual

Write a message and await the reply.

Implemented in DeviceCommunicator, MtbFileCommunicator, and ProxyCommunicator.

◆ flushPort()

virtual void Communicator::flushPort ( )

pure virtual

Flushes all remaining data on the open port.

Implemented in MtbFileCommunicator, SerialCommunicator, and ProxyCommunicator.

◆ getDeviceId()

virtual XsResultValue Communicator::getDeviceId ( )

pure virtual

Request a device to get device ID.

Returns: XRV_OK if succeeded

Implemented in MtbFileCommunicator, and DeviceCommunicator.

◆ gotoConfig()

virtual XsResultValue Communicator::gotoConfig ( bool detectRs485 = false )

pure virtual

Request a device to go to config mode.

Parameters

detectRs485 when set to true it will try to detect and use an RS485 interface

Returns: XRV_OK if succeeded

Implemented in DeviceCommunicator, MtbFileCommunicator, SerialCommunicator, and UsbCommunicator.

◆ gotoMeasurement()

virtual XsResultValue Communicator::gotoMeasurement ( )

pure virtual

Request a device to go to measurement mode.

Returns: XRV_OK if succeeded

Implemented in MtbFileCommunicator, DeviceCommunicator, SerialCommunicator, and UsbCommunicator.

◆ handleMessage()

void Communicator::handleMessage ( const XsMessage & message )

virtual

Handles a message.

Reimplemented in SerialCommunicator, DeviceCommunicator, and ProxyCommunicator.

Definition at line 191 of file communicator.cpp.

◆ hasProtocol()

bool Communicator::hasProtocol ( XsProtocolType type ) const

Returns: true when a protocol with type type has been added

Parameters

[in] type The protocol type to check

Definition at line 327 of file communicator.cpp.

◆ isDockedAt()

virtual bool Communicator::isDockedAt ( Communicator * other ) const

pure virtual

Returns true if the other device is docked at this device.

Implemented in MtbFileCommunicator, SerialCommunicator, and ProxyCommunicator.

◆ isLoadLogFileInProgress()

bool Communicator::isLoadLogFileInProgress ( ) const

virtual

Returns: true if the file operation started by loadLogFile is still in progress

Reimplemented in MtbFileCommunicator.

Definition at line 350 of file communicator.cpp.

◆ isPortOpen()

virtual bool Communicator::isPortOpen ( ) const

pure virtual

Returns: true if the port is open

Implemented in MtbFileCommunicator, SerialCommunicator, and ProxyCommunicator.

◆ isReadingFromFile()

virtual bool Communicator::isReadingFromFile ( ) const

pure virtual

Returns: true if we are reading from the file

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ lastResult()

XsResultValue Communicator::lastResult ( ) const

Get the result value of the last operation.

The result values are codes that describe a failure in more detail.

Returns: the last known error code

See also: resultText(XsResultValue), lastResultText()

Definition at line 167 of file communicator.cpp.

◆ lastResultText()

XsString Communicator::lastResultText ( ) const

Get the accompanying error text for the value returned by lastResult() It may provide situation-specific information instead.

Returns: a human readable error description

See also: resultText(XsResultValue), lastResult()

Definition at line 177 of file communicator.cpp.

◆ loadLogFile()

virtual void Communicator::loadLogFile ( XsDevice * device )

pure virtual

Load a complete logfile.

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ logFileDate()

virtual XsTimeStamp Communicator::logFileDate ( ) const

pure virtual

Returns: The date of the logfile

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ logFileName()

virtual XsString Communicator::logFileName ( ) const

pure virtual

Returns: The name of the logfile

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ logFileReadPosition()

virtual XsFilePos Communicator::logFileReadPosition ( ) const

pure virtual

Returns: The read position of the logfile

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ logFileSize()

virtual XsFilePos Communicator::logFileSize ( ) const

pure virtual

Returns: The size of the logfile

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ masterDevice()

XsDevice * Communicator::masterDevice ( ) const

protected

Returns: a master device

Definition at line 135 of file communicator.cpp.

◆ masterDeviceId()

XsDeviceId Communicator::masterDeviceId ( ) const

Returns: a master device ID

Definition at line 157 of file communicator.cpp.

◆ openLogFile()

virtual bool Communicator::openLogFile ( const XsString & filename )

pure virtual

Open the log file `.

Parameters

filename a name of file to open

Returns: true if the file was opened successfully

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ openPort()

virtual bool Communicator::openPort	(	const XsPortInfo &	portInfo,
		OpenPortStage	stage = `OPS_Full`,
		bool	detectRs485 = `false`
	)

pure virtual

Opens a port.

Parameters

portInfo	A port information that you want to open
stage	A openning stage of a communication port
detectRs485	When set to true it will try to detect and use an RS485 interface

Returns: true if port is successfully open

Implemented in MtbFileCommunicator, SerialCommunicator, and ProxyCommunicator.

◆ portInfo()

virtual XsPortInfo Communicator::portInfo ( ) const

pure virtual

Returns: XsPortInfo of the current port

Implemented in MtbFileCommunicator, and SerialCommunicator.

◆ prepareForDestruction()

void Communicator::prepareForDestruction ( )

protectedvirtual

Prepares communicator for destruction.

Reimplemented in MtbFileCommunicator, and SerialCommunicator.

Definition at line 114 of file communicator.cpp.

◆ protocolManager()

std::shared_ptr< ProtocolManager > Communicator::protocolManager ( ) const

protected

Returns: a protocol manager

Definition at line 142 of file communicator.cpp.

◆ readMessage()

virtual XsMessage Communicator::readMessage ( uint8_t msgId = 0 )

pure virtual

Read a message from the open file.

Parameters

msgId an ID of message

Returns: The message that was read or if no matching message was found a cleared message

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ readMessageFromStartOfFile()

virtual XsMessage Communicator::readMessageFromStartOfFile	(	uint8_t	msgId,
		int	maxMsgs = `0`
	)

pure virtual

Read a message from the start of the open file.

Parameters

msgId	an ID of message
maxMsgs	a maximum of messages to read

Returns: The message that was read or if no matching message was found a cleared message

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ readMessagesFromStartOfFile()

virtual std::deque<XsMessage> Communicator::readMessagesFromStartOfFile	(	uint8_t	msgId,
		int	maxMsgs = `0`
	)

pure virtual

Read multiple similar messages from the start of the open file.

Parameters

msgId	an ID of message
maxMsgs	a maximum of messages to read

Returns: The message that was read or if no matching message was found a cleared message

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ removeProtocolHandler()

void Communicator::removeProtocolHandler ( XsProtocolType type )

Removes a protocol handler.

Parameters

type	a XsProtocolType

Definition at line 317 of file communicator.cpp.

◆ reopenPort()

virtual bool Communicator::reopenPort	(	OpenPortStage	stage = `OPS_Full`,
		bool	skipDeviceIdCheck = `false`
	)

pure virtual

Reopens the port.

Parameters

stage	A openning stage of a communication port
skipDeviceIdCheck	When set to true it will skip device ID check

Returns: true if port is successfully reopened

Implemented in MtbFileCommunicator, SerialCommunicator, and ProxyCommunicator.

◆ resetLogFileReadPosition()

virtual void Communicator::resetLogFileReadPosition ( void )

pure virtual

Resets the logfile read position.

Implemented in DeviceCommunicator, and MtbFileCommunicator.

◆ sanityCheck()

bool Communicator::sanityCheck ( XsMessage const & msg ) const

Do a sanity check on a potential message.

Parameters

msg a message

This check is done to prevent message loss due to a 'valid' message in a message Check if the busId can be valid. It can be XS_BID_MASTER and is must be below the number of devices The XS_BID_BROADCAST cannot be checked due to a bug in AwindaStation firmware 1.0.9 which sends flushing indications with BID 0 Later more checks like odd message ID checks may be added here

Returns: true if check is successful

Definition at line 262 of file communicator.cpp.

◆ scheduleClosePort()

virtual void Communicator::scheduleClosePort ( )

inlinevirtual

Schedules to close the open port.

Definition at line 199 of file communicator.h.

◆ setAndReturnLastResult()

XsResultValue Communicator::setAndReturnLastResult	(	XsResultValue	res,
		XsString const &	text = `XsString()`
	)		const

protected

Sets the last result and returns it.

Parameters

res	a result value
text	a text string

Returns: XRV_OK if successful

Definition at line 248 of file communicator.cpp.

◆ setCredentials()

void Communicator::setCredentials	(	XsString const &	id,
		XsString const &	key
	)

virtual

Set the credentials required for using the device.

Mostly used for network access

Parameters

id	The username or system ID or similar
key	The authentication key or password or similar

Definition at line 337 of file communicator.cpp.

◆ setDefaultTimeout()

void Communicator::setDefaultTimeout ( uint32_t timeout )

inline

Sets a default timeout.

Definition at line 139 of file communicator.h.

◆ setGotoConfigTimeout()

virtual void Communicator::setGotoConfigTimeout ( uint32_t timeout )

pure virtual

Set the timeout for the gotoConfig function.

Parameters

timeout The desired timeout value in ms, if 0 the default value is used

Implemented in MtbFileCommunicator, and DeviceCommunicator.

◆ setKeepAlive()

virtual void Communicator::setKeepAlive ( bool enable )

pure virtual

Either disable or enable (default) the keep alive mechanism (if supported by the device)

Implemented in MtbFileCommunicator, and DeviceCommunicator.

◆ setLastResult()

void Communicator::setLastResult	(	XsResultValue	res,
		XsString const &	text = `XsString()`
	)		const

protected

Sets the last result.

Parameters

res	a result value
text	a text string

Definition at line 238 of file communicator.cpp.

◆ setMasterDevice()

void Communicator::setMasterDevice ( XsDevice * masterDevice )

Sets a master device.

Parameters

masterDevice a master device.

Definition at line 126 of file communicator.cpp.

◆ setMasterDeviceId()

void Communicator::setMasterDeviceId ( const XsDeviceId & id )

protected

Sets a master device ID.

Parameters

id	device ID.

Definition at line 150 of file communicator.cpp.

◆ waitForLastTaskCompletion()

virtual void Communicator::waitForLastTaskCompletion ( )

pure virtual

Wait for the last processing task to complete in the threadpool.

Implemented in MtbFileCommunicator, and DeviceCommunicator.

◆ writeMessage()

virtual bool Communicator::writeMessage ( const XsMessage & message )

pure virtual

Write message to the device.

Parameters

message a message

Returns: true on successful write, false otherwise. This doesn't guarantee proper delivery of the message. Use doTransaction for that

Implemented in MtbFileCommunicator, and DeviceCommunicator.

Member Data Documentation

◆ m_defaultTimeout

uint32_t Communicator::m_defaultTimeout

protected

A default timeout variable.

Definition at line 372 of file communicator.h.

◆ m_handleMux

xsens::Mutex Communicator::m_handleMux

mutableprotected

A handle mutex.

Definition at line 369 of file communicator.h.

◆ m_lastResult

XsResultValue Communicator::m_lastResult

mutableprotected

A last result variable.

Definition at line 363 of file communicator.h.

◆ m_lastResultText

XsString Communicator::m_lastResultText

mutableprotected

A last result string.

Definition at line 366 of file communicator.h.

◆ m_masterDeviceId

XsDeviceId Communicator::m_masterDeviceId

protected

A master device ID.

Definition at line 357 of file communicator.h.

◆ m_masterInfo

XsDevice* Communicator::m_masterInfo

protected

A master device object.

Definition at line 351 of file communicator.h.

◆ m_preparedForDestruction

bool Communicator::m_preparedForDestruction

protected

Prepared for destruction boolean variable.

Definition at line 348 of file communicator.h.

◆ m_protocolManager

std::shared_ptr<ProtocolManager> Communicator::m_protocolManager

protected

A shared pointer to protocl manager.

Definition at line 354 of file communicator.h.

◆ m_replyMonitor

std::unique_ptr<xsens::ReplyMonitor> Communicator::m_replyMonitor

protected

An unique pointer to a reply monitor.

Definition at line 360 of file communicator.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ UniquePtr

Constructor & Destructor Documentation

◆ Communicator()

◆ ~Communicator()

Member Function Documentation

◆ abortLoadLogFile()

◆ addProtocolHandler()

◆ addReplyObject() [1/3]

◆ addReplyObject() [2/3]

◆ addReplyObject() [3/3]

◆ allowReprocessing()

◆ childDeviceCount()

◆ closeLogFile()

◆ closePort()

◆ configurationMessageSearchLimit()

◆ createUniquePtr() [1/2]

◆ createUniquePtr() [2/2]

◆ defaultTimeout()

◆ destroy()

◆ doTransaction() [1/4]

◆ doTransaction() [2/4]

◆ doTransaction() [3/4]

◆ doTransaction() [4/4]

◆ flushPort()

◆ getDeviceId()

◆ gotoConfig()

◆ gotoMeasurement()

◆ handleMessage()

◆ hasProtocol()

◆ isDockedAt()

◆ isLoadLogFileInProgress()

◆ isPortOpen()

◆ isReadingFromFile()

◆ lastResult()

◆ lastResultText()

◆ loadLogFile()

◆ logFileDate()

◆ logFileName()

◆ logFileReadPosition()

◆ logFileSize()

◆ masterDevice()

◆ masterDeviceId()

◆ openLogFile()

◆ openPort()

◆ portInfo()

◆ prepareForDestruction()

◆ protocolManager()

◆ readMessage()

◆ readMessageFromStartOfFile()

◆ readMessagesFromStartOfFile()

◆ removeProtocolHandler()

◆ reopenPort()

◆ resetLogFileReadPosition()

◆ sanityCheck()

◆ scheduleClosePort()

◆ setAndReturnLastResult()

◆ setCredentials()

◆ setDefaultTimeout()

◆ setGotoConfigTimeout()

◆ setKeepAlive()

◆ setLastResult()

◆ setMasterDevice()

◆ setMasterDeviceId()

◆ waitForLastTaskCompletion()

◆ writeMessage()

Member Data Documentation

◆ m_defaultTimeout

◆ m_handleMux

◆ m_lastResult

◆ m_lastResultText

◆ m_masterDeviceId

◆ m_masterInfo
