Class that delegates callbacks to registered XsCallbackHandlerItems. More...

#include <callbackmanagerxda.h>

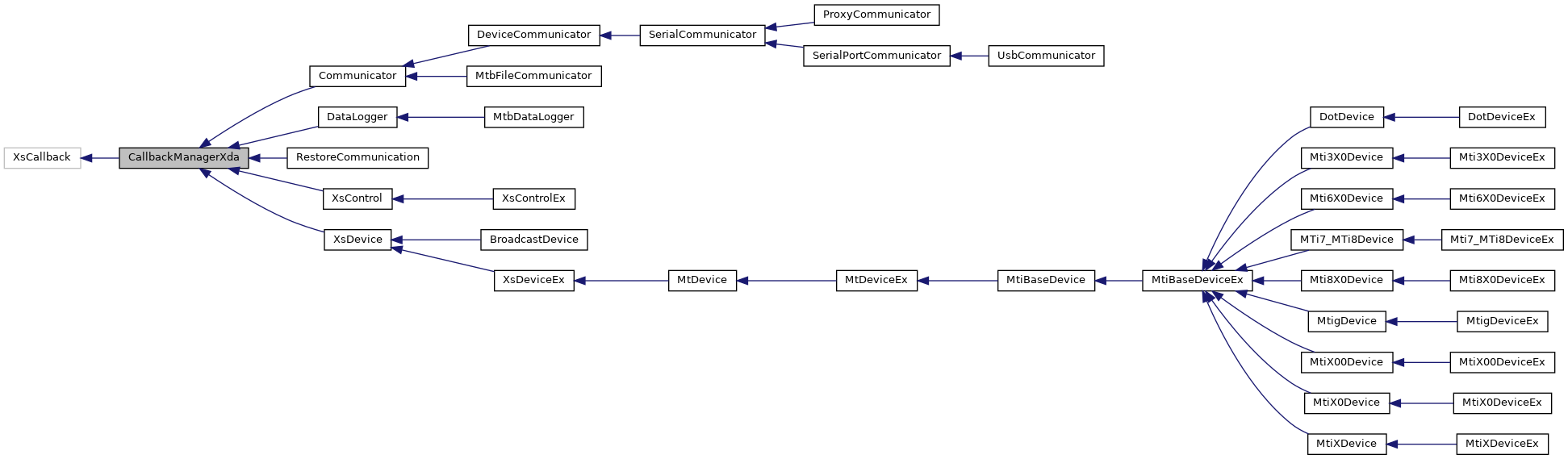

Inheritance diagram for CallbackManagerXda:

[legend]

Public Member Functions
void	addCallbackHandler (XsCallbackPlainC *cb, bool chain=true)
	Add a handler to the list. More...

void	addChainedManager (CallbackManagerXda *cm)
	Add a chained manager to the list. More...

	CallbackManagerXda ()
	Constructor, initializes the callback list. More...

void	clearCallbackHandlers (bool chain=true)
	Clear the callback list. More...

void	clearChainedManagers ()
	Clear the chained manager list. More...

void	copyCallbackHandlersFrom (CallbackManagerXda *cm, bool chain=true)
	Copy all handlers from cm into this manager. More...

void	copyCallbackHandlersTo (CallbackManagerXda *cm, bool chain=true)
	Copy all handlers from this manager into cm. More...

void	onAllBufferedDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllBufferedDataAvailable() callback forwarding function. More...

void	onAllDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllDataAvailable() callback forwarding function. More...

void	onAllLiveDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllLiveDataAvailable() callback forwarding function. More...

void	onAllRecordedDataAvailable (XsDevicePtrArray devs, const XsDataPacketPtrArray packets) override
	The XsCallback::onAllRecordedDataAvailable() callback forwarding function. More...

void	onBufferedDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onBufferedDataAvailable() callback forwarding function. More...

void	onConnectivityChanged (XsDevice *dev, XsConnectivityState newState) override
	The XsCallback::onConnectivityChanged() callback forwarding function. More...

void	onDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onDataAvailable() callback forwarding function. More...

void	onDataUnavailable (XsDevice *dev, int64_t packetId) override
	The XsCallback::onDataUnavailable() callback forwarding function. More...

void	onDeviceStateChanged (XsDevice *dev, XsDeviceState newState, XsDeviceState oldState) override
	The XsCallback::onDeviceStateChanged() callback forwarding function. More...

void	onError (XsDevice *dev, XsResultValue error) override
	The Xscallback::onError() callback forwarding function. More...

void	onInfoResponse (XsDevice *dev, XsInfoRequest request) override
	The XsCallback::onInfoResponse() callback forwarding function. More...

void	onLiveDataAvailable (XsDevice dev, const XsDataPacket packet) override
	The XsCallback::onLiveDataAvailable() callback forwarding function. More...

void	onMessageDetected (XsDevice dev, XsProtocolType type, XsByteArray const rawMessage) override
	The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More...

void	onMessageReceivedFromDevice (XsDevice dev, XsMessage const message) override
	The Xscallback::onMessageReceivedFromDevice() callback forwarding function. More...

void	onMessageSentToDevice (XsDevice dev, XsMessage const message) override
	The Xscallback::onMessageSentToDevice() callback forwarding function. More...

void	onMissedPackets (XsDevice *dev, int count, int first, int last) override
	The XsCallback::onMissedPackets() callback forwarding function. More...

void	onNonDataMessage (XsDevice dev, XsMessage const message) override
	The Xscallback::onNonDataMessage() callback forwarding function. More...

void	onProgressUpdated (XsDevice dev, int current, int total, const XsString identifier) override
	The XsCallback::onProgressUpdated() callback forwarding function. More...

void	onRecordedDataAvailable (XsDevice dev, const XsDataPacket data) override
	The XsCallback::onRecordedDataAvailable() callback forwarding function. More...

void	onRestoreCommunication (const XsString *portName, XsResultValue result) override
	The Xscallback::onRestoreCommunication callback forwarding function. More...

void	onTransmissionRequest (int channelId, const XsByteArray *data) override

void	onWakeupReceived (XsDevice *dev) override
	The XsCallback::onWakeupReceived() callback forwarding function. More...

int	onWriteMessageToLogFile (XsDevice dev, const XsMessage message) override
	The XsCallback::onWriteMessageToLogFile() callback forwarding function. More...

void	removeCallbackHandler (XsCallbackPlainC *cb, bool chain=true)
	Remove a handler from the list. More...

void	removeChainedManager (CallbackManagerXda *cm)
	Remove achained manager from the list. More...

	~CallbackManagerXda ()
	Destructor, clears the callback list. More...

Private Member Functions
	CallbackManagerXda (CallbackManagerXda const &)=delete

CallbackManagerXda const &	operator= (CallbackManagerXda const &)=delete

Private Attributes
xsens::MutexReadWrite *	m_callbackMutex
	Administration mutex. More...

CallbackHandlerXdaItem *	m_handlerList
	The first item in the linked list of callback handlers. More...

CallbackManagerItem *	m_managerList
	The first item in the linked list of child callback managers. More...

Detailed Description

Class that delegates callbacks to registered XsCallbackHandlerItems.

CallbackManagerXda is itself an XsCallback implementer. When a callback is triggered it walks through its linked list of registered callbacks and calls the appropriate function in each one.

Adding and removing handlers is done through the addXsCallbackHandlerItem() and removeXsCallbackHandlerItem() functions.

The callback handler can contain so called chained managers. A chained manager receives any callback handler add/remove request that is done to the parent. The chained managers do not automatically execute all callbacks that the parent manager executes. So chaining only affects callback administration, not callback execution.

Definition at line 78 of file callbackmanagerxda.h.

Constructor & Destructor Documentation

◆ CallbackManagerXda() [1/2]

CallbackManagerXda::CallbackManagerXda ( )

Constructor, initializes the callback list.

Definition at line 103 of file callbackmanagerxda.cpp.

◆ ~CallbackManagerXda()

CallbackManagerXda::~CallbackManagerXda ( )

Destructor, clears the callback list.

Definition at line 112 of file callbackmanagerxda.cpp.

◆ CallbackManagerXda() [2/2]

CallbackManagerXda::CallbackManagerXda ( CallbackManagerXda const & )

privatedelete

Member Function Documentation

◆ addCallbackHandler()

void CallbackManagerXda::addCallbackHandler	(	XsCallbackPlainC *	cb,
		bool	chain = `true`
	)

Add a handler to the list.

Parameters

cb	The handler to add to the list.
chain	When set to true (default) the callback is added to chained managers as well

Note: NULL and duplicate handlers are ignored, but chaining is still done.; The name is chosen like this since it is inherited and exposed by other objects

Definition at line 158 of file callbackmanagerxda.cpp.

◆ addChainedManager()

void CallbackManagerXda::addChainedManager ( CallbackManagerXda * cm )

Add a chained manager to the list.

Parameters

cm	The manager to add to the list.

Note: NULL and duplicate managers are ignored.

Definition at line 262 of file callbackmanagerxda.cpp.

◆ clearCallbackHandlers()

void CallbackManagerXda::clearCallbackHandlers ( bool chain = true )

Clear the callback list.

Parameters

chain If set to true clears all callback handlers

Note: The name is chosen like this since it is inherited and exposed by other objects

Definition at line 129 of file callbackmanagerxda.cpp.

◆ clearChainedManagers()

void CallbackManagerXda::clearChainedManagers ( )

Clear the chained manager list.

Definition at line 245 of file callbackmanagerxda.cpp.

◆ copyCallbackHandlersFrom()

void CallbackManagerXda::copyCallbackHandlersFrom	(	CallbackManagerXda *	cm,
		bool	chain = `true`
	)

Copy all handlers from cm into this manager.

Parameters

cm	The CallbackManagerXda to copy the handlers from
chain	Whether to propagate the added handlers to chained managers

Definition at line 337 of file callbackmanagerxda.cpp.

◆ copyCallbackHandlersTo()

void CallbackManagerXda::copyCallbackHandlersTo	(	CallbackManagerXda *	cm,
		bool	chain = `true`
	)

Copy all handlers from this manager into cm.

Parameters

cm	The CallbackManagerXda to copy the handlers to
chain	Whether to propagate the added handlers to chained managers

Definition at line 328 of file callbackmanagerxda.cpp.

◆ onAllBufferedDataAvailable()

void CallbackManagerXda::onAllBufferedDataAvailable	(	XsDevicePtrArray *	devs,
		const XsDataPacketPtrArray *	packets
	)

override

The XsCallback::onAllBufferedDataAvailable() callback forwarding function.

Definition at line 469 of file callbackmanagerxda.cpp.

◆ onAllDataAvailable()

void CallbackManagerXda::onAllDataAvailable	(	XsDevicePtrArray *	devs,
		const XsDataPacketPtrArray *	packets
	)

override

The XsCallback::onAllDataAvailable() callback forwarding function.

Definition at line 586 of file callbackmanagerxda.cpp.

◆ onAllLiveDataAvailable()

void CallbackManagerXda::onAllLiveDataAvailable	(	XsDevicePtrArray *	devs,
		const XsDataPacketPtrArray *	packets
	)

override

The XsCallback::onAllLiveDataAvailable() callback forwarding function.

Definition at line 376 of file callbackmanagerxda.cpp.

◆ onAllRecordedDataAvailable()

void CallbackManagerXda::onAllRecordedDataAvailable	(	XsDevicePtrArray *	devs,
		const XsDataPacketPtrArray *	packets
	)

override

The XsCallback::onAllRecordedDataAvailable() callback forwarding function.

Definition at line 612 of file callbackmanagerxda.cpp.

◆ onBufferedDataAvailable()

void CallbackManagerXda::onBufferedDataAvailable	(	XsDevice *	dev,
		const XsDataPacket *	data
	)

override

The XsCallback::onBufferedDataAvailable() callback forwarding function.

Definition at line 456 of file callbackmanagerxda.cpp.

◆ onConnectivityChanged()

void CallbackManagerXda::onConnectivityChanged	(	XsDevice *	dev,
		XsConnectivityState	newState
	)

override

The XsCallback::onConnectivityChanged() callback forwarding function.

Definition at line 482 of file callbackmanagerxda.cpp.

◆ onDataAvailable()

void CallbackManagerXda::onDataAvailable	(	XsDevice *	dev,
		const XsDataPacket *	data
	)

override

The XsCallback::onDataAvailable() callback forwarding function.

Definition at line 573 of file callbackmanagerxda.cpp.

◆ onDataUnavailable()

void CallbackManagerXda::onDataUnavailable	(	XsDevice *	dev,
		int64_t	packetId
	)

override

The XsCallback::onDataUnavailable() callback forwarding function.

Definition at line 402 of file callbackmanagerxda.cpp.

◆ onDeviceStateChanged()

void CallbackManagerXda::onDeviceStateChanged	(	XsDevice *	dev,
		XsDeviceState	newState,
		XsDeviceState	oldState
	)

override

The XsCallback::onDeviceStateChanged() callback forwarding function.

Definition at line 350 of file callbackmanagerxda.cpp.

◆ onError()

void CallbackManagerXda::onError	(	XsDevice *	dev,
		XsResultValue	error
	)

override

The Xscallback::onError() callback forwarding function.

Definition at line 508 of file callbackmanagerxda.cpp.

◆ onInfoResponse()

void CallbackManagerXda::onInfoResponse	(	XsDevice *	dev,
		XsInfoRequest	request
	)

override

The XsCallback::onInfoResponse() callback forwarding function.

Definition at line 495 of file callbackmanagerxda.cpp.

◆ onLiveDataAvailable()

void CallbackManagerXda::onLiveDataAvailable	(	XsDevice *	dev,
		const XsDataPacket *	packet
	)

override

The XsCallback::onLiveDataAvailable() callback forwarding function.

Definition at line 363 of file callbackmanagerxda.cpp.

◆ onMessageDetected()

void CallbackManagerXda::onMessageDetected	(	XsDevice *	dev,
		XsProtocolType	type,
		XsByteArray const *	rawMessage
	)

override

The Xscallback::onMessageReceivedFromDevice() callback forwarding function.

Definition at line 534 of file callbackmanagerxda.cpp.

◆ onMessageReceivedFromDevice()

void CallbackManagerXda::onMessageReceivedFromDevice	(	XsDevice *	dev,
		XsMessage const *	message
	)

override

The Xscallback::onMessageReceivedFromDevice() callback forwarding function.

Definition at line 547 of file callbackmanagerxda.cpp.

◆ onMessageSentToDevice()

void CallbackManagerXda::onMessageSentToDevice	(	XsDevice *	dev,
		XsMessage const *	message
	)

override

The Xscallback::onMessageSentToDevice() callback forwarding function.

Definition at line 560 of file callbackmanagerxda.cpp.

◆ onMissedPackets()

void CallbackManagerXda::onMissedPackets	(	XsDevice *	dev,
		int	count,
		int	first,
		int	last
	)

override

The XsCallback::onMissedPackets() callback forwarding function.

Definition at line 389 of file callbackmanagerxda.cpp.

◆ onNonDataMessage()

void CallbackManagerXda::onNonDataMessage	(	XsDevice *	dev,
		XsMessage const *	message
	)

override

The Xscallback::onNonDataMessage() callback forwarding function.

Definition at line 521 of file callbackmanagerxda.cpp.

◆ onProgressUpdated()

void CallbackManagerXda::onProgressUpdated	(	XsDevice *	dev,
		int	current,
		int	total,
		const XsString *	identifier
	)

override

The XsCallback::onProgressUpdated() callback forwarding function.

Definition at line 428 of file callbackmanagerxda.cpp.

◆ onRecordedDataAvailable()

void CallbackManagerXda::onRecordedDataAvailable	(	XsDevice *	dev,
		const XsDataPacket *	data
	)

override

The XsCallback::onRecordedDataAvailable() callback forwarding function.

Definition at line 599 of file callbackmanagerxda.cpp.

◆ onRestoreCommunication()

void CallbackManagerXda::onRestoreCommunication	(	const XsString *	portName,
		XsResultValue	result
	)

override

The Xscallback::onRestoreCommunication callback forwarding function.

Definition at line 637 of file callbackmanagerxda.cpp.

◆ onTransmissionRequest()

void CallbackManagerXda::onTransmissionRequest	(	int	channelId,
		const XsByteArray *	data
	)

override

Definition at line 624 of file callbackmanagerxda.cpp.

◆ onWakeupReceived()

void CallbackManagerXda::onWakeupReceived ( XsDevice * dev )

override

The XsCallback::onWakeupReceived() callback forwarding function.

Definition at line 415 of file callbackmanagerxda.cpp.

◆ onWriteMessageToLogFile()

int CallbackManagerXda::onWriteMessageToLogFile	(	XsDevice *	dev,
		const XsMessage *	message
	)

override

The XsCallback::onWriteMessageToLogFile() callback forwarding function.

Definition at line 441 of file callbackmanagerxda.cpp.

◆ operator=()

CallbackManagerXda const& CallbackManagerXda::operator= ( CallbackManagerXda const & )

privatedelete

◆ removeCallbackHandler()

void CallbackManagerXda::removeCallbackHandler	(	XsCallbackPlainC *	cb,
		bool	chain = `true`
	)

Remove a handler from the list.

Parameters

cb	The handler to remove from the list.
chain	When set to true (default) the callback is added to chained managers as well

Note: If cb is not found in the list or if cb is NULL, the list is not changed, but chaining is still done.; The name is chosen like this since it is inherited and exposed by other objects

Definition at line 207 of file callbackmanagerxda.cpp.

◆ removeChainedManager()

void CallbackManagerXda::removeChainedManager ( CallbackManagerXda * cm )

Remove achained manager from the list.

Parameters

cm	The manager to remove from the list.

Note: If cm is not found in the list or if cm is NULL, the list is not changed.

Definition at line 298 of file callbackmanagerxda.cpp.

Member Data Documentation

◆ m_callbackMutex

xsens::MutexReadWrite* CallbackManagerXda::m_callbackMutex

private

Administration mutex.

Definition at line 120 of file callbackmanagerxda.h.

◆ m_handlerList

CallbackHandlerXdaItem* CallbackManagerXda::m_handlerList

private

The first item in the linked list of callback handlers.

Definition at line 121 of file callbackmanagerxda.h.

◆ m_managerList

CallbackManagerItem* CallbackManagerXda::m_managerList

private

The first item in the linked list of child callback managers.

Definition at line 122 of file callbackmanagerxda.h.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CallbackManagerXda() [1/2]

◆ ~CallbackManagerXda()

◆ CallbackManagerXda() [2/2]

Member Function Documentation

◆ addCallbackHandler()

◆ addChainedManager()

◆ clearCallbackHandlers()

◆ clearChainedManagers()

◆ copyCallbackHandlersFrom()

◆ copyCallbackHandlersTo()

◆ onAllBufferedDataAvailable()

◆ onAllDataAvailable()

◆ onAllLiveDataAvailable()

◆ onAllRecordedDataAvailable()

◆ onBufferedDataAvailable()

◆ onConnectivityChanged()

◆ onDataAvailable()

◆ onDataUnavailable()

◆ onDeviceStateChanged()

◆ onError()

◆ onInfoResponse()

◆ onLiveDataAvailable()

◆ onMessageDetected()

◆ onMessageReceivedFromDevice()

◆ onMessageSentToDevice()

◆ onMissedPackets()

◆ onNonDataMessage()

◆ onProgressUpdated()

◆ onRecordedDataAvailable()

◆ onRestoreCommunication()

◆ onTransmissionRequest()

◆ onWakeupReceived()

◆ onWriteMessageToLogFile()

◆ operator=()

◆ removeCallbackHandler()

◆ removeChainedManager()

Member Data Documentation

◆ m_callbackMutex

◆ m_handlerList

◆ m_managerList
