ReplyObject Class Reference

Abstract reply object. Blocks on a semaphore when requesting the message until the message has been set by the reply monitor. More...

#include <replyobject.h>

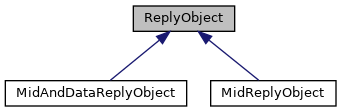

Inheritance diagram for ReplyObject:

Public Member Functions
virtual bool	isReplyFor (XsMessage const &message)=0
XsMessage	message (uint32_t timeout)
	Blocks until a message has been set by setMessage() then returns that message. More...
virtual uint8_t	msgId () const =0
	ReplyObject ()
	Default constructor. More...
void	setMessage (const XsMessage &msg)
	Sets a message as reply message and trigger the semaphore which will unblock any waiting message() calls. More...
virtual	~ReplyObject ()

Private Attributes
bool	m_delivered
XsMessage	m_message
xsens::Mutex *	m_mutex
xsens::WaitCondition *	m_waitCondition

Detailed Description

Abstract reply object. Blocks on a semaphore when requesting the message until the message has been set by the reply monitor.

Definition at line 81 of file replyobject.h.

Constructor & Destructor Documentation

ReplyObject()

ReplyObject::ReplyObject ( )

explicit

Default constructor.

Definition at line 73 of file replyobject.cpp.

~ReplyObject()

ReplyObject::~ReplyObject ( )

virtual

Definition at line 80 of file replyobject.cpp.

Member Function Documentation

isReplyFor()

virtual bool ReplyObject::isReplyFor ( XsMessage const &  message )

pure virtual

Returns

True when a message is a valid reply message for this reply object

Parameters

[in]

message

The message to check

Implemented in MidAndDataReplyObject, and MidReplyObject.

message()

XsMessage ReplyObject::message

(

uint32_t

timeout

)

Blocks until a message has been set by setMessage() then returns that message.

Definition at line 105 of file replyobject.cpp.

msgId()

virtual uint8_t ReplyObject::msgId ( ) const

pure virtual

Returns

The message ID that this reply object is waiting for

Implemented in MidAndDataReplyObject, and MidReplyObject.

setMessage()

void ReplyObject::setMessage

(

const XsMessage &

msg

)

Sets a message as reply message and trigger the semaphore which will unblock any waiting message() calls.

Definition at line 94 of file replyobject.cpp.

Member Data Documentation

m_delivered

bool ReplyObject::m_delivered

private

Definition at line 102 of file replyobject.h.

m_message

XsMessage ReplyObject::m_message

private

Definition at line 101 of file replyobject.h.

m_mutex

xsens::Mutex* ReplyObject::m_mutex

private

Definition at line 99 of file replyobject.h.

m_waitCondition

xsens::WaitCondition* ReplyObject::m_waitCondition

private

Definition at line 100 of file replyobject.h.

---

The documentation for this class was generated from the following files:

• replyobject.h
• replyobject.cpp
