uavcan_stm32::CanIface Class Reference

#include <can.hpp>

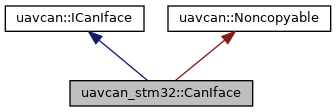

Inheritance diagram for uavcan_stm32::CanIface:
Inheritance graph
[legend]

Classes

class  RxQueue

struct  Timings

struct  TxItem


Public Types

enum  { MaxRxQueueCapacity = 254 }

enum  OperatingMode { NormalMode, SilentMode }


Public Member Functions

bool canAcceptNewTxFrame (const uavcan::CanFrame &frame) const

 CanIface (bxcan::CanType *can, BusEvent &update_event, uavcan::uint8_t self_index, CanRxItem *rx_queue_buffer, uavcan::uint8_t rx_queue_capacity)

void discardTimedOutTxMailboxes (uavcan::MonotonicTime current_time)

virtual uavcan::uint64_t getErrorCount () const

uavcan::uint8_t getPeakNumTxMailboxesUsed () const

unsigned getRxQueueLength () const

uavcan::uint32_t getRxQueueOverflowCount () const

uavcan::uint32_t getVoluntaryTxAbortCount () const

bool hadActivity ()

void handleRxInterrupt (uavcan::uint8_t fifo_index, uavcan::uint64_t utc_usec)

void handleTxInterrupt (uavcan::uint64_t utc_usec)

int init (const uavcan::uint32_t bitrate, const OperatingMode mode)

bool isRxBufferEmpty () const

void pollErrorFlagsFromISR ()

- Public Member Functions inherited from uavcan::ICanIface
virtual int16_t receive (CanFrame &out_frame, MonotonicTime &out_ts_monotonic, UtcTime &out_ts_utc, CanIOFlags &out_flags)=0

virtual int16_t send (const CanFrame &frame, MonotonicTime tx_deadline, CanIOFlags flags)=0

virtual ~ICanIface ()


Private Types

enum  { NumTxMailboxes = 3 }

enum  { NumFilters = 14 }


Private Member Functions

int computeTimings (uavcan::uint32_t target_bitrate, Timings &out_timings)

virtual uavcan::int16_t configureFilters (const uavcan::CanFilterConfig *filter_configs, uavcan::uint16_t num_configs)

virtual uavcan::uint16_t getNumFilters () const

void handleTxMailboxInterrupt (uavcan::uint8_t mailbox_index, bool txok, uavcan::uint64_t utc_usec)

virtual uavcan::int16_t receive (uavcan::CanFrame &out_frame, uavcan::MonotonicTime &out_ts_monotonic, uavcan::UtcTime &out_ts_utc, uavcan::CanIOFlags &out_flags)

virtual uavcan::int16_t send (const uavcan::CanFrame &frame, uavcan::MonotonicTime tx_deadline, uavcan::CanIOFlags flags)

bool waitMsrINakBitStateChange (bool target_state)

- Private Member Functions inherited from uavcan::Noncopyable
 Noncopyable ()

 ~Noncopyable ()


Private Attributes

bxcan::CanType *const can_

uavcan::uint64_t error_cnt_

bool had_activity_

uavcan::uint8_t peak_tx_mailbox_index_

TxItem pending_tx_ [NumTxMailboxes]

RxQueue rx_queue_

const uavcan::uint8_t self_index_

uavcan::uint32_t served_aborts_cnt_

BusEvent & update_event_


Static Private Attributes

static const uavcan::uint32_t TSR_ABRQx [NumTxMailboxes]


Detailed Description

Single CAN iface. The application shall not use this directly.

Definition at line 47 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
private
Enumerator
NumTxMailboxes

Definition at line 110 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ anonymous enum

anonymous enum
private
Enumerator
NumFilters

Definition at line 111 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ anonymous enum

anonymous enum
Enumerator
MaxRxQueueCapacity

Definition at line 143 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ OperatingMode

enum uavcan_stm32::CanIface::OperatingMode
Enumerator
NormalMode
SilentMode

Definition at line 145 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

Constructor & Destructor Documentation

◆ CanIface()

uavcan_stm32::CanIface::CanIface ( bxcan::CanType *  can,
BusEvent &  update_event,
uavcan::uint8_t  self_index,
CanRxItem *  rx_queue_buffer,
uavcan::uint8_t  rx_queue_capacity
)
inline

Definition at line 151 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

Member Function Documentation

◆ canAcceptNewTxFrame()

bool uavcan_stm32::CanIface::canAcceptNewTxFrame ( const uavcan::CanFrame &  frame) const

Definition at line 818 of file uc_stm32_can.cpp.

◆ computeTimings()

int uavcan_stm32::CanIface::computeTimings ( uavcan::uint32_t  target_bitrate,
Timings &  out_timings
)
private

Definition at line 195 of file uc_stm32_can.cpp.

◆ configureFilters()

uavcan::int16_t uavcan_stm32::CanIface::configureFilters ( const uavcan::CanFilterConfig *  filter_configs,
uavcan::uint16_t  num_configs
)
privatevirtual

Configure the hardware CAN filters. CanFilterConfig.

Returns
0 = success, negative for error.

Implements uavcan::ICanIface.

Definition at line 452 of file uc_stm32_can.cpp.

◆ discardTimedOutTxMailboxes()

void uavcan_stm32::CanIface::discardTimedOutTxMailboxes ( uavcan::MonotonicTime  current_time)

Definition at line 803 of file uc_stm32_can.cpp.

◆ getErrorCount()

uavcan::uint64_t uavcan_stm32::CanIface::getErrorCount ( ) const
virtual

Total number of hardware failures and other kinds of errors (e.g. queue overruns). May increase continuously if the interface is not connected to the bus.

Implements uavcan::ICanIface.

Definition at line 862 of file uc_stm32_can.cpp.

◆ getNumFilters()

virtual uavcan::uint16_t uavcan_stm32::CanIface::getNumFilters ( ) const
inlineprivatevirtual

Number of available hardware filters.

Implements uavcan::ICanIface.

Definition at line 136 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ getPeakNumTxMailboxesUsed()

uavcan::uint8_t uavcan_stm32::CanIface::getPeakNumTxMailboxesUsed ( ) const
inline

Peak number of TX mailboxes used concurrently since initialization. Range is [1, 3]. Value of 3 suggests that priority inversion could be taking place.

Definition at line 227 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ getRxQueueLength()

unsigned uavcan_stm32::CanIface::getRxQueueLength ( ) const

Returns the number of frames pending in the RX queue. This is intended for debug use only.

Definition at line 868 of file uc_stm32_can.cpp.

◆ getRxQueueOverflowCount()

uavcan::uint32_t uavcan_stm32::CanIface::getRxQueueOverflowCount ( ) const
inline

Number of RX frames lost due to queue overflow. This is an atomic read, it doesn't require a critical section.

Definition at line 195 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ getVoluntaryTxAbortCount()

uavcan::uint32_t uavcan_stm32::CanIface::getVoluntaryTxAbortCount ( ) const
inline

Number of times the driver exercised library's requirement to abort transmission on first error. This is an atomic read, it doesn't require a critical section. See uavcan::CanIOFlagAbortOnError.

Definition at line 208 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ hadActivity()

bool uavcan_stm32::CanIface::hadActivity ( )

Whether this iface had at least one successful IO since the previous call of this method. This is designed for use with iface activity LEDs.

Definition at line 874 of file uc_stm32_can.cpp.

◆ handleRxInterrupt()

void uavcan_stm32::CanIface::handleRxInterrupt ( uavcan::uint8_t  fifo_index,
uavcan::uint64_t  utc_usec
)

Definition at line 714 of file uc_stm32_can.cpp.

◆ handleTxInterrupt()

void uavcan_stm32::CanIface::handleTxInterrupt ( uavcan::uint64_t  utc_usec)

Definition at line 684 of file uc_stm32_can.cpp.

◆ handleTxMailboxInterrupt()

void uavcan_stm32::CanIface::handleTxMailboxInterrupt ( uavcan::uint8_t  mailbox_index,
bool  txok,
uavcan::uint64_t  utc_usec
)
private

Definition at line 668 of file uc_stm32_can.cpp.

◆ init()

int uavcan_stm32::CanIface::init ( const uavcan::uint32_t  bitrate,
const OperatingMode  mode
)

Initializes the hardware CAN controller. Assumes:

  • Iface clock is enabled
  • Iface has been resetted via RCC
  • Caller will configure NVIC by itself

Definition at line 567 of file uc_stm32_can.cpp.

◆ isRxBufferEmpty()

bool uavcan_stm32::CanIface::isRxBufferEmpty ( ) const

Definition at line 856 of file uc_stm32_can.cpp.

◆ pollErrorFlagsFromISR()

void uavcan_stm32::CanIface::pollErrorFlagsFromISR ( )

This method is used to count errors and abort transmission on error if necessary. This functionality used to be implemented in the SCE interrupt handler, but that approach was generating too much processing overhead, especially on disconnected interfaces.

Should be called from RX ISR, TX ISR, and select(); interrupts must be enabled.

Definition at line 781 of file uc_stm32_can.cpp.

◆ receive()

uavcan::int16_t uavcan_stm32::CanIface::receive ( uavcan::CanFrame &  out_frame,
uavcan::MonotonicTime &  out_ts_monotonic,
uavcan::UtcTime &  out_ts_utc,
uavcan::CanIOFlags &  out_flags
)
privatevirtual

Definition at line 435 of file uc_stm32_can.cpp.

◆ send()

uavcan::int16_t uavcan_stm32::CanIface::send ( const uavcan::CanFrame &  frame,
uavcan::MonotonicTime  tx_deadline,
uavcan::CanIOFlags  flags
)
privatevirtual

Definition at line 344 of file uc_stm32_can.cpp.

◆ waitMsrINakBitStateChange()

bool uavcan_stm32::CanIface::waitMsrINakBitStateChange ( bool  target_state)
private

Definition at line 536 of file uc_stm32_can.cpp.

Member Data Documentation

◆ can_

bxcan::CanType* const uavcan_stm32::CanIface::can_
private

Definition at line 116 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ error_cnt_

uavcan::uint64_t uavcan_stm32::CanIface::error_cnt_
private

Definition at line 117 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ had_activity_

bool uavcan_stm32::CanIface::had_activity_
private

Definition at line 123 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ peak_tx_mailbox_index_

uavcan::uint8_t uavcan_stm32::CanIface::peak_tx_mailbox_index_
private

Definition at line 121 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ pending_tx_

TxItem uavcan_stm32::CanIface::pending_tx_[NumTxMailboxes]
private

Definition at line 120 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ rx_queue_

RxQueue uavcan_stm32::CanIface::rx_queue_
private

Definition at line 115 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ self_index_

const uavcan::uint8_t uavcan_stm32::CanIface::self_index_
private

Definition at line 122 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ served_aborts_cnt_

uavcan::uint32_t uavcan_stm32::CanIface::served_aborts_cnt_
private

Definition at line 118 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ TSR_ABRQx

const uavcan::uint32_t uavcan_stm32::CanIface::TSR_ABRQx
staticprivate
Initial value:
=
{
bxcan::TSR_ABRQ0,
bxcan::TSR_ABRQ1,
bxcan::TSR_ABRQ2
}

Definition at line 113 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.

◆ update_event_

BusEvent& uavcan_stm32::CanIface::update_event_
private

Definition at line 119 of file platform_specific_components/stm32/libuavcan/driver/include/uavcan_stm32/can.hpp.
