Public Member Functions | Protected Member Functions | Protected Attributes | List of all members

Allows to export a tailored IRK solver based on Gaussian elimination of specific dimensions. More...

#include <irk_4stage_single_newton_export.hpp>

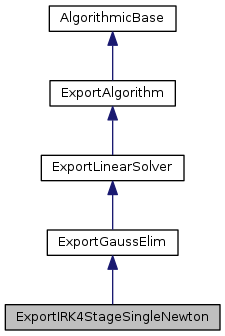

Inheritance diagram for ExportIRK4StageSingleNewton:
Inheritance graph
[legend]

Public Member Functions

 ExportIRK4StageSingleNewton (UserInteraction *_userInteraction=0, const std::string &_commonHeaderName="")

virtual returnValue getCode (ExportStatementBlock &code)

virtual returnValue getDataDeclarations (ExportStatementBlock &declarations, ExportStruct dataStruct=ACADO_ANY) const

virtual returnValue getFunctionDeclarations (ExportStatementBlock &declarations) const

virtual returnValue performTransformation (ExportStatementBlock &code, const ExportVariable &from, const ExportVariable &to, const ExportVariable &transf, const ExportIndex &index)

returnValue setImplicit (BooleanType _implicit)

returnValue setStepSize (double _stepsize)

returnValue setTransformations (const double _tau, const DVector &_low_tria, const DMatrix &_transf1, const DMatrix &_transf2, const DMatrix &_transf1_T, const DMatrix &_transf2_T)

virtual returnValue setup ()

virtual ~ExportIRK4StageSingleNewton ()

- Public Member Functions inherited from ExportGaussElim
returnValue appendVariableNames (std::stringstream &string)

 ExportGaussElim (UserInteraction *_userInteraction=0, const std::string &_commonHeaderName="")

virtual ExportVariable getGlobalExportVariable (const uint factor) const

virtual ~ExportGaussElim ()

- Public Member Functions inherited from ExportLinearSolver
 ExportLinearSolver (UserInteraction *_userInteraction=0, const std::string &_commonHeaderName="")

uint getDim () const

const std::string getNameSolveFunction ()

const std::string getNameSolveReuseFunction ()

const std::string getNameSolveTransposeReuseFunction ()

bool getReuse () const

bool getTranspose () const

bool getUnrolling () const

returnValue init (const uint newDim, const bool &reuse=true, const bool &unrolling=false)

returnValue init (const uint newDim, const uint _nRightHandSides, const bool &reuse=true, const bool &unrolling=false)

returnValue init (const uint newDim, const bool &reuse, const bool &unrolling, const std::string &newId)

returnValue init (unsigned _nRows, unsigned _nCols, unsigned _nBacksolves, bool _reuse, bool _unroll, const std::string &_id)

returnValue init (unsigned _nRows, unsigned _nCols, unsigned _nBacksolves, unsigned _nRightHandSides, bool _reuse, bool _unroll, const std::string &_id)

returnValue setReuse (const bool &reuse)

returnValue setTranspose (const bool &transpose)

returnValue setUnrolling (const bool &unrolling)

virtual ~ExportLinearSolver ()

- Public Member Functions inherited from ExportAlgorithm
 ExportAlgorithm (UserInteraction *_userInteraction=0, const std::string &_commonHeaderName=std::string())

uint getN () const

uint getNDX () const

uint getNOD () const

uint getNP () const

uint getNU () const

uint getNX () const

uint getNXA () const

uint getNY () const

uint getNYN () const

returnValue setDimensions (uint _NX=0, uint _NU=0, uint _NP=0, uint _NI=0, uint _NOD=0)

returnValue setDimensions (uint _NX, uint _NDX, uint _NXA, uint _NU, uint _NP, uint _NI, uint _NOD)

void setNY (uint NY_)

void setNYN (uint NYN_)

virtual ~ExportAlgorithm ()

- Public Member Functions inherited from AlgorithmicBase
int addLogRecord (LogRecord &_record)

returnValue addOption (OptionsName name, int value)

returnValue addOption (OptionsName name, double value)

returnValue addOption (uint idx, OptionsName name, int value)

returnValue addOption (uint idx, OptionsName name, double value)

returnValue addOptionsList ()

 AlgorithmicBase ()

 AlgorithmicBase (UserInteraction *_userInteraction)

 AlgorithmicBase (const AlgorithmicBase &rhs)

returnValue get (OptionsName name, int &value) const

returnValue get (OptionsName name, double &value) const

returnValue get (OptionsName name, std::string &value) const

returnValue get (uint idx, OptionsName name, int &value) const

returnValue get (uint idx, OptionsName name, double &value) const

returnValue getAll (LogName _name, MatrixVariablesGrid &values) const

returnValue getFirst (LogName _name, DMatrix &firstValue) const

returnValue getFirst (LogName _name, VariablesGrid &firstValue) const

returnValue getLast (LogName _name, DMatrix &lastValue) const

returnValue getLast (LogName _name, VariablesGrid &lastValue) const

Options getOptions (uint idx) const

BooleanType haveOptionsChanged () const

BooleanType haveOptionsChanged (uint idx) const

AlgorithmicBaseoperator= (const AlgorithmicBase &rhs)

returnValue plot (PlotFrequency _frequency=PLOT_IN_ANY_CASE)

returnValue printLogRecord (std::ostream &_stream, int idx, LogPrintMode _mode=PRINT_ITEM_BY_ITEM) const

returnValue replot (PlotFrequency _frequency=PLOT_IN_ANY_CASE)

returnValue set (OptionsName name, int value)

returnValue set (OptionsName name, double value)

returnValue set (OptionsName name, const std::string &value)

returnValue set (uint idx, OptionsName name, int value)

returnValue set (uint idx, OptionsName name, double value)

returnValue setAll (LogName _name, const MatrixVariablesGrid &values)

returnValue setLast (LogName _name, int lastValue, double time=-INFTY)

returnValue setLast (LogName _name, double lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const DVector &lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const DMatrix &lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const VariablesGrid &lastValue, double time=-INFTY)

returnValue setOptions (const Options &arg)

returnValue setOptions (uint idx, const Options &arg)

virtual ~AlgorithmicBase ()


Protected Member Functions

const std::string getNameSubSolveFunction ()

const std::string getNameSubSolveReuseFunction ()

const std::string getNameSubSolveTransposeReuseFunction ()

- Protected Member Functions inherited from ExportGaussElim
virtual returnValue setupFactorization (ExportFunction &_solve, ExportVariable &_swap, ExportVariable &_determinant, const std::string &absF)

virtual returnValue setupSolve (ExportFunction &_solve, ExportFunction &_solveTriangular, ExportVariable &_swap, ExportVariable &_determinant, const std::string &absF)

virtual returnValue setupSolveReuse (ExportFunction &_solveReuse, ExportFunction &_solveTriangular, ExportVariable &_bPerm)

virtual returnValue setupSolveReuseComplete (ExportFunction &_solveReuse, ExportVariable &_bPerm)

virtual returnValue setupSolveReuseTranspose (ExportFunction &_solveReuse, ExportVariable &_bPerm)

virtual returnValue setupSolveUpperTriangular (ExportFunction &_solveTriangular)


Protected Attributes

ExportVariable A_full

ExportVariable A_mem

ExportVariable b_full

ExportVariable b_full_trans

ExportVariable b_mem

ExportVariable b_mem_trans

ExportVariable I_full

BooleanType implicit

DVector low_tria

ExportVariable rk_perm_full

ExportFunction solve_full

ExportFunction solveReuse_full

ExportFunction solveReuseTranspose_full

double stepsize

double tau

DMatrix transf1

DMatrix transf1_T

DMatrix transf2

DMatrix transf2_T

- Protected Attributes inherited from ExportGaussElim
ExportVariable b_trans

ExportVariable rk_bPerm

ExportVariable rk_bPerm_trans

ExportVariable rk_perm

ExportVariable rk_swap

- Protected Attributes inherited from ExportLinearSolver
ExportVariable A

ExportVariable b

ExportVariable determinant

uint dim

std::string identifier

unsigned nBacksolves

unsigned nCols

unsigned nRightHandSides

unsigned nRows

bool REUSE

ExportFunction solve

ExportFunction solveReuse

ExportFunction solveReuseTranspose

ExportFunction solveTriangular

bool TRANSPOSE

bool UNROLLING

- Protected Attributes inherited from ExportAlgorithm
std::string commonHeaderName

uint N

uint NDX

uint NOD

uint NP

uint NU

uint NX

uint NXA

uint NY

uint NYN

- Protected Attributes inherited from AlgorithmicBase
int outputLoggingIdx

BooleanType useModuleStandalone

UserInteractionuserInteraction


Detailed Description

Allows to export a tailored IRK solver based on Gaussian elimination of specific dimensions.

The class ExportIRK4StageSolver allows to export a tailored IRK solver based on Gaussian elimination of specific dimensions.

Author
Rien Quirynen

Definition at line 54 of file irk_4stage_single_newton_export.hpp.

Constructor & Destructor Documentation

BEGIN_NAMESPACE_ACADO ExportIRK4StageSingleNewton::ExportIRK4StageSingleNewton ( UserInteraction _userInteraction = 0,
const std::string &  _commonHeaderName = ""
)

Default constructor.

    @param[in] _userInteraction             Pointer to corresponding user interface.
    @param[in] _commonHeaderName    Name of common header file to be included.

Definition at line 44 of file irk_4stage_single_newton_export.cpp.

ExportIRK4StageSingleNewton::~ExportIRK4StageSingleNewton ( )
virtual

Destructor.

Definition at line 53 of file irk_4stage_single_newton_export.cpp.

Member Function Documentation

returnValue ExportIRK4StageSingleNewton::getCode ( ExportStatementBlock code)
virtual

Exports source code of the auto-generated algorithm into the given directory.

@param[in] code                             Code block containing the auto-generated algorithm.

\return SUCCESSFUL_RETURN

Reimplemented from ExportGaussElim.

Definition at line 87 of file irk_4stage_single_newton_export.cpp.

returnValue ExportIRK4StageSingleNewton::getDataDeclarations ( ExportStatementBlock declarations,
ExportStruct  dataStruct = ACADO_ANY
) const
virtual

Adds all data declarations of the auto-generated algorithm to given list of declarations.

@param[in] declarations             List of declarations.

\return SUCCESSFUL_RETURN

Reimplemented from ExportGaussElim.

Definition at line 56 of file irk_4stage_single_newton_export.cpp.

returnValue ExportIRK4StageSingleNewton::getFunctionDeclarations ( ExportStatementBlock declarations) const
virtual

Adds all function (forward) declarations of the auto-generated algorithm to given list of declarations.

@param[in] declarations             List of declarations.

\return SUCCESSFUL_RETURN

Reimplemented from ExportGaussElim.

Definition at line 73 of file irk_4stage_single_newton_export.cpp.

const std::string ExportIRK4StageSingleNewton::getNameSubSolveFunction ( )
protected

Definition at line 398 of file irk_4stage_single_newton_export.cpp.

const std::string ExportIRK4StageSingleNewton::getNameSubSolveReuseFunction ( )
protected

Definition at line 404 of file irk_4stage_single_newton_export.cpp.

const std::string ExportIRK4StageSingleNewton::getNameSubSolveTransposeReuseFunction ( )
protected

Definition at line 410 of file irk_4stage_single_newton_export.cpp.

returnValue ExportIRK4StageSingleNewton::performTransformation ( ExportStatementBlock code,
const ExportVariable from,
const ExportVariable to,
const ExportVariable transf,
const ExportIndex index
)
virtual

Exports source code of the auto-generated algorithm into the given directory.

@param[in] code                             Code block containing the auto-generated algorithm.

\return SUCCESSFUL_RETURN

Definition at line 275 of file irk_4stage_single_newton_export.cpp.

returnValue ExportIRK4StageSingleNewton::setImplicit ( BooleanType  _implicit)

Definition at line 415 of file irk_4stage_single_newton_export.cpp.

returnValue ExportIRK4StageSingleNewton::setStepSize ( double  _stepsize)

This routine sets the step size used in the IRK method.

Definition at line 391 of file irk_4stage_single_newton_export.cpp.

returnValue ExportIRK4StageSingleNewton::setTransformations ( const double  _tau,
const DVector _low_tria,
const DMatrix _transf1,
const DMatrix _transf2,
const DMatrix _transf1_T,
const DMatrix _transf2_T
)

This routine sets the transformation matrices, defined by the inverse of the AA matrix.

Definition at line 371 of file irk_4stage_single_newton_export.cpp.

returnValue ExportIRK4StageSingleNewton::setup ( )
virtual

Initializes code export into given file.

\return SUCCESSFUL_RETURN

Reimplemented from ExportGaussElim.

Definition at line 310 of file irk_4stage_single_newton_export.cpp.

Member Data Documentation

ExportVariable ExportIRK4StageSingleNewton::A_full
protected

Variable containing the matrix for the complete linear system.

Definition at line 153 of file irk_4stage_single_newton_export.hpp.

ExportVariable ExportIRK4StageSingleNewton::A_mem
protected

Variable containing the factorized matrix of the linear subsystems.

Definition at line 165 of file irk_4stage_single_newton_export.hpp.

ExportVariable ExportIRK4StageSingleNewton::b_full
protected

Variable containing the right-hand side of the complete linear system and it will also contain the solution.

Definition at line 155 of file irk_4stage_single_newton_export.hpp.

ExportVariable ExportIRK4StageSingleNewton::b_full_trans
protected

Variable containing the right-hand side of the complete linear system and it will also contain the solution.

Definition at line 162 of file irk_4stage_single_newton_export.hpp.

ExportVariable ExportIRK4StageSingleNewton::b_mem
protected

Variable containing the right-hand side for the linear subsystems.

Definition at line 166 of file irk_4stage_single_newton_export.hpp.

ExportVariable ExportIRK4StageSingleNewton::b_mem_trans
protected

Variable containing the right-hand side for the linear subsystems.

Definition at line 163 of file irk_4stage_single_newton_export.hpp.

ExportVariable ExportIRK4StageSingleNewton::I_full
protected

Variable containing the matrix for the complete linear system.

Definition at line 154 of file irk_4stage_single_newton_export.hpp.

BooleanType ExportIRK4StageSingleNewton::implicit
protected

Definition at line 143 of file irk_4stage_single_newton_export.hpp.

DVector ExportIRK4StageSingleNewton::low_tria
protected

Definition at line 146 of file irk_4stage_single_newton_export.hpp.

ExportVariable ExportIRK4StageSingleNewton::rk_perm_full
protected

Variable containing the order of the rows.

Definition at line 156 of file irk_4stage_single_newton_export.hpp.

ExportFunction ExportIRK4StageSingleNewton::solve_full
protected

Function that solves the complete linear system.

Definition at line 158 of file irk_4stage_single_newton_export.hpp.

ExportFunction ExportIRK4StageSingleNewton::solveReuse_full
protected

Function that solves a complete linear system with the same matrix, reusing previous results.

Definition at line 159 of file irk_4stage_single_newton_export.hpp.

ExportFunction ExportIRK4StageSingleNewton::solveReuseTranspose_full
protected

Function that solves a complete linear system with the same matrix, reusing previous results.

Definition at line 161 of file irk_4stage_single_newton_export.hpp.

double ExportIRK4StageSingleNewton::stepsize
protected

Definition at line 144 of file irk_4stage_single_newton_export.hpp.

double ExportIRK4StageSingleNewton::tau
protected

Definition at line 145 of file irk_4stage_single_newton_export.hpp.

DMatrix ExportIRK4StageSingleNewton::transf1
protected

Definition at line 147 of file irk_4stage_single_newton_export.hpp.

DMatrix ExportIRK4StageSingleNewton::transf1_T
protected

Definition at line 149 of file irk_4stage_single_newton_export.hpp.

DMatrix ExportIRK4StageSingleNewton::transf2
protected

Definition at line 148 of file irk_4stage_single_newton_export.hpp.

DMatrix ExportIRK4StageSingleNewton::transf2_T
protected

Definition at line 150 of file irk_4stage_single_newton_export.hpp.


The documentation for this class was generated from the following files:


acado
Author(s): Milan Vukov, Rien Quirynen
autogenerated on Mon Jun 10 2019 12:35:23
