Abstract base class for all scalar-valued unary operators within the symbolic operators family. More...

#include <unary_operator.hpp>

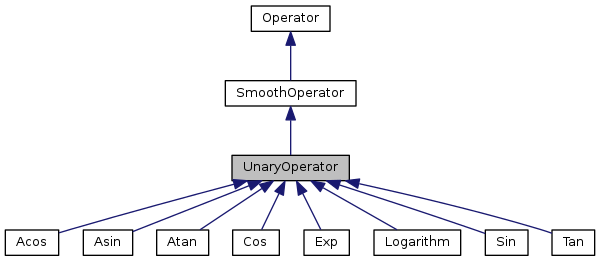

Inheritance diagram for UnaryOperator:

[legend]

Public Member Functions
virtual returnValue	AD_backward (int dim, VariableType varType, int component, Operator seed, Operator df, int &nNewIS, TreeProjection **newIS)

virtual returnValue	AD_backward (int number, double seed, double *df)

virtual returnValue	AD_backward2 (int number, double seed1, double seed2, double df, double ddf)

virtual Operator *	AD_forward (int dim, VariableType varType, int component, Operator seed, int &nNewIS, TreeProjection *newIS)

virtual returnValue	AD_forward (int number, double seed, double df)

virtual returnValue	AD_forward (int number, double x, double seed, double f, double df)

virtual returnValue	AD_forward2 (int number, double seed1, double seed2, double df, double ddf)

virtual returnValue	AD_symmetric (int dim, VariableType varType, int component, Operator l, Operator S, int dimS, Operator dfS, Operator ldf, Operator H, int &nNewLIS, TreeProjection newLIS, int &nNewSIS, TreeProjection newSIS, int &nNewHIS, TreeProjection **newHIS)

virtual returnValue	clearBuffer ()

virtual Operator *	clone () const =0

Operator *	differentiate (int index)

virtual returnValue	enumerateVariables (SymbolicIndexList *indexList)

virtual returnValue	evaluate (int number, double x, double result)

virtual returnValue	evaluate (EvaluationBase *x)=0

virtual CurvatureType	getCurvature ()

virtual MonotonicityType	getMonotonicity ()

virtual OperatorName	getName ()

virtual BooleanType	isDependingOn (VariableType var) const

virtual BooleanType	isDependingOn (int dim, VariableType varType, int component, BooleanType *implicit_dep)

virtual BooleanType	isLinearIn (int dim, VariableType varType, int component, BooleanType *implicit_dep)

virtual NeutralElement	isOneOrZero () const

virtual BooleanType	isPolynomialIn (int dim, VariableType varType, int component, BooleanType *implicit_dep)

virtual BooleanType	isRationalIn (int dim, VariableType varType, int component, BooleanType *implicit_dep)

virtual BooleanType	isSymbolic () const

virtual BooleanType	isVariable (VariableType &varType, int &component) const

virtual returnValue	loadIndices (SymbolicIndexList *indexList)

UnaryOperator &	operator= (const UnaryOperator &arg)

virtual std::ostream &	print (std::ostream &stream) const

virtual returnValue	setCurvature (CurvatureType curvature_)

virtual returnValue	setMonotonicity (MonotonicityType monotonicity_)

virtual Operator *	substitute (int index, const Operator *sub)=0

	UnaryOperator ()

	UnaryOperator (Operator *_argument)

	UnaryOperator (const UnaryOperator &arg)

virtual	~UnaryOperator ()

Public Member Functions inherited from SmoothOperator
virtual TreeProjection *	cloneTreeProjection () const

virtual int	getGlobalIndex () const

virtual double	getValue () const

virtual BooleanType	isSmooth () const

Expression	operator* (const double &arg) const

Expression	operator* (const DVector &arg) const

Expression	operator* (const DMatrix &arg) const

Expression	operator* (const Operator &arg) const

Expression	operator* (const Expression &arg) const

Operator &	operator*= (const double &arg)

Operator &	operator*= (const DVector &arg)

Operator &	operator*= (const DMatrix &arg)

Operator &	operator*= (const Expression &arg)

Expression	operator+ (const double &arg) const

Expression	operator+ (const DVector &arg) const

Expression	operator+ (const DMatrix &arg) const

Expression	operator+ (const Operator &arg) const

Expression	operator+ (const Expression &arg) const

Operator &	operator+= (const double &arg)

Operator &	operator+= (const DVector &arg)

Operator &	operator+= (const DMatrix &arg)

Operator &	operator+= (const Expression &arg)

Expression	operator- (const double &arg) const

Expression	operator- (const DVector &arg) const

Expression	operator- (const DMatrix &arg) const

Expression	operator- (const Operator &arg) const

Expression	operator- (const Expression &arg) const

Expression	operator- () const

Operator &	operator-= (const double &arg)

Operator &	operator-= (const DVector &arg)

Operator &	operator-= (const DMatrix &arg)

Operator &	operator-= (const Expression &arg)

Expression	operator/ (const double &arg) const

Expression	operator/ (const Operator &arg) const

Expression	operator/ (const Expression &arg) const

Operator &	operator/= (const double &arg)

Operator &	operator/= (const Expression &arg)

ConstraintComponent	operator<= (const double &ub) const

ConstraintComponent	operator<= (const DVector &ub) const

ConstraintComponent	operator<= (const VariablesGrid &ub) const

virtual Operator &	operator= (const double &arg)

virtual Operator &	operator= (const DVector &arg)

virtual Operator &	operator= (const DMatrix &arg)

virtual Operator &	operator= (const Expression &arg)

virtual Operator &	operator= (const Operator &arg)

ConstraintComponent	operator== (const double &b) const

ConstraintComponent	operator== (const DVector &b) const

ConstraintComponent	operator== (const VariablesGrid &b) const

ConstraintComponent	operator>= (const double &lb) const

ConstraintComponent	operator>= (const DVector &lb) const

ConstraintComponent	operator>= (const VariablesGrid &lb) const

virtual Operator *	passArgument () const

	SmoothOperator ()

virtual	~SmoothOperator ()

Public Member Functions inherited from Operator
virtual returnValue	initDerivative ()

virtual BooleanType	isTrivial () const

virtual Operator *	myAdd (Operator a, Operator b)

virtual Operator *	myLogarithm (Operator *a)

virtual Operator *	myPower (Operator a, Operator b)

virtual Operator *	myPowerInt (Operator *a, int b)

virtual Operator *	myProd (Operator a, Operator b)

virtual Operator *	mySubtract (Operator a, Operator b)

	Operator ()

Expression	operator* (const double &arg) const

Expression	operator* (const DVector &arg) const

Expression	operator* (const DMatrix &arg) const

Expression	operator* (const Operator &arg) const

Expression	operator* (const Expression &arg) const

Operator &	operator*= (const double &arg)

Operator &	operator*= (const DVector &arg)

Operator &	operator*= (const DMatrix &arg)

Operator &	operator*= (const Expression &arg)

Expression	operator+ (const double &arg) const

Expression	operator+ (const DVector &arg) const

Expression	operator+ (const DMatrix &arg) const

Expression	operator+ (const Operator &arg) const

Expression	operator+ (const Expression &arg) const

Operator &	operator+= (const double &arg)

Operator &	operator+= (const DVector &arg)

Operator &	operator+= (const DMatrix &arg)

Operator &	operator+= (const Expression &arg)

Expression	operator- (const double &arg) const

Expression	operator- (const DVector &arg) const

Expression	operator- (const DMatrix &arg) const

Expression	operator- (const Operator &arg) const

Expression	operator- (const Expression &arg) const

Expression	operator- () const

Operator &	operator-= (const double &arg)

Operator &	operator-= (const DVector &arg)

Operator &	operator-= (const DMatrix &arg)

Operator &	operator-= (const Expression &arg)

Expression	operator/ (const double &arg) const

Expression	operator/ (const Operator &arg) const

Expression	operator/ (const Expression &arg) const

Operator &	operator/= (const double &arg)

Operator &	operator/= (const Expression &arg)

ConstraintComponent	operator<= (const double &ub) const

ConstraintComponent	operator<= (const DVector &ub) const

ConstraintComponent	operator<= (const VariablesGrid &ub) const

ConstraintComponent	operator== (const double &b) const

ConstraintComponent	operator== (const DVector &b) const

ConstraintComponent	operator== (const VariablesGrid &b) const

ConstraintComponent	operator>= (const double &lb) const

ConstraintComponent	operator>= (const DVector &lb) const

ConstraintComponent	operator>= (const VariablesGrid &lb) const

virtual	~Operator ()

Protected Member Functions
returnValue	ADbackwardProtected (int dim, VariableType varType, int component, Operator seed, Operator df, int &nNewIS, TreeProjection **newIS)

Operator *	ADforwardProtected (int dim, VariableType varType, int component, Operator seed, int &nNewIS, TreeProjection *newIS)

returnValue	ADsymmetricProtected (int dim, VariableType varType, int component, Operator l, Operator S, int dimS, Operator dfS, Operator ldf, Operator H, int &nNewLIS, TreeProjection newLIS, int &nNewSIS, TreeProjection newSIS, int &nNewHIS, TreeProjection **newHIS)

virtual returnValue	setVariableExportName (const VariableType &_type, const std::vector< std::string > &_name)

Protected Member Functions inherited from Operator
returnValue	ADsymCommon (Operator a, TreeProjection &da, TreeProjection &dda, int dim, VariableType varType, int component, Operator l, Operator S, int dimS, Operator dfS, Operator ldf, Operator H, int &nNewLIS, TreeProjection *newLIS, int &nNewSIS, TreeProjection newSIS, int &nNewHIS, TreeProjection **newHIS)

returnValue	ADsymCommon2 (Operator a, Operator b, TreeProjection &dx, TreeProjection &dy, TreeProjection &dxx, TreeProjection &dxy, TreeProjection &dyy, int dim, VariableType varType, int component, Operator l, Operator S, int dimS, Operator dfS, Operator ldf, Operator H, int &nNewLIS, TreeProjection newLIS, int &nNewSIS, TreeProjection newSIS, int &nNewHIS, TreeProjection **newHIS)

virtual TreeProjection *	convert2TreeProjection (Operator *a) const

Protected Attributes
Operator *	argument

double *	argument_result

int	bufferSize

std::string	cName

CurvatureType	curvature

Operator *	dargument

double *	dargument_result

double(*	ddfcn )(double)

Operator *	derivative

Operator *	derivative2

double(*	dfcn )(double)

double(*	fcn )(double)

MonotonicityType	monotonicity

OperatorName	operatorName

Protected Attributes inherited from Operator
BooleanType	initialized

Additional Inherited Members
Public Attributes inherited from SmoothOperator
int	nCount

Public Attributes inherited from Operator
int	nCount

Detailed Description

Abstract base class for all scalar-valued unary operators within the symbolic operators family.

The class UnaryOperator serves as a base class all scalar-valued unary operators within the symbolic operators family.

Author: Boris Houska, Hans Joachim Ferreau

Definition at line 56 of file unary_operator.hpp.

Constructor & Destructor Documentation

BEGIN_NAMESPACE_ACADO UnaryOperator::UnaryOperator ( )

Default constructor.

Definition at line 42 of file unary_operator.cpp.

UnaryOperator::UnaryOperator ( Operator * _argument )

Default constructor.

Definition at line 53 of file unary_operator.cpp.

UnaryOperator::UnaryOperator ( const UnaryOperator & arg )

Copy constructor (deep copy).

Definition at line 74 of file unary_operator.cpp.

UnaryOperator::~UnaryOperator ( )

virtual

Default destructor.

Definition at line 113 of file unary_operator.cpp.

Member Function Documentation

returnValue UnaryOperator::AD_backward	(	int	dim,
		VariableType *	varType,
		int *	component,
		Operator *	seed,
		Operator **	df,
		int &	nNewIS,
		TreeProjection ***	newIS
	)

virtual

Automatic Differentiation in backward mode on the symbolic
level. This function generates an expression for a
backward derivative

Returns: SUCCESSFUL_RETURN

Parameters

dim	number of directions
varType	the variable types
component	and their components
seed	the backward seed
df	the result
nNewIS	the number of new IS
newIS	the new IS-pointer

Implements SmoothOperator.

Definition at line 226 of file unary_operator.cpp.

returnValue UnaryOperator::AD_backward	(	int	number,
		double	seed,
		double *	df
	)

virtual

Automatic Differentiation in backward mode based on
buffered values

Returns: SUCCESFUL_RETURN
RET_NAN

Parameters

number	the buffer position
seed	the seed
df	the derivative

Implements SmoothOperator.

Definition at line 381 of file unary_operator.cpp.

returnValue UnaryOperator::AD_backward2	(	int	number,
		double	seed1,
		double	seed2,
		double *	df,
		double *	ddf
	)

virtual

Automatic Differentiation in backward mode for 2nd order
derivatives based on buffered values.

Returns: SUCCESFUL_RETURN
RET_NAN

Parameters

number	the buffer position
seed1	the seed1
seed2	the seed2
df	the 1st derivative
ddf	the 2nd derivative

Implements SmoothOperator.

Definition at line 406 of file unary_operator.cpp.

Operator * UnaryOperator::AD_forward	(	int	dim,
		VariableType *	varType,
		int *	component,
		Operator **	seed,
		int &	nNewIS,
		TreeProjection ***	newIS
	)

virtual

Automatic Differentiation in forward mode on the symbolic
level. This function generates an expression for a
forward derivative

Returns: SUCCESSFUL_RETURN

Parameters

dim	dimension of the seed
varType	the variable types
component	and their components
seed	the forward seed
nNewIS	the number of new IS
newIS	the new IS-pointer

Implements SmoothOperator.

Definition at line 215 of file unary_operator.cpp.

returnValue UnaryOperator::AD_forward	(	int	number,
		double *	seed,
		double *	df
	)

virtual

Automatic Differentiation in forward mode.
This function uses the intermediate
results from a buffer

Returns: SUCCESFUL_RETURN
RET_NAN

Parameters

number	storage position
seed	the seed
df	the derivative

Implements SmoothOperator.

Definition at line 370 of file unary_operator.cpp.

returnValue UnaryOperator::AD_forward	(	int	number,
		double *	x,
		double *	seed,
		double *	f,
		double *	df
	)

virtual

Automatic Differentiation in forward mode.
This function stores the intermediate
results in a buffer (needed for 2nd order automatic
differentiation in backward mode)

Returns: SUCCESFUL_RETURN
RET_NAN

Parameters

number	storage position
x	The evaluation point x
seed	the seed
f	the value of the expression at x
df	the derivative of the expression

Implements SmoothOperator.

Definition at line 351 of file unary_operator.cpp.

returnValue UnaryOperator::AD_forward2	(	int	number,
		double *	seed1,
		double *	seed2,
		double *	df,
		double *	ddf
	)

virtual

Automatic Differentiation in forward mode for
2nd derivatives.
This function uses intermediate
results from a buffer.

Returns: SUCCESFUL_RETURN
RET_NAN

Parameters

number	the buffer position
seed1	the seed
seed2	the seed for the first derivative
df	the derivative
ddf	the 2nd derivative

Implements SmoothOperator.

Definition at line 386 of file unary_operator.cpp.

returnValue UnaryOperator::AD_symmetric	(	int	dim,
		VariableType *	varType,
		int *	component,
		Operator *	l,
		Operator **	S,
		int	dimS,
		Operator **	dfS,
		Operator **	ldf,
		Operator **	H,
		int &	nNewLIS,
		TreeProjection ***	newLIS,
		int &	nNewSIS,
		TreeProjection ***	newSIS,
		int &	nNewHIS,
		TreeProjection ***	newHIS
	)

virtual

Automatic Differentiation in symmetric mode on the symbolic
level. This function generates an expression for a
second order derivative.

Returns: SUCCESSFUL_RETURN

Parameters

dim	number of directions
varType	the variable types
component	and their components
l	the backward seed
S	forward seed matrix
dimS	dimension of forward seed
dfS	first order foward result
ldf	first order backward result
H	upper trianglular part of the Hessian
nNewLIS	the number of newLIS
newLIS	the new LIS-pointer
nNewSIS	the number of newSIS
newSIS	the new SIS-pointer
nNewHIS	the number of newHIS
newHIS	the new HIS-pointer

Implements SmoothOperator.

Definition at line 239 of file unary_operator.cpp.

returnValue UnaryOperator::ADbackwardProtected	(	int	dim,
		VariableType *	varType,
		int *	component,
		Operator *	seed,
		Operator **	df,
		int &	nNewIS,
		TreeProjection ***	newIS
	)

protected

Automatic Differentiation in backward mode on the symbolic
level. This function generates an expression for a
backward derivative

Returns: SUCCESSFUL_RETURN

Parameters

dim	number of directions
varType	the variable types
component	and their components
seed	the backward seed
df	the result
nNewIS	the number of new IS
newIS	the new IS-pointer

Definition at line 509 of file unary_operator.cpp.

Operator * UnaryOperator::ADforwardProtected	(	int	dim,
		VariableType *	varType,
		int *	component,
		Operator **	seed,
		int &	nNewIS,
		TreeProjection ***	newIS
	)

protected

Automatic Differentiation in forward mode on the symbolic
level. This function generates an expression for a
forward derivative

Returns: SUCCESSFUL_RETURN

Parameters

dim	dimension of the seed
varType	the variable types
component	and their components
seed	the forward seed
nNewIS	the number of new IS
newIS	the new IS-pointer

Definition at line 492 of file unary_operator.cpp.

returnValue UnaryOperator::ADsymmetricProtected	(	int	dim,
		VariableType *	varType,
		int *	component,
		Operator *	l,
		Operator **	S,
		int	dimS,
		Operator **	dfS,
		Operator **	ldf,
		Operator **	H,
		int &	nNewLIS,
		TreeProjection ***	newLIS,
		int &	nNewSIS,
		TreeProjection ***	newSIS,
		int &	nNewHIS,
		TreeProjection ***	newHIS
	)

protected

Automatic Differentiation in symmetric mode on the symbolic
level. This function generates an expression for a
second order derivative.

Returns: SUCCESSFUL_RETURN

Parameters

dim	number of directions
varType	the variable types
component	and their components
l	the backward seed
S	forward seed matrix
dimS	dimension of forward seed
dfS	first order foward result
ldf	first order backward result
H	upper trianglular part of the Hessian
nNewLIS	the number of newLIS
newLIS	the new LIS-pointer
nNewSIS	the number of newSIS
newSIS	the new SIS-pointer
nNewHIS	the number of newHIS
newHIS	the new HIS-pointer

Definition at line 529 of file unary_operator.cpp.

returnValue UnaryOperator::clearBuffer ( )

virtual

Clears the buffer and resets the buffer size
to 1.

Returns: SUCCESFUL_RETURN

Implements SmoothOperator.

Definition at line 432 of file unary_operator.cpp.

virtual Operator* UnaryOperator::clone ( ) const

pure virtual

Provides a deep copy of the expression.

Returns: a clone of the expression.

Implements SmoothOperator.

Implemented in Cos, Exp, Logarithm, Sin, Tan, Acos, Asin, and Atan.

Operator * UnaryOperator::differentiate ( int index )

virtual

Returns the derivative of the expression with respect
to the variable var(index).

Returns: The expression for the derivative.

Parameters

index diff. index

Implements SmoothOperator.

Definition at line 485 of file unary_operator.cpp.

returnValue UnaryOperator::enumerateVariables ( SymbolicIndexList * indexList )

virtual

Enumerates all variables based on a common
IndexList.

Returns: SUCCESFUL_RETURN

Implements SmoothOperator.

Definition at line 445 of file unary_operator.cpp.

returnValue UnaryOperator::evaluate	(	int	number,
		double *	x,
		double *	result
	)

virtual

Evaluates the expression and stores the intermediate
results in a buffer (needed for automatic differentiation
in backward mode)

Returns: SUCCESFUL_RETURN
RET_NAN

Parameters

number	storage position
x	the input variable x
result	the result

Implements SmoothOperator.

Definition at line 201 of file unary_operator.cpp.

virtual returnValue UnaryOperator::evaluate ( EvaluationBase * x )

pure virtual

Evaluates the expression (templated version)

Implements SmoothOperator.

Implemented in Acos, Atan, Cos, Exp, Logarithm, Sin, Tan, and Asin.

CurvatureType UnaryOperator::getCurvature ( )

virtual

Returns the curvature of the expression

Returns: CT_CONSTANT
CT_AFFINE
CT_CONVEX
CT_CONCAVE

Implements SmoothOperator.

Reimplemented in Exp, and Logarithm.

Definition at line 328 of file unary_operator.cpp.

MonotonicityType UnaryOperator::getMonotonicity ( )

virtual

Returns the monotonicity of the expression.

Returns: MT_NONDECREASING
MT_NONINCREASING
MT_NONMONOTONIC

Implements SmoothOperator.

Definition at line 319 of file unary_operator.cpp.

OperatorName UnaryOperator::getName ( )

virtual

Asks the expression for its name.

Returns: the name of the expression.

Implements SmoothOperator.

Definition at line 456 of file unary_operator.cpp.

BooleanType UnaryOperator::isDependingOn ( VariableType var ) const

virtual

Asks the expression whether it is depending on a certian type of
variable.

Returns: BT_TRUE if a dependency is detected,
BT_FALSE otherwise.

Implements SmoothOperator.

Definition at line 264 of file unary_operator.cpp.

BooleanType UnaryOperator::isDependingOn	(	int	dim,
		VariableType *	varType,
		int *	component,
		BooleanType *	implicit_dep
	)

virtual

Checks whether the expression is depending on a variable

Returns: BT_FALSE if no dependence is detected
BT_TRUE otherwise

Parameters

dim	number of directions
varType	the variable types
component	and their components
implicit_dep	implicit dependencies

Implements SmoothOperator.

Definition at line 270 of file unary_operator.cpp.

BooleanType UnaryOperator::isLinearIn	(	int	dim,
		VariableType *	varType,
		int *	component,
		BooleanType *	implicit_dep
	)

virtual

Checks whether the expression is linear in
(or not depending on) a variable

Returns: BT_FALSE if no linearity is
detected
BT_TRUE otherwise

Parameters

dim	number of directions
varType	the variable types
component	and their components
implicit_dep	implicit dependencies

Implements SmoothOperator.

Definition at line 280 of file unary_operator.cpp.

NeutralElement UnaryOperator::isOneOrZero ( ) const

virtual

Checks whether the expression is zero or one

Returns: NE_ZERO
NE_ONE
NE_NEITHER_ONE_NOR_ZERO

Implements SmoothOperator.

Definition at line 261 of file unary_operator.cpp.

BooleanType UnaryOperator::isPolynomialIn	(	int	dim,
		VariableType *	varType,
		int *	component,
		BooleanType *	implicit_dep
	)

virtual

Checks whether the expression is polynomial in
the specified variables

Returns: BT_FALSE if the expression is not polynomial
BT_TRUE otherwise

Parameters

dim	number of directions
varType	the variable types
component	and their components
implicit_dep	implicit dependencies

Implements SmoothOperator.

Definition at line 293 of file unary_operator.cpp.

BooleanType UnaryOperator::isRationalIn	(	int	dim,
		VariableType *	varType,
		int *	component,
		BooleanType *	implicit_dep
	)

virtual

Checks whether the expression is rational in
the specified variables

Returns: BT_FALSE if the expression is not rational
BT_TRUE otherwise

Parameters

dim	number of directions
varType	the variable types
component	and their components
implicit_dep	implicit dependencies

Implements SmoothOperator.

Definition at line 306 of file unary_operator.cpp.

BooleanType UnaryOperator::isSymbolic ( ) const

virtual

Asks whether all elements are purely symbolic.

Returns: BT_TRUE if the complete tree is symbolic.
BT_FALSE otherwise (e.g. if C functions are linked).

Implements SmoothOperator.

Definition at line 468 of file unary_operator.cpp.

BooleanType UnaryOperator::isVariable	(	VariableType &	varType,
		int &	component
	)		const

virtual

Asks the expression whether it is a variable.

Returns: The answer.

Implements SmoothOperator.

Definition at line 427 of file unary_operator.cpp.

returnValue UnaryOperator::loadIndices ( SymbolicIndexList * indexList )

virtual

The function loadIndices passes an IndexList through
the whole expression tree. Whenever a variable gets the
IndexList it tries to make an entry. However if a
variable recognices that it has already been added
before it will not be allowed to make a second entry.
Note that all variables, in paticular the intermediate
states, will keep in mind whether they were allowed
to make an entry or not. This guarantees that
intermediate states are never evaluated twice if they
occur at several knots of the tree.

THIS FUNCTION IS FOR INTERNAL USE ONLY.

PLEASE CALL THIS FUNTION AT MOST ONES FOR AN EXPRESSION
AS A KIND OF INIT ROUTINE.

Returns: the name of the expression.

Implements SmoothOperator.

Definition at line 462 of file unary_operator.cpp.

UnaryOperator & UnaryOperator::operator= ( const UnaryOperator & arg )

Assignment Operator (deep copy).

Definition at line 145 of file unary_operator.cpp.

std::ostream & UnaryOperator::print ( std::ostream & stream ) const

virtual

Prints the expression into a stream.

Returns: SUCCESFUL_RETURN

Implements SmoothOperator.

Definition at line 421 of file unary_operator.cpp.

returnValue UnaryOperator::setCurvature ( CurvatureType curvature_ )

virtual

Overwrites the curvature of the expression.
(For the case that the curvature is explicitly known)

Returns: SUCCESSFUL_RETURN

Implements SmoothOperator.

Definition at line 344 of file unary_operator.cpp.

returnValue UnaryOperator::setMonotonicity ( MonotonicityType monotonicity_ )

virtual

Overwrites the monotonicity of the expression.
(For the case that the monotonicity is explicitly known)

Returns: SUCCESSFUL_RETURN

Implements SmoothOperator.

Definition at line 337 of file unary_operator.cpp.

returnValue UnaryOperator::setVariableExportName	(	const VariableType &	_type,
		const std::vector< std::string > &	_name
	)

protectedvirtual

Sets the name of the variable that is used for code export.

Returns: SUCCESSFUL_RETURN

Reimplemented from Operator.

Definition at line 475 of file unary_operator.cpp.

virtual Operator* UnaryOperator::substitute	(	int	index,
		const Operator *	sub
	)

pure virtual

Substitutes var(index) with the expression sub.

Returns: The substituted expression.

Parameters

index	subst. index
sub	the substitution

Implements SmoothOperator.

Implemented in Cos, Exp, Logarithm, Sin, Tan, Acos, Asin, and Atan.

Member Data Documentation

Operator* UnaryOperator::argument

protected

The argument

Definition at line 460 of file unary_operator.hpp.

double* UnaryOperator::argument_result

protected

The results for the argument.

Definition at line 462 of file unary_operator.hpp.

int UnaryOperator::bufferSize

protected

The size of the buffer

Definition at line 464 of file unary_operator.hpp.

std::string UnaryOperator::cName

protected

Definition at line 469 of file unary_operator.hpp.

CurvatureType UnaryOperator::curvature

protected

Definition at line 466 of file unary_operator.hpp.

Operator* UnaryOperator::dargument

protected

The derivative

Definition at line 461 of file unary_operator.hpp.

double* UnaryOperator::dargument_result

protected

The results for the first derivative

Definition at line 463 of file unary_operator.hpp.

double(* UnaryOperator::ddfcn) (double)

protected

Definition at line 473 of file unary_operator.hpp.

Operator* UnaryOperator::derivative

protected

The derivative of this unary operator.

Definition at line 457 of file unary_operator.hpp.

Operator* UnaryOperator::derivative2

protected

The second order derivative of this unary operator.

Definition at line 458 of file unary_operator.hpp.

double(* UnaryOperator::dfcn) (double)

protected

Definition at line 472 of file unary_operator.hpp.

double(* UnaryOperator::fcn) (double)

protected

Definition at line 471 of file unary_operator.hpp.

MonotonicityType UnaryOperator::monotonicity

protected

Definition at line 467 of file unary_operator.hpp.

OperatorName UnaryOperator::operatorName

protected

Definition at line 468 of file unary_operator.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
