Public Member Functions | Protected Member Functions | Protected Attributes | List of all members

Allows to export Gaussian elimination for solving linear systems of specific dimensions. More...

#include <gaussian_elimination_export.hpp>

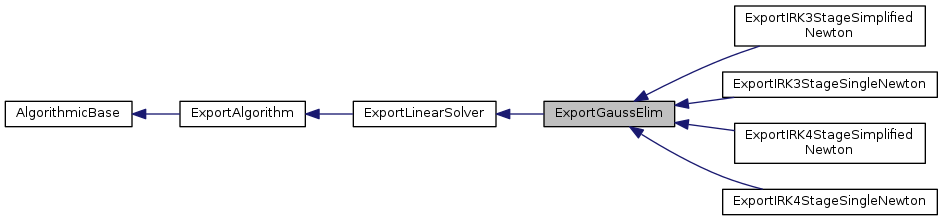

Inheritance diagram for ExportGaussElim:
Inheritance graph
[legend]

Public Member Functions

returnValue appendVariableNames (std::stringstream &string)

 ExportGaussElim (UserInteraction *_userInteraction=0, const std::string &_commonHeaderName="")

virtual returnValue getCode (ExportStatementBlock &code)

virtual returnValue getDataDeclarations (ExportStatementBlock &declarations, ExportStruct dataStruct=ACADO_ANY) const

virtual returnValue getFunctionDeclarations (ExportStatementBlock &declarations) const

virtual ExportVariable getGlobalExportVariable (const uint factor) const

virtual returnValue setup ()

virtual ~ExportGaussElim ()

- Public Member Functions inherited from ExportLinearSolver
 ExportLinearSolver (UserInteraction *_userInteraction=0, const std::string &_commonHeaderName="")

uint getDim () const

const std::string getNameSolveFunction ()

const std::string getNameSolveReuseFunction ()

const std::string getNameSolveTransposeReuseFunction ()

bool getReuse () const

bool getTranspose () const

bool getUnrolling () const

returnValue init (const uint newDim, const bool &reuse=true, const bool &unrolling=false)

returnValue init (const uint newDim, const uint _nRightHandSides, const bool &reuse=true, const bool &unrolling=false)

returnValue init (const uint newDim, const bool &reuse, const bool &unrolling, const std::string &newId)

returnValue init (unsigned _nRows, unsigned _nCols, unsigned _nBacksolves, bool _reuse, bool _unroll, const std::string &_id)

returnValue init (unsigned _nRows, unsigned _nCols, unsigned _nBacksolves, unsigned _nRightHandSides, bool _reuse, bool _unroll, const std::string &_id)

returnValue setReuse (const bool &reuse)

returnValue setTranspose (const bool &transpose)

returnValue setUnrolling (const bool &unrolling)

virtual ~ExportLinearSolver ()

- Public Member Functions inherited from ExportAlgorithm
 ExportAlgorithm (UserInteraction *_userInteraction=0, const std::string &_commonHeaderName=std::string())

uint getN () const

uint getNDX () const

uint getNOD () const

uint getNP () const

uint getNU () const

uint getNX () const

uint getNXA () const

uint getNY () const

uint getNYN () const

returnValue setDimensions (uint _NX=0, uint _NU=0, uint _NP=0, uint _NI=0, uint _NOD=0)

returnValue setDimensions (uint _NX, uint _NDX, uint _NXA, uint _NU, uint _NP, uint _NI, uint _NOD)

void setNY (uint NY_)

void setNYN (uint NYN_)

virtual ~ExportAlgorithm ()

- Public Member Functions inherited from AlgorithmicBase
int addLogRecord (LogRecord &_record)

returnValue addOption (OptionsName name, int value)

returnValue addOption (OptionsName name, double value)

returnValue addOption (uint idx, OptionsName name, int value)

returnValue addOption (uint idx, OptionsName name, double value)

returnValue addOptionsList ()

 AlgorithmicBase ()

 AlgorithmicBase (UserInteraction *_userInteraction)

 AlgorithmicBase (const AlgorithmicBase &rhs)

returnValue get (OptionsName name, int &value) const

returnValue get (OptionsName name, double &value) const

returnValue get (OptionsName name, std::string &value) const

returnValue get (uint idx, OptionsName name, int &value) const

returnValue get (uint idx, OptionsName name, double &value) const

returnValue getAll (LogName _name, MatrixVariablesGrid &values) const

returnValue getFirst (LogName _name, DMatrix &firstValue) const

returnValue getFirst (LogName _name, VariablesGrid &firstValue) const

returnValue getLast (LogName _name, DMatrix &lastValue) const

returnValue getLast (LogName _name, VariablesGrid &lastValue) const

Options getOptions (uint idx) const

BooleanType haveOptionsChanged () const

BooleanType haveOptionsChanged (uint idx) const

AlgorithmicBaseoperator= (const AlgorithmicBase &rhs)

returnValue plot (PlotFrequency _frequency=PLOT_IN_ANY_CASE)

returnValue printLogRecord (std::ostream &_stream, int idx, LogPrintMode _mode=PRINT_ITEM_BY_ITEM) const

returnValue replot (PlotFrequency _frequency=PLOT_IN_ANY_CASE)

returnValue set (OptionsName name, int value)

returnValue set (OptionsName name, double value)

returnValue set (OptionsName name, const std::string &value)

returnValue set (uint idx, OptionsName name, int value)

returnValue set (uint idx, OptionsName name, double value)

returnValue setAll (LogName _name, const MatrixVariablesGrid &values)

returnValue setLast (LogName _name, int lastValue, double time=-INFTY)

returnValue setLast (LogName _name, double lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const DVector &lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const DMatrix &lastValue, double time=-INFTY)

returnValue setLast (LogName _name, const VariablesGrid &lastValue, double time=-INFTY)

returnValue setOptions (const Options &arg)

returnValue setOptions (uint idx, const Options &arg)

virtual ~AlgorithmicBase ()


Protected Member Functions

virtual returnValue setupFactorization (ExportFunction &_solve, ExportVariable &_swap, ExportVariable &_determinant, const std::string &absF)

virtual returnValue setupSolve (ExportFunction &_solve, ExportFunction &_solveTriangular, ExportVariable &_swap, ExportVariable &_determinant, const std::string &absF)

virtual returnValue setupSolveReuse (ExportFunction &_solveReuse, ExportFunction &_solveTriangular, ExportVariable &_bPerm)

virtual returnValue setupSolveReuseComplete (ExportFunction &_solveReuse, ExportVariable &_bPerm)

virtual returnValue setupSolveReuseTranspose (ExportFunction &_solveReuse, ExportVariable &_bPerm)

virtual returnValue setupSolveUpperTriangular (ExportFunction &_solveTriangular)


Protected Attributes

ExportVariable b_trans

ExportVariable rk_bPerm

ExportVariable rk_bPerm_trans

ExportVariable rk_perm

ExportVariable rk_swap

- Protected Attributes inherited from ExportLinearSolver
ExportVariable A

ExportVariable b

ExportVariable determinant

uint dim

std::string identifier

unsigned nBacksolves

unsigned nCols

unsigned nRightHandSides

unsigned nRows

bool REUSE

ExportFunction solve

ExportFunction solveReuse

ExportFunction solveReuseTranspose

ExportFunction solveTriangular

bool TRANSPOSE

bool UNROLLING

- Protected Attributes inherited from ExportAlgorithm
std::string commonHeaderName

uint N

uint NDX

uint NOD

uint NP

uint NU

uint NX

uint NXA

uint NY

uint NYN

- Protected Attributes inherited from AlgorithmicBase
int outputLoggingIdx

BooleanType useModuleStandalone

UserInteractionuserInteraction


Detailed Description

Allows to export Gaussian elimination for solving linear systems of specific dimensions.

The class ExportGaussElim allows to export Gaussian elimination for solving linear systems of specific dimensions.

Author
Rien Quirynen

Definition at line 54 of file gaussian_elimination_export.hpp.

Constructor & Destructor Documentation

BEGIN_NAMESPACE_ACADO ExportGaussElim::ExportGaussElim ( UserInteraction _userInteraction = 0,
const std::string &  _commonHeaderName = ""
)

Default constructor.

    @param[in] _userInteraction             Pointer to corresponding user interface.
    @param[in] _commonHeaderName    Name of common header file to be included.

Definition at line 44 of file gaussian_elimination_export.cpp.

ExportGaussElim::~ExportGaussElim ( )
virtual

Destructor.

Definition at line 50 of file gaussian_elimination_export.cpp.

Member Function Documentation

returnValue ExportGaussElim::appendVariableNames ( std::stringstream &  string)
virtual

Appends the names of the used variables to a given stringstream.

@param[in] string                           The string to which the names of the used variables are appended.

\return SUCCESSFUL_RETURN

Implements ExportLinearSolver.

Reimplemented in ExportIRK3StageSimplifiedNewton, and ExportIRK4StageSimplifiedNewton.

Definition at line 516 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::getCode ( ExportStatementBlock code)
virtual

Exports source code of the auto-generated algorithm into the given directory.

@param[in] code                             Code block containing the auto-generated algorithm.

\return SUCCESSFUL_RETURN

Implements ExportLinearSolver.

Reimplemented in ExportIRK3StageSimplifiedNewton, ExportIRK4StageSimplifiedNewton, ExportIRK3StageSingleNewton, and ExportIRK4StageSingleNewton.

Definition at line 82 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::getDataDeclarations ( ExportStatementBlock declarations,
ExportStruct  dataStruct = ACADO_ANY
) const
virtual

Adds all data declarations of the auto-generated algorithm to given list of declarations.

@param[in] declarations             List of declarations.

\return SUCCESSFUL_RETURN

Implements ExportLinearSolver.

Reimplemented in ExportIRK3StageSimplifiedNewton, ExportIRK4StageSimplifiedNewton, ExportIRK3StageSingleNewton, and ExportIRK4StageSingleNewton.

Definition at line 53 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::getFunctionDeclarations ( ExportStatementBlock declarations) const
virtual

Adds all function (forward) declarations of the auto-generated algorithm to given list of declarations.

@param[in] declarations             List of declarations.

\return SUCCESSFUL_RETURN

Implements ExportLinearSolver.

Reimplemented in ExportIRK3StageSimplifiedNewton, ExportIRK4StageSimplifiedNewton, ExportIRK3StageSingleNewton, and ExportIRK4StageSingleNewton.

Definition at line 69 of file gaussian_elimination_export.cpp.

ExportVariable ExportGaussElim::getGlobalExportVariable ( const uint  factor) const
virtual

Returns the dimension of the auxiliary variables for the linear solver.

Returns
The dimension of the auxiliary variables for the linear solver.

Reimplemented from ExportLinearSolver.

Definition at line 577 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::setup ( )
virtual

Initializes code export into given file.

\return SUCCESSFUL_RETURN

Implements ExportLinearSolver.

Reimplemented in ExportIRK3StageSimplifiedNewton, ExportIRK3StageSingleNewton, ExportIRK4StageSimplifiedNewton, and ExportIRK4StageSingleNewton.

Definition at line 528 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::setupFactorization ( ExportFunction _solve,
ExportVariable _swap,
ExportVariable _determinant,
const std::string &  absF
)
protectedvirtual

Definition at line 273 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::setupSolve ( ExportFunction _solve,
ExportFunction _solveTriangular,
ExportVariable _swap,
ExportVariable _determinant,
const std::string &  absF
)
protectedvirtual

Definition at line 141 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::setupSolveReuse ( ExportFunction _solveReuse,
ExportFunction _solveTriangular,
ExportVariable _bPerm
)
protectedvirtual

Definition at line 391 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::setupSolveReuseComplete ( ExportFunction _solveReuse,
ExportVariable _bPerm
)
protectedvirtual

Definition at line 417 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::setupSolveReuseTranspose ( ExportFunction _solveReuse,
ExportVariable _bPerm
)
protectedvirtual

Definition at line 478 of file gaussian_elimination_export.cpp.

returnValue ExportGaussElim::setupSolveUpperTriangular ( ExportFunction _solveTriangular)
protectedvirtual

Definition at line 123 of file gaussian_elimination_export.cpp.

Member Data Documentation

ExportVariable ExportGaussElim::b_trans
protected

Variable containing ...

Definition at line 154 of file gaussian_elimination_export.hpp.

ExportVariable ExportGaussElim::rk_bPerm
protected

Variable containing the reordered right-hand side.

Definition at line 150 of file gaussian_elimination_export.hpp.

ExportVariable ExportGaussElim::rk_bPerm_trans
protected

Variable containing ...

Definition at line 153 of file gaussian_elimination_export.hpp.

ExportVariable ExportGaussElim::rk_perm
protected

Variable containing the order of the rows.

Definition at line 151 of file gaussian_elimination_export.hpp.

ExportVariable ExportGaussElim::rk_swap
protected

Variable that is used to swap rows for pivoting.

Definition at line 149 of file gaussian_elimination_export.hpp.


The documentation for this class was generated from the following files:
