ExportStatementBlock Class Reference

Allows to export code for a block of statements. More...

#include <export_statement_block.hpp>

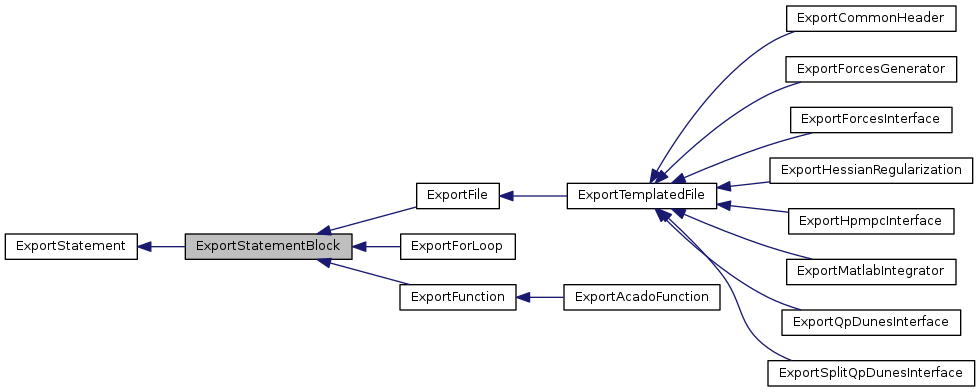

Inheritance diagram for ExportStatementBlock:

Public Member Functions
returnValue	addComment (const std::string &_comment)
returnValue	addComment (uint _nBlanks, const std::string &_comment)
returnValue	addDeclaration (const ExportVariable &_data, ExportStruct _dataStruct=ACADO_ANY)
returnValue	addDeclaration (const ExportIndex &_data, ExportStruct _dataStruct=ACADO_ANY)
returnValue	addDeclaration (const ExportFunction &_f)
returnValue	addDeclaration (const ExportAcadoFunction &_f)
returnValue	addFunction (const ExportFunction &_function)
returnValue	addFunctionCall (const std::string &_fName, const ExportArgument &_argument1=emptyConstExportArgument, const ExportArgument &_argument2=emptyConstExportArgument, const ExportArgument &_argument3=emptyConstExportArgument, const ExportArgument &_argument4=emptyConstExportArgument, const ExportArgument &_argument5=emptyConstExportArgument, const ExportArgument &_argument6=emptyConstExportArgument, const ExportArgument &_argument7=emptyConstExportArgument, const ExportArgument &_argument8=emptyConstExportArgument, const ExportArgument &_argument9=emptyConstExportArgument)
returnValue	addFunctionCall (const ExportFunction &_f, const ExportArgument &_argument1=emptyConstExportArgument, const ExportArgument &_argument2=emptyConstExportArgument, const ExportArgument &_argument3=emptyConstExportArgument, const ExportArgument &_argument4=emptyConstExportArgument, const ExportArgument &_argument5=emptyConstExportArgument, const ExportArgument &_argument6=emptyConstExportArgument, const ExportArgument &_argument7=emptyConstExportArgument, const ExportArgument &_argument8=emptyConstExportArgument, const ExportArgument &_argument9=emptyConstExportArgument)
returnValue	addLinebreak (uint num=1)
returnValue	addStatement (const ExportStatement &_statement)
returnValue	addStatement (const std::string &_statementString)
returnValue	clear ()
virtual ExportStatement *	clone () const
virtual returnValue	exportCode (std::ostream &stream, const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16) const
virtual returnValue	exportDataDeclaration (std::ostream &stream, const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16) const
	ExportStatementBlock ()
	ExportStatementBlock (const ExportStatementBlock &arg)
uint	getNumStatements () const
ExportStatementBlock &	operator= (const ExportStatementBlock &rhs)
virtual	~ExportStatementBlock ()
Public Member Functions inherited from ExportStatement
virtual ExportStatement &	acquire (ExportIndex &)
virtual ExportStatement &	allocate (MemoryAllocatorPtr)
	ExportStatement ()
	ExportStatement (const ExportStatement &arg)
ExportStatement &	operator= (const ExportStatement &arg)
virtual ExportStatement &	release (const ExportIndex &)
virtual	~ExportStatement ()

Protected Attributes
StatementPtrArray	statements

Friends
ExportStatementBlock &	operator<< (ExportStatementBlock &_block, const ExportStatement &_statement)
ExportStatementBlock &	operator<< (ExportStatementBlock &_block, const std::string &_statement)

Additional Inherited Members
Public Types inherited from ExportStatement
typedef std::shared_ptr< MemoryAllocator >	MemoryAllocatorPtr
typedef std::shared_ptr< ExportStatement >	StatementPtr
typedef std::vector< StatementPtr >	StatementPtrArray
Static Public Attributes inherited from ExportStatement
static std::string	fcnPrefix = "acado"
static std::string	varPrefix = "ACADO"

Detailed Description

Allows to export code for a block of statements.

The class ExportStatementBlock allows to export code for a block of statements.

Authors

Hans Joachim Ferreau, Boris Houska, Milan Vukov

Definition at line 63 of file export_statement_block.hpp.

Constructor & Destructor Documentation

BEGIN_NAMESPACE_ACADO ExportStatementBlock::ExportStatementBlock

(

)

< Default Constructor.

Definition at line 52 of file export_statement_block.cpp.

ExportStatementBlock::ExportStatementBlock

(

const ExportStatementBlock &

arg

)

Copy constructor (deep copy).

@param[in] arg      Right-hand side object.

Definition at line 57 of file export_statement_block.cpp.

ExportStatementBlock::~ExportStatementBlock ( )

virtual

Destructor.

Definition at line 63 of file export_statement_block.cpp.

Member Function Documentation

returnValue ExportStatementBlock::addComment

(

const std::string &

_comment

)

Adds a comment to the statement block.

@param[in] _comment         Comment to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 228 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addComment	(	uint	_nBlanks,
		const std::string &	_comment
	)

Adds a comment preceded by a given number of blanks to the statement block.

@param[in] _nBlanks         Number of blanks.
@param[in] _comment         Comment to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 236 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addDeclaration	(	const ExportVariable &	_data,
		ExportStruct	_dataStruct = ACADO_ANY
	)

Adds a variable declaration to the statement block.

@param[in] _data            Variable declaration to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 158 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addDeclaration	(	const ExportIndex &	_data,
		ExportStruct	_dataStruct = ACADO_ANY
	)

Adds an index declaration to the statement block.

@param[in] _data            Index declaration to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 177 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addDeclaration

(

const ExportFunction &

_f

)

Adds a function forward declaration to the statement block.

@param[in] _f                       function forward declaration to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 192 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addDeclaration

(

const ExportAcadoFunction &

_f

)

Adds a forward declaration of an ODE function to the statement block.

@param[in] _f                       ODE function whose forward declaration is to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 200 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addFunction

(

const ExportFunction &

_function

)

Adds a function to the statement block.

@param[in] _function                Function to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 108 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addFunctionCall	(	const std::string &	_fName,
		const ExportArgument &	_argument1 = emptyConstExportArgument,
		const ExportArgument &	_argument2 = emptyConstExportArgument,
		const ExportArgument &	_argument3 = emptyConstExportArgument,
		const ExportArgument &	_argument4 = emptyConstExportArgument,
		const ExportArgument &	_argument5 = emptyConstExportArgument,
		const ExportArgument &	_argument6 = emptyConstExportArgument,
		const ExportArgument &	_argument7 = emptyConstExportArgument,
		const ExportArgument &	_argument8 = emptyConstExportArgument,
		const ExportArgument &	_argument9 = emptyConstExportArgument
	)

Adds a function call to the statement block.

@param[in] _fName                   Name of function to be called.

Returns

SUCCESSFUL_RETURN

Definition at line 115 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addFunctionCall	(	const ExportFunction &	_f,
		const ExportArgument &	_argument1 = emptyConstExportArgument,
		const ExportArgument &	_argument2 = emptyConstExportArgument,
		const ExportArgument &	_argument3 = emptyConstExportArgument,
		const ExportArgument &	_argument4 = emptyConstExportArgument,
		const ExportArgument &	_argument5 = emptyConstExportArgument,
		const ExportArgument &	_argument6 = emptyConstExportArgument,
		const ExportArgument &	_argument7 = emptyConstExportArgument,
		const ExportArgument &	_argument8 = emptyConstExportArgument,
		const ExportArgument &	_argument9 = emptyConstExportArgument
	)

Adds a function call to the statement block.

@param[in] _f                               Function to be called.

Returns

SUCCESSFUL_RETURN

Definition at line 136 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addLinebreak

(

uint

num = 1

)

Adds a line break to the statement block.

@param[in] num                      Number of line breaks to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 209 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addStatement

(

const ExportStatement &

_statement

)

Adds a statement to the statement block.

@param[in] _statement               Statement to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 91 of file export_statement_block.cpp.

returnValue ExportStatementBlock::addStatement

(

const std::string &

_statementString

)

Adds a string statement to the statement block.

@param[in] _statementString         std::string statement to be added.

Returns

SUCCESSFUL_RETURN

Definition at line 100 of file export_statement_block.cpp.

returnValue ExportStatementBlock::clear

(

)

Removes all statements to yield an empty statement block.

\return SUCCESSFUL_RETURN

Definition at line 289 of file export_statement_block.cpp.

ExportStatement * ExportStatementBlock::clone ( ) const

virtual

Clone constructor (deep copy).

\return Pointer to cloned object.

Implements ExportStatement.

Reimplemented in ExportForLoop, ExportFunction, and ExportAcadoFunction.

Definition at line 84 of file export_statement_block.cpp.

returnValue ExportStatementBlock::exportCode ( std::ostream &  stream, const std::string &  _realString = "real_t", const std::string &  _intString = "int", int  _precision = 16  ) const

virtual

Exports source code of the statement block into given file. Its appearance can can be adjusted by various options.

@param[in] stream                           Name of file to be used to export statement block.
@param[in] _realString              std::string to be used to declare real variables.
@param[in] _intString               std::string to be used to declare integer variables.
@param[in] _precision               Number of digits to be used for exporting real values.

\return SUCCESSFUL_RETURN

Implements ExportStatement.

Reimplemented in ExportFunction, ExportAcadoFunction, and ExportForLoop.

Definition at line 273 of file export_statement_block.cpp.

returnValue ExportStatementBlock::exportDataDeclaration ( std::ostream &  stream, const std::string &  _realString = "real_t", const std::string &  _intString = "int", int  _precision = 16  ) const

virtual

Exports data declaration of the statement block into given file. Its appearance can can be adjusted by various options.

@param[in] stream                           Name of file to be used to export statement block.
@param[in] _realString              std::string to be used to declare real variables.
@param[in] _intString               std::string to be used to declare integer variables.
@param[in] _precision               Number of digits to be used for exporting real values.

\return SUCCESSFUL_RETURN

Reimplemented from ExportStatement.

Reimplemented in ExportFunction, ExportForLoop, and ExportAcadoFunction.

Definition at line 257 of file export_statement_block.cpp.

uint ExportStatementBlock::getNumStatements

(

)

const

Returns number of statement within statement block.

Returns

Number of statement within statement block

Definition at line 250 of file export_statement_block.cpp.

ExportStatementBlock & ExportStatementBlock::operator=

(

const ExportStatementBlock &

rhs

)

Assignment operator (deep copy).

@param[in] arg      Right-hand side object.

Definition at line 69 of file export_statement_block.cpp.

Friends And Related Function Documentation

ExportStatementBlock& operator<< ( ExportStatementBlock &  _block, const ExportStatement &  _statement  )

friend

Add a statement.

Definition at line 294 of file export_statement_block.cpp.

ExportStatementBlock& operator<< ( ExportStatementBlock &  _block, const std::string &  _statement  )

friend

Add a string.

Definition at line 303 of file export_statement_block.cpp.

Member Data Documentation

StatementPtrArray ExportStatementBlock::statements

protected

Array containing all statements of the statement block.

Definition at line 299 of file export_statement_block.hpp.

---

The documentation for this class was generated from the following files:

• export_statement_block.hpp
• export_statement_block.cpp
