Allows to export files containing automatically generated algorithms for fast model predictive control. More...

#include <export_file.hpp>

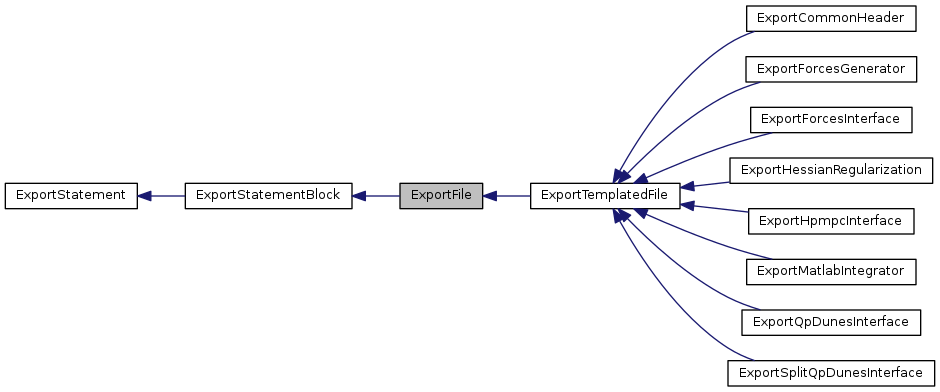

Inheritance diagram for ExportFile:

[legend]

Public Member Functions
virtual returnValue	exportCode () const

	ExportFile ()

	ExportFile (const std::string &_fileName, const std::string &_commonHeaderName="", const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16, const std::string &_commentString=std::string())

virtual returnValue	setup (const std::string &_fileName, const std::string &_commonHeaderName="", const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16, const std::string &_commentString=std::string())

virtual	~ExportFile ()

Public Member Functions inherited from ExportStatementBlock
returnValue	addComment (const std::string &_comment)

returnValue	addComment (uint _nBlanks, const std::string &_comment)

returnValue	addDeclaration (const ExportVariable &_data, ExportStruct _dataStruct=ACADO_ANY)

returnValue	addDeclaration (const ExportIndex &_data, ExportStruct _dataStruct=ACADO_ANY)

returnValue	addDeclaration (const ExportFunction &_f)

returnValue	addDeclaration (const ExportAcadoFunction &_f)

returnValue	addFunction (const ExportFunction &_function)

returnValue	addFunctionCall (const std::string &_fName, const ExportArgument &_argument1=emptyConstExportArgument, const ExportArgument &_argument2=emptyConstExportArgument, const ExportArgument &_argument3=emptyConstExportArgument, const ExportArgument &_argument4=emptyConstExportArgument, const ExportArgument &_argument5=emptyConstExportArgument, const ExportArgument &_argument6=emptyConstExportArgument, const ExportArgument &_argument7=emptyConstExportArgument, const ExportArgument &_argument8=emptyConstExportArgument, const ExportArgument &_argument9=emptyConstExportArgument)

returnValue	addFunctionCall (const ExportFunction &_f, const ExportArgument &_argument1=emptyConstExportArgument, const ExportArgument &_argument2=emptyConstExportArgument, const ExportArgument &_argument3=emptyConstExportArgument, const ExportArgument &_argument4=emptyConstExportArgument, const ExportArgument &_argument5=emptyConstExportArgument, const ExportArgument &_argument6=emptyConstExportArgument, const ExportArgument &_argument7=emptyConstExportArgument, const ExportArgument &_argument8=emptyConstExportArgument, const ExportArgument &_argument9=emptyConstExportArgument)

returnValue	addLinebreak (uint num=1)

returnValue	addStatement (const ExportStatement &_statement)

returnValue	addStatement (const std::string &_statementString)

returnValue	clear ()

virtual ExportStatement *	clone () const

virtual returnValue	exportCode (std::ostream &stream, const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16) const

virtual returnValue	exportDataDeclaration (std::ostream &stream, const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16) const

	ExportStatementBlock ()

	ExportStatementBlock (const ExportStatementBlock &arg)

uint	getNumStatements () const

ExportStatementBlock &	operator= (const ExportStatementBlock &rhs)

virtual	~ExportStatementBlock ()

Public Member Functions inherited from ExportStatement
virtual ExportStatement &	acquire (ExportIndex &)

virtual ExportStatement &	allocate (MemoryAllocatorPtr)

	ExportStatement ()

	ExportStatement (const ExportStatement &arg)

ExportStatement &	operator= (const ExportStatement &arg)

virtual ExportStatement &	release (const ExportIndex &)

virtual	~ExportStatement ()

Protected Attributes
std::string	commentString

std::string	commonHeaderName

std::string	fileName

std::string	intString

int	precision

std::string	realString

Protected Attributes inherited from ExportStatementBlock
StatementPtrArray	statements

Additional Inherited Members
Public Types inherited from ExportStatement
typedef std::shared_ptr< MemoryAllocator >	MemoryAllocatorPtr

typedef std::shared_ptr< ExportStatement >	StatementPtr

typedef std::vector< StatementPtr >	StatementPtrArray

Static Public Attributes inherited from ExportStatement
static std::string	fcnPrefix = "acado"

static std::string	varPrefix = "ACADO"

Detailed Description

Allows to export files containing automatically generated algorithms for fast model predictive control.

The class ExportFile allows to export files containing automatically generated algorithms for fast model predictive control.

Author: Hans Joachim Ferreau, Milan Vukov, Boris Houska

Definition at line 52 of file export_file.hpp.

Constructor & Destructor Documentation

BEGIN_NAMESPACE_ACADO ExportFile::ExportFile ( )

Default constructor.

Definition at line 44 of file export_file.cpp.

ExportFile::ExportFile	(	const std::string &	_fileName,
		const std::string &	_commonHeaderName = `""`,
		const std::string &	_realString = `"real_t"`,
		const std::string &	_intString = `"int"`,
		int	_precision = `16`,
		const std::string &	_commentString = `std::string()`
	)

Standard constructor.

@param[in] _fileName                        Name of exported file.
@param[in] _commonHeaderName        Name of common header file to be included.
@param[in] _realString                      std::string to be used to declare real variables.
@param[in] _intString                       std::string to be used to declare integer variables.
@param[in] _precision                       Number of digits to be used for exporting real values.
@param[in] _commentString           std::string to be used for exporting comments.

Definition at line 47 of file export_file.cpp.

ExportFile::~ExportFile ( )

virtual

Destructor.

Definition at line 58 of file export_file.cpp.

Member Function Documentation

returnValue ExportFile::exportCode ( ) const

virtual

Exports the file containing the auto-generated code.

\return SUCCESSFUL_RETURN

Definition at line 82 of file export_file.cpp.

returnValue ExportFile::setup	(	const std::string &	_fileName,
		const std::string &	_commonHeaderName = `""`,
		const std::string &	_realString = `"real_t"`,
		const std::string &	_intString = `"int"`,
		int	_precision = `16`,
		const std::string &	_commentString = `std::string()`
	)

virtual

Setup routine.

    @param[in] _fileName                    Name of exported file.
    @param[in] _commonHeaderName    Name of common header file to be included.
    @param[in] _realString                  std::string to be used to declare real variables.
    @param[in] _intString                   std::string to be used to declare integer variables.
    @param[in] _precision                   Number of digits to be used for exporting real values.
    @param[in] _commentString               std::string to be used for exporting comments.

    \return SUCCESSFUL_RETURN

Definition at line 62 of file export_file.cpp.

Member Data Documentation

std::string ExportFile::commentString

protected

std::string to be used for exporting comments.

Definition at line 119 of file export_file.hpp.

std::string ExportFile::commonHeaderName

protected

Name of common header file.

Definition at line 114 of file export_file.hpp.

std::string ExportFile::fileName

protected

Name of exported file.

Definition at line 113 of file export_file.hpp.

std::string ExportFile::intString

protected

std::string to be used to declare integer variables.

Definition at line 117 of file export_file.hpp.

int ExportFile::precision

protected

Number of digits to be used for exporting real values.

Definition at line 118 of file export_file.hpp.

std::string ExportFile::realString

protected

std::string to be used to declare real variables.

Definition at line 116 of file export_file.hpp.
