ExportStatement Class Reference

Base class for all kind of statements to be exported by the code generation tool. More...

#include <export_statement.hpp>

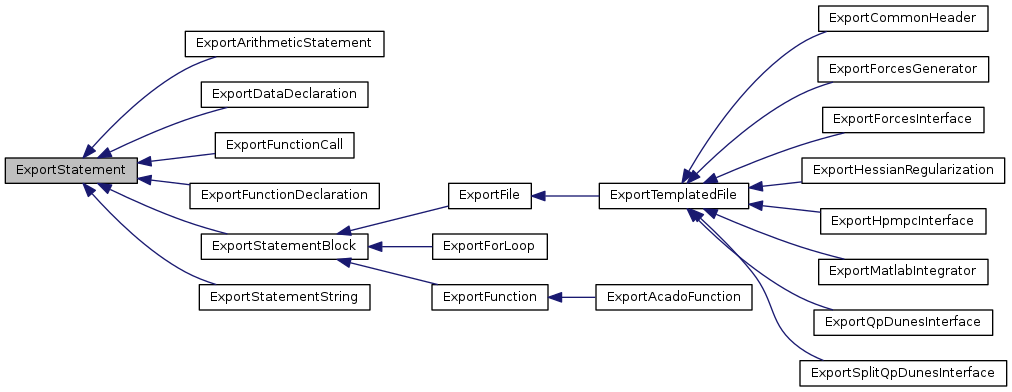

Inheritance diagram for ExportStatement:

Public Types
typedef std::shared_ptr< MemoryAllocator >	MemoryAllocatorPtr
typedef std::shared_ptr< ExportStatement >	StatementPtr
typedef std::vector< StatementPtr >	StatementPtrArray

Public Member Functions
virtual ExportStatement &	acquire (ExportIndex &)
virtual ExportStatement &	allocate (MemoryAllocatorPtr)
virtual ExportStatement *	clone () const =0
virtual returnValue	exportCode (std::ostream &stream, const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16) const =0
virtual returnValue	exportDataDeclaration (std::ostream &stream, const std::string &_realString="real_t", const std::string &_intString="int", int _precision=16) const
	ExportStatement ()
	ExportStatement (const ExportStatement &arg)
ExportStatement &	operator= (const ExportStatement &arg)
virtual ExportStatement &	release (const ExportIndex &)
virtual	~ExportStatement ()

Static Public Attributes
static std::string	fcnPrefix = "acado"
static std::string	varPrefix = "ACADO"

Detailed Description

Base class for all kind of statements to be exported by the code generation tool.

The class ExportStatement serves as a base class for all kind of statements to be exported by the code generation tool.

Authors

Hans Joachim Ferreau, Boris Houska, Milan Vukov

Definition at line 59 of file export_statement.hpp.

Member Typedef Documentation

typedef std::shared_ptr< MemoryAllocator > ExportStatement::MemoryAllocatorPtr

Shared pointer to a memory allocator

Definition at line 73 of file export_statement.hpp.

typedef std::shared_ptr< ExportStatement > ExportStatement::StatementPtr

Shared pointer to a statement.

Definition at line 67 of file export_statement.hpp.

typedef std::vector< StatementPtr > ExportStatement::StatementPtrArray

A vector of shared pointer statements.

Definition at line 70 of file export_statement.hpp.

Constructor & Destructor Documentation

ExportStatement::ExportStatement

(

)

Default constructor.

Definition at line 46 of file export_statement.cpp.

ExportStatement::ExportStatement

(

const ExportStatement &

arg

)

Copy constructor (deep copy).

@param[in] arg              Right-hand side object.

Definition at line 51 of file export_statement.cpp.

ExportStatement::~ExportStatement ( )

virtual

Destructor.

Definition at line 57 of file export_statement.cpp.

Member Function Documentation

virtual ExportStatement& ExportStatement::acquire ( ExportIndex &  )

inlinevirtual

Acquire an index.

Reimplemented in ExportFunction.

Definition at line 135 of file export_statement.hpp.

virtual ExportStatement& ExportStatement::allocate ( MemoryAllocatorPtr  )

inlinevirtual

Set a memory allocator.

Reimplemented in ExportForLoop, and ExportArithmeticStatement.

Definition at line 147 of file export_statement.hpp.

virtual ExportStatement* ExportStatement::clone ( ) const

pure virtual

Clone constructor (deep copy).

\return Pointer to cloned object.

Implemented in ExportFunctionCall, ExportDataDeclaration, ExportForLoop, ExportArithmeticStatement, ExportStatementBlock, ExportFunction, ExportAcadoFunction, ExportFunctionDeclaration, and ExportStatementString.

virtual returnValue ExportStatement::exportCode ( std::ostream &  stream, const std::string &  _realString = "real_t", const std::string &  _intString = "int", int  _precision = 16  ) const

pure virtual

Exports source code of the statement into given file. Its appearance can can be adjusted by various options.

@param[in] stream                           Name of file to be used to export statement.
@param[in] _realString              std::string to be used to declare real variables.
@param[in] _intString               std::string to be used to declare integer variables.
@param[in] _precision               Number of digits to be used for exporting real values.

\return SUCCESSFUL_RETURN

Implemented in ExportStatementBlock, ExportFunction, ExportFunctionCall, ExportAcadoFunction, ExportForLoop, ExportArithmeticStatement, ExportDataDeclaration, ExportFunctionDeclaration, and ExportStatementString.

returnValue ExportStatement::exportDataDeclaration ( std::ostream &  stream, const std::string &  _realString = "real_t", const std::string &  _intString = "int", int  _precision = 16  ) const

virtual

Exports data declaration of the statement into given file. Its appearance can can be adjusted by various options.

@param[in] stream                           Name of file to be used to export statement.
@param[in] _realString              std::string to be used to declare real variables.
@param[in] _intString               std::string to be used to declare integer variables.
@param[in] _precision               Number of digits to be used for exporting real values.

\return SUCCESSFUL_RETURN

Reimplemented in ExportStatementBlock, ExportFunction, ExportForLoop, ExportAcadoFunction, and ExportArithmeticStatement.

Definition at line 75 of file export_statement.cpp.

ExportStatement & ExportStatement::operator=

(

const ExportStatement &

arg

)

Assignment operator (deep copy).

@param[in] arg              Right-hand side object.

Definition at line 62 of file export_statement.cpp.

virtual ExportStatement& ExportStatement::release ( const ExportIndex &  )

inlinevirtual

Release an index.

Reimplemented in ExportFunction.

Definition at line 141 of file export_statement.hpp.

Member Data Documentation

BEGIN_NAMESPACE_ACADO std::string ExportStatement::fcnPrefix = "acado"

static

Definition at line 154 of file export_statement.hpp.

std::string ExportStatement::varPrefix = "ACADO"

static

Definition at line 155 of file export_statement.hpp.

---

The documentation for this class was generated from the following files:

• export_statement.hpp
• export_statement.cpp
