kinematic_constraints::KinematicConstraint Class Reference

Base class for representing a kinematic constraint. More...

`#include <kinematic_constraint.h>`

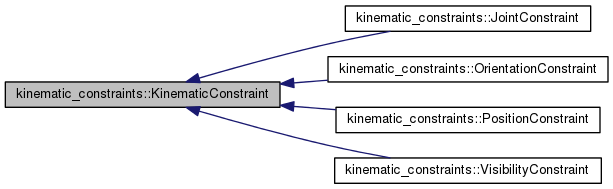

Inheritance diagram for kinematic_constraints::KinematicConstraint:

## Public Types | |

enum | ConstraintType { UNKNOWN_CONSTRAINT, JOINT_CONSTRAINT, POSITION_CONSTRAINT, ORIENTATION_CONSTRAINT, VISIBILITY_CONSTRAINT } |

Enum for representing a constraint. More... | |

## Public Member Functions | |

virtual void | clear ()=0 |

Clear the stored constraint. | |

virtual ConstraintEvaluationResult | decide (const robot_state::RobotState &state, bool verbose=false) const =0 |

Decide whether the constraint is satisfied in the indicated state. | |

virtual bool | enabled () const =0 |

This function returns true if this constraint is configured and able to decide whether states do meet the constraint or not. If this function returns false it means that decide() will always return true -- there is no constraint to be checked. | |

virtual bool | equal (const KinematicConstraint &other, double margin) const =0 |

Check if two constraints are the same. This means that the types are the same, the subject of the constraint is the same, and all values associated with the constraint are within a margin. The other constraint must also be enabled. | |

double | getConstraintWeight () const |

The weight of a constraint is a multiplicative factor associated to the distance computed by the decide() function. | |

const robot_model::RobotModelConstPtr & | getRobotModel () const |

ConstraintType | getType () const |

Get the type of constraint. | |

KinematicConstraint (const robot_model::RobotModelConstPtr &model) | |

Constructor. | |

virtual void | print (std::ostream &out=std::cout) const |

Print the constraint data. | |

virtual | ~KinematicConstraint () |

## Protected Attributes | |

double | constraint_weight_ |

The weight of a constraint is a multiplicative factor associated to the distance computed by the decide() function. | |

robot_model::RobotModelConstPtr | robot_model_ |

The kinematic model associated with this constraint. | |

ConstraintType | type_ |

The type of the constraint. |

Base class for representing a kinematic constraint.

Definition at line 78 of file kinematic_constraint.h.

Enum for representing a constraint.

**Enumerator:***UNKNOWN_CONSTRAINT**JOINT_CONSTRAINT**POSITION_CONSTRAINT**ORIENTATION_CONSTRAINT**VISIBILITY_CONSTRAINT*

Definition at line 82 of file kinematic_constraint.h.

kinematic_constraints::KinematicConstraint::KinematicConstraint | ( | const robot_model::RobotModelConstPtr & | model | ) |

Constructor.

**Parameters:**-
[in] model The kinematic model used for constraint evaluation

Definition at line 62 of file kinematic_constraint.cpp.

Definition at line 67 of file kinematic_constraint.cpp.

virtual void kinematic_constraints::KinematicConstraint::clear | ( | ) | ` [pure virtual]` |

Clear the stored constraint.

Implemented in kinematic_constraints::VisibilityConstraint, kinematic_constraints::PositionConstraint, kinematic_constraints::OrientationConstraint, and kinematic_constraints::JointConstraint.

virtual ConstraintEvaluationResult kinematic_constraints::KinematicConstraint::decide | ( | const robot_state::RobotState & | state, |

bool | verbose = `false` |
||

) | const` [pure virtual]` |

Decide whether the constraint is satisfied in the indicated state.

**Parameters:**-
[in] state The kinematic state used for evaluation [in] verbose Whether or not to print output

**Returns:**

Implemented in kinematic_constraints::VisibilityConstraint, kinematic_constraints::PositionConstraint, kinematic_constraints::OrientationConstraint, and kinematic_constraints::JointConstraint.

virtual bool kinematic_constraints::KinematicConstraint::enabled | ( | ) | const` [pure virtual]` |

This function returns true if this constraint is configured and able to decide whether states do meet the constraint or not. If this function returns false it means that decide() will always return true -- there is no constraint to be checked.

Implemented in kinematic_constraints::VisibilityConstraint, kinematic_constraints::PositionConstraint, kinematic_constraints::OrientationConstraint, and kinematic_constraints::JointConstraint.

virtual bool kinematic_constraints::KinematicConstraint::equal | ( | const KinematicConstraint & | other, |

double | margin |
||

) | const` [pure virtual]` |

Check if two constraints are the same. This means that the types are the same, the subject of the constraint is the same, and all values associated with the constraint are within a margin. The other constraint must also be enabled.

**Parameters:**-
[in] other The other constraint to test [in] margin The margin to apply to all values associated with constraint

**Returns:**- True if equal, otherwise false

double kinematic_constraints::KinematicConstraint::getConstraintWeight | ( | ) | const` [inline]` |

The weight of a constraint is a multiplicative factor associated to the distance computed by the decide() function.

**Returns:**- The constraint weight

Definition at line 159 of file kinematic_constraint.h.

const robot_model::RobotModelConstPtr& kinematic_constraints::KinematicConstraint::getRobotModel | ( | ) | const` [inline]` |

**Returns:**- The kinematic model associated with this constraint

Definition at line 170 of file kinematic_constraint.h.

ConstraintType kinematic_constraints::KinematicConstraint::getType | ( | ) | const` [inline]` |

Get the type of constraint.

**Returns:**- The constraint type

Definition at line 138 of file kinematic_constraint.h.

virtual void kinematic_constraints::KinematicConstraint::print | ( | std::ostream & | out = `std::cout` | ) | const` [inline, virtual]` |

Print the constraint data.

**Parameters:**-
[in] out The file descriptor for printing

Reimplemented in kinematic_constraints::VisibilityConstraint, kinematic_constraints::PositionConstraint, kinematic_constraints::OrientationConstraint, and kinematic_constraints::JointConstraint.

Definition at line 148 of file kinematic_constraint.h.

double kinematic_constraints::KinematicConstraint::constraint_weight_` [protected]` |

The weight of a constraint is a multiplicative factor associated to the distance computed by the decide() function.

Definition at line 178 of file kinematic_constraint.h.

robot_model::RobotModelConstPtr kinematic_constraints::KinematicConstraint::robot_model_` [protected]` |

The kinematic model associated with this constraint.

Definition at line 177 of file kinematic_constraint.h.

The type of the constraint.

Definition at line 176 of file kinematic_constraint.h.

The documentation for this class was generated from the following files:
