VL53L1 Register Function definitions. More...

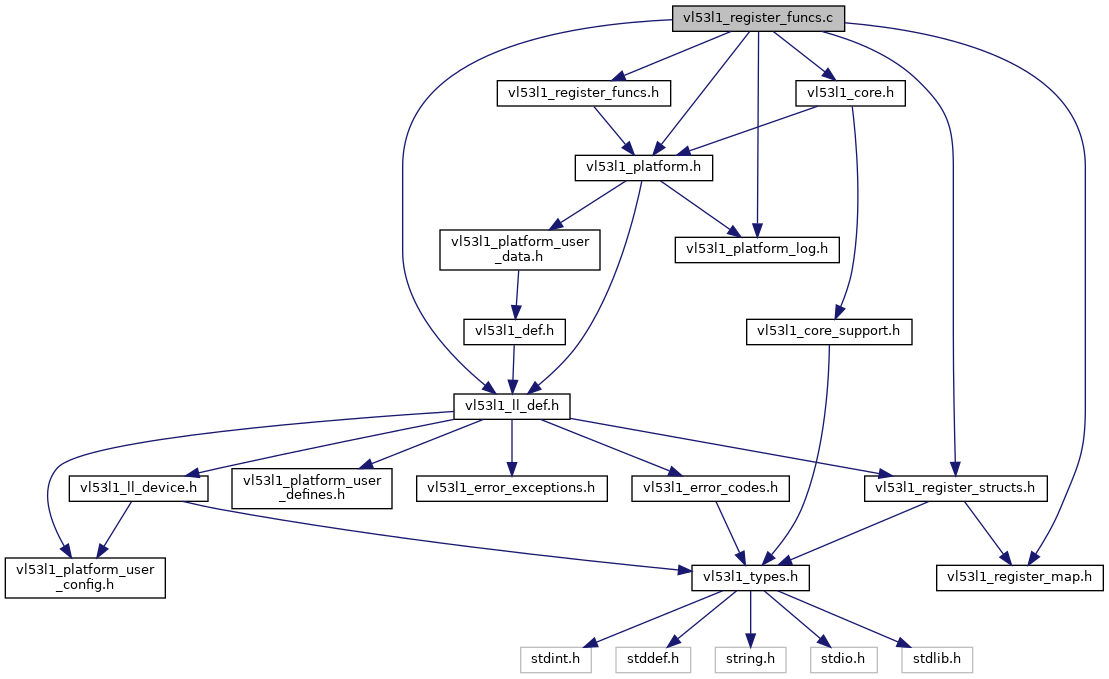

#include "vl53l1_ll_def.h"#include "vl53l1_platform.h"#include "vl53l1_platform_log.h"#include "vl53l1_core.h"#include "vl53l1_register_map.h"#include "vl53l1_register_structs.h"#include "vl53l1_register_funcs.h"
Go to the source code of this file.
Macros | |
| #define | LOG_FUNCTION_END(status, ...) _LOG_FUNCTION_END(VL53L1_TRACE_MODULE_REGISTERS, status, ##__VA_ARGS__) |
| #define | LOG_FUNCTION_END_FMT(status, fmt, ...) _LOG_FUNCTION_END_FMT(VL53L1_TRACE_MODULE_REGISTERS, status, fmt, ##__VA_ARGS__) |
| #define | LOG_FUNCTION_START(fmt, ...) _LOG_FUNCTION_START(VL53L1_TRACE_MODULE_REGISTERS, fmt, ##__VA_ARGS__) |
Detailed Description
VL53L1 Register Function definitions.
Definition in file vl53l1_register_funcs.c.
Macro Definition Documentation
◆ LOG_FUNCTION_END
| #define LOG_FUNCTION_END | ( | status, | |
| ... | |||
| ) | _LOG_FUNCTION_END(VL53L1_TRACE_MODULE_REGISTERS, status, ##__VA_ARGS__) |
Definition at line 78 of file vl53l1_register_funcs.c.
◆ LOG_FUNCTION_END_FMT
| #define LOG_FUNCTION_END_FMT | ( | status, | |
| fmt, | |||
| ... | |||
| ) | _LOG_FUNCTION_END_FMT(VL53L1_TRACE_MODULE_REGISTERS, status, fmt, ##__VA_ARGS__) |
Definition at line 80 of file vl53l1_register_funcs.c.
◆ LOG_FUNCTION_START
| #define LOG_FUNCTION_START | ( | fmt, | |
| ... | |||
| ) | _LOG_FUNCTION_START(VL53L1_TRACE_MODULE_REGISTERS, fmt, ##__VA_ARGS__) |
Definition at line 76 of file vl53l1_register_funcs.c.
Function Documentation
◆ VL53L1_get_customer_nvm_managed()
| VL53L1_Error VL53L1_get_customer_nvm_managed | ( | VL53L1_DEV | Dev, |
| VL53L1_customer_nvm_managed_t * | pdata | ||
| ) |
Gets customer_nvm_managed register group.
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_customer_nvm_managed_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_customer_nvm_managed_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Reads and de-serialises the contents of VL53L1_customer_nvm_managed_t data structure from the device
Definition at line 399 of file vl53l1_register_funcs.c.
◆ VL53L1_get_nvm_copy_data()
| VL53L1_Error VL53L1_get_nvm_copy_data | ( | VL53L1_DEV | Dev, |
| VL53L1_nvm_copy_data_t * | pdata | ||
| ) |
Sets nvm_copy_data register group.
Serailises (encodes) VL53L1_nvm_copy_data_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_nvm_copy_data_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Gets nvm_copy_data register group
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_nvm_copy_data_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_nvm_copy_data_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Reads and de-serialises the contents of VL53L1_nvm_copy_data_t data structure from the device
Definition at line 2405 of file vl53l1_register_funcs.c.
◆ VL53L1_get_static_nvm_managed()
| VL53L1_Error VL53L1_get_static_nvm_managed | ( | VL53L1_DEV | Dev, |
| VL53L1_static_nvm_managed_t * | pdata | ||
| ) |
Gets static_nvm_managed register group.
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_static_nvm_managed_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_static_nvm_managed_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Reads and de-serialises the contents of VL53L1_static_nvm_managed_t data structure from the device
Definition at line 207 of file vl53l1_register_funcs.c.
◆ VL53L1_get_system_results()
| VL53L1_Error VL53L1_get_system_results | ( | VL53L1_DEV | Dev, |
| VL53L1_system_results_t * | pdata | ||
| ) |
Sets system_results register group.
Serailises (encodes) VL53L1_system_results_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_system_results_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Gets system_results register group
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_system_results_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_system_results_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Reads and de-serialises the contents of VL53L1_system_results_t data structure from the device
Definition at line 1600 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_core_results()
| VL53L1_Error VL53L1_i2c_decode_core_results | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_core_results_t * | pdata | ||
| ) |
Encodes data structure VL53L1_core_results_t into a I2C write buffer.
Buffer must be at least 33 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_core_results_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Decodes data structure VL53L1_core_results_t from the input I2C read buffer
Buffer must be at least 33 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_core_results_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_core_results_t from the input I2C read buffer Buffer must be at least 33 bytes
Definition at line 1693 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_customer_nvm_managed()
| VL53L1_Error VL53L1_i2c_decode_customer_nvm_managed | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_customer_nvm_managed_t * | pdata | ||
| ) |
Decodes data structure VL53L1_customer_nvm_managed_t from the input I2C read buffer.
Buffer must be at least 23 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_customer_nvm_managed_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_customer_nvm_managed_t from the input I2C read buffer Buffer must be at least 23 bytes
Definition at line 310 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_debug_results()
| VL53L1_Error VL53L1_i2c_decode_debug_results | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_debug_results_t * | pdata | ||
| ) |
Sets core_results register group.
Serailises (encodes) VL53L1_core_results_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_core_results_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Gets core_results register group
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_core_results_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_core_results_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Encodes data structure VL53L1_debug_results_t into a I2C write buffer
Buffer must be at least 56 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_debug_results_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Decodes data structure VL53L1_debug_results_t from the input I2C read buffer
Buffer must be at least 56 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_debug_results_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_debug_results_t from the input I2C read buffer Buffer must be at least 56 bytes
Definition at line 1937 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_general_config()
| VL53L1_Error VL53L1_i2c_decode_general_config | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_general_config_t * | pdata | ||
| ) |
Decodes data structure VL53L1_general_config_t from the input I2C read buffer.
Buffer must be at least 22 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_general_config_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_general_config_t from the input I2C read buffer Buffer must be at least 22 bytes
Definition at line 738 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_nvm_copy_data()
| VL53L1_Error VL53L1_i2c_decode_nvm_copy_data | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_nvm_copy_data_t * | pdata | ||
| ) |
Sets debug_results register group.
Serailises (encodes) VL53L1_debug_results_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_debug_results_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Encodes data structure VL53L1_nvm_copy_data_t into a I2C write buffer
Buffer must be at least 49 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_nvm_copy_data_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Decodes data structure VL53L1_nvm_copy_data_t from the input I2C read buffer
Buffer must be at least 49 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_nvm_copy_data_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_nvm_copy_data_t from the input I2C read buffer Buffer must be at least 49 bytes
Definition at line 2245 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_static_config()
| VL53L1_Error VL53L1_i2c_decode_static_config | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_static_config_t * | pdata | ||
| ) |
Decodes data structure VL53L1_static_config_t from the input I2C read buffer.
Buffer must be at least 32 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_static_config_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_static_config_t from the input I2C read buffer Buffer must be at least 32 bytes
Definition at line 520 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_static_nvm_managed()
| VL53L1_Error VL53L1_i2c_decode_static_nvm_managed | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_static_nvm_managed_t * | pdata | ||
| ) |
Decodes data structure VL53L1_static_nvm_managed_t from the input I2C read buffer.
Buffer must be at least 11 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_static_nvm_managed_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_static_nvm_managed_t from the input I2C read buffer Buffer must be at least 11 bytes
Definition at line 130 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_decode_system_results()
| VL53L1_Error VL53L1_i2c_decode_system_results | ( | uint16_t | buf_size, |
| uint8_t * | pbuffer, | ||
| VL53L1_system_results_t * | pdata | ||
| ) |
Gets system_control register group.
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_system_control_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_system_control_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Encodes data structure VL53L1_system_results_t into a I2C write buffer
Buffer must be at least 44 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_system_results_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Decodes data structure VL53L1_system_results_t from the input I2C read buffer
Buffer must be at least 44 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_system_results_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Decodes data structure VL53L1_system_results_t from the input I2C read buffer Buffer must be at least 44 bytes
Definition at line 1491 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_encode_customer_nvm_managed()
| VL53L1_Error VL53L1_i2c_encode_customer_nvm_managed | ( | VL53L1_customer_nvm_managed_t * | pdata, |
| uint16_t | buf_size, | ||
| uint8_t * | pbuffer | ||
| ) |
Encodes data structure VL53L1_customer_nvm_managed_t into a I2C write buffer.
Buffer must be at least 23 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_customer_nvm_managed_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Encodes data structure VL53L1_customer_nvm_managed_t into a I2C write buffer Buffer must be at least 23 bytes
Definition at line 240 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_encode_dynamic_config()
| VL53L1_Error VL53L1_i2c_encode_dynamic_config | ( | VL53L1_dynamic_config_t * | pdata, |
| uint16_t | buf_size, | ||
| uint8_t * | pbuffer | ||
| ) |
Decodes data structure VL53L1_timing_config_t from the input I2C read buffer.
Buffer must be at least 23 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_timing_config_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Sets timing_config register group
Serailises (encodes) VL53L1_timing_config_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_timing_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Gets timing_config register group
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_timing_config_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_timing_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Encodes data structure VL53L1_dynamic_config_t into a I2C write buffer
Buffer must be at least 18 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_dynamic_config_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Encodes data structure VL53L1_dynamic_config_t into a I2C write buffer Buffer must be at least 18 bytes
Definition at line 1054 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_encode_general_config()
| VL53L1_Error VL53L1_i2c_encode_general_config | ( | VL53L1_general_config_t * | pdata, |
| uint16_t | buf_size, | ||
| uint8_t * | pbuffer | ||
| ) |
Gets static_config register group.
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_static_config_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_static_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Encodes data structure VL53L1_general_config_t into a I2C write buffer
Buffer must be at least 22 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_general_config_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Encodes data structure VL53L1_general_config_t into a I2C write buffer Buffer must be at least 22 bytes
Definition at line 672 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_encode_static_config()
| VL53L1_Error VL53L1_i2c_encode_static_config | ( | VL53L1_static_config_t * | pdata, |
| uint16_t | buf_size, | ||
| uint8_t * | pbuffer | ||
| ) |
Encodes data structure VL53L1_static_config_t into a I2C write buffer.
Buffer must be at least 32 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_static_config_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Encodes data structure VL53L1_static_config_t into a I2C write buffer Buffer must be at least 32 bytes
Definition at line 432 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_encode_static_nvm_managed()
| VL53L1_Error VL53L1_i2c_encode_static_nvm_managed | ( | VL53L1_static_nvm_managed_t * | pdata, |
| uint16_t | buf_size, | ||
| uint8_t * | pbuffer | ||
| ) |
Encodes data structure VL53L1_static_nvm_managed_t into a I2C write buffer.
Buffer must be at least 11 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_static_nvm_managed_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Encodes data structure VL53L1_static_nvm_managed_t into a I2C write buffer Buffer must be at least 11 bytes
Definition at line 84 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_encode_system_control()
| VL53L1_Error VL53L1_i2c_encode_system_control | ( | VL53L1_system_control_t * | pdata, |
| uint16_t | buf_size, | ||
| uint8_t * | pbuffer | ||
| ) |
Gets dynamic_config register group.
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_dynamic_config_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_dynamic_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Encodes data structure VL53L1_system_control_t into a I2C write buffer
Buffer must be at least 5 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_system_control_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Encodes data structure VL53L1_system_control_t into a I2C write buffer Buffer must be at least 5 bytes
Definition at line 1239 of file vl53l1_register_funcs.c.
◆ VL53L1_i2c_encode_timing_config()
| VL53L1_Error VL53L1_i2c_encode_timing_config | ( | VL53L1_timing_config_t * | pdata, |
| uint16_t | buf_size, | ||
| uint8_t * | pbuffer | ||
| ) |
Gets general_config register group.
Reads register info from the device via a multi byte I2C read transaction and deserialises (decodes) the data into the VL53L1_general_config_t structure
- Parameters
-
[in] Dev : device handle [out] pdata : pointer to VL53L1_general_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Encodes data structure VL53L1_timing_config_t into a I2C write buffer
Buffer must be at least 23 bytes
- Parameters
-
[in] pdata : pointer to VL53L1_timing_config_t data structure [in] buf_size : size of input buffer [out] pbuffer : uint8_t buffer to write serialised data into (I2C Write Buffer)
Encodes data structure VL53L1_timing_config_t into a I2C write buffer Buffer must be at least 23 bytes
Definition at line 864 of file vl53l1_register_funcs.c.
◆ VL53L1_set_customer_nvm_managed()
| VL53L1_Error VL53L1_set_customer_nvm_managed | ( | VL53L1_DEV | Dev, |
| VL53L1_customer_nvm_managed_t * | pdata | ||
| ) |
Sets customer_nvm_managed register group.
Serailises (encodes) VL53L1_customer_nvm_managed_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_customer_nvm_managed_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Serialises and sends the contents of VL53L1_customer_nvm_managed_t data structure to the device
Definition at line 366 of file vl53l1_register_funcs.c.
◆ VL53L1_set_dynamic_config()
| VL53L1_Error VL53L1_set_dynamic_config | ( | VL53L1_DEV | Dev, |
| VL53L1_dynamic_config_t * | pdata | ||
| ) |
Decodes data structure VL53L1_dynamic_config_t from the input I2C read buffer.
Buffer must be at least 18 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_dynamic_config_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Sets dynamic_config register group
Serailises (encodes) VL53L1_dynamic_config_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_dynamic_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Serialises and sends the contents of VL53L1_dynamic_config_t data structure to the device
Definition at line 1171 of file vl53l1_register_funcs.c.
◆ VL53L1_set_general_config()
| VL53L1_Error VL53L1_set_general_config | ( | VL53L1_DEV | Dev, |
| VL53L1_general_config_t * | pdata | ||
| ) |
Sets general_config register group.
Serailises (encodes) VL53L1_general_config_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_general_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Serialises and sends the contents of VL53L1_general_config_t data structure to the device
Definition at line 796 of file vl53l1_register_funcs.c.
◆ VL53L1_set_static_config()
| VL53L1_Error VL53L1_set_static_config | ( | VL53L1_DEV | Dev, |
| VL53L1_static_config_t * | pdata | ||
| ) |
Sets static_config register group.
Serailises (encodes) VL53L1_static_config_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_static_config_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Serialises and sends the contents of VL53L1_static_config_t data structure to the device
Definition at line 604 of file vl53l1_register_funcs.c.
◆ VL53L1_set_static_nvm_managed()
| VL53L1_Error VL53L1_set_static_nvm_managed | ( | VL53L1_DEV | Dev, |
| VL53L1_static_nvm_managed_t * | pdata | ||
| ) |
Sets static_nvm_managed register group.
Serailises (encodes) VL53L1_static_nvm_managed_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_static_nvm_managed_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Serialises and sends the contents of VL53L1_static_nvm_managed_t data structure to the device
Definition at line 174 of file vl53l1_register_funcs.c.
◆ VL53L1_set_system_control()
| VL53L1_Error VL53L1_set_system_control | ( | VL53L1_DEV | Dev, |
| VL53L1_system_control_t * | pdata | ||
| ) |
Decodes data structure VL53L1_system_control_t from the input I2C read buffer.
Buffer must be at least 5 bytes
- Parameters
-
[in] buf_size : size of input buffer [in] pbuffer : uint8_t buffer contain input serialised data (I2C read buffer) [out] pdata : pointer to VL53L1_system_control_t data structure
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Sets system_control register group
Serailises (encodes) VL53L1_system_control_t structure into a I2C write data buffer and sends the buffer to the device via a multi byte I2C write transaction
- Parameters
-
[in] Dev : device handle [in] pdata : pointer to VL53L1_system_control_t
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Serialises and sends the contents of VL53L1_system_control_t data structure to the device
Definition at line 1309 of file vl53l1_register_funcs.c.
