uavcan::TimerBase Class Reference

#include <timer.hpp>

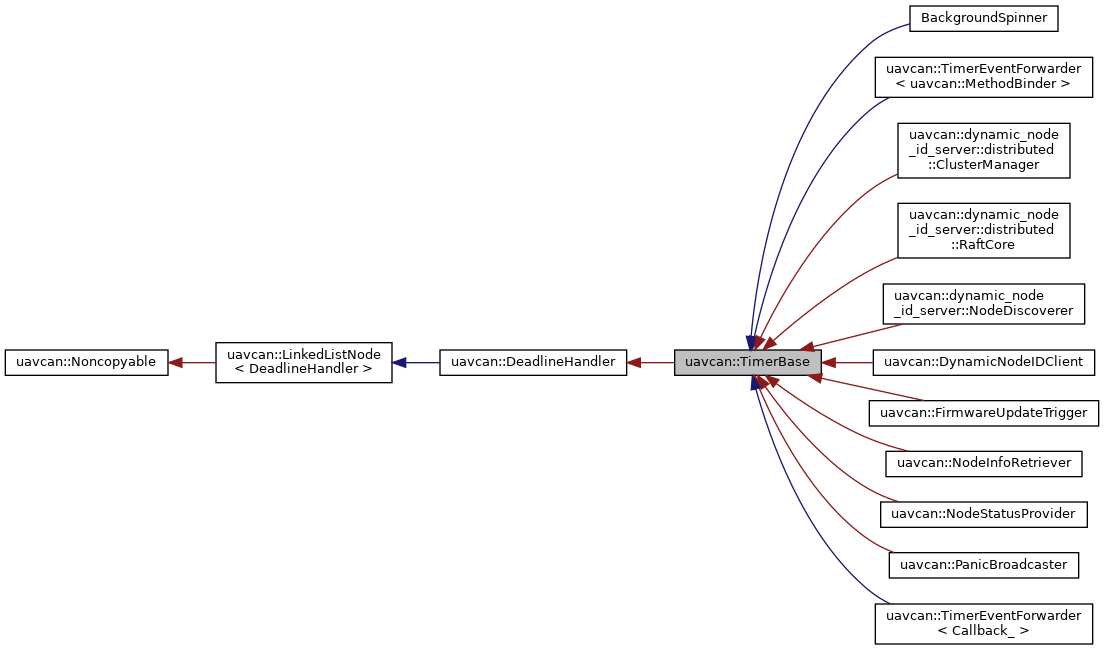

Inheritance diagram for uavcan::TimerBase:

Public Member Functions
MonotonicTime	getDeadline () const
MonotonicDuration	getPeriod () const
Scheduler &	getScheduler () const
virtual void	handleTimerEvent (const TimerEvent &event)=0
bool	isRunning () const
void	startOneShotWithDeadline (MonotonicTime deadline)
void	startOneShotWithDelay (MonotonicDuration delay)
void	startPeriodic (MonotonicDuration period)
void	stop ()
	TimerBase (INode &node)

Private Member Functions
virtual void	handleDeadline (MonotonicTime current)
Private Member Functions inherited from uavcan::DeadlineHandler
void	generateDeadlineImmediately ()
MonotonicTime	getDeadline () const
Scheduler &	getScheduler () const
bool	isRunning () const
void	startWithDeadline (MonotonicTime deadline)
void	startWithDelay (MonotonicDuration delay)
void	stop ()
	DeadlineHandler (Scheduler &scheduler)
virtual	~DeadlineHandler ()
Private Member Functions inherited from uavcan::LinkedListNode< DeadlineHandler >
DeadlineHandler *	getNextListNode () const
void	setNextListNode (DeadlineHandler *node)
	LinkedListNode ()
	~LinkedListNode ()

Private Attributes
MonotonicDuration	period_
Private Attributes inherited from uavcan::DeadlineHandler
Scheduler &	scheduler_

Detailed Description

Inherit this class if you need a timer callback method in your class.

Definition at line 46 of file timer.hpp.

Constructor & Destructor Documentation

TimerBase()

uavcan::TimerBase::TimerBase ( INode &  node )

inlineexplicit

Definition at line 58 of file timer.hpp.

Member Function Documentation

getDeadline()

MonotonicTime uavcan::DeadlineHandler::getDeadline

inline

Definition at line 41 of file scheduler.hpp.

getPeriod()

MonotonicDuration uavcan::TimerBase::getPeriod ( ) const

inline

Returns period if the timer is in periodic mode. Returns infinite duration if the timer is in one-shot mode or stopped.

Definition at line 77 of file timer.hpp.

getScheduler()

Scheduler& uavcan::DeadlineHandler::getScheduler

inline

Definition at line 42 of file scheduler.hpp.

handleDeadline()

void uavcan::TimerBase::handleDeadline ( MonotonicTime  current )

privatevirtual

Implements uavcan::DeadlineHandler.

Definition at line 13 of file uc_timer.cpp.

handleTimerEvent()

virtual void uavcan::TimerBase::handleTimerEvent ( const TimerEvent &  event )

pure virtual

Implement this method in your class to receive callbacks.

Implemented in BackgroundSpinner, uavcan::TimerEventForwarder< Callback_ >, uavcan::TimerEventForwarder< uavcan::MethodBinder >, uavcan::dynamic_node_id_server::distributed::RaftCore, uavcan::FirmwareUpdateTrigger, uavcan::dynamic_node_id_server::NodeDiscoverer, uavcan::NodeInfoRetriever, uavcan::dynamic_node_id_server::distributed::ClusterManager, uavcan::NodeStatusProvider, uavcan::DynamicNodeIDClient, and uavcan::PanicBroadcaster.

isRunning()

bool uavcan::DeadlineHandler::isRunning

Definition at line 32 of file uc_scheduler.cpp.

startOneShotWithDeadline()

void uavcan::TimerBase::startOneShotWithDeadline

(

MonotonicTime

deadline

)

Various ways to start the timer - periodically or once. If it is running already, it will be restarted. If the deadline is in the past, the event will fire immediately. In periodic mode the timer does not accumulate error over time.

Definition at line 28 of file uc_timer.cpp.

startOneShotWithDelay()

void uavcan::TimerBase::startOneShotWithDelay

(

MonotonicDuration

delay

)

Definition at line 35 of file uc_timer.cpp.

startPeriodic()

void uavcan::TimerBase::startPeriodic

(

MonotonicDuration

period

)

Definition at line 42 of file uc_timer.cpp.

stop()

void uavcan::DeadlineHandler::stop

Definition at line 27 of file uc_scheduler.cpp.

Member Data Documentation

period_

MonotonicDuration uavcan::TimerBase::period_

private

Definition at line 48 of file timer.hpp.

---

The documentation for this class was generated from the following files:

• timer.hpp
• uc_timer.cpp
