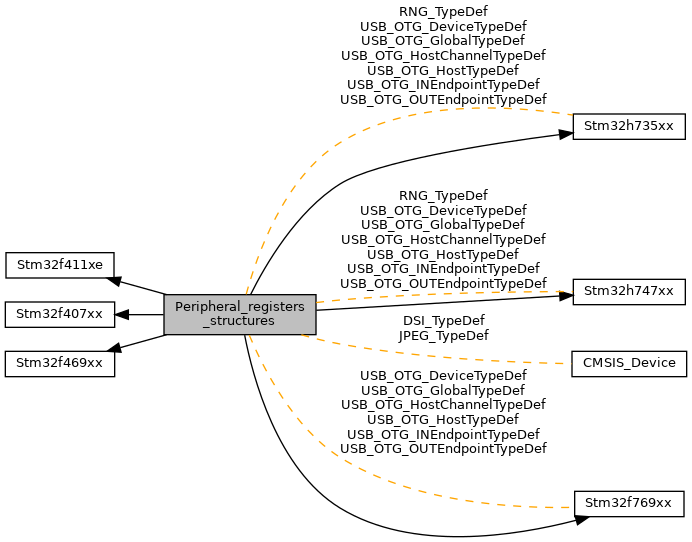

Collaboration diagram for Peripheral_registers_structures:
Classes | |
| struct | ADC_Common_TypeDef |
| struct | ADC_TypeDef |
| Analog to Digital Converter More... | |
| struct | ART_TypeDef |
| ART. More... | |
| struct | BDMA_Channel_TypeDef |
| struct | BDMA_TypeDef |
| struct | CAN_FIFOMailBox_TypeDef |
| Controller Area Network FIFOMailBox. More... | |
| struct | CAN_FilterRegister_TypeDef |
| Controller Area Network FilterRegister. More... | |
| struct | CAN_TxMailBox_TypeDef |
| Controller Area Network TxMailBox. More... | |
| struct | CAN_TypeDef |
| Controller Area Network. More... | |
| struct | CEC_TypeDef |
| HDMI-CEC. More... | |
| struct | COMP_Common_TypeDef |
| struct | COMP_TypeDef |
| struct | COMPOPT_TypeDef |
| Comparator. More... | |
| struct | CORDIC_TypeDef |
| COordincate Rotation DIgital Computer. More... | |
| struct | CRC_TypeDef |
| CRC calculation unit. More... | |
| struct | CRS_TypeDef |
| Clock Recovery System. More... | |
| struct | DAC_TypeDef |
| Digital to Analog Converter. More... | |
| struct | DBGMCU_TypeDef |
| Debug MCU. More... | |
| struct | DCMI_TypeDef |
| DCMI. More... | |
| struct | DFSDM_Channel_TypeDef |
| DFSDM channel configuration registers. More... | |
| struct | DFSDM_Filter_TypeDef |
| DFSDM module registers. More... | |
| struct | DLYB_TypeDef |
| Delay Block DLYB. More... | |
| struct | DMA2D_TypeDef |
| DMA2D Controller. More... | |
| struct | DMA_Stream_TypeDef |
| DMA Controller. More... | |
| struct | DMA_TypeDef |
| struct | DMAMUX_Channel_TypeDef |
| struct | DMAMUX_ChannelStatus_TypeDef |
| struct | DMAMUX_RequestGen_TypeDef |
| struct | DMAMUX_RequestGenStatus_TypeDef |
| struct | DSI_TypeDef |
| DSI Controller. More... | |
| struct | DTS_TypeDef |
| DTS. More... | |
| struct | ETH_TypeDef |
| Ethernet MAC. More... | |
| struct | EXTI_Core_TypeDef |
| This structure registers corresponds to EXTI_Typdef CPU1/CPU2 registers subset (IMRx, EMRx and PRx), allowing to define EXTI_D1/EXTI_D2 with rapid/common access to these IMRx, EMRx, PRx registers for CPU1 and CPU2. Note that EXTI_D1 and EXTI_D2 bases addresses are calculated to point to CPUx first register: IMR1 in case of EXTI_D1 that is addressing CPU1 (Coretx-M7) C2IMR1 in case of EXTI_D2 that is addressing CPU2 (Coretx-M4) Note: EXTI_D2 and corresponding C2IMRx, C2EMRx and C2PRx registers are available for Dual Core devices only. More... | |
| struct | EXTI_TypeDef |
| External Interrupt/Event Controller. More... | |
| struct | FDCAN_ClockCalibrationUnit_TypeDef |
| FD Controller Area Network. More... | |
| struct | FDCAN_GlobalTypeDef |
| FD Controller Area Network. More... | |
| struct | FLASH_TypeDef |
| FLASH Registers. More... | |
| struct | FMAC_TypeDef |
| Filter and Mathematical ACcelerator. More... | |
| struct | FMC_Bank1_TypeDef |
| Flexible Memory Controller. More... | |
| struct | FMC_Bank1E_TypeDef |
| Flexible Memory Controller Bank1E. More... | |
| struct | FMC_Bank2_TypeDef |
| Flexible Memory Controller Bank2. More... | |
| struct | FMC_Bank3_TypeDef |
| Flexible Memory Controller Bank3. More... | |
| struct | FMC_Bank5_6_TypeDef |
| Flexible Memory Controller Bank5_6. More... | |
| struct | FSMC_Bank1_TypeDef |
| Flexible Static Memory Controller. More... | |
| struct | FSMC_Bank1E_TypeDef |
| Flexible Static Memory Controller Bank1E. More... | |
| struct | FSMC_Bank2_3_TypeDef |
| Flexible Static Memory Controller Bank2. More... | |
| struct | FSMC_Bank4_TypeDef |
| Flexible Static Memory Controller Bank4. More... | |
| struct | GPIO_TypeDef |
| General Purpose I/O. More... | |
| struct | HSEM_Common_TypeDef |
| struct | HSEM_TypeDef |
| HW Semaphore HSEM. More... | |
| struct | I2C_TypeDef |
| Inter-integrated Circuit Interface. More... | |
| struct | IWDG_TypeDef |
| Independent WATCHDOG. More... | |
| struct | JPEG_TypeDef |
| JPEG Codec. More... | |
| struct | LPTIM_TypeDef |
| LPTIMIMER. More... | |
| struct | LTDC_Layer_TypeDef |
| LCD-TFT Display layer x Controller. More... | |
| struct | LTDC_TypeDef |
| LCD-TFT Display Controller. More... | |
| struct | MDMA_Channel_TypeDef |
| struct | MDMA_TypeDef |
| MDMA Controller. More... | |
| struct | OPAMP_TypeDef |
| Operational Amplifier (OPAMP) More... | |
| struct | PSSI_TypeDef |
| PSSI. More... | |
| struct | PWR_TypeDef |
| Power Control. More... | |
| struct | QUADSPI_TypeDef |
| QUAD Serial Peripheral Interface. More... | |
| struct | RAMECC_MonitorTypeDef |
| RAM_ECC_Specific_Registers. More... | |
| struct | RAMECC_TypeDef |
| struct | RCC_Core_TypeDef |
| struct | RCC_TypeDef |
| Reset and Clock Control. More... | |
| struct | RNG_TypeDef |
| RNG. More... | |
| struct | RTC_TypeDef |
| Real-Time Clock. More... | |
| struct | SAI_Block_TypeDef |
| struct | SAI_TypeDef |
| Serial Audio Interface. More... | |
| struct | SDIO_TypeDef |
| SD host Interface. More... | |
| struct | SDMMC_TypeDef |
| SD host Interface. More... | |
| struct | SPDIFRX_TypeDef |
| SPDIF-RX Interface. More... | |
| struct | SPI_TypeDef |
| Serial Peripheral Interface. More... | |
| struct | SWPMI_TypeDef |
| Single Wire Protocol Master Interface SPWMI. More... | |
| struct | SYSCFG_TypeDef |
| System configuration controller. More... | |
| struct | TIM_TypeDef |
| TIM. More... | |
| struct | TTCAN_TypeDef |
| TTFD Controller Area Network. More... | |
| struct | USART_TypeDef |
| Universal Synchronous Asynchronous Receiver Transmitter. More... | |
| struct | USB_OTG_DeviceTypeDef |
| USB_OTG_device_Registers. More... | |
| struct | USB_OTG_GlobalTypeDef |
| USB_OTG_Core_Registers. More... | |
| struct | USB_OTG_HostChannelTypeDef |
| USB_OTG_Host_Channel_Specific_Registers. More... | |
| struct | USB_OTG_HostTypeDef |
| USB_OTG_Host_Mode_Register_Structures. More... | |
| struct | USB_OTG_INEndpointTypeDef |
| USB_OTG_IN_Endpoint-Specific_Register. More... | |
| struct | USB_OTG_OUTEndpointTypeDef |
| USB_OTG_OUT_Endpoint-Specific_Registers. More... | |
| struct | VREFBUF_TypeDef |
| VREFBUF. More... | |
| struct | WWDG_TypeDef |
| Window WATCHDOG. More... | |
