Declares and defines structs into which SBF blocks are unpacked then shipped to handler functions. More...

#include "ssn_types.hpp"

Include dependency graph for sbf_structs.hpp:

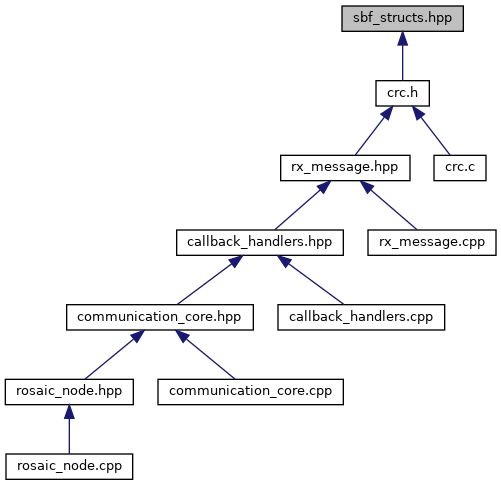

This graph shows which files directly or indirectly include this file:

Classes
struct	AGCState_t
	Struct for the SBF sub-block "AGCState". More...

class	AttCovEuler
	Struct for the SBF block "AttCovEuler". More...

class	AttEuler
	Struct for the SBF block "AttEuler". More...

struct	BlockHeader_t
	Struct for the SBF block's header message. More...

class	ChannelSatInfo
	Struct for the SBF sub-block "ChannelSatInfo". More...

class	ChannelStateInfo
	Struct for the SBF sub-block "ChannelStateInfo". More...

class	ChannelStatus
	Struct for the SBF block "ChannelStatus". More...

class	DOP
	Struct for the SBF block "DOP". More...

class	MeasEpoch
	Struct for the SBF block "MeasEpoch". More...

class	MeasEpochChannelType1
	Struct for the SBF sub-block "MeasEpochChannelType1". More...

class	MeasEpochChannelType2
	Struct for the SBF sub-block "MeasEpochChannelType2". More...

class	PosCovCartesian
	Struct for the SBF block "PosCovCartesian". More...

class	PosCovGeodetic
	Struct for the SBF block "PosCovGeodetic". More...

class	PVTCartesian
	Struct for the SBF block "PVTCartesian". More...

class	PVTGeodetic
	Struct for the SBF block "PVTGeodetic". More...

class	QualityInd
	Struct for the SBF block "QualityInd". More...

class	ReceiverSetup
	Struct for the SBF block "ReceiverSetup". More...

class	ReceiverStatus
	Struct for the SBF block "ReceiverStatus". More...

class	VelCovCartesian
	Struct for the SBF block "VelCovCartesian". More...

class	VelCovGeodetic
	Struct for the SBF block "VelCovGeodetic". More...

Macros
#define	MAX_NB_INMARSATCHANNELS 1
	Inmarsat is a British satellite telecommunications company. More...

#define	MAX_NR_OF_SIGNALS_PER_SATELLITE 7
	Using maximum value of MAX_NR_OF_SIGNALS_PER_SATELLITE for SBF definitions. More...

#define	MAXSB_CHANNELSATINFO (NR_OF_LOGICALCHANNELS + MAX_NB_INMARSATCHANNELS)
	Max number of bytes that ChannelSatInfo sub-block can consist of. More...

#define	MAXSB_CHANNELSTATEINFO (MAXSB_CHANNELSATINFO * MAXSB_NBRANTENNA)
	Max number of bytes that ChannelStateInfo sub-block can consist of. More...

#define	MAXSB_MEASEPOCH_T1 (NR_OF_LOGICALCHANNELS + MAX_NB_INMARSATCHANNELS)
	Max number of bytes that MeasEpochChannelType1 sub-block can consist of. More...

#define	MAXSB_MEASEPOCH_T2 ((MAXSB_MEASEPOCH_T1) * ( ((MAX_NR_OF_SIGNALS_PER_SATELLITE) * (NR_OF_ANTENNAS)) -1))
	Max number of bytes that MeasEpochChannelType2 sub-block can consist of. More...

#define	MAXSB_NBRANTENNA 4
	Maximum number of antennas that mosaic etc. can handle. More...

#define	MEASEPOCH_DATA_LENGTH (MAXSB_MEASEPOCH_T1 * sizeof(MeasEpochChannelType1) + MAXSB_MEASEPOCH_T2 * sizeof(MeasEpochChannelType2))
	Max number of bytes that the data part of the MeasEpoch struct can consist of. More...

#define	NR_OF_ANTENNAS 3
	Using maximum value of NR_OF_ANTENNAS for SBF definitions. More...

#define	NR_OF_LOGICALCHANNELS 80
	Using maximum value of NR_OF_LOGICALCHANNELS for SBF definitions. More...

#define	SBF_CHANNELSTATUS_DATA_LENGTH MAXSB_CHANNELSATINFO * sizeof(ChannelSatInfo) + MAXSB_CHANNELSTATEINFO * sizeof(ChannelStateInfo)
	Max number of bytes that the Data part of the ChannelStatus struct can consist of. More...

#define	SBFDOUBLE double

Variables
static const uint16_t	CRC_LOOK_UP [256]
	CRC look-up table for fast computation of the 16-bit CRC for SBF blocks. More...

Detailed Description

Declares and defines structs into which SBF blocks are unpacked then shipped to handler functions.

Date: 17/08/20

Definition in file sbf_structs.hpp.

Macro Definition Documentation

◆ MAX_NB_INMARSATCHANNELS

#define MAX_NB_INMARSATCHANNELS 1

Inmarsat is a British satellite telecommunications company.

Definition at line 40 of file sbf_structs.hpp.

◆ MAX_NR_OF_SIGNALS_PER_SATELLITE

#define MAX_NR_OF_SIGNALS_PER_SATELLITE 7

Using maximum value of MAX_NR_OF_SIGNALS_PER_SATELLITE for SBF definitions.

Definition at line 44 of file sbf_structs.hpp.

◆ MAXSB_CHANNELSATINFO

#define MAXSB_CHANNELSATINFO (NR_OF_LOGICALCHANNELS + MAX_NB_INMARSATCHANNELS)

Max number of bytes that ChannelSatInfo sub-block can consist of.

Definition at line 56 of file sbf_structs.hpp.

◆ MAXSB_CHANNELSTATEINFO

#define MAXSB_CHANNELSTATEINFO (MAXSB_CHANNELSATINFO * MAXSB_NBRANTENNA)

Max number of bytes that ChannelStateInfo sub-block can consist of.

Definition at line 60 of file sbf_structs.hpp.

◆ MAXSB_MEASEPOCH_T1

#define MAXSB_MEASEPOCH_T1 (NR_OF_LOGICALCHANNELS + MAX_NB_INMARSATCHANNELS)

Max number of bytes that MeasEpochChannelType1 sub-block can consist of.

Definition at line 64 of file sbf_structs.hpp.

◆ MAXSB_MEASEPOCH_T2

#define MAXSB_MEASEPOCH_T2 ((MAXSB_MEASEPOCH_T1) * ( ((MAX_NR_OF_SIGNALS_PER_SATELLITE) * (NR_OF_ANTENNAS)) -1))

Max number of bytes that MeasEpochChannelType2 sub-block can consist of.

Definition at line 68 of file sbf_structs.hpp.

◆ MAXSB_NBRANTENNA

#define MAXSB_NBRANTENNA 4

Maximum number of antennas that mosaic etc. can handle.

Definition at line 52 of file sbf_structs.hpp.

◆ MEASEPOCH_DATA_LENGTH

#define MEASEPOCH_DATA_LENGTH (MAXSB_MEASEPOCH_T1 * sizeof(MeasEpochChannelType1) + MAXSB_MEASEPOCH_T2 * sizeof(MeasEpochChannelType2))

Max number of bytes that the data part of the MeasEpoch struct can consist of.

Definition at line 350 of file sbf_structs.hpp.

◆ NR_OF_ANTENNAS

#define NR_OF_ANTENNAS 3

Using maximum value of NR_OF_ANTENNAS for SBF definitions.

Definition at line 48 of file sbf_structs.hpp.

◆ NR_OF_LOGICALCHANNELS

#define NR_OF_LOGICALCHANNELS 80

Using maximum value of NR_OF_LOGICALCHANNELS for SBF definitions.

Definition at line 36 of file sbf_structs.hpp.

◆ SBF_CHANNELSTATUS_DATA_LENGTH

#define SBF_CHANNELSTATUS_DATA_LENGTH MAXSB_CHANNELSATINFO * sizeof(ChannelSatInfo) + MAXSB_CHANNELSTATEINFO * sizeof(ChannelStateInfo)

Max number of bytes that the Data part of the ChannelStatus struct can consist of.

Definition at line 289 of file sbf_structs.hpp.

◆ SBFDOUBLE

#define SBFDOUBLE double

Definition at line 90 of file sbf_structs.hpp.

Variable Documentation

◆ CRC_LOOK_UP

const uint16_t CRC_LOOK_UP[256]

static

CRC look-up table for fast computation of the 16-bit CRC for SBF blocks.

Definition at line 592 of file sbf_structs.hpp.
