Eigen::MatrixLogarithmReturnValue< Derived > Class Template Reference

Proxy for the matrix logarithm of some matrix (expression). More...

#include <ForwardDeclarations.h>

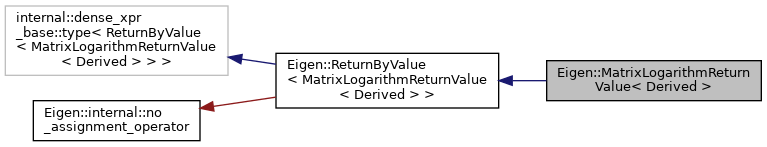

Inheritance diagram for Eigen::MatrixLogarithmReturnValue< Derived >:

Public Types
typedef Derived::Index	Index
typedef Derived::Scalar	Scalar
Public Types inherited from Eigen::ReturnByValue< MatrixLogarithmReturnValue< Derived > >
typedef internal::dense_xpr_base< ReturnByValue >::type	Base
typedef internal::traits< MatrixLogarithmReturnValue< Derived > >::ReturnType	ReturnType

Public Member Functions
Index	cols () const
template<typename ResultType >
void	evalTo (ResultType &result) const
	Compute the matrix logarithm. More...
	MatrixLogarithmReturnValue (const Derived &A)
	Constructor. More...
Index	rows () const
Public Member Functions inherited from Eigen::ReturnByValue< MatrixLogarithmReturnValue< Derived > >
const Unusable &	coeff (Index) const
const Unusable &	coeff (Index, Index) const
Unusable &	coeffRef (Index)
Unusable &	coeffRef (Index, Index)
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC void	evalTo (Dest &dst) const
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

Protected Types
typedef internal::ref_selector< Derived >::type	DerivedNested

Private Attributes
const DerivedNested	m_A

Detailed Description

template<typename Derived>
class Eigen::MatrixLogarithmReturnValue< Derived >

Proxy for the matrix logarithm of some matrix (expression).

Template Parameters

Derived

Type of the argument to the matrix function.

This class holds the argument to the matrix function until it is assigned or evaluated for some other reason (so the argument should not be changed in the meantime). It is the return type of MatrixBase::log() and most of the time this is the only way it is used.

Definition at line 307 of file ForwardDeclarations.h.

Member Typedef Documentation

DerivedNested

template<typename Derived >

typedef internal::ref_selector<Derived>::type Eigen::MatrixLogarithmReturnValue< Derived >::DerivedNested

protected

Definition at line 317 of file MatrixLogarithm.h.

Index

template<typename Derived >

typedef Derived::Index Eigen::MatrixLogarithmReturnValue< Derived >::Index

Definition at line 314 of file MatrixLogarithm.h.

Scalar

template<typename Derived >

typedef Derived::Scalar Eigen::MatrixLogarithmReturnValue< Derived >::Scalar

Definition at line 313 of file MatrixLogarithm.h.

Constructor & Destructor Documentation

MatrixLogarithmReturnValue()

template<typename Derived >

Eigen::MatrixLogarithmReturnValue< Derived >::MatrixLogarithmReturnValue ( const Derived &  A )

inlineexplicit

Constructor.

Parameters

[in]

A

Matrix (expression) forming the argument of the matrix logarithm.

Definition at line 325 of file MatrixLogarithm.h.

Member Function Documentation

cols()

template<typename Derived >

Index Eigen::MatrixLogarithmReturnValue< Derived >::cols ( void  ) const

inline

Definition at line 346 of file MatrixLogarithm.h.

evalTo()

template<typename Derived >

template<typename ResultType >

void Eigen::MatrixLogarithmReturnValue< Derived >::evalTo ( ResultType &  result ) const

inline

Compute the matrix logarithm.

Parameters

[out]

result

Logarithm of A, where A is as specified in the constructor.

Definition at line 332 of file MatrixLogarithm.h.

rows()

template<typename Derived >

Index Eigen::MatrixLogarithmReturnValue< Derived >::rows ( void  ) const

inline

Definition at line 345 of file MatrixLogarithm.h.

Member Data Documentation

m_A

template<typename Derived >

const DerivedNested Eigen::MatrixLogarithmReturnValue< Derived >::m_A

private

Definition at line 349 of file MatrixLogarithm.h.

---

The documentation for this class was generated from the following files:

• ForwardDeclarations.h
• MatrixLogarithm.h
