corbo::SystemOutputInterface Class Referenceabstract

Interface class for system output functions. More...

#include <output_function_interface.h>

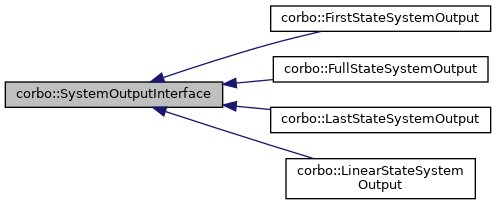

Inheritance diagram for corbo::SystemOutputInterface:
Inheritance graph
[legend]

Public Types

using OutputVector = Eigen::VectorXd

using Ptr = std::shared_ptr< SystemOutputInterface >

using StateVector = Eigen::VectorXd


Public Member Functions

virtual Ptr getInstance () const =0
 Return a newly created shared instance of the implemented class. More...

virtual int getOutputDimension () const =0
 Get dimension of the system output y. More...

virtual void output (const StateVector &x, OutputVector &y)=0
 Evaluate the system output equation. More...

virtual void reset ()

virtual ~SystemOutputInterface ()=default
 Default destructor. More...


Detailed Description

Interface class for system output functions.

This class specifies methods that are required to be implemented by specific subclasses in order to allow their general utilization in a variety of control tasks.

A system output is defined by an algebraic equation

\[ y = c(x) \]

and hence maps the state vector of a SystemDynamicsInterface to the actual system output.

Remarks
This interface is provided with factory support (OutputFunctionFactory).
See also
SystemDynamicsInterface PlantInterface
Author
Christoph Rösmann (chris.nosp@m.toph.nosp@m..roes.nosp@m.mann.nosp@m.@tu-d.nosp@m.ortm.nosp@m.und.d.nosp@m.e)
Todo:
Check if we need getStateDimension() in this interface

Definition at line 62 of file output_function_interface.h.

Member Typedef Documentation

◆ OutputVector

Definition at line 68 of file output_function_interface.h.

◆ Ptr

Definition at line 65 of file output_function_interface.h.

◆ StateVector

Definition at line 67 of file output_function_interface.h.

Constructor & Destructor Documentation

◆ ~SystemOutputInterface()

virtual corbo::SystemOutputInterface::~SystemOutputInterface ( )
virtualdefault

Default destructor.

Member Function Documentation

◆ getInstance()

virtual Ptr corbo::SystemOutputInterface::getInstance ( ) const
pure virtual

Return a newly created shared instance of the implemented class.

Implemented in corbo::LinearStateSystemOutput, corbo::LastStateSystemOutput, corbo::FirstStateSystemOutput, and corbo::FullStateSystemOutput.

◆ getOutputDimension()

virtual int corbo::SystemOutputInterface::getOutputDimension ( ) const
pure virtual

◆ output()

virtual void corbo::SystemOutputInterface::output ( const StateVector x,
OutputVector y
)
pure virtual

Evaluate the system output equation.

This method defines the mapping $ c : \mathbb{R}^p \to \mathbb{R}^q $ with $ p $ as the dimension of the state vector x and $ q $ the dimension of the system output y.

Parameters
[in]xState vector [SystemDynamicsInterface::getStateDimension x 1]
[out]yOutput vector [getOutputDimension() x 1]

Implemented in corbo::LinearStateSystemOutput, corbo::LastStateSystemOutput, corbo::FirstStateSystemOutput, and corbo::FullStateSystemOutput.

◆ reset()

virtual void corbo::SystemOutputInterface::reset ( )
inlinevirtual

Definition at line 91 of file output_function_interface.h.
