An immutable clockwise oriented, open (ie start point != end point) polygon in 3d. More...

#include <Polygon.h>

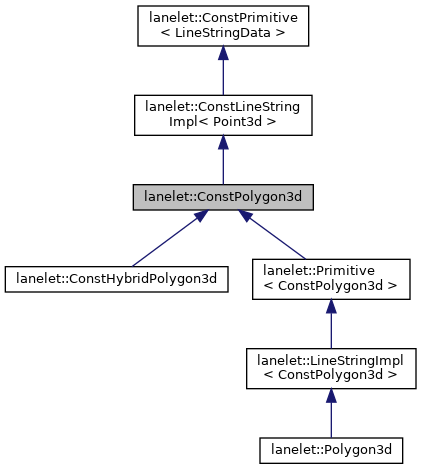

Inheritance diagram for lanelet::ConstPolygon3d:

[legend]

Public Types
using	Category = traits::PolygonTag

using	ConstType = ConstPolygon3d

using	HybridType = ConstHybridPolygon3d

using	MutableType = Polygon3d

using	ThreeDType = ConstPolygon3d

using	TwoDType = ConstPolygon2d

Public Types inherited from lanelet::ConstLineStringImpl< Point3d >
using	BasicIterator = internal::TransformIterator< const_iterator, const BasicPointType >

using	BasicLineString = internal::SelectBasicLineStringT< BasicPointType >

using	BasicPointType = traits::BasicPointT< Point3d >

using	Category = traits::LineStringTag

using	const_iterator = internal::SelectLsIteratorT< const ConstPointType >

using	ConstPointType = traits::ConstPointT< Point3d >

using	ConstSegmentType = traits::ConstPrimitiveType< SegmentType >

using	difference_type = typename iterator::difference_type

using	iterator = const_iterator

using	MutablePointType = traits::MutablePointT< Point3d >
	linestring will return this point type More...

using	PointType = ConstPointType

using	SegmentType = Segment< Point3d >

using	size_type = size_t

using	value_type = ConstPointType

Public Types inherited from lanelet::ConstPrimitive< LineStringData >
using	DataType = LineStringData

Public Member Functions
BasicPolygon3d	basicPolygon () const
	create a simple 3d polygon from this (just a vector) More...

	ConstLineStringImpl (const ConstLineStringImpl &rhs)=default

template<typename OtherT >
	ConstLineStringImpl (const ConstLineStringImpl< OtherT > &other)
	construct from other ConstLineStrings More...

	ConstLineStringImpl (const std::shared_ptr< const LineStringData > &data, bool inverted=false)
	Constructs a linestring from the data object of another linestring. More...

	ConstLineStringImpl (ConstLineStringImpl &&rhs) noexcept=default

	ConstLineStringImpl (Id id=InvalId, Points3d points=Points3d(), const AttributeMap &attributes=AttributeMap())
	Constructs a LineString or similar from an Id and a list of points. More...

	ConstPolygon3d ()=default

	ConstPolygon3d (const ConstLineString3d &other)

size_t	numSegments () const noexcept
	Returns the number of (geometrically valid) segments. More...

	operator BasicPolygon3d () const
	implicit conversion to a basic polygon More...

	operator ConstLineString3d () const

Public Member Functions inherited from lanelet::ConstLineStringImpl< Point3d >
const ConstPointType &	back () const noexcept
	returns the last point (if it exist) More...

BasicIterator	basicBegin () const noexcept
	returns a normal iterator to the internal point type at begin More...

BasicIterator	basicEnd () const noexcept
	returns a normal iterator for the internal point type at end More...

BasicLineString	basicLineString () const noexcept
	Create a basic linestring (ie a vector of Eigen Points) More...

const_iterator	begin () const noexcept
	Returns an iterator to the start of the points. More...

	ConstLineStringImpl (const ConstLineStringImpl< OtherT > &other)
	construct from other ConstLineStrings More...

	ConstLineStringImpl (const std::shared_ptr< const LineStringData > &data, bool inverted=false)
	Constructs a linestring from the data object of another linestring. More...

	ConstLineStringImpl (Id id=InvalId, Points3d points=Points3d(), const AttributeMap &attributes=AttributeMap())
	Constructs a LineString or similar from an Id and a list of points. More...

bool	empty () const noexcept
	return if there are any points in this object More...

const_iterator	end () const noexcept
	Returns an iterator to end of the points. More...

const ConstPointType &	front () const noexcept
	returns the first point (if it exist) More...

bool	inverted () const noexcept
	Returns whether this is an inverted linestring. More...

size_t	numSegments () const noexcept
	Returns the number of (geometrically valid) segments. More...

const ConstPointType &	operator[] (size_t idx) const noexcept
	returns the point at this position More...

ConstSegmentType	segment (size_t idx) const noexcept
	returns the n-th segment. If n equals size() -1, the segment from back() to front() is returned. More...

size_t	size () const noexcept
	Return the number of points in this linestring. More...

Public Member Functions inherited from lanelet::ConstPrimitive< LineStringData >
const Attribute &	attribute (AttributeName name) const
	retrieve an attribute (enum version) More...

const Attribute &	attribute (const std::string &name) const
	retrieve an attribute More...

T	attributeOr (AttributeName name, T defaultVal) const
	retrieve an attribute (enum version) More...

T	attributeOr (const std::string &name, T defaultVal) const noexcept
	retrieve an attribute (string version) More...

const AttributeMap &	attributes () const
	get the attributes of this primitive More...

const std::shared_ptr< const LineStringData > &	constData () const
	get the internal data of this primitive More...

	ConstPrimitive (const std::shared_ptr< const LineStringData > &data)
	Construct from a pointer to the data. More...

bool	hasAttribute (AttributeName name) const noexcept
	check for an attribute (enum version) More...

bool	hasAttribute (const std::string &name) const noexcept
	check whether this primitive has a specific attribute More...

Id	id () const noexcept
	get the unique id of this primitive More...

bool	operator!= (const ConstPrimitive &rhs) const

bool	operator== (const ConstPrimitive &rhs) const

Additional Inherited Members
Static Public Attributes inherited from lanelet::ConstLineStringImpl< Point3d >
static constexpr traits::Dimensions	Dimension

Static Public Attributes inherited from lanelet::ConstPrimitive< LineStringData >
static constexpr bool	IsConst

Protected Member Functions inherited from lanelet::ConstLineStringImpl< Point3d >
	ConstLineStringImpl (const ConstLineStringImpl &rhs)=default

	ConstLineStringImpl (ConstLineStringImpl &&rhs) noexcept=default

ConstLineStringImpl &	operator= (const ConstLineStringImpl &rhs)=default

ConstLineStringImpl &	operator= (ConstLineStringImpl &&rhs) noexcept=default

	~ConstLineStringImpl () noexcept=default

Protected Member Functions inherited from lanelet::ConstPrimitive< LineStringData >
	ConstPrimitive (const ConstPrimitive &rhs)=default

	ConstPrimitive (ConstPrimitive &&rhs) noexcept=default

ConstPrimitive &	operator= (const ConstPrimitive &rhs)=default

ConstPrimitive &	operator= (ConstPrimitive &&rhs) noexcept=default

	~ConstPrimitive () noexcept=default

Detailed Description

An immutable clockwise oriented, open (ie start point != end point) polygon in 3d.

Definition at line 122 of file primitives/Polygon.h.

Member Typedef Documentation

◆ Category

using lanelet::ConstPolygon3d::Category = traits::PolygonTag

Definition at line 129 of file primitives/Polygon.h.

◆ ConstType

using lanelet::ConstPolygon3d::ConstType = ConstPolygon3d

Definition at line 125 of file primitives/Polygon.h.

◆ HybridType

using lanelet::ConstPolygon3d::HybridType = ConstHybridPolygon3d

Definition at line 130 of file primitives/Polygon.h.

◆ MutableType

using lanelet::ConstPolygon3d::MutableType = Polygon3d

Definition at line 126 of file primitives/Polygon.h.

◆ ThreeDType

using lanelet::ConstPolygon3d::ThreeDType = ConstPolygon3d

Definition at line 128 of file primitives/Polygon.h.

◆ TwoDType

using lanelet::ConstPolygon3d::TwoDType = ConstPolygon2d

Definition at line 127 of file primitives/Polygon.h.

Constructor & Destructor Documentation

◆ ConstPolygon3d() [1/2]

lanelet::ConstPolygon3d::ConstPolygon3d ( )

default

◆ ConstPolygon3d() [2/2]

lanelet::ConstPolygon3d::ConstPolygon3d ( const ConstLineString3d & other )

inlineexplicit

Conversion from ConstLineString3d. Does not ensure validity of the polygon!

Definition at line 136 of file primitives/Polygon.h.

Member Function Documentation

◆ basicPolygon()

BasicPolygon3d lanelet::ConstPolygon3d::basicPolygon ( ) const

inline

create a simple 3d polygon from this (just a vector)

Definition at line 140 of file primitives/Polygon.h.

◆ ConstLineStringImpl() [1/5]

lanelet::ConstLineStringImpl< PointT >::ConstLineStringImpl

default

◆ ConstLineStringImpl() [2/5]

template<typename OtherT >

lanelet::ConstLineStringImpl< PointT >::ConstLineStringImpl ( typename OtherT )

inlineexplicit

construct from other ConstLineStrings

Definition at line 253 of file primitives/LineString.h.

◆ ConstLineStringImpl() [3/5]

lanelet::ConstLineStringImpl< PointT >::ConstLineStringImpl

inlineexplicit

Constructs a linestring from the data object of another linestring.

Definition at line 248 of file primitives/LineString.h.

◆ ConstLineStringImpl() [4/5]

lanelet::ConstLineStringImpl< PointT >::ConstLineStringImpl

defaultnoexcept

◆ ConstLineStringImpl() [5/5]

lanelet::ConstLineStringImpl< PointT >::ConstLineStringImpl

inlineexplicit

Constructs a LineString or similar from an Id and a list of points.

Definition at line 243 of file primitives/LineString.h.

◆ numSegments()

size_t lanelet::ConstPolygon3d::numSegments ( ) const

inlinenoexcept

Returns the number of (geometrically valid) segments.

Definition at line 148 of file primitives/Polygon.h.

◆ operator BasicPolygon3d()

lanelet::ConstPolygon3d::operator BasicPolygon3d ( ) const

inline

implicit conversion to a basic polygon

Definition at line 143 of file primitives/Polygon.h.

◆ operator ConstLineString3d()

lanelet::ConstPolygon3d::operator ConstLineString3d ( ) const

inlineexplicit

Definition at line 137 of file primitives/Polygon.h.

The documentation for this class was generated from the following file:

primitives/Polygon.h
