A Linestring that returns BasicPoint3d instead of Point3d. More...

#include <LineString.h>

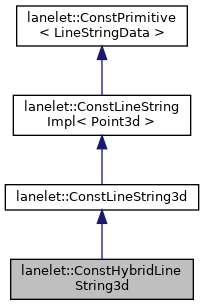

Inheritance diagram for lanelet::ConstHybridLineString3d:

[legend]

Public Types
using	const_iterator = BasicIterator

using	ConstType = ConstHybridLineString3d

using	iterator = BasicIterator

using	PointType = BasicPointType

using	SegmentType = Segment< BasicPointType >

using	ThreeDType = ConstHybridLineString3d

using	TwoDType = ConstHybridLineString2d

Public Types inherited from lanelet::ConstLineString3d
using	ConstType = ConstLineString3d

using	HybridType = ConstHybridLineString3d

using	MutableType = LineString3d

using	ThreeDType = ConstLineString3d

using	TwoDType = ConstLineString2d

Public Types inherited from lanelet::ConstLineStringImpl< Point3d >
using	BasicIterator = internal::TransformIterator< const_iterator, const BasicPointType >

using	BasicLineString = internal::SelectBasicLineStringT< BasicPointType >

using	BasicPointType = traits::BasicPointT< Point3d >

using	Category = traits::LineStringTag

using	const_iterator = internal::SelectLsIteratorT< const ConstPointType >

using	ConstPointType = traits::ConstPointT< Point3d >

using	ConstSegmentType = traits::ConstPrimitiveType< SegmentType >

using	difference_type = typename iterator::difference_type

using	iterator = const_iterator

using	MutablePointType = traits::MutablePointT< Point3d >
	linestring will return this point type More...

using	PointType = ConstPointType

using	SegmentType = Segment< Point3d >

using	size_type = size_t

using	value_type = ConstPointType

Public Types inherited from lanelet::ConstPrimitive< LineStringData >
using	DataType = LineStringData

Public Member Functions
const BasicPointType &	back () const noexcept
	Get last BasicPoint3d. More...

BasicIterator	begin () const noexcept
	BasicPoint3d Iterator to begin. More...

	ConstHybridLineString3d ()=default

	ConstHybridLineString3d (const ConstLineString3d &ls)

	ConstHybridLineString3d (const LineString3d &ls)

	ConstLineString3d ()=default

BasicIterator	end () const noexcept
	BasicPoint3d Iterator to past-the-end. More...

const BasicPointType &	front () const noexcept
	Get first BasicPoint3d. More...

ConstHybridLineString3d	invert () const noexcept
	Returns an inverted linestring, O(0) More...

const BasicPointType &	operator[] (size_t idx) const noexcept
	access BasicPoint3d at specific position More...

SegmentType	segment (size_t idx) const noexcept
	returns the n-th segment. If n equals size() -1, the segment from back() to front() is returned. More...

Public Member Functions inherited from lanelet::ConstLineString3d
	ConstLineString3d ()=default

	ConstLineStringImpl (const ConstLineStringImpl &rhs)=default

template<typename OtherT >
	ConstLineStringImpl (const ConstLineStringImpl< OtherT > &other)
	construct from other ConstLineStrings More...

	ConstLineStringImpl (const std::shared_ptr< const LineStringData > &data, bool inverted=false)
	Constructs a linestring from the data object of another linestring. More...

	ConstLineStringImpl (ConstLineStringImpl &&rhs) noexcept=default

	ConstLineStringImpl (Id id=InvalId, Points3d points=Points3d(), const AttributeMap &attributes=AttributeMap())
	Constructs a LineString or similar from an Id and a list of points. More...

ConstLineString3d	invert () const noexcept
	create a new, inverted linestring from this one More...

Public Member Functions inherited from lanelet::ConstLineStringImpl< Point3d >
const ConstPointType &	back () const noexcept
	returns the last point (if it exist) More...

BasicIterator	basicBegin () const noexcept
	returns a normal iterator to the internal point type at begin More...

BasicIterator	basicEnd () const noexcept
	returns a normal iterator for the internal point type at end More...

BasicLineString	basicLineString () const noexcept
	Create a basic linestring (ie a vector of Eigen Points) More...

const_iterator	begin () const noexcept
	Returns an iterator to the start of the points. More...

	ConstLineStringImpl (const ConstLineStringImpl< OtherT > &other)
	construct from other ConstLineStrings More...

	ConstLineStringImpl (const std::shared_ptr< const LineStringData > &data, bool inverted=false)
	Constructs a linestring from the data object of another linestring. More...

	ConstLineStringImpl (Id id=InvalId, Points3d points=Points3d(), const AttributeMap &attributes=AttributeMap())
	Constructs a LineString or similar from an Id and a list of points. More...

bool	empty () const noexcept
	return if there are any points in this object More...

const_iterator	end () const noexcept
	Returns an iterator to end of the points. More...

const ConstPointType &	front () const noexcept
	returns the first point (if it exist) More...

bool	inverted () const noexcept
	Returns whether this is an inverted linestring. More...

size_t	numSegments () const noexcept
	Returns the number of (geometrically valid) segments. More...

const ConstPointType &	operator[] (size_t idx) const noexcept
	returns the point at this position More...

ConstSegmentType	segment (size_t idx) const noexcept
	returns the n-th segment. If n equals size() -1, the segment from back() to front() is returned. More...

size_t	size () const noexcept
	Return the number of points in this linestring. More...

Public Member Functions inherited from lanelet::ConstPrimitive< LineStringData >
const Attribute &	attribute (AttributeName name) const
	retrieve an attribute (enum version) More...

const Attribute &	attribute (const std::string &name) const
	retrieve an attribute More...

T	attributeOr (AttributeName name, T defaultVal) const
	retrieve an attribute (enum version) More...

T	attributeOr (const std::string &name, T defaultVal) const noexcept
	retrieve an attribute (string version) More...

const AttributeMap &	attributes () const
	get the attributes of this primitive More...

const std::shared_ptr< const LineStringData > &	constData () const
	get the internal data of this primitive More...

	ConstPrimitive (const std::shared_ptr< const LineStringData > &data)
	Construct from a pointer to the data. More...

bool	hasAttribute (AttributeName name) const noexcept
	check for an attribute (enum version) More...

bool	hasAttribute (const std::string &name) const noexcept
	check whether this primitive has a specific attribute More...

Id	id () const noexcept
	get the unique id of this primitive More...

bool	operator!= (const ConstPrimitive &rhs) const

bool	operator== (const ConstPrimitive &rhs) const

Additional Inherited Members
Static Public Attributes inherited from lanelet::ConstLineStringImpl< Point3d >
static constexpr traits::Dimensions	Dimension

Static Public Attributes inherited from lanelet::ConstPrimitive< LineStringData >
static constexpr bool	IsConst

Protected Member Functions inherited from lanelet::ConstLineStringImpl< Point3d >
	ConstLineStringImpl (const ConstLineStringImpl &rhs)=default

	ConstLineStringImpl (ConstLineStringImpl &&rhs) noexcept=default

ConstLineStringImpl &	operator= (const ConstLineStringImpl &rhs)=default

ConstLineStringImpl &	operator= (ConstLineStringImpl &&rhs) noexcept=default

	~ConstLineStringImpl () noexcept=default

Protected Member Functions inherited from lanelet::ConstPrimitive< LineStringData >
	ConstPrimitive (const ConstPrimitive &rhs)=default

	ConstPrimitive (ConstPrimitive &&rhs) noexcept=default

ConstPrimitive &	operator= (const ConstPrimitive &rhs)=default

ConstPrimitive &	operator= (ConstPrimitive &&rhs) noexcept=default

	~ConstPrimitive () noexcept=default

Detailed Description

A Linestring that returns BasicPoint3d instead of Point3d.

For usage with boost::geometry. Has no mutable version.

Definition at line 585 of file primitives/LineString.h.

Member Typedef Documentation

◆ const_iterator

using lanelet::ConstHybridLineString3d::const_iterator = BasicIterator

Definition at line 588 of file primitives/LineString.h.

◆ ConstType

using lanelet::ConstHybridLineString3d::ConstType = ConstHybridLineString3d

Definition at line 590 of file primitives/LineString.h.

◆ iterator

using lanelet::ConstHybridLineString3d::iterator = BasicIterator

Definition at line 589 of file primitives/LineString.h.

◆ PointType

using lanelet::ConstHybridLineString3d::PointType = BasicPointType

Definition at line 587 of file primitives/LineString.h.

◆ SegmentType

using lanelet::ConstHybridLineString3d::SegmentType = Segment<BasicPointType>

Definition at line 593 of file primitives/LineString.h.

◆ ThreeDType

using lanelet::ConstHybridLineString3d::ThreeDType = ConstHybridLineString3d

Definition at line 592 of file primitives/LineString.h.

◆ TwoDType

using lanelet::ConstHybridLineString3d::TwoDType = ConstHybridLineString2d

Definition at line 591 of file primitives/LineString.h.

Constructor & Destructor Documentation

◆ ConstHybridLineString3d() [1/3]

lanelet::ConstHybridLineString3d::ConstHybridLineString3d ( )

default

◆ ConstHybridLineString3d() [2/3]

lanelet::ConstHybridLineString3d::ConstHybridLineString3d ( const ConstLineString3d & ls )

inlineexplicit

Definition at line 597 of file primitives/LineString.h.

◆ ConstHybridLineString3d() [3/3]

lanelet::ConstHybridLineString3d::ConstHybridLineString3d ( const LineString3d & ls )

inlineexplicit

Definition at line 598 of file primitives/LineString.h.

Member Function Documentation

◆ back()

const BasicPointType& lanelet::ConstHybridLineString3d::back ( ) const

inlinenoexcept

Get last BasicPoint3d.

Definition at line 613 of file primitives/LineString.h.

◆ begin()

BasicIterator lanelet::ConstHybridLineString3d::begin ( ) const

inlinenoexcept

BasicPoint3d Iterator to begin.

Definition at line 604 of file primitives/LineString.h.

◆ ConstLineString3d()

lanelet::ConstLineString3d::ConstLineString3d

default

◆ end()

BasicIterator lanelet::ConstHybridLineString3d::end ( ) const

inlinenoexcept

BasicPoint3d Iterator to past-the-end.

Definition at line 607 of file primitives/LineString.h.

◆ front()

const BasicPointType& lanelet::ConstHybridLineString3d::front ( ) const

inlinenoexcept

Get first BasicPoint3d.

Definition at line 610 of file primitives/LineString.h.

◆ invert()

ConstHybridLineString3d lanelet::ConstHybridLineString3d::invert ( ) const

inlinenoexcept

Returns an inverted linestring, O(0)

Definition at line 601 of file primitives/LineString.h.

◆ operator[]()

const BasicPointType& lanelet::ConstHybridLineString3d::operator[] ( size_t idx ) const

inlinenoexcept

access BasicPoint3d at specific position

Definition at line 616 of file primitives/LineString.h.

◆ segment()

SegmentType lanelet::ConstHybridLineString3d::segment ( size_t idx ) const

inlinenoexcept

returns the n-th segment. If n equals size() -1, the segment from back() to front() is returned.

Definition at line 624 of file primitives/LineString.h.

The documentation for this class was generated from the following file:

primitives/LineString.h
