Nodelet that republishes heartbeat of a topic with header. More...

#include <heartbeat.h>

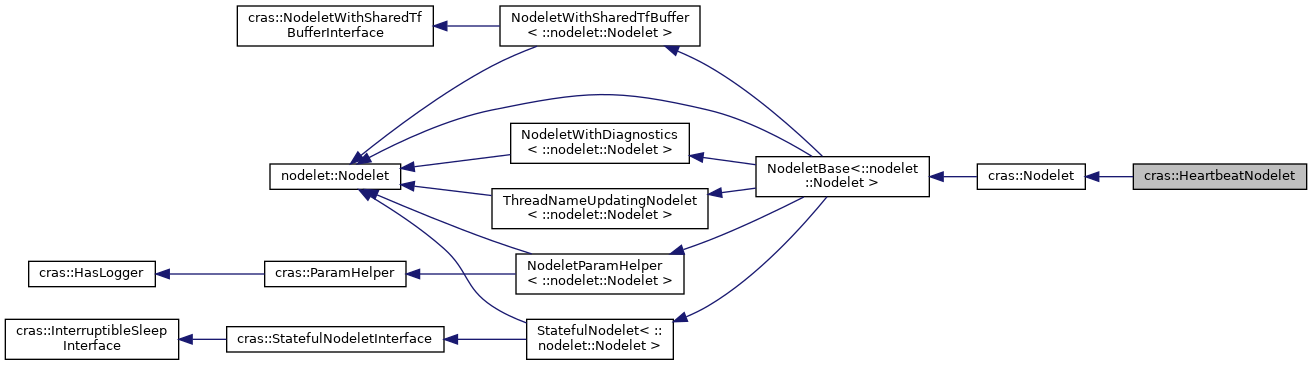

Inheritance diagram for cras::HeartbeatNodelet:

[legend]

Protected Types
typedef LazySubscriber< cras_msgs::Heartbeat, const ros::MessageEvent< const topic_tools::ShapeShifter > & >	SubscriberType
	The lazy subscriber type. More...

Protected Member Functions
void	onInit () override

virtual void	processMessage (const ::ros::MessageEvent< const ::topic_tools::ShapeShifter > &event)
	Process the received message. More...

Protected Member Functions inherited from nodelet::Nodelet
ros::CallbackQueueInterface &	getMTCallbackQueue () const

ros::NodeHandle &	getMTNodeHandle () const

ros::NodeHandle &	getMTPrivateNodeHandle () const

const V_string &	getMyArgv () const

const std::string &	getName () const

ros::NodeHandle &	getNodeHandle () const

ros::NodeHandle &	getPrivateNodeHandle () const

const M_string &	getRemappingArgs () const

ros::CallbackQueueInterface &	getSTCallbackQueue () const

std::string	getSuffixedName (const std::string &suffix) const

Protected Member Functions inherited from NodeletWithDiagnostics< ::nodelet::Nodelet >
::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, ::ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, ::ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, ::ros::NodeHandle diagNh, const ::std::string &diagNamespace, ::ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, const ::std::string &diagNamespace, const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, const ::std::string &diagNamespace, ::ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (const ::std::string &diagNamespace, const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, ::ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (const ::std::string &diagNamespace, ::ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, ::ros::NodeHandle diagNh, const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, ::ros::NodeHandle diagNh, const ::std::string &diagNamespace, const ::std::string &topic, size_t queueSize, bool latch=false)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, ::ros::NodeHandle diagNh, ros::AdvertiseOptions &options)

::std::unique_ptr<::cras::DiagnosedPublisher< Message > >	advertiseDiagnosed (::ros::NodeHandle publisherNh, const ::std::string &topic, size_t queueSize, bool latch=false)

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(::ros::NodeHandle subscriberNh,), CRAS_SINGLE_ARG(subscriberNh, this->getDefaultDiagNh(subscriberNh, diagNamespace),), CRAS_SINGLE_ARG(const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >> &defaultDiagParams, const ::std::string &diagNamespace,), CRAS_SINGLE_ARG(defaultDiagParams, diagNamespace,))

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(), CRAS_SINGLE_ARG(this->getNodeHandle(),), CRAS_SINGLE_ARG(const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >> &defaultDiagParams, const ::std::string &diagNamespace,), CRAS_SINGLE_ARG(defaultDiagParams, diagNamespace,))

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh,), CRAS_SINGLE_ARG(subscriberNh, diagNh,), CRAS_SINGLE_ARG(const ::std::string &diagNamespace,), CRAS_SINGLE_ARG(::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >>(), diagNamespace,))

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(::ros::NodeHandle subscriberNh,), CRAS_SINGLE_ARG(subscriberNh, this->getDefaultDiagNh(subscriberNh, diagNamespace),), CRAS_SINGLE_ARG(const ::std::string &diagNamespace,), CRAS_SINGLE_ARG(::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >>(), diagNamespace,))

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(), CRAS_SINGLE_ARG(this->getNodeHandle(),), CRAS_SINGLE_ARG(const ::std::string &diagNamespace,), CRAS_SINGLE_ARG(::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >>(), diagNamespace,))

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh,), CRAS_SINGLE_ARG(subscriberNh, diagNh,), CRAS_SINGLE_ARG(), CRAS_SINGLE_ARG("",))

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(::ros::NodeHandle subscriberNh,), CRAS_SINGLE_ARG(subscriberNh, this->getDefaultDiagNh(subscriberNh, ""),), CRAS_SINGLE_ARG(), CRAS_SINGLE_ARG("",))

	CRAS_NODELET_DIAG_GENERATE_OVERLOADS (CRAS_SINGLE_ARG(), CRAS_SINGLE_ARG(this->getNodeHandle(),), CRAS_SINGLE_ARG(), CRAS_SINGLE_ARG("",))

::std::unique_ptr<::cras::DiagnosedPublisher< T > >	createDiagnosedPublisher (::ros::NodeHandle nh, const ::std::string &topic, size_t queueSize, const ::std::string &paramNamespace, const ::ros::Rate &defaultRate, const ::ros::Rate &defaultMinRate, const ::ros::Rate &defaultMaxRate)

::std::unique_ptr<::cras::DiagnosedPublisher< T > >	createDiagnosedPublisher (::ros::NodeHandle nh, const ::std::string &topic, size_t queueSize, const ::std::string &paramNamespace, const ::ros::Rate &defaultRate)

::std::unique_ptr<::cras::DiagnosedPublisher< T > >	createDiagnosedPublisher (::ros::NodeHandle nh, const ::std::string &topic, size_t queueSize, const ::std::string &paramNamespace)

::ros::NodeHandle	getDefaultDiagNh (const ::ros::NodeHandle &pubSubNh, const ::std::string &diagNamespace)

::cras::BoundParamHelperPtr	getDiagParams (const ::ros::NodeHandle &nh, const ::std::string &diagNamespace, const ::std::string &topic)

::cras::DiagnosticUpdater &	getDiagUpdater (bool forceNew=false) const

void	startDiagTimer () const

void	startDiagTimer (const ::ros::NodeHandle &nh) const

void	stopDiagTimer () const

::std::unique_ptr<::cras::DiagnosedSubscriber<::cras::BaseMessage< C > > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< C >> &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, uint32_t queue_size, const ::boost::function< void(C)> &cb, ::ros::VoidConstPtr obj={}, ::ros::TransportHints hints={})

::std::unique_ptr<::cras::DiagnosedSubscriber<::cras::BaseMessage< M > > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >> &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, uint32_t queue_size, void(T::*cb)(M) const, const ::boost::shared_ptr< T > &obj, ::ros::TransportHints hints={})

::std::unique_ptr<::cras::DiagnosedSubscriber<::cras::BaseMessage< M > > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >> &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, uint32_t queue_size, void(T::cb)(M) const, T obj, ::ros::TransportHints hints={})

::std::unique_ptr<::cras::DiagnosedSubscriber<::cras::BaseMessage< M > > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >> &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, uint32_t queue_size, void(T::cb)(M), T obj, ::ros::TransportHints hints={})

::std::unique_ptr<::cras::DiagnosedSubscriber< Message > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, uint32_t queue_size, const ::boost::function< void(const ::boost::shared_ptr< Message > &)> &cb, ::ros::TransportHints hints={})

::std::unique_ptr<::cras::DiagnosedSubscriber< Message > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam< Message > &defaultDiagParams, const ::std::string &diagNamespace, ::ros::SubscribeOptions &options)

::std::unique_ptr<::cras::DiagnosedSubscriber<::cras::BaseMessage< M > > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >> &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, uint32_t queue_size, void(T::*cb)(M), const ::boost::shared_ptr< T > &obj, ::ros::TransportHints hints={})

::std::unique_ptr<::cras::DiagnosedSubscriber<::cras::BaseMessage< M > > >	subscribeDiagnosed (::ros::NodeHandle subscriberNh, ::ros::NodeHandle diagNh, const ::cras::SimpleTopicStatusParam<::cras::BaseMessage< M >> &defaultDiagParams, const ::std::string &diagNamespace, const ::std::string &topic, uint32_t queue_size, void(*cb)(M), ::ros::TransportHints hints={})

Protected Member Functions inherited from ThreadNameUpdatingNodelet< ::nodelet::Nodelet >
void	updateThreadName () const

Protected Member Functions inherited from NodeletParamHelper< ::nodelet::Nodelet >
ResultType	getParam (const ::ros::NodeHandle &node, const ::std::string &name, const ::cras::optional< ResultType > &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={})

ResultType	getParam (const ::ros::NodeHandle &node, const ::std::string &name, const ResultType &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={})

inline ::std::string	getParam (const ::ros::NodeHandle &node, const ::std::string &name, const char *defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={})

inline ::std::string	getParam (const ::ros::NodeHandle &node, const ::std::string &name, const ::cras::optional< const char *> &defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={})

inline ::cras::GetParamResult<::std::string >	getParamVerbose (const ::ros::NodeHandle &node, const ::std::string &name, const char *defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={})

inline ::cras::GetParamResult< ResultType >	getParamVerbose (const ::ros::NodeHandle &node, const ::std::string &name, const ::cras::optional< ResultType > &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={})

inline ::cras::GetParamResult<::std::string >	getParamVerbose (const ::ros::NodeHandle &node, const ::std::string &name, const ::cras::optional< const char *> &defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={})

inline ::cras::GetParamResult< ResultType >	getParamVerbose (const ::ros::NodeHandle &node, const ::std::string &name, const ResultType &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={})

::cras::BoundParamHelperPtr	params (const ::ros::NodeHandle &node, const ::std::string &ns="") const

::cras::BoundParamHelperPtr	paramsForNodeHandle (const ::ros::NodeHandle &node) const

::cras::BoundParamHelperPtr	privateParams (const ::std::string &ns="") const

::cras::BoundParamHelperPtr	publicParams (const ::std::string &ns="") const

Protected Attributes
cras::optional< bool >	hasHeader {cras::nullopt}
	Whether the subscribed topic has a header field. This is filled on receipt of the first message. More...

ros::Publisher	pub
	The publisher of heartbeat messages. More...

std::unique_ptr< SubscriberType >	sub
	The lazy subscriber. More...

Protected Attributes inherited from cras::HasLogger
::cras::LogHelperPtr	log

Protected Attributes inherited from cras::InterruptibleSleepInterface
::ros::WallDuration	pollDuration

Additional Inherited Members
Public Member Functions inherited from cras::Nodelet
	~Nodelet () override=default

Public Member Functions inherited from NodeletBase<::nodelet::Nodelet >
	~NodeletBase () override=default

Public Member Functions inherited from nodelet::Nodelet
void	init (const std::string &name, const M_string &remapping_args, const V_string &my_argv, ros::CallbackQueueInterface st_queue=NULL, ros::CallbackQueueInterface mt_queue=NULL)

	Nodelet ()

Public Member Functions inherited from NodeletWithDiagnostics< ::nodelet::Nodelet >
	NodeletWithDiagnostics ()

virtual	~NodeletWithDiagnostics ()

Public Member Functions inherited from NodeletWithSharedTfBuffer< ::nodelet::Nodelet >
::cras::NodeletAwareTFBuffer &	getBuffer () const override

	NodeletWithSharedTfBuffer ()

void	setBuffer (const ::std::shared_ptr<::tf2_ros::Buffer > &buffer) override

bool	usesSharedBuffer () const override

virtual	~NodeletWithSharedTfBuffer ()

Public Member Functions inherited from ThreadNameUpdatingNodelet< ::nodelet::Nodelet >
	~ThreadNameUpdatingNodelet () override

Public Member Functions inherited from NodeletParamHelper< ::nodelet::Nodelet >
	NodeletParamHelper ()

	~NodeletParamHelper () override

Public Member Functions inherited from cras::ParamHelper
::cras::LogHelperPtr	getLogger () const

ResultType	getParam (const ::cras::GetParamAdapter &param, const ::std::string &name, const ::cras::optional< ResultType > &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={}) const

inline ::std::string	getParam (const ::cras::GetParamAdapter &param, const ::std::string &name, const ::cras::optional< const char * > &defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={}) const

inline ::std::string	getParam (const ::cras::GetParamAdapter &param, const ::std::string &name, const char *defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={}) const

ResultType	getParam (const ::cras::GetParamAdapter &param, const ::std::string &name, const ResultType &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={}) const

inline ::cras::GetParamResult<::std::string >	getParamVerbose (const ::cras::GetParamAdapter &param, const ::std::string &name, const ::cras::optional< const char * > &defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={}) const

inline ::cras::GetParamResult< ResultType >	getParamVerbose (const ::cras::GetParamAdapter &param, const ::std::string &name, const ResultType &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={}) const

inline ::cras::GetParamResult<::std::string >	getParamVerbose (const ::cras::GetParamAdapter &param, const ::std::string &name, const char *defaultValue, const ::std::string &unit="", const ::cras::GetParamOptions<::std::string > &options={}) const

inline ::cras::GetParamResult< ResultType >	getParamVerbose (const ::cras::GetParamAdapter &param, const ::std::string &name, const ::cras::optional< ResultType > &defaultValue=ResultType(), const ::std::string &unit="", const ::cras::GetParamOptions< ResultType, ParamServerType > &options={}) const

	ParamHelper (const ::cras::LogHelperPtr &log)

void	setLogger (const ::cras::LogHelperPtr &logger)

virtual	~ParamHelper ()=default

Public Member Functions inherited from cras::HasLogger
::cras::LogHelperConstPtr	getCrasLogger () const

	HasLogger (const ::cras::LogHelperPtr &log)

void	setCrasLogger (const ::cras::LogHelperPtr &log)

Public Member Functions inherited from StatefulNodelet< ::nodelet::Nodelet >
bool	ok () const override

void	requestStop () override

void	shutdown ()

virtual	~StatefulNodelet ()

Public Member Functions inherited from cras::InterruptibleSleepInterface
	InterruptibleSleepInterface ()

virtual bool	sleep (const ::ros::Duration &duration) const

virtual	~InterruptibleSleepInterface ()

Detailed Description

Nodelet that republishes heartbeat of a topic with header.

ROS parameters:

~queue_size (uint, default 10): Queue size for the subscriber and publisher.
~lazy (bool, default False): Whether to shut down the subscriber when the publisher has no subscribers.
~tcp_no_delay (bool, default False): If True, the TCP_NODELAY flag is set for the subscriber. This should decrease the latency of small messages, but might give suboptimal transmission speed for large messages.

Subscribed topics:

~input (any type with header): The input messages. If lazy is true, it will only be subscribed when ~input/heartbeat has some subscribers. If you subscribe to a message type without header, the node should not crash, but it will discard all received messages and print an error message.

Published topics:

~input/heartbeat (cras_msgs/Heartbeat): The heartbeat.

Command-line arguments: This nodelet (or node) can also be called in a way backwards compatible with topic_tools nodes. This means you can pass CLI arguments specifying the topic to subscribe.

rosrun cras_topic_tools heartbeat [TOPIC_IN]
- TOPIC_IN: The topic to subscribe. It is resolved against parent namespace of the node(let) (as opposed to the ~input topic which is resolved against the private node(let) namespace). The heartbeat topic will be TOPIC_IN/heartbeat.

Definition at line 56 of file heartbeat.h.

Member Typedef Documentation

◆ SubscriberType

typedef LazySubscriber<cras_msgs::Heartbeat, const ros::MessageEvent<const topic_tools::ShapeShifter>&> cras::HeartbeatNodelet::SubscriberType

protected

The lazy subscriber type.

Definition at line 61 of file heartbeat.h.

Member Function Documentation

◆ onInit()

void cras::HeartbeatNodelet::onInit ( )

overrideprotectedvirtual

Implements nodelet::Nodelet.

Definition at line 30 of file heartbeat.cpp.

◆ processMessage()

void cras::HeartbeatNodelet::processMessage ( const ::ros::MessageEvent< const ::topic_tools::ShapeShifter > & event )

protectedvirtual

Process the received message.

Parameters

[in] event The message event containing the received message.

Definition at line 64 of file heartbeat.cpp.

Member Data Documentation

◆ hasHeader

cras::optional<bool> cras::HeartbeatNodelet::hasHeader {cras::nullopt}

protected

Whether the subscribed topic has a header field. This is filled on receipt of the first message.

Definition at line 78 of file heartbeat.h.

◆ pub

ros::Publisher cras::HeartbeatNodelet::pub

protected

The publisher of heartbeat messages.

Definition at line 72 of file heartbeat.h.

◆ sub

std::unique_ptr<SubscriberType> cras::HeartbeatNodelet::sub

protected

The lazy subscriber.

Definition at line 75 of file heartbeat.h.

The documentation for this class was generated from the following files:
