supportedsyncsettings.h File Reference

#include <vector>
#include <xstypes/xsdeviceid.h>

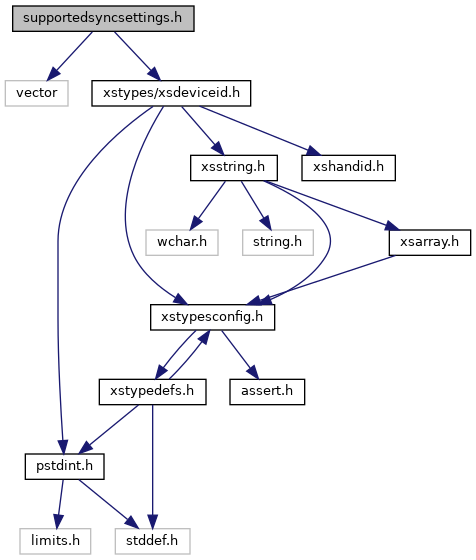

Include dependency graph for supportedsyncsettings.h:

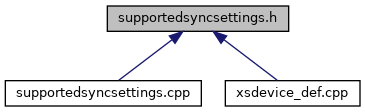

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	Synchronization

Functions
unsigned int	Synchronization::awindaTimeResolutionInMicroseconds ()
bool	Synchronization::isAwindaSettingCompatible (XsSyncSetting const &setting1, XsSyncSetting const &setting2)
bool	Synchronization::isCompatibleSyncSetting (XsDeviceId const &deviceId, XsSyncSetting const &setting1, XsSyncSetting const &setting2)
	Return true if setting1 is compatible with setting2 for a device with deviceId. More...
bool	Synchronization::isSyncStationSettingCompatible (XsSyncSetting const &setting1, XsSyncSetting const &setting2)
unsigned int	Synchronization::mtiTimeResolutionInMicroseconds ()
unsigned int	Synchronization::mtx2TimeResolutionInMicroseconds ()
XsSyncSettingArray	Synchronization::supportedSyncSettings (XsDeviceId const &deviceId)
	Returns the list of the supported synchronizations settings for the specified device id Each item in the list represent one possible function-line settings. More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForAwindaBaseStation ()
	get list of supported synchronizations settings for an Awinda base station More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForGnssDevice ()
	get list of supported synchronizations settings for MtDevice with GNSS More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMark5MtigX10Device ()
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMt6x0Device ()
	get list of supported synchronizations settings for an Mti6x0Device More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMt6x0GnssDevice ()
	get list of supported synchronizations settings for any MTi-6x0, non-rugged devices with external GNSS support, such as the 670 More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMt6x0IntGnssDevice ()
	get list of supported synchronizations settings for any MTi-6x0G, rugged devices with internal GNSS, such as the 680G More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMtDevice ()
	get list of supported synchronizations settings for an MtDevice More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMti7AndMTi8Devices ()
	get list of supported synchronizations settings for an Mti7 or MTi8 Device More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMtiDevice ()
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMtigDevice ()
	get list of supported synchronizations settings for an MtigDevice More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMtiXDevice ()
	get list of supported synchronization settings for an MtiX Device More...
XsSyncSettingArray	Synchronization::supportedSyncSettingsForMtx2Device ()
	get list of supported synchronizations settings for an Mtx2Device More...
bool	Synchronization::supportsSyncSettings (XsDeviceId const &deviceId)
unsigned int	Synchronization::syncStationTimeResolutionInMicroseconds ()
unsigned int	Synchronization::timeResolutionInMicroseconds (XsDeviceId const &deviceId)
