lanelet::io_handlers::IOHandler Class Reference

Base class for all handlers (writers and parsers) More...

#include <IoHandler.h>

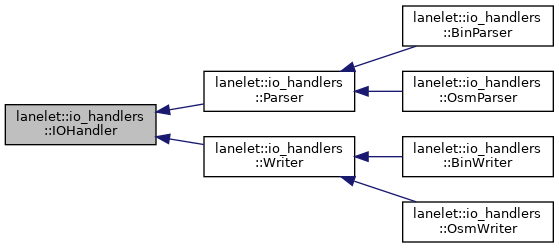

Inheritance diagram for lanelet::io_handlers::IOHandler:

Public Types
using	Ptr = std::shared_ptr< IOHandler >

Public Member Functions
io::Configuration	config ()
	IOHandler (const Projector &projector, const io::Configuration &config=io::Configuration())
const Projector &	projector () const
virtual	~IOHandler ()=default

Static Public Member Functions
static constexpr const char *	extension ()
	returns the extension supported by this parser More...
static constexpr const char *	name ()
	returns the name of this handler. Must not be empty for child classes More...

Protected Member Functions
	IOHandler ()=default

Private Member Functions
virtual void	handleDefaultProjector () const =0
	using a default projector is not allowed. The implementations define how this issue is handled. More...

Private Attributes
const io::Configuration *	config_ {}
const Projector *	projector_ {}

Detailed Description

Base class for all handlers (writers and parsers)

Definition at line 13 of file IoHandler.h.

Member Typedef Documentation

Ptr

using lanelet::io_handlers::IOHandler::Ptr = std::shared_ptr<IOHandler>

Definition at line 15 of file IoHandler.h.

Constructor & Destructor Documentation

IOHandler() [1/2]

lanelet::io_handlers::IOHandler::IOHandler ( const Projector &  projector, const io::Configuration &  config = io::Configuration()  )

inlineexplicit

Definition at line 16 of file IoHandler.h.

~IOHandler()

virtual lanelet::io_handlers::IOHandler::~IOHandler ( )

virtualdefault

IOHandler() [2/2]

lanelet::io_handlers::IOHandler::IOHandler ( )

protecteddefault

Member Function Documentation

config()

io::Configuration lanelet::io_handlers::IOHandler::config ( )

inline

Definition at line 41 of file IoHandler.h.

extension()

static constexpr const char* lanelet::io_handlers::IOHandler::extension ( )

inlinestaticconstexpr

returns the extension supported by this parser

Returns

extension (including the dot) Extension can be empty if extension

Definition at line 25 of file IoHandler.h.

handleDefaultProjector()

virtual void lanelet::io_handlers::IOHandler::handleDefaultProjector ( ) const

privatepure virtual

using a default projector is not allowed. The implementations define how this issue is handled.

Implemented in lanelet::io_handlers::Writer, and lanelet::io_handlers::Parser.

name()

static constexpr const char* lanelet::io_handlers::IOHandler::name ( )

inlinestaticconstexpr

returns the name of this handler. Must not be empty for child classes

Returns

name

Definition at line 32 of file IoHandler.h.

projector()

const Projector& lanelet::io_handlers::IOHandler::projector ( ) const

inline

Definition at line 34 of file IoHandler.h.

Member Data Documentation

config_

const io::Configuration* lanelet::io_handlers::IOHandler::config_ {}

private

config object for additional parameters. Parser should always use default parameters if parameters are missing

Definition at line 49 of file IoHandler.h.

projector_

const Projector* lanelet::io_handlers::IOHandler::projector_ {}

private

projection object for lat/lon from/to x/y conversions

Definition at line 47 of file IoHandler.h.

---

The documentation for this class was generated from the following file:

• IoHandler.h
