The command line interface for the tool. More...

#include <Loop.h>

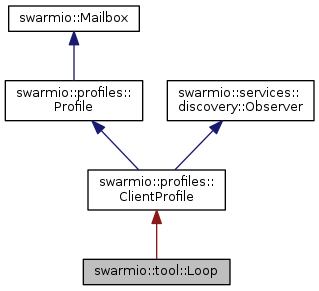

Inheritance diagram for swarmio::tool::Loop:

[legend]

Public Member Functions
	Loop (Endpoint endpoint, LogBuffer logBuffer)
	Construct a new Loop object. More...

void	Run ()
	Run the command loop. More...

Private Member Functions
data::Variant	ConvertToVariant (const std::string &value)
	Convert a string parameter to a variant. More...

bool	ExecuteCommand (const std::string &command)
	Execute a command given by the user. More...

void	ExecuteEventCommand (const Command &command)
	Execute an 'event' command. More...

void	ExecuteGetCommand (const Command &command)
	Execute an 'get' command. More...

void	ExecuteInfoCommand (const Command &command)
	Execute an 'info' command. More...

void	ExecuteLogCommand (const Command &command)
	Execute an 'log' command. More...

void	ExecuteMembersCommand (const Command &command)
	Execute a 'members' command. More...

void	ExecutePingCommand (const Command &command)
	Execute a 'ping' command. More...

void	ExecuteRediscoverCommand (const Command &command)
	Execute an 'rediscover' command. More...

void	ExecuteSelectCommand (const Command &command)
	Execute a 'select' command. More...

void	ExecuteSetCommand (const Command &command)
	Execute an 'set' command. More...

void	ExecuteSubscribeCommand (const Command &command)
	Execute a 'subscribe' command. More...

void	ExecuteSubscriptionsCommand (const Command &command)
	Execute a 'subscriptions' command. More...

void	ExecuteUnsubscribeCommand (const Command &command)
	Execute an 'unsubscribe' command. More...

std::string	GetPrompt ()
	Build prompt string. More...

virtual void	NodeWasDiscovered (const Node *node) noexceptoverride
	Called when a new Node has been discovered. More...

Private Member Functions inherited from swarmio::profiles::ClientProfile
virtual void	CachedDiscoveryResponseWasUpdated (const Node *node, const data::discovery::Response &response) override
	Receives notifications when discovery information becomes available. More...

	ClientProfile (Endpoint *endpoint)
	Construct a new ClientProfile. More...

virtual	~ClientProfile () override
	Destructor. More...

Private Member Functions inherited from swarmio::profiles::Profile
swarmio::services::discovery::Service &	GetDiscoveryService ()
	Get a reference for the Discovery service. More...

swarmio::services::ping::Service &	GetPingService ()
	Get a reference for the Ping service. More...

swarmio::services::telemetry::Service &	GetTelemetryService ()
	Get a reference for the Telemetry service. More...

virtual	~Profile ()
	Destroy the Profile object. More...

	Profile (Endpoint *endpoint, bool performActiveDiscovery)
	Construct a new Profile. More...

Private Member Functions inherited from swarmio::Mailbox
virtual void	Disconnect ()
	Disconnect this Mailbox from the Endpoint. More...

Endpoint *	GetEndpoint ()
	Get the associated Endpoint. More...

	Mailbox (const Mailbox &)=delete
	Remove copy constructor. More...

virtual void	MailboxWasConnected () noexcept
	Called when the mailbox is attached to an already running endpoint or if the attached endpoint has just started. More...

virtual void	MailboxWillBeDisconnected () noexcept
	Called right before the mailbox is disconnected from its endpoint or if the attached endpoint is about to stop. More...

virtual void	NodeDidJoin (const Node *node) noexcept
	Called when a new Node has joined the group. More...

virtual void	NodeWillLeave (const Node *node) noexcept
	Called when a Node signals that it will leave. More...

Mailbox &	operator= (const Mailbox &)=delete
	Remove assignment operator. More...

virtual bool	ReceiveMessage (const Node sender, const data::Message message)
	Delivery point of all messages. More...

virtual	~Mailbox ()
	Destroy the Mailbox object. More...

void	FinishConstruction ()
	Called when the last constructor has finished its job. More...

void	FinishMovingTo (Mailbox *other)
	Called when message handling should be passed onto the new instance. More...

	Mailbox ()
	Construct a disconnected Mailbox. More...

	Mailbox (Endpoint *endpoint)
	Construct a new Mailbox object. More...

	Mailbox (Mailbox &&other)
	Move a Mailbox object. More...

Private Attributes
LogBuffer *	_logBuffer = nullptr
	Log buffer. More...

std::mutex	_mutex
	Mutex to protect nodes vector. More...

std::vector< const Node * >	_nodes
	Nodes and their indices. More...

replxx::Replxx	_repl
	REPL interface. More...

const Node *	_selectedNode = nullptr
	Selected node. More...

std::list< services::telemetry::UpdateAwaiter >	_subscriptions
	Currently held subscriptions. More...

Private Attributes inherited from swarmio::profiles::Profile
swarmio::services::discovery::Service	_discoveryService
	Discovery service. More...

swarmio::services::ping::Service	_pingService
	Ping service. More...

swarmio::services::telemetry::Service	_telemetryService
	Telemetry service. More...

Detailed Description

The command line interface for the tool.

Definition at line 19 of file Loop.h.

Constructor & Destructor Documentation

Loop::Loop	(	Endpoint *	endpoint,
		LogBuffer *	logBuffer
	)

Construct a new Loop object.

Parameters

endpoint	Endpoint to use
logBuffer	Log buffer to read from

Definition at line 17 of file Loop.cpp.

Member Function Documentation

data::Variant Loop::ConvertToVariant ( const std::string & value )

private

Convert a string parameter to a variant.

Parameters

value Original value

Returns: data::Variant Variant value

Definition at line 572 of file Loop.cpp.

bool Loop::ExecuteCommand ( const std::string & command )

private

Execute a command given by the user.

Parameters

command Command string

Returns: True if the loop should continue.

Definition at line 473 of file Loop.cpp.

void Loop::ExecuteEventCommand ( const Command & command )

private

Execute an 'event' command.

Parameters

command Command

Definition at line 273 of file Loop.cpp.

void Loop::ExecuteGetCommand ( const Command & command )

private

Execute an 'get' command.

Parameters

command Command

Definition at line 152 of file Loop.cpp.

void Loop::ExecuteInfoCommand ( const Command & command )

private

Execute an 'info' command.

Parameters

command Command

Definition at line 82 of file Loop.cpp.

void Loop::ExecuteLogCommand ( const Command & command )

private

Execute an 'log' command.

Parameters

command Command

Definition at line 458 of file Loop.cpp.

void Loop::ExecuteMembersCommand ( const Command & command )

private

Execute a 'members' command.

Parameters

command Command

Definition at line 319 of file Loop.cpp.

void Loop::ExecutePingCommand ( const Command & command )

private

Execute a 'ping' command.

Parameters

command Command

Definition at line 236 of file Loop.cpp.

void Loop::ExecuteRediscoverCommand ( const Command & command )

private

Execute an 'rediscover' command.

Parameters

command Command

Definition at line 146 of file Loop.cpp.

void Loop::ExecuteSelectCommand ( const Command & command )

private

Execute a 'select' command.

Parameters

command Command

Definition at line 339 of file Loop.cpp.

void Loop::ExecuteSetCommand ( const Command & command )

private

Execute an 'set' command.

Parameters

command Command

Definition at line 201 of file Loop.cpp.

void Loop::ExecuteSubscribeCommand ( const Command & command )

private

Execute a 'subscribe' command.

Parameters

command

Definition at line 410 of file Loop.cpp.

void Loop::ExecuteSubscriptionsCommand ( const Command & command )

private

Execute a 'subscriptions' command.

Parameters

command

Definition at line 371 of file Loop.cpp.

void Loop::ExecuteUnsubscribeCommand ( const Command & command )

private

Execute an 'unsubscribe' command.

Parameters

command

Definition at line 443 of file Loop.cpp.

std::string Loop::GetPrompt ( )

private

Build prompt string.

Returns: std::string

Definition at line 33 of file Loop.cpp.

void Loop::NodeWasDiscovered ( const Node * node )

overrideprivatevirtualnoexcept

Called when a new Node has been discovered.

Parameters

node	The node that has been discovered

Reimplemented from swarmio::Mailbox.

Definition at line 25 of file Loop.cpp.

void Loop::Run ( )

Run the command loop.

Definition at line 45 of file Loop.cpp.

Member Data Documentation

LogBuffer* swarmio::tool::Loop::_logBuffer = nullptr

private

Log buffer.

Definition at line 39 of file Loop.h.

std::mutex swarmio::tool::Loop::_mutex

private

Mutex to protect nodes vector.

Definition at line 64 of file Loop.h.

std::vector<const Node*> swarmio::tool::Loop::_nodes

private

Nodes and their indices.

Definition at line 52 of file Loop.h.

replxx::Replxx swarmio::tool::Loop::_repl

private

REPL interface.

Definition at line 27 of file Loop.h.

const Node* swarmio::tool::Loop::_selectedNode = nullptr

private

Selected node.

Definition at line 33 of file Loop.h.

std::list<services::telemetry::UpdateAwaiter> swarmio::tool::Loop::_subscriptions

private

Currently held subscriptions.

Definition at line 58 of file Loop.h.

The documentation for this class was generated from the following files:
