Telemetry Service can subscribe to receive updates from remote nodes on named values. More...

#include <Service.h>

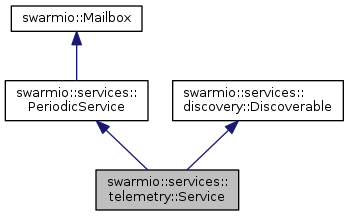

Inheritance diagram for swarmio::services::telemetry::Service:

Public Member Functions
virtual void	DescribeService (data::discovery::Response &descriptor) override
	Add descriptors for the service to the discovery descriptor. More...

data::telemetry::Status	GetCachedStatus (const Node *node)

virtual bool	ReceiveMessage (const Node sender, const data::Message message) override
	Delivery point of all messages. More...

void	RegisterObserver (Observer *observer)
	Register a new status observer. More...

void	RemoveFieldDefinitionForKey (const std::string &key)
	Remove a field from the schema. More...

void	RemoveValue (const std::string &key)
	Remove a value from the local telemetry cache. More...

	Service (Endpoint *endpoint, std::chrono::milliseconds period=std::chrono::milliseconds(10))
	Construct a new Service object. More...

void	SetFieldDefinitionForKey (const std::string &key, const data::discovery::Field &field, bool includeInStatus)
	Add field to the schema. More...

void	SetValue (const std::string &key, const data::Variant &value)
	Add or update a value in the local telemetry cache. More...

void	UnregisterObserver (Observer *observer)
	Unregister a status observer. More...

Public Member Functions inherited from swarmio::Mailbox
virtual void	Disconnect ()
	Disconnect this Mailbox from the Endpoint. More...

Endpoint *	GetEndpoint ()
	Get the associated Endpoint. More...

	Mailbox (const Mailbox &)=delete
	Remove copy constructor. More...

virtual void	NodeDidJoin (const Node *node) noexcept
	Called when a new Node has joined the group. More...

virtual void	NodeWasDiscovered (const Node *node) noexcept
	Called when a new Node has been discovered. More...

virtual void	NodeWillLeave (const Node *node) noexcept
	Called when a Node signals that it will leave. More...

Mailbox &	operator= (const Mailbox &)=delete
	Remove assignment operator. More...

virtual	~Mailbox ()
	Destroy the Mailbox object. More...

Static Public Member Functions
static UpdateAwaiter	Subscribe (Endpoint endpoint, const Node node, uint32_t interval=1)
	Subscribe to all named values on the remote node. More...

static UpdateAwaiter	Subscribe (Endpoint endpoint, const Node node, uint32_t interval, const std::list< std::string > &keys)
	Subscribe to soecific named values on the remote node. More...

Protected Member Functions
virtual void	Update () overridefinal
	Send an update to all subscribers. More...

Protected Member Functions inherited from swarmio::services::PeriodicService
virtual void	MailboxWasConnected () noexceptoverride
	Called when the mailbox is attached to an already running endpoint or if the attached endpoint has just started. More...

virtual void	MailboxWillBeDisconnected () noexceptoverride
	Called right before the mailbox is disconnected from its endpoint or if the attached endpoint is about to stop. More...

	PeriodicService (Endpoint *endpoint, std::chrono::milliseconds period)
	Construct a new Periodic Service object. More...

Protected Member Functions inherited from swarmio::Mailbox
void	FinishConstruction ()
	Called when the last constructor has finished its job. More...

void	FinishMovingTo (Mailbox *other)
	Called when message handling should be passed onto the new instance. More...

	Mailbox ()
	Construct a disconnected Mailbox. More...

	Mailbox (Endpoint *endpoint)
	Construct a new Mailbox object. More...

	Mailbox (Mailbox &&other)
	Move a Mailbox object. More...

Private Attributes
std::set< Observer * >	_observers
	List of observers. More...

std::shared_timed_mutex	_observersMutex
	Mutex to protect the list of observers. More...

std::map< const Node *, data::telemetry::Status >	_reports
	Cached values for remote status reports. More...

std::shared_timed_mutex	_reportsMutex
	Mutex to protect remote status reports. More...

data::discovery::Schema	_schema
	Schema. More...

std::shared_timed_mutex	_schemaMutex
	Mutex to protect the schema. More...

std::set< std::string >	_statusKeys
	List of keys to include in the status broadcast. More...

std::list< Tracker >	_trackers
	Trackers for each remote subscription. More...

std::shared_timed_mutex	_trackersMutex
	Mutex to protect the list of trackers. More...

std::map< std::string, data::Variant >	_values
	List of published telemetry values. More...

std::shared_timed_mutex	_valuesMutex
	Mutex to protect the map of values. More...

Detailed Description

Telemetry Service can subscribe to receive updates from remote nodes on named values.

Definition at line 21 of file telemetry/Service.h.

Constructor & Destructor Documentation

swarmio::services::telemetry::Service::Service	(	Endpoint *	endpoint,
		std::chrono::milliseconds	period = `std::chrono::milliseconds(10)`
	)

inline

Construct a new Service object.

Parameters

endpoint	Endpoint
period	Tick period

Definition at line 132 of file telemetry/Service.h.

Member Function Documentation

void Service::DescribeService ( data::discovery::Response & descriptor )

overridevirtual

Add descriptors for the service to the discovery descriptor.

Parameters

descriptor The proposed response to load the description into

Implements swarmio::services::discovery::Discoverable.

Definition at line 212 of file telemetry/Service.cpp.

data::telemetry::Status swarmio::services::telemetry::Service::GetCachedStatus ( const Node * node )

inline

Definition at line 215 of file telemetry/Service.h.

bool Service::ReceiveMessage	(	const Node *	sender,
		const data::Message *	message
	)

overridevirtual

Delivery point of all messages.

Parameters

sender	The node that has sent the message
message	The message itself

Returns: True if the message had been processed and should not be forwarded to other mailboxes

Reimplemented from swarmio::Mailbox.

Definition at line 150 of file telemetry/Service.cpp.

void swarmio::services::telemetry::Service::RegisterObserver ( Observer * observer )

inline

Register a new status observer.

Parameters

observer Observer

Definition at line 198 of file telemetry/Service.h.

void swarmio::services::telemetry::Service::RemoveFieldDefinitionForKey ( const std::string & key )

inline

Remove a field from the schema.

Parameters

key Key

Definition at line 186 of file telemetry/Service.h.

void swarmio::services::telemetry::Service::RemoveValue ( const std::string & key )

inline

Remove a value from the local telemetry cache.

Parameters

key Key

Definition at line 155 of file telemetry/Service.h.

void swarmio::services::telemetry::Service::SetFieldDefinitionForKey	(	const std::string &	key,
		const data::discovery::Field &	field,
		bool	includeInStatus
	)

inline

Add field to the schema.

Parameters

key	Key
field	Field

Definition at line 167 of file telemetry/Service.h.

void swarmio::services::telemetry::Service::SetValue	(	const std::string &	key,
		const data::Variant &	value
	)

inline

Add or update a value in the local telemetry cache.

Parameters

key	Key
value	Value

Definition at line 144 of file telemetry/Service.h.

static UpdateAwaiter swarmio::services::telemetry::Service::Subscribe	(	Endpoint *	endpoint,
		const Node *	node,
		uint32_t	interval = `1`
	)

inlinestatic

Subscribe to all named values on the remote node.

Parameters

endpoint	Endpoint to use
node	Remote node
interval	Interval

Returns: UpdateAwaiter Awaiter for the updates

Definition at line 109 of file telemetry/Service.h.

UpdateAwaiter Service::Subscribe	(	Endpoint *	endpoint,
		const Node *	node,
		uint32_t	interval,
		const std::list< std::string > &	keys
	)

static

Subscribe to soecific named values on the remote node.

Parameters

endpoint	Endpoint to use
node	Remote node
interval	Interval
keys	Keys to subscribe to

Returns: UpdateAwaiter Awaiter for the updates

Definition at line 11 of file telemetry/Service.cpp.

void swarmio::services::telemetry::Service::UnregisterObserver ( Observer * observer )

inline

Unregister a status observer.

Parameters

observer Observer

Definition at line 209 of file telemetry/Service.h.

void Service::Update ( )

finaloverrideprotectedvirtual

Send an update to all subscribers.

Implements swarmio::services::PeriodicService.

Definition at line 38 of file telemetry/Service.cpp.

Member Data Documentation

std::set<Observer*> swarmio::services::telemetry::Service::_observers

private

List of observers.

Definition at line 71 of file telemetry/Service.h.

std::shared_timed_mutex swarmio::services::telemetry::Service::_observersMutex

private

Mutex to protect the list of observers.

Definition at line 77 of file telemetry/Service.h.

std::map<const Node*, data::telemetry::Status> swarmio::services::telemetry::Service::_reports

private

Cached values for remote status reports.

Definition at line 83 of file telemetry/Service.h.

std::shared_timed_mutex swarmio::services::telemetry::Service::_reportsMutex

private

Mutex to protect remote status reports.

Definition at line 89 of file telemetry/Service.h.

data::discovery::Schema swarmio::services::telemetry::Service::_schema

private

Schema.

Definition at line 41 of file telemetry/Service.h.

std::shared_timed_mutex swarmio::services::telemetry::Service::_schemaMutex

private

Mutex to protect the schema.

Definition at line 53 of file telemetry/Service.h.

std::set<std::string> swarmio::services::telemetry::Service::_statusKeys

private

List of keys to include in the status broadcast.

Definition at line 47 of file telemetry/Service.h.

std::list<Tracker> swarmio::services::telemetry::Service::_trackers

private

Trackers for each remote subscription.

Definition at line 59 of file telemetry/Service.h.

std::shared_timed_mutex swarmio::services::telemetry::Service::_trackersMutex

private

Mutex to protect the list of trackers.

Definition at line 65 of file telemetry/Service.h.

std::map<std::string, data::Variant> swarmio::services::telemetry::Service::_values

private

List of published telemetry values.

Definition at line 29 of file telemetry/Service.h.

std::shared_timed_mutex swarmio::services::telemetry::Service::_valuesMutex

private

Mutex to protect the map of values.

Definition at line 35 of file telemetry/Service.h.
