Public Member Functions | Static Public Member Functions | Private Member Functions | List of all members
gte::DX11Texture3 Class Reference

#include <GteDX11Texture3.h>

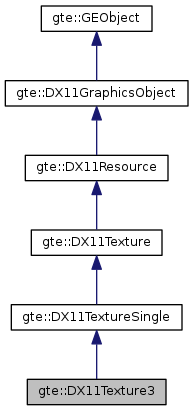

Inheritance diagram for gte::DX11Texture3:
Inheritance graph
[legend]

Public Member Functions

 DX11Texture3 (ID3D11Device *device, Texture3 const *texture)

ID3D11Texture3D * GetDXTexture () const

Texture3GetTexture () const

- Public Member Functions inherited from gte::DX11TextureSingle
TextureSingleGetTextureSingle () const

- Public Member Functions inherited from gte::DX11Texture
virtual bool CopyCpuToGpu (ID3D11DeviceContext *context, unsigned int sri) override

virtual bool CopyCpuToGpu (ID3D11DeviceContext *context) override

virtual bool CopyGpuToCpu (ID3D11DeviceContext *context, unsigned int sri) override

virtual bool CopyGpuToCpu (ID3D11DeviceContext *context) override

virtual void CopyGpuToGpu (ID3D11DeviceContext *context, ID3D11Resource *target, unsigned int sri) override

virtual void CopyGpuToGpu (ID3D11DeviceContext *context, ID3D11Resource *target) override

ID3D11ShaderResourceView * GetSRView () const

TextureGetTexture () const

ID3D11UnorderedAccessView * GetUAView () const

virtual void SetName (std::string const &name) override

virtual bool Update (ID3D11DeviceContext *context, unsigned int sri) override

virtual bool Update (ID3D11DeviceContext *context) override

virtual ~DX11Texture ()

- Public Member Functions inherited from gte::DX11Resource
ID3D11Resource * GetDXResource () const

ResourceGetResource () const

ID3D11Resource * GetStagingResource () const

D3D11_MAPPED_SUBRESOURCE MapForWrite (ID3D11DeviceContext *context, unsigned int sri)

void Unmap (ID3D11DeviceContext *context, unsigned int sri)

virtual ~DX11Resource ()

- Public Member Functions inherited from gte::DX11GraphicsObject
ID3D11DeviceChild * GetDXDeviceChild () const

virtual ~DX11GraphicsObject ()

- Public Member Functions inherited from gte::GEObject
GraphicsObjectGetGraphicsObject () const

std::string const & GetName () const

virtual ~GEObject ()


Static Public Member Functions

static std::shared_ptr< GEObjectCreate (void *device, GraphicsObject const *object)


Private Member Functions

void CreateSRView (ID3D11Device *device, D3D11_TEXTURE3D_DESC const &tx)

void CreateStaging (ID3D11Device *device, D3D11_TEXTURE3D_DESC const &tx)

void CreateUAView (ID3D11Device *device, D3D11_TEXTURE3D_DESC const &tx)


Additional Inherited Members

- Protected Member Functions inherited from gte::DX11TextureSingle
 DX11TextureSingle (TextureSingle const *gtTextureSingle)

- Protected Member Functions inherited from gte::DX11Texture
 DX11Texture (Texture const *gtTexture)

- Protected Member Functions inherited from gte::DX11Resource
 DX11Resource (Resource const *gtResource)

bool PreparedForCopy (D3D11_CPU_ACCESS_FLAG access) const

- Protected Member Functions inherited from gte::DX11GraphicsObject
 DX11GraphicsObject (GraphicsObject const *gtObject)

- Protected Member Functions inherited from gte::GEObject
 GEObject (GraphicsObject const *gtObject)

- Static Protected Member Functions inherited from gte::DX11Texture
static void CopyPitched2 (unsigned int numRows, unsigned int srcRowPitch, void const *srcData, unsigned int trgRowPitch, void *trgData)

static void CopyPitched3 (unsigned int numRows, unsigned int numSlices, unsigned int srcRowPitch, unsigned int srcSlicePitch, void const *srcData, unsigned int trgRowPitch, unsigned int trgSlicePitch, void *trgData)

- Protected Attributes inherited from gte::DX11Texture
ID3D11ShaderResourceView * mSRView

ID3D11UnorderedAccessView * mUAView

- Protected Attributes inherited from gte::DX11Resource
ID3D11Resource * mStaging

- Protected Attributes inherited from gte::DX11GraphicsObject
ID3D11DeviceChild * mDXObject

- Protected Attributes inherited from gte::GEObject
GraphicsObjectmGTObject

std::string mName

- Static Protected Attributes inherited from gte::DX11Resource
static UINT const msStagingAccess []


Detailed Description

Definition at line 16 of file GteDX11Texture3.h.

Constructor & Destructor Documentation

DX11Texture3::DX11Texture3 ( ID3D11Device *  device,
Texture3 const *  texture
)

Definition at line 12 of file GteDX11Texture3.cpp.

Member Function Documentation

std::shared_ptr< GEObject > DX11Texture3::Create ( void device,
GraphicsObject const *  object
)
static

Definition at line 97 of file GteDX11Texture3.cpp.

void DX11Texture3::CreateSRView ( ID3D11Device *  device,
D3D11_TEXTURE3D_DESC const &  tx
)
private

Definition at line 127 of file GteDX11Texture3.cpp.

void DX11Texture3::CreateStaging ( ID3D11Device *  device,
D3D11_TEXTURE3D_DESC const &  tx
)
private

Definition at line 109 of file GteDX11Texture3.cpp.

void DX11Texture3::CreateUAView ( ID3D11Device *  device,
D3D11_TEXTURE3D_DESC const &  tx
)
private

Definition at line 138 of file GteDX11Texture3.cpp.

ID3D11Texture3D * gte::DX11Texture3::GetDXTexture ( ) const
inline

Definition at line 39 of file GteDX11Texture3.h.

Texture3 * gte::DX11Texture3::GetTexture ( ) const
inline

Definition at line 34 of file GteDX11Texture3.h.


The documentation for this class was generated from the following files:
