gte::DX11Resource Class Reference

#include <GteDX11Resource.h>

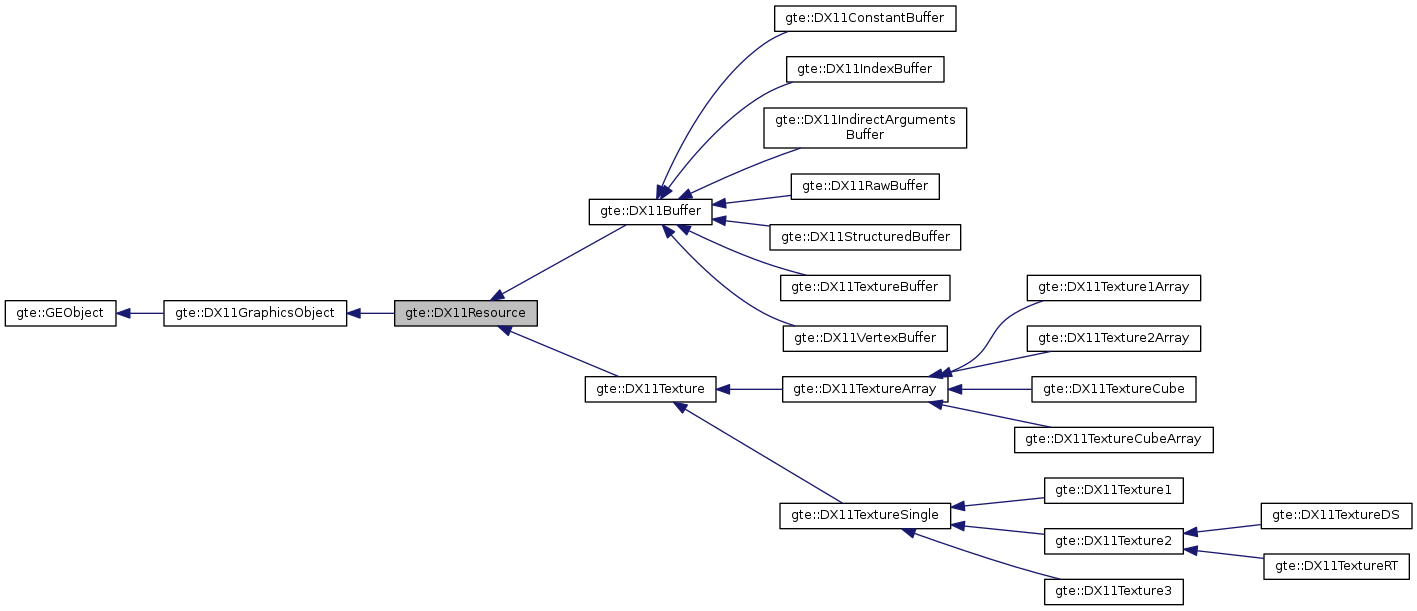

Inheritance diagram for gte::DX11Resource:

Public Member Functions
virtual bool	CopyCpuToGpu (ID3D11DeviceContext *context, unsigned int sri)=0
virtual bool	CopyCpuToGpu (ID3D11DeviceContext *context)=0
virtual bool	CopyGpuToCpu (ID3D11DeviceContext *context, unsigned int sri)=0
virtual bool	CopyGpuToCpu (ID3D11DeviceContext *context)=0
virtual void	CopyGpuToGpu (ID3D11DeviceContext *context, ID3D11Resource *target, unsigned int sri)=0
virtual void	CopyGpuToGpu (ID3D11DeviceContext *context, ID3D11Resource *target)=0
ID3D11Resource *	GetDXResource () const
Resource *	GetResource () const
ID3D11Resource *	GetStagingResource () const
D3D11_MAPPED_SUBRESOURCE	MapForWrite (ID3D11DeviceContext *context, unsigned int sri)
virtual void	SetName (std::string const &name) override
void	Unmap (ID3D11DeviceContext *context, unsigned int sri)
virtual bool	Update (ID3D11DeviceContext *context, unsigned int sri)=0
virtual bool	Update (ID3D11DeviceContext *context)=0
virtual	~DX11Resource ()
Public Member Functions inherited from gte::DX11GraphicsObject
ID3D11DeviceChild *	GetDXDeviceChild () const
virtual	~DX11GraphicsObject ()
Public Member Functions inherited from gte::GEObject
GraphicsObject *	GetGraphicsObject () const
std::string const &	GetName () const
virtual	~GEObject ()

Protected Member Functions
	DX11Resource (Resource const *gtResource)
bool	PreparedForCopy (D3D11_CPU_ACCESS_FLAG access) const
Protected Member Functions inherited from gte::DX11GraphicsObject
	DX11GraphicsObject (GraphicsObject const *gtObject)
Protected Member Functions inherited from gte::GEObject
	GEObject (GraphicsObject const *gtObject)

Protected Attributes
ID3D11Resource *	mStaging
Protected Attributes inherited from gte::DX11GraphicsObject
ID3D11DeviceChild *	mDXObject
Protected Attributes inherited from gte::GEObject
GraphicsObject *	mGTObject
std::string	mName

Static Protected Attributes
static UINT const	msStagingAccess []

Detailed Description

Definition at line 16 of file GteDX11Resource.h.

Constructor & Destructor Documentation

DX11Resource::~DX11Resource ( )

virtual

Definition at line 12 of file GteDX11Resource.cpp.

DX11Resource::DX11Resource ( Resource const *  gtResource )

protected

Definition at line 17 of file GteDX11Resource.cpp.

Member Function Documentation

virtual bool gte::DX11Resource::CopyCpuToGpu ( ID3D11DeviceContext *  context, unsigned int  sri  )

pure virtual

Implemented in gte::DX11Buffer, and gte::DX11Texture.

virtual bool gte::DX11Resource::CopyCpuToGpu ( ID3D11DeviceContext *  context )

pure virtual

Implemented in gte::DX11Texture, and gte::DX11Buffer.

virtual bool gte::DX11Resource::CopyGpuToCpu ( ID3D11DeviceContext *  context, unsigned int  sri  )

pure virtual

Implemented in gte::DX11Buffer, and gte::DX11Texture.

virtual bool gte::DX11Resource::CopyGpuToCpu ( ID3D11DeviceContext *  context )

pure virtual

Implemented in gte::DX11Texture, gte::DX11StructuredBuffer, and gte::DX11Buffer.

virtual void gte::DX11Resource::CopyGpuToGpu ( ID3D11DeviceContext *  context, ID3D11Resource *  target, unsigned int  sri  )

pure virtual

Implemented in gte::DX11Buffer, and gte::DX11Texture.

virtual void gte::DX11Resource::CopyGpuToGpu ( ID3D11DeviceContext *  context, ID3D11Resource *  target  )

pure virtual

Implemented in gte::DX11Texture, and gte::DX11Buffer.

ID3D11Resource * gte::DX11Resource::GetDXResource ( ) const

inline

Definition at line 80 of file GteDX11Resource.h.

Resource * gte::DX11Resource::GetResource ( ) const

inline

Definition at line 75 of file GteDX11Resource.h.

ID3D11Resource * gte::DX11Resource::GetStagingResource ( ) const

inline

Definition at line 85 of file GteDX11Resource.h.

D3D11_MAPPED_SUBRESOURCE DX11Resource::MapForWrite	(	ID3D11DeviceContext *	context,
		unsigned int	sri
	)

Definition at line 27 of file GteDX11Resource.cpp.

bool DX11Resource::PreparedForCopy ( D3D11_CPU_ACCESS_FLAG  access ) const

protected

Definition at line 52 of file GteDX11Resource.cpp.

void DX11Resource::SetName ( std::string const &  name )

overridevirtual

Reimplemented from gte::DX11GraphicsObject.

Reimplemented in gte::DX11Texture, gte::DX11StructuredBuffer, gte::DX11RawBuffer, gte::DX11TextureBuffer, gte::DX11TextureDS, and gte::DX11TextureRT.

Definition at line 45 of file GteDX11Resource.cpp.

void DX11Resource::Unmap	(	ID3D11DeviceContext *	context,
		unsigned int	sri
	)

Definition at line 40 of file GteDX11Resource.cpp.

virtual bool gte::DX11Resource::Update ( ID3D11DeviceContext *  context, unsigned int  sri  )

pure virtual

Implemented in gte::DX11Buffer, and gte::DX11Texture.

virtual bool gte::DX11Resource::Update ( ID3D11DeviceContext *  context )

pure virtual

Implemented in gte::DX11Texture, and gte::DX11Buffer.

Member Data Documentation

UINT const DX11Resource::msStagingAccess

staticprotected

Initial value:

=
{
    D3D11_CPU_ACCESS_NONE,
    D3D11_CPU_ACCESS_WRITE,
    D3D11_CPU_ACCESS_READ,
    D3D11_CPU_ACCESS_READ_WRITE
}

Definition at line 72 of file GteDX11Resource.h.

ID3D11Resource* gte::DX11Resource::mStaging

protected

Definition at line 69 of file GteDX11Resource.h.

---

The documentation for this class was generated from the following files:

• GteDX11Resource.h
• GteDX11Resource.cpp
