tmr_loadsave_configuration.c File Reference

Mercury API - load save configuration implementation. More...

#include <string.h>
#include <stdio.h>
#include <inttypes.h>
#include <ctype.h>
#include <stdlib.h>
#include <libgen.h>
#include "tm_reader.h"
#include "tmr_utils.h"
#include "serial_reader_imp.h"

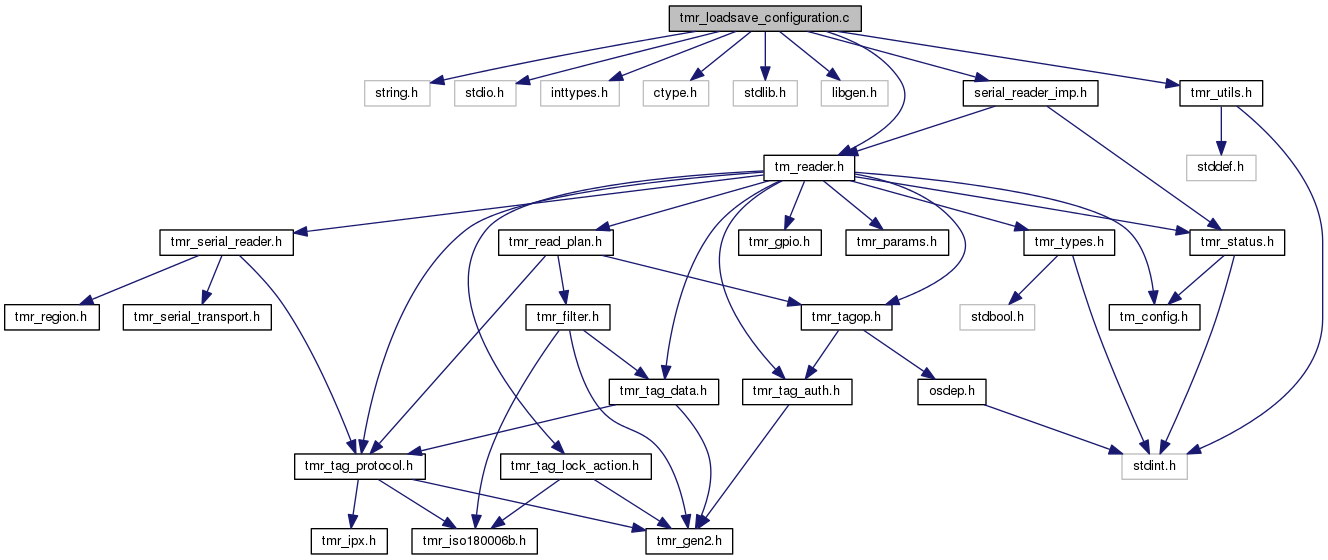

Include dependency graph for tmr_loadsave_configuration.c:

Go to the source code of this file.

Classes
struct	properties
Defines
#define	CONFIG_MAX_BUFFER_LEN   1500
#define	CONFIG_MAX_PARAMETERS_LEN   100
Typedefs
typedef enum paramOption	paramOption
typedef struct properties	properties
Enumerations
enum	paramOption { PARAM_OPTION_GET = 0x00, PARAM_OPTION_SET = 0x01 }
Functions
static TMR_Status	getSetOneParam (struct TMR_Reader *reader, const char *paramName, TMR_String *string, paramOption option)
static TMR_Status	isParamWritable (TMR_Param key)
static int	listid (const char *list[], int listlen, const char *name)
const char *	listname (const char *list[], int listlen, unsigned int id)
static TMR_Status	loadConfiguration (struct TMR_Reader *reader, char *filePath, properties *dict, uint8_t noOfEntries, bool isRollBack)
static void	logErrorMessage (struct TMR_Reader *reader, char *errorString)
static int	parseEpc (const char *arg, TMR_TagData *tag, int *nchars)
static int	parseFilter (const char *arg, TMR_TagFilter **filterp, int *nchars)
static int	parsePortValueList (const char *arg, TMR_PortValueList *list, int *nchars)
static int	parseReadPlan (const char *arg, TMR_ReadPlan *plan, int *nchars)
static int	parseStats (char *string, TMR_Reader_StatsFlag *stats)
static int	parseTagop (const char *arg, TMR_TagOp **tagopp, int *nchars)
static int	parseU32List (const char *arg, TMR_uint32List *list, int *nchars)
static int	parseU8List (const char *arg, TMR_uint8List *list, int *nchars)
static void	printFilter (TMR_String *string, TMR_TagFilter *filter)
static void	printPortValueList (TMR_String *string, TMR_PortValueList *list)
static void	printReaderStats (const char *string, TMR_Reader_StatsFlag *stats)
static void	printReadPlan (const char *string, TMR_ReadPlan *plan, int *nchars)
static void	printTagop (TMR_String *string, TMR_TagOp *tagop)
static void	printU32List (TMR_String *string, TMR_uint32List *list)
static void	printU8List (TMR_String *string, TMR_uint8List *list)
static TMR_Status	readLine (FILE *fp, char *buffer)
static TMR_Region	regionID (const char *name)
static const char *	regionName (TMR_Region region)
static TMR_Status	rollBackConfigData (struct TMR_Reader *reader, char *filePath)
static bool	strcasecmpcount (const char *a, const char *b, int *matches)
TMR_Status	TMR_loadConfig (struct TMR_Reader *reader, char *filePath)
TMR_Status	TMR_saveConfig (struct TMR_Reader *reader, char *filePath)
Variables
static const char *	bankNames [] = {"Reserved", "EPC", "TID", "User"}
static const char *	gen2LinkFrequencyNames [] = {"LINK250KHZ", "LINK300KHZ", "LINK320KHZ", "LINK40KHZ", "LINK640KHZ"}
static const char *	gen2ProtocolExtensionNames [] = {"TMR_GEN2_PROTOCOLEXTENSION_LICENSE_NONE", "TMR_GEN2_PROTOCOLEXTENSION_LICENSE_IAV_DENATRAN"}
static const char *	hexChars = "0123456789abcdefABCDEF"
static const char *	powerModes [] = {"FULL", "MINSAVE", "MEDSAVE", "MAXSAVE", "SLEEP"}
static const char *	protocolNames []
static const char *	regions []
static const char *	selectOptionNames [] = {"EQ", "NE", "GT", "LT"}
static const char *	sessionNames [] = {"S0", "S1", "S2", "S3"}
static const char *	tagEncodingNames [] = {"FM0", "M2", "M4", "M8"}
static const char *	tagopNames [] = {NULL, "ReadData"}
static const char *	targetNames [] = {"A", "B", "AB", "BA"}
static const char *	tariNames [] = {"TARI_25US", "TARI_12_5US", "TARI_6_25US"}

---

Detailed Description

Mercury API - load save configuration implementation.

Author:

Lingaraj Bal

Date:

11/3/2009

Definition in file tmr_loadsave_configuration.c.

---

Define Documentation

#define CONFIG_MAX_BUFFER_LEN   1500

Definition at line 47 of file tmr_loadsave_configuration.c.

#define CONFIG_MAX_PARAMETERS_LEN   100

Definition at line 48 of file tmr_loadsave_configuration.c.

---

Typedef Documentation

typedef enum paramOption paramOption

typedef struct properties properties

---

Enumeration Type Documentation

enum paramOption

Enumerator:

PARAM_OPTION_GET
PARAM_OPTION_SET

Definition at line 56 of file tmr_loadsave_configuration.c.

---

Function Documentation

static TMR_Status getSetOneParam	(	struct TMR_Reader *	reader,
		const char *	paramName,
		TMR_String *	string,
		paramOption	option
	)		[static]

Definition at line 1297 of file tmr_loadsave_configuration.c.

static TMR_Status isParamWritable

(

TMR_Param

key

)

[static]

Definition at line 252 of file tmr_loadsave_configuration.c.

static int listid	(	const char *	list[],
		int	listlen,
		const char *	name
	)		[static]

const char* listname	(	const char *	list[],
		int	listlen,
		unsigned int	id
	)

Definition at line 172 of file tmr_loadsave_configuration.c.

static TMR_Status loadConfiguration	(	struct TMR_Reader *	reader,
		char *	filePath,
		properties *	dict,
		uint8_t	noOfEntries,
		bool	isRollBack
	)		[static]

Definition at line 2213 of file tmr_loadsave_configuration.c.

static void logErrorMessage	(	struct TMR_Reader *	reader,
		char *	errorString
	)		[static]

Definition at line 104 of file tmr_loadsave_configuration.c.

static int parseEpc	(	const char *	arg,
		TMR_TagData *	tag,
		int *	nchars
	)		[static]

static int parseFilter	(	const char *	arg,
		TMR_TagFilter **	filterp,
		int *	nchars
	)		[static]

static int parsePortValueList	(	const char *	arg,
		TMR_PortValueList *	list,
		int *	nchars
	)		[static]

Definition at line 772 of file tmr_loadsave_configuration.c.

static int parseReadPlan	(	const char *	arg,
		TMR_ReadPlan *	plan,
		int *	nchars
	)		[static]

static int parseStats	(	char *	string,
		TMR_Reader_StatsFlag *	stats
	)		[static]

Definition at line 933 of file tmr_loadsave_configuration.c.

static int parseTagop	(	const char *	arg,
		TMR_TagOp **	tagopp,
		int *	nchars
	)		[static]

static int parseU32List	(	const char *	arg,
		TMR_uint32List *	list,
		int *	nchars
	)		[static]

static int parseU8List	(	const char *	arg,
		TMR_uint8List *	list,
		int *	nchars
	)		[static]

static void printFilter	(	TMR_String *	string,
		TMR_TagFilter *	filter
	)		[static]

Definition at line 874 of file tmr_loadsave_configuration.c.

static void printPortValueList	(	TMR_String *	string,
		TMR_PortValueList *	list
	)		[static]

Definition at line 854 of file tmr_loadsave_configuration.c.

static void printReaderStats	(	const char *	string,
		TMR_Reader_StatsFlag *	stats
	)		[static]

Definition at line 1243 of file tmr_loadsave_configuration.c.

static void printReadPlan	(	const char *	string,
		TMR_ReadPlan *	plan,
		int *	nchars
	)		[static]

Definition at line 1197 of file tmr_loadsave_configuration.c.

static void printTagop	(	TMR_String *	string,
		TMR_TagOp *	tagop
	)		[static]

Definition at line 906 of file tmr_loadsave_configuration.c.

static void printU32List	(	TMR_String *	string,
		TMR_uint32List *	list
	)		[static]

Definition at line 835 of file tmr_loadsave_configuration.c.

static void printU8List	(	TMR_String *	string,
		TMR_uint8List *	list
	)		[static]

Definition at line 816 of file tmr_loadsave_configuration.c.

static TMR_Status readLine	(	FILE *	fp,
		char *	buffer
	)		[static]

Definition at line 203 of file tmr_loadsave_configuration.c.

static TMR_Region regionID

(

const char *

name

)

[static]

Definition at line 190 of file tmr_loadsave_configuration.c.

static const char * regionName

(

TMR_Region

region

)

[static]

Definition at line 181 of file tmr_loadsave_configuration.c.

static TMR_Status rollBackConfigData	(	struct TMR_Reader *	reader,
		char *	filePath
	)		[static]

Definition at line 2124 of file tmr_loadsave_configuration.c.

static bool strcasecmpcount	(	const char *	a,
		const char *	b,
		int *	matches
	)		[static]

Definition at line 119 of file tmr_loadsave_configuration.c.

---

Variable Documentation

const char* bankNames[] = {"Reserved", "EPC", "TID", "User"} [static]

Definition at line 76 of file tmr_loadsave_configuration.c.

const char* gen2LinkFrequencyNames[] = {"LINK250KHZ", "LINK300KHZ", "LINK320KHZ", "LINK40KHZ", "LINK640KHZ"} [static]

Definition at line 72 of file tmr_loadsave_configuration.c.

const char* gen2ProtocolExtensionNames[] = {"TMR_GEN2_PROTOCOLEXTENSION_LICENSE_NONE", "TMR_GEN2_PROTOCOLEXTENSION_LICENSE_IAV_DENATRAN"} [static]

Definition at line 73 of file tmr_loadsave_configuration.c.

const char* hexChars = "0123456789abcdefABCDEF" [static]

Definition at line 63 of file tmr_loadsave_configuration.c.

const char* powerModes[] = {"FULL", "MINSAVE", "MEDSAVE", "MAXSAVE", "SLEEP"} [static]

Definition at line 67 of file tmr_loadsave_configuration.c.

const char* protocolNames[] [static]

Initial value:

 {NULL, NULL, NULL, "ISO180006B",
                                      NULL, "GEN2", "ISO180006B_UCODE", "IPX64", "IPX256"}

Definition at line 74 of file tmr_loadsave_configuration.c.

const char* regions[] [static]

Initial value:

 {"UNSPEC", "NA", "EU", "KR", "IN", "JP", "PRC",
                                "EU2", "EU3", "KR2", "PRC2", "AU", "NZ", "NA2", "NA3", "IS"}

Definition at line 65 of file tmr_loadsave_configuration.c.

const char* selectOptionNames[] = {"EQ", "NE", "GT", "LT"} [static]

Definition at line 64 of file tmr_loadsave_configuration.c.

const char* sessionNames[] = {"S0", "S1", "S2", "S3"} [static]

Definition at line 69 of file tmr_loadsave_configuration.c.

const char* tagEncodingNames[] = {"FM0", "M2", "M4", "M8"} [static]

Definition at line 68 of file tmr_loadsave_configuration.c.

const char* tagopNames[] = {NULL, "ReadData"} [static]

Definition at line 77 of file tmr_loadsave_configuration.c.

const char* targetNames[] = {"A", "B", "AB", "BA"} [static]

Definition at line 70 of file tmr_loadsave_configuration.c.

const char* tariNames[] = {"TARI_25US", "TARI_12_5US", "TARI_6_25US"} [static]

Definition at line 71 of file tmr_loadsave_configuration.c.
