Mercury API - Gen2 tag information and interfaces. More...

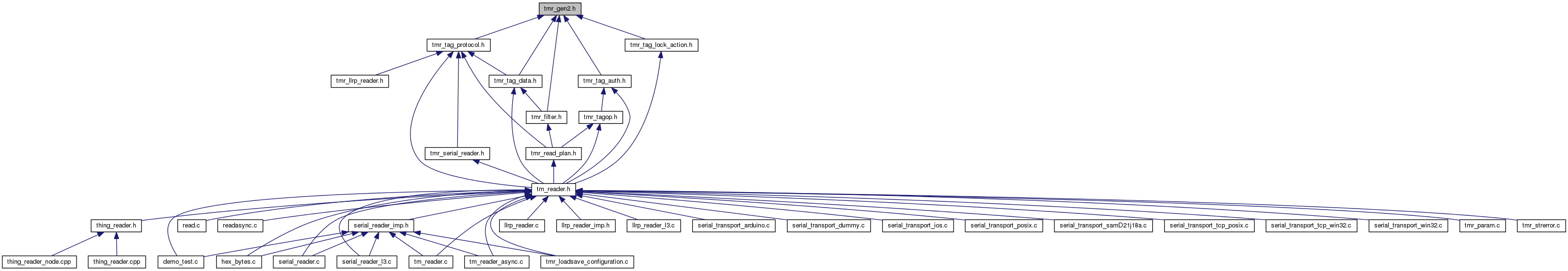

This graph shows which files directly or indirectly include this file:

Classes
struct	TMR_GEN2_Bap
struct	TMR_GEN2_DENATRAN_IAV_WriteCredentials
struct	TMR_GEN2_DENATRAN_IAV_WriteSecCredentials
struct	TMR_GEN2_HibikiSystemInformation
struct	TMR_GEN2_LockAction
struct	TMR_GEN2_Select
struct	TMR_GEN2_TagData
union	TMR_Monza4_ControlByte
union	TMR_Monza4_Payload
union	TMR_NXP_ConfigWord
Defines
#define	TMR_GEN2_MAX_PC_BYTE_COUNT (6)
Typedefs
typedef enum TMR_GEN2_Bank	TMR_GEN2_Bank
typedef struct TMR_GEN2_Bap	TMR_GEN2_Bap
typedef struct TMR_GEN2_DENATRAN_IAV_WriteCredentials	TMR_GEN2_DENATRAN_IAV_WriteCredentials
typedef struct TMR_GEN2_DENATRAN_IAV_WriteSecCredentials	TMR_GEN2_DENATRAN_IAV_WriteSecCredentials
typedef enum TMR_GEN2_DivideRatio	TMR_GEN2_DivideRatio
typedef struct TMR_GEN2_HibikiSystemInformation	TMR_GEN2_HibikiSystemInformation
typedef enum TMR_GEN2_LinkFrequency	TMR_GEN2_LinkFrequency
typedef struct TMR_GEN2_LockAction	TMR_GEN2_LockAction
typedef enum TMR_GEN2_LockBits	TMR_GEN2_LockBits
typedef uint32_t	TMR_GEN2_Password
typedef enum TMR_GEN2_ProtocolExtension	TMR_GEN2_ProtocolExtension
typedef struct TMR_GEN2_Select	TMR_GEN2_Select
typedef enum TMR_GEN2_Session	TMR_GEN2_Session
typedef struct TMR_GEN2_TagData	TMR_GEN2_TagData
typedef enum TMR_GEN2_TagEncoding	TMR_GEN2_TagEncoding
typedef enum TMR_GEN2_Target	TMR_GEN2_Target
typedef enum TMR_GEN2_Tari	TMR_GEN2_Tari
typedef enum TMR_GEN2_TrExt	TMR_GEN2_TrExt
typedef enum TMR_GEN2_UNTRACEABLE_Epc	TMR_GEN2_UNTRACEABLE_Epc
typedef enum TMR_GEN2_UNTRACEABLE_Range	TMR_GEN2_UNTRACEABLE_Range
typedef enum TMR_GEN2_UNTRACEABLE_Tid	TMR_GEN2_UNTRACEABLE_Tid
typedef enum TMR_GEN2_UNTRACEABLE_UserMemory	TMR_GEN2_UNTRACEABLE_UserMemory
typedef enum TMR_GEN2_WriteMode	TMR_GEN2_WriteMode
typedef union TMR_Monza4_ControlByte	TMR_Monza4_ControlByte
typedef union TMR_Monza4_Payload	TMR_Monza4_Payload
typedef union TMR_NXP_ConfigWord	TMR_NXP_ConfigWord
typedef enum TMR_NXP_KeyId	TMR_NXP_KeyId
typedef enum TMR_NXP_Profile	TMR_NXP_Profile
typedef enum TMR_SR_GEN2_SiliconType	TMR_SR_GEN2_SiliconType
Enumerations
enum	TMR_GEN2_Bank { TMR_GEN2_BANK_RESERVED = 0x0, TMR_GEN2_BANK_EPC = 0x1, TMR_GEN2_BANK_TID = 0x2, TMR_GEN2_BANK_USER = 0x3, TMR_GEN2_BANK_RESERVED_ENABLED = 0x4, TMR_GEN2_EPC_LENGTH_FILTER = 0x6, TMR_GEN2_EPC_TRUNCATE = 0x7, TMR_GEN2_BANK_EPC_ENABLED = 0x8, TMR_GEN2_BANK_TID_ENABLED = 0x10, TMR_GEN2_BANK_USER_ENABLED = 0x20 }
enum	TMR_GEN2_DivideRatio { TMR_GEN2_DIVIDE_RATIO_8 = 0, TMR_GEN2_DIVIDE_RATIO_64_3 = 1 }
enum	TMR_GEN2_LinkFrequency { TMR_GEN2_LINKFREQUENCY_250KHZ = 250, TMR_GEN2_LINKFREQUENCY_320KHZ = 320, TMR_GEN2_LINKFREQUENCY_640KHZ = 640, TMR_GEN2_LINKFREQUENCY_MAX = 640, TMR_GEN2_LINKFREQUENCY_INVALID = TMR_GEN2_LINKFREQUENCY_MAX + 1 }
enum	TMR_GEN2_LockBits { TMR_GEN2_LOCK_BITS_USER_PERM = (1 << 0), TMR_GEN2_LOCK_BITS_USER = (1 << 1), TMR_GEN2_LOCK_BITS_TID_PERM = (1 << 2), TMR_GEN2_LOCK_BITS_TID = (1 << 3), TMR_GEN2_LOCK_BITS_EPC_PERM = (1 << 4), TMR_GEN2_LOCK_BITS_EPC = (1 << 5), TMR_GEN2_LOCK_BITS_ACCESS_PERM = (1 << 6), TMR_GEN2_LOCK_BITS_ACCESS = (1 << 7), TMR_GEN2_LOCK_BITS_KILL_PERM = (1 << 8), TMR_GEN2_LOCK_BITS_KILL = (1 << 9) }
enum	TMR_GEN2_ProtocolExtension { TMR_GEN2_PROTOCOLEXTENSION_LICENSE_NONE = 0, TMR_GEN2_PROTOCOLEXTENSION_LICENSE_IAV_DENATRAN = 1 }
enum	TMR_GEN2_Session { TMR_GEN2_SESSION_MIN = 0x00, TMR_GEN2_SESSION_S0 = 0x00, TMR_GEN2_SESSION_S1 = 0x01, TMR_GEN2_SESSION_S2 = 0x02, TMR_GEN2_SESSION_S3 = 0x03, TMR_GEN2_SESSION_MAX = TMR_GEN2_SESSION_S3, TMR_GEN2_SESSION_INVALID = TMR_GEN2_SESSION_MAX + 1 }
enum	TMR_GEN2_TagEncoding { TMR_GEN2_FM0 = 0, TMR_GEN2_MILLER_MIN = 1, TMR_GEN2_MILLER_M_2 = 1, TMR_GEN2_MILLER_M_4 = 2, TMR_GEN2_MILLER_M_8 = 3, TMR_GEN2_MILLER_MAX = TMR_GEN2_MILLER_M_8, TMR_GEN2_MILLER_INVALID = TMR_GEN2_MILLER_MAX+1 }
enum	TMR_GEN2_Target { TMR_GEN2_TARGET_MIN = 0, TMR_GEN2_TARGET_A = 0, TMR_GEN2_TARGET_B = 1, TMR_GEN2_TARGET_AB = 2, TMR_GEN2_TARGET_BA = 3, TMR_GEN2_TARGET_MAX = TMR_GEN2_TARGET_BA, TMR_GEN2_TARGET_INVALID = TMR_GEN2_TARGET_MAX+1 }
enum	TMR_GEN2_Tari { TMR_GEN2_TARI_25US = 0, TMR_GEN2_TARI_12_5US = 1, TMR_GEN2_TARI_6_25US = 2, TMR_GEN2_TARI_MAX = 2, TMR_GEN2_TARI_INVALID = TMR_GEN2_TARI_MAX + 1 }
enum	TMR_GEN2_TrExt { TMR_GEN2_TR_EXT_NO_PILOT_TONE = 0, TMR_GEN2_TR_EXT_PILOT_TONE = 1 }
enum	TMR_GEN2_UNTRACEABLE_Epc { EPC_SHOW = 0, EPC_HIDE = 1 }
enum	TMR_GEN2_UNTRACEABLE_Range { NORMAL = 0, REDUCED = 1, TOGGLE_TEMPORARLY = 2, RFU = 3 }
enum	TMR_GEN2_UNTRACEABLE_Tid { HIDE_NONE = 0, HIDE_ALL = 1, HIDE_SOME = 2, TID_RFU = 3 }
enum	TMR_GEN2_UNTRACEABLE_UserMemory { SHOW = 0, HIDE = 1 }
enum	TMR_GEN2_WriteMode { TMR_GEN2_WORD_ONLY = 0, TMR_GEN2_BLOCK_ONLY = 1, TMR_GEN2_BLOCK_FALLBACK = 2 }
enum	TMR_NXP_KeyId { KEY0 = 0, KEY1 = 1 }
enum	TMR_NXP_Profile { EPC = 0, TID = 1, USER = 2 }
enum	TMR_SR_GEN2_SiliconType { TMR_SR_GEN2_SILICON_ANY = 0x00, TMR_SR_GEN2_ALIEN_HIGGS_SILICON = 0x01, TMR_SR_GEN2_NXP_G2X_SILICON = 0x02, TMR_SR_GEN2_ALIEN_HIGGS3_SILICON = 0x05, TMR_SR_GEN2_NXP_G2I_SILICON = 0x07, TMR_SR_GEN2_IMPINJ_MONZA4_SILICON = 0x08, TMR_SR_GEN2_IDS_SL900A_SILICON = 0x0A, TMR_SR_GEN2_DENATRAN_IAV_SILICON = 0x0B, TMR_SR_GEN2_NXP_AES_UCODE = 0x0C }

Detailed Description

Mercury API - Gen2 tag information and interfaces.

Author:: Brian Fiegel

Date:: 5/7/2009

Definition in file tmr_gen2.h.

Define Documentation

#define TMR_GEN2_MAX_PC_BYTE_COUNT (6)

Size allocated for storing PC data in TMR_GEN2_TagData

Definition at line 519 of file tmr_gen2.h.

Typedef Documentation

typedef enum TMR_GEN2_Bank TMR_GEN2_Bank

Gen2 memory banks

typedef struct TMR_GEN2_Bap TMR_GEN2_Bap

Gen2 bap parameters

typedef struct TMR_GEN2_DENATRAN_IAV_WriteCredentials TMR_GEN2_DENATRAN_IAV_WriteCredentials

a 16 byte(128 bit) Gen2 Denatran IAV write credentials

typedef struct TMR_GEN2_DENATRAN_IAV_WriteSecCredentials TMR_GEN2_DENATRAN_IAV_WriteSecCredentials

a 16 byte(128 bit) Gen2 Denatran IAV write sec credentials

typedef enum TMR_GEN2_DivideRatio TMR_GEN2_DivideRatio

Gen2 divide ratio values

typedef struct TMR_GEN2_HibikiSystemInformation TMR_GEN2_HibikiSystemInformation

typedef enum TMR_GEN2_LinkFrequency TMR_GEN2_LinkFrequency

Gen2 link frequencies

typedef struct TMR_GEN2_LockAction TMR_GEN2_LockAction

The arguments to a TMR_lockTag() method for Gen2 tags.

typedef enum TMR_GEN2_LockBits TMR_GEN2_LockBits

Memory lock bits

typedef uint32_t TMR_GEN2_Password

A 32-bit password (access or kill) in the Gen2 protocol.

Definition at line 77 of file tmr_gen2.h.

typedef enum TMR_GEN2_ProtocolExtension TMR_GEN2_ProtocolExtension

Gen2 Protcol Extension parameters

typedef enum TMR_GEN2_Session TMR_GEN2_Session

Gen2 session values

typedef struct TMR_GEN2_TagData TMR_GEN2_TagData

Gen2-specific per-tag data

typedef enum TMR_GEN2_TagEncoding TMR_GEN2_TagEncoding

Gen2 tag encoding modulation values

typedef enum TMR_GEN2_Target TMR_GEN2_Target

Gen2 target search algorithms

typedef enum TMR_GEN2_Tari TMR_GEN2_Tari

Gen2 Tari values

typedef enum TMR_GEN2_TrExt TMR_GEN2_TrExt

Gen2 TrExt bit

typedef enum TMR_GEN2_UNTRACEABLE_Epc TMR_GEN2_UNTRACEABLE_Epc

Gen2v2 untraceably hides part of EPC memory or not

typedef enum TMR_GEN2_UNTRACEABLE_Range TMR_GEN2_UNTRACEABLE_Range

specifies Gen2v2 Tag�s operating range

typedef enum TMR_GEN2_UNTRACEABLE_Tid TMR_GEN2_UNTRACEABLE_Tid

Gen2v2 untraceably hides part of TID memory or not

typedef enum TMR_GEN2_UNTRACEABLE_UserMemory TMR_GEN2_UNTRACEABLE_UserMemory

Gen2v2 untraceably hides part of UserMemory memory or not

typedef enum TMR_GEN2_WriteMode TMR_GEN2_WriteMode

Gen2 WriteMode

typedef union TMR_Monza4_ControlByte TMR_Monza4_ControlByte

TMR_Monza4_ControlByte is an argument to Monza4 QTReadWrite custom command User can set the control byte directly using the 8 bit 'data' field. Otherwise, provides an option to individually set each flag. Instance of TMR_Monza4_ControlByte must be initialized before using either by declaring it as 'static' (or initializing it to 0) or by using the constructor routine TMR_init_Monza4_ControlByte() method.

typedef union TMR_Monza4_Payload TMR_Monza4_Payload

TMR_Monza4_Payload is an argument to Monza4 QTReadWrite custom command User can set the payload directly using the 16 bit 'data' field. Otherwise, provides an option to individually set each flag. Instance of TMR_Monza4_Payload must be initialized before using either by declaring it as 'static' (or initializing it to 0) or by using the constructor routine TMR_init_Monza4_Payload() method. This field controls the QT functionality. These bits are ignored when the Read/Write field equals 0 in control byte.

typedef union TMR_NXP_ConfigWord TMR_NXP_ConfigWord

The argument to a ChangeConfig command for NXP G2iL tags User can set the configWord directly using the 16 bit 'data' field. Otherwise, provides an option to individually set each flag. Instance of TMR_NXP_ConfigWord must be initialized before using either by declaring it as 'static' or by using the constructor routine TMR_init_NXP_ConfigWord() method.

typedef enum TMR_NXP_KeyId TMR_NXP_KeyId

Authentication KeyId

typedef enum TMR_NXP_Profile TMR_NXP_Profile

Memory profile for the addition of custom data

typedef enum TMR_SR_GEN2_SiliconType TMR_SR_GEN2_SiliconType

Defines the values for different gen2 silicon types.

Enumeration Type Documentation

enum TMR_GEN2_Bank

Gen2 memory banks

Enumerator:

TMR_GEN2_BANK_RESERVED	Reserved bank (kill and access passwords)
TMR_GEN2_BANK_EPC	EPC memory bank
TMR_GEN2_BANK_TID	TID memory bank
TMR_GEN2_BANK_USER	User memory bank
TMR_GEN2_BANK_RESERVED_ENABLED	Used to enable the read of additional membanks - reserved mem bank
TMR_GEN2_EPC_LENGTH_FILTER	Used to Filter Gen2 Tag with specified EPC length
TMR_GEN2_EPC_TRUNCATE	Gen2 Truncate Option
TMR_GEN2_BANK_EPC_ENABLED	Used to enable the read of additional membanks - epc mem bank
TMR_GEN2_BANK_TID_ENABLED	Used to enable the read of additional membanks - tid mem bank
TMR_GEN2_BANK_USER_ENABLED	Used to enable the read of additional membanks - user mem bank

Definition at line 104 of file tmr_gen2.h.

enum TMR_GEN2_DivideRatio

Gen2 divide ratio values

Enumerator:

TMR_GEN2_DIVIDE_RATIO_8	DR of 8
TMR_GEN2_DIVIDE_RATIO_64_3	DR of 64/3

Definition at line 163 of file tmr_gen2.h.

enum TMR_GEN2_LinkFrequency

Gen2 link frequencies

Enumerator:

TMR_GEN2_LINKFREQUENCY_250KHZ	250 kHz
TMR_GEN2_LINKFREQUENCY_320KHZ	320 KHZ
TMR_GEN2_LINKFREQUENCY_640KHZ	640 kHz
TMR_GEN2_LINKFREQUENCY_MAX
TMR_GEN2_LINKFREQUENCY_INVALID

Definition at line 214 of file tmr_gen2.h.

enum TMR_GEN2_LockBits

Memory lock bits

Enumerator:

TMR_GEN2_LOCK_BITS_USER_PERM	User memory bank lock permalock bit
TMR_GEN2_LOCK_BITS_USER	User memory bank lock bit
TMR_GEN2_LOCK_BITS_TID_PERM	TID memory bank lock permalock bit
TMR_GEN2_LOCK_BITS_TID	TID memory bank lock bit
TMR_GEN2_LOCK_BITS_EPC_PERM	EPC memory bank lock permalock bit
TMR_GEN2_LOCK_BITS_EPC	EPC memory bank lock bit
TMR_GEN2_LOCK_BITS_ACCESS_PERM	Access password lock permalock bit
TMR_GEN2_LOCK_BITS_ACCESS	Access password lock bit
TMR_GEN2_LOCK_BITS_KILL_PERM	Kill password lock permalock bit
TMR_GEN2_LOCK_BITS_KILL	Kill password lock bit

Definition at line 38 of file tmr_gen2.h.

enum TMR_GEN2_ProtocolExtension

Gen2 Protcol Extension parameters

Enumerator:

TMR_GEN2_PROTOCOLEXTENSION_LICENSE_NONE
TMR_GEN2_PROTOCOLEXTENSION_LICENSE_IAV_DENATRAN

Definition at line 227 of file tmr_gen2.h.

enum TMR_GEN2_Session

Gen2 session values

Enumerator:

TMR_GEN2_SESSION_MIN
TMR_GEN2_SESSION_S0	Session 0
TMR_GEN2_SESSION_S1	Session 1
TMR_GEN2_SESSION_S2	Session 2
TMR_GEN2_SESSION_S3	Session 3
TMR_GEN2_SESSION_MAX
TMR_GEN2_SESSION_INVALID

Definition at line 147 of file tmr_gen2.h.

enum TMR_GEN2_TagEncoding

Gen2 tag encoding modulation values

Enumerator:

TMR_GEN2_FM0	FM0
TMR_GEN2_MILLER_MIN
TMR_GEN2_MILLER_M_2	M = 2
TMR_GEN2_MILLER_M_4	M = 4
TMR_GEN2_MILLER_M_8	M = 8
TMR_GEN2_MILLER_MAX
TMR_GEN2_MILLER_INVALID

Definition at line 197 of file tmr_gen2.h.

enum TMR_GEN2_Target

Gen2 target search algorithms

Enumerator:

TMR_GEN2_TARGET_MIN
TMR_GEN2_TARGET_A	Search target A
TMR_GEN2_TARGET_B	Search target B
TMR_GEN2_TARGET_AB	Search target A until exhausted, then search target B
TMR_GEN2_TARGET_BA	Search target B until exhausted, then search target A
TMR_GEN2_TARGET_MAX
TMR_GEN2_TARGET_INVALID

Definition at line 181 of file tmr_gen2.h.

enum TMR_GEN2_Tari

Gen2 Tari values

Enumerator:

TMR_GEN2_TARI_25US	Tari of 25 microseconds
TMR_GEN2_TARI_12_5US	Tari of 12.5 microseconds
TMR_GEN2_TARI_6_25US	Tari of 6.25 microseconds
TMR_GEN2_TARI_MAX
TMR_GEN2_TARI_INVALID

Definition at line 310 of file tmr_gen2.h.

enum TMR_GEN2_TrExt

Gen2 TrExt bit

Enumerator:

TMR_GEN2_TR_EXT_NO_PILOT_TONE	No pilot tone in tag response
TMR_GEN2_TR_EXT_PILOT_TONE	Pilot tone in tag response

Definition at line 172 of file tmr_gen2.h.

enum TMR_GEN2_UNTRACEABLE_Epc

Gen2v2 untraceably hides part of EPC memory or not

Enumerator:

EPC_SHOW
EPC_HIDE

Definition at line 243 of file tmr_gen2.h.

enum TMR_GEN2_UNTRACEABLE_Range

specifies Gen2v2 Tag�s operating range

Enumerator:

NORMAL
REDUCED
TOGGLE_TEMPORARLY
RFU

Definition at line 277 of file tmr_gen2.h.

enum TMR_GEN2_UNTRACEABLE_Tid

Gen2v2 untraceably hides part of TID memory or not

Enumerator:

HIDE_NONE
HIDE_ALL
HIDE_SOME
TID_RFU

Definition at line 252 of file tmr_gen2.h.

enum TMR_GEN2_UNTRACEABLE_UserMemory

Gen2v2 untraceably hides part of UserMemory memory or not

Enumerator:

SHOW
HIDE

Definition at line 268 of file tmr_gen2.h.

enum TMR_GEN2_WriteMode

Gen2 WriteMode

Enumerator:

TMR_GEN2_WORD_ONLY	WORD ONLY
TMR_GEN2_BLOCK_ONLY	BLOCK ONLY
TMR_GEN2_BLOCK_FALLBACK	BLOCK FALLBACK

Definition at line 323 of file tmr_gen2.h.

enum TMR_NXP_KeyId

Authentication KeyId

Enumerator:

KEY0
KEY1

Definition at line 290 of file tmr_gen2.h.

enum TMR_NXP_Profile

Memory profile for the addition of custom data

Enumerator:

EPC
TID
USER

Definition at line 299 of file tmr_gen2.h.

enum TMR_SR_GEN2_SiliconType

Defines the values for different gen2 silicon types.

Enumerator:

TMR_SR_GEN2_SILICON_ANY
TMR_SR_GEN2_ALIEN_HIGGS_SILICON
TMR_SR_GEN2_NXP_G2X_SILICON
TMR_SR_GEN2_ALIEN_HIGGS3_SILICON
TMR_SR_GEN2_NXP_G2I_SILICON
TMR_SR_GEN2_IMPINJ_MONZA4_SILICON
TMR_SR_GEN2_IDS_SL900A_SILICON
TMR_SR_GEN2_DENATRAN_IAV_SILICON
TMR_SR_GEN2_NXP_AES_UCODE

Definition at line 337 of file tmr_gen2.h.

Classes

Defines

Typedefs

Enumerations

Detailed Description

Define Documentation

Typedef Documentation

Enumeration Type Documentation
