CommonCwiseUnaryOps.h File Reference

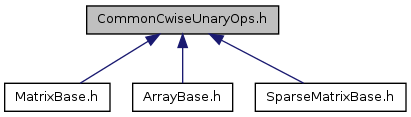

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs

typedef internal::conditional
< NumTraits< Scalar >
::IsComplex, const
CwiseUnaryOp
< internal::scalar_conjugate_op
< Scalar >, const Derived >
, const Derived & >::type 		ConjugateReturnType
typedef CwiseUnaryOp
< internal::scalar_imag_op
< Scalar >, const Derived > 		ImagReturnType
typedef CwiseUnaryView
< internal::scalar_imag_ref_op
< Scalar >, Derived > 		NonConstImagReturnType
typedef internal::conditional
< NumTraits< Scalar >
::IsComplex, CwiseUnaryView
< internal::scalar_real_ref_op
< Scalar >, Derived >, Derived & >
::type 		NonConstRealReturnType
typedef internal::conditional
< NumTraits< Scalar >
::IsComplex, const
CwiseUnaryOp
< internal::scalar_real_op
< Scalar >, const Derived >
, const Derived & >::type 		RealReturnType
typedef CwiseUnaryOp
< internal::scalar_multiple_op
< Scalar >, const Derived > 		ScalarMultipleReturnType
typedef CwiseUnaryOp
< internal::scalar_quotient1_op
< Scalar >, const Derived > 		ScalarQuotient1ReturnType

Functions

template<typename NewType >
internal::cast_return_type
< Derived, const CwiseUnaryOp
< internal::scalar_cast_op
< typename internal::traits
< Derived >::Scalar, NewType >
, const Derived > >::type 		cast () const
ConjugateReturnType conjugate () const
const ImagReturnType imag () const
const ScalarMultipleReturnType operator* (const Scalar &scalar) const
const CwiseUnaryOp
< internal::scalar_multiple2_op
< Scalar, std::complex< Scalar >
>, const Derived > 		operator* (const std::complex< Scalar > &scalar) const
const ScalarMultipleReturnType operator* (const Scalar &scalar, const StorageBaseType &matrix)
const CwiseUnaryOp
< internal::scalar_multiple2_op
< Scalar, std::complex< Scalar >
>, const Derived > 		operator* (const std::complex< Scalar > &scalar, const StorageBaseType &matrix)
const CwiseUnaryOp
< internal::scalar_opposite_op
< typename internal::traits
< Derived >::Scalar >, const
Derived > 		operator- () const
const CwiseUnaryOp
< internal::scalar_quotient1_op
< typename internal::traits
< Derived >::Scalar >, const
Derived > 		operator/ (const Scalar &scalar) const
RealReturnType real () const
template<typename CustomUnaryOp >
const CwiseUnaryOp
< CustomUnaryOp, const Derived > 		unaryExpr (const CustomUnaryOp &func=CustomUnaryOp()) const
 Apply a unary operator coefficient-wise.
template<typename CustomViewOp >
const CwiseUnaryView
< CustomViewOp, const Derived > 		unaryViewExpr (const CustomViewOp &func=CustomViewOp()) const

Typedef Documentation

typedef internal::conditional<NumTraits<Scalar>::IsComplex, const CwiseUnaryOp<internal::scalar_conjugate_op<Scalar>, const Derived>, const Derived& >::type ConjugateReturnType

Definition at line 38 of file CommonCwiseUnaryOps.h.

typedef CwiseUnaryOp<internal::scalar_imag_op<Scalar>, const Derived> ImagReturnType

Definition at line 50 of file CommonCwiseUnaryOps.h.

typedef CwiseUnaryView<internal::scalar_imag_ref_op<Scalar>, Derived> NonConstImagReturnType

Definition at line 52 of file CommonCwiseUnaryOps.h.

typedef internal::conditional<NumTraits<Scalar>::IsComplex, CwiseUnaryView<internal::scalar_real_ref_op<Scalar>, Derived>, Derived& >::type NonConstRealReturnType

Definition at line 48 of file CommonCwiseUnaryOps.h.

typedef internal::conditional<NumTraits<Scalar>::IsComplex, const CwiseUnaryOp<internal::scalar_real_op<Scalar>, const Derived>, const Derived& >::type RealReturnType

Definition at line 43 of file CommonCwiseUnaryOps.h.

typedef CwiseUnaryOp<internal::scalar_multiple_op<Scalar>, const Derived> ScalarMultipleReturnType

Definition at line 31 of file CommonCwiseUnaryOps.h.

typedef CwiseUnaryOp<internal::scalar_quotient1_op<Scalar>, const Derived> ScalarQuotient1ReturnType

Definition at line 33 of file CommonCwiseUnaryOps.h.

Function Documentation

template<typename NewType >
internal::cast_return_type<Derived,const CwiseUnaryOp<internal::scalar_cast_op<typename internal::traits<Derived>::Scalar, NewType>, const Derived> >::type cast ( ) const
Returns:
an expression of *this with the Scalar type casted to NewScalar.

The template parameter NewScalar is the type we are casting the scalars to.

See also:
class CwiseUnaryOp

Definition at line 107 of file CommonCwiseUnaryOps.h.

ConjugateReturnType conjugate ( ) const [inline]
Returns:
an expression of the complex conjugate of *this.
See also:
adjoint()

Definition at line 116 of file CommonCwiseUnaryOps.h.

NonConstImagReturnType imag ( ) const [inline]
Returns:
an read-only expression of the imaginary part of *this.
See also:
real()
Returns:
a non const expression of the imaginary part of *this.
See also:
real()

Definition at line 131 of file CommonCwiseUnaryOps.h.

const ScalarMultipleReturnType operator* ( const Scalar &  scalar) const [inline]
Returns:
an expression of *this scaled by the scalar factor scalar

Definition at line 64 of file CommonCwiseUnaryOps.h.

const CwiseUnaryOp<internal::scalar_multiple2_op<Scalar,std::complex<Scalar> >, const Derived> operator* ( const std::complex< Scalar > &  scalar) const [inline]

Overloaded for efficient real matrix times complex scalar value

Definition at line 84 of file CommonCwiseUnaryOps.h.

friend const ScalarMultipleReturnType operator* ( const Scalar &  scalar,
const StorageBaseType &  matrix
) [inline]

Definition at line 91 of file CommonCwiseUnaryOps.h.

friend const CwiseUnaryOp<internal::scalar_multiple2_op<Scalar,std::complex<Scalar> >, const Derived> operator* ( const std::complex< Scalar > &  scalar,
const StorageBaseType &  matrix
) [inline]

Definition at line 95 of file CommonCwiseUnaryOps.h.

const CwiseUnaryOp<internal::scalar_opposite_op<typename internal::traits<Derived>::Scalar>, const Derived> operator- ( ) const [inline]
Returns:
an expression of the opposite of *this

Definition at line 59 of file CommonCwiseUnaryOps.h.

const CwiseUnaryOp<internal::scalar_quotient1_op<typename internal::traits<Derived>::Scalar>, const Derived> operator/ ( const Scalar &  scalar) const [inline]
Returns:
an expression of *this divided by the scalar value scalar

Definition at line 76 of file CommonCwiseUnaryOps.h.

NonConstRealReturnType real ( ) const [inline]
Returns:
a read-only expression of the real part of *this.
See also:
imag()
Returns:
a non const expression of the real part of *this.
See also:
imag()

Definition at line 125 of file CommonCwiseUnaryOps.h.

template<typename CustomUnaryOp >
const CwiseUnaryOp<CustomUnaryOp, const Derived> unaryExpr ( const CustomUnaryOp &  func = CustomUnaryOp()) const [inline]

Apply a unary operator coefficient-wise.

Parameters:
[in]funcFunctor implementing the unary operator
Template Parameters:
CustomUnaryOpType of func
Returns:
An expression of a custom coefficient-wise unary operator func of *this

The function ptr_fun() from the C++ standard library can be used to make functors out of normal functions.

Example:

#include <Eigen/Core>
#include <iostream>
using namespace Eigen;
using namespace std;

// define function to be applied coefficient-wise
double ramp(double x)
{
  if (x > 0)
    return x;
  else
    return 0;
}

int main(int, char**)
{
  Matrix4d m1 = Matrix4d::Random();
  cout << m1 << endl << "becomes: " << endl << m1.unaryExpr(ptr_fun(ramp)) << endl;
  return 0;
}

Output:

Genuine functors allow for more possibilities, for instance it may contain a state.


Example:


#include <Eigen/Core>
#include <iostream>
using namespace Eigen;
using namespace std;

// define a custom template unary functor
template<typename Scalar>
struct CwiseClampOp {
  CwiseClampOp(const Scalar& inf, const Scalar& sup) : m_inf(inf), m_sup(sup) {}
  const Scalar operator()(const Scalar& x) const { return x<m_inf ? m_inf : (x>m_sup ? m_sup : x); }
  Scalar m_inf, m_sup;
};

int main(int, char**)
{
  Matrix4d m1 = Matrix4d::Random();
  cout << m1 << endl << "becomes: " << endl << m1.unaryExpr(CwiseClampOp<double>(-0.5,0.5)) << endl;
  return 0;
}

 Output:


See also:
class CwiseUnaryOp, class CwiseBinaryOp



Definition at line 154 of file CommonCwiseUnaryOps.h.













template<typename CustomViewOp >





          const CwiseUnaryView<CustomViewOp, const Derived> unaryViewExpr
          (
          const CustomViewOp &
          func = CustomViewOp())
           const [inline]









Returns:
an expression of a custom coefficient-wise unary operator func of *this


The template parameter CustomUnaryOp is the type of the functor of the custom unary operator.


Example:


#include <Eigen/Core>
#include <iostream>
using namespace Eigen;
using namespace std;

// define a custom template unary functor
template<typename Scalar>
struct CwiseClampOp {
  CwiseClampOp(const Scalar& inf, const Scalar& sup) : m_inf(inf), m_sup(sup) {}
  const Scalar operator()(const Scalar& x) const { return x<m_inf ? m_inf : (x>m_sup ? m_sup : x); }
  Scalar m_inf, m_sup;
};

int main(int, char**)
{
  Matrix4d m1 = Matrix4d::Random();
  cout << m1 << endl << "becomes: " << endl << m1.unaryExpr(CwiseClampOp<double>(-0.5,0.5)) << endl;
  return 0;
}

 Output:


See also:
class CwiseUnaryOp, class CwiseBinaryOp



Definition at line 172 of file CommonCwiseUnaryOps.h.
