VL53L1 Register Structure definitions. More...

#include "vl53l1_types.h"
#include "vl53l1_register_map.h"

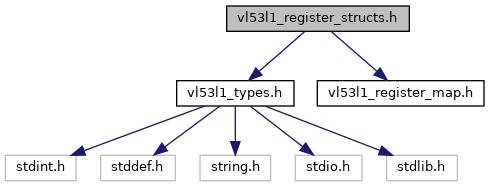

Include dependency graph for vl53l1_register_structs.h:

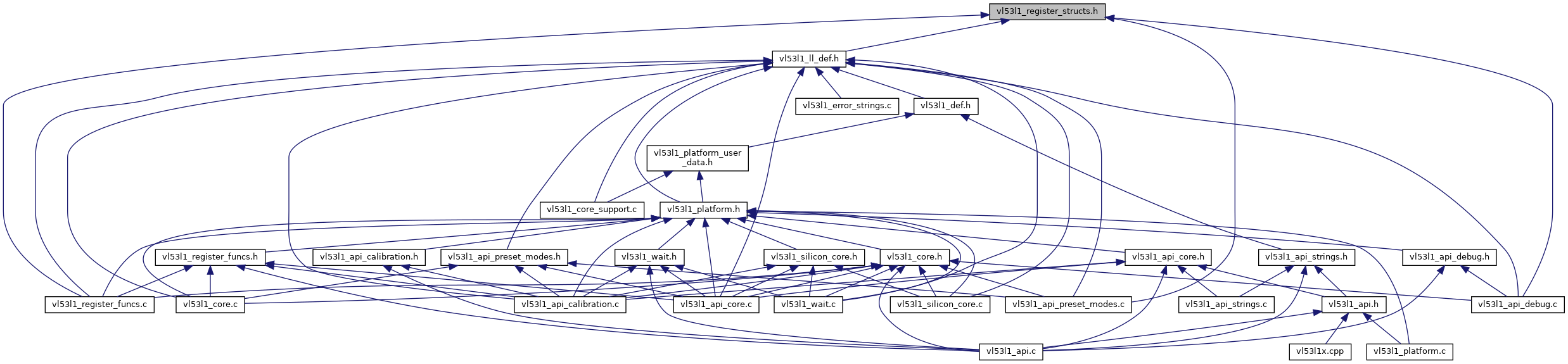

This graph shows which files directly or indirectly include this file:

Classes
struct	VL53L1_core_results_t

struct	VL53L1_customer_nvm_managed_t

struct	VL53L1_debug_results_t

struct	VL53L1_dynamic_config_t

struct	VL53L1_fw_internal_t

struct	VL53L1_general_config_t

struct	VL53L1_gph_general_config_t

struct	VL53L1_gph_static_config_t

struct	VL53L1_gph_timing_config_t

struct	VL53L1_nvm_copy_data_t

struct	VL53L1_patch_debug_t

struct	VL53L1_patch_results_t

struct	VL53L1_prev_shadow_core_results_t

struct	VL53L1_prev_shadow_system_results_t

struct	VL53L1_shadow_core_results_t

struct	VL53L1_shadow_system_results_t

struct	VL53L1_static_config_t

struct	VL53L1_static_nvm_managed_t

struct	VL53L1_system_control_t

struct	VL53L1_system_results_t

struct	VL53L1_timing_config_t

Macros
#define	VL53L1_CORE_RESULTS_I2C_INDEX VL53L1_RESULT_CORE__AMBIENT_WINDOW_EVENTS_SD0

#define	VL53L1_CORE_RESULTS_I2C_SIZE_BYTES 33

#define	VL53L1_CUSTOMER_NVM_MANAGED_I2C_INDEX VL53L1_GLOBAL_CONFIG__SPAD_ENABLES_REF_0

#define	VL53L1_CUSTOMER_NVM_MANAGED_I2C_SIZE_BYTES 23

#define	VL53L1_DEBUG_RESULTS_I2C_INDEX VL53L1_PHASECAL_RESULT__REFERENCE_PHASE

#define	VL53L1_DEBUG_RESULTS_I2C_SIZE_BYTES 56

#define	VL53L1_DYNAMIC_CONFIG_I2C_INDEX VL53L1_SYSTEM__GROUPED_PARAMETER_HOLD_0

#define	VL53L1_DYNAMIC_CONFIG_I2C_SIZE_BYTES 18

#define	VL53L1_FW_INTERNAL_I2C_INDEX VL53L1_FIRMWARE__INTERNAL_STREAM_COUNT_DIV

#define	VL53L1_FW_INTERNAL_I2C_SIZE_BYTES 2

#define	VL53L1_GENERAL_CONFIG_I2C_INDEX VL53L1_GPH_CONFIG__STREAM_COUNT_UPDATE_VALUE

#define	VL53L1_GENERAL_CONFIG_I2C_SIZE_BYTES 22

#define	VL53L1_GPH_GENERAL_CONFIG_I2C_INDEX VL53L1_GPH__SYSTEM__THRESH_RATE_HIGH

#define	VL53L1_GPH_GENERAL_CONFIG_I2C_SIZE_BYTES 5

#define	VL53L1_GPH_STATIC_CONFIG_I2C_INDEX VL53L1_GPH__DSS_CONFIG__ROI_MODE_CONTROL

#define	VL53L1_GPH_STATIC_CONFIG_I2C_SIZE_BYTES 6

#define	VL53L1_GPH_TIMING_CONFIG_I2C_INDEX VL53L1_GPH__MM_CONFIG__TIMEOUT_MACROP_A_HI

#define	VL53L1_GPH_TIMING_CONFIG_I2C_SIZE_BYTES 16

#define	VL53L1_NVM_COPY_DATA_I2C_INDEX VL53L1_IDENTIFICATION__MODEL_ID

#define	VL53L1_NVM_COPY_DATA_I2C_SIZE_BYTES 49

#define	VL53L1_PATCH_DEBUG_I2C_INDEX VL53L1_RESULT__DEBUG_STATUS

#define	VL53L1_PATCH_DEBUG_I2C_SIZE_BYTES 2

#define	VL53L1_PATCH_RESULTS_I2C_INDEX VL53L1_DSS_CALC__ROI_CTRL

#define	VL53L1_PATCH_RESULTS_I2C_SIZE_BYTES 90

#define	VL53L1_PREV_SHADOW_CORE_RESULTS_I2C_INDEX VL53L1_PREV_SHADOW_RESULT_CORE__AMBIENT_WINDOW_EVENTS_SD0

#define	VL53L1_PREV_SHADOW_CORE_RESULTS_I2C_SIZE_BYTES 33

#define	VL53L1_PREV_SHADOW_SYSTEM_RESULTS_I2C_INDEX VL53L1_PREV_SHADOW_RESULT__INTERRUPT_STATUS

#define	VL53L1_PREV_SHADOW_SYSTEM_RESULTS_I2C_SIZE_BYTES 44

#define	VL53L1_SHADOW_CORE_RESULTS_I2C_INDEX VL53L1_SHADOW_RESULT_CORE__AMBIENT_WINDOW_EVENTS_SD0

#define	VL53L1_SHADOW_CORE_RESULTS_I2C_SIZE_BYTES 33

#define	VL53L1_SHADOW_SYSTEM_RESULTS_I2C_INDEX VL53L1_SHADOW_PHASECAL_RESULT__VCSEL_START

#define	VL53L1_SHADOW_SYSTEM_RESULTS_I2C_SIZE_BYTES 82

#define	VL53L1_STATIC_CONFIG_I2C_INDEX VL53L1_DSS_CONFIG__TARGET_TOTAL_RATE_MCPS

#define	VL53L1_STATIC_CONFIG_I2C_SIZE_BYTES 32

#define	VL53L1_STATIC_NVM_MANAGED_I2C_INDEX VL53L1_I2C_SLAVE__DEVICE_ADDRESS

#define	VL53L1_STATIC_NVM_MANAGED_I2C_SIZE_BYTES 11

#define	VL53L1_SYSTEM_CONTROL_I2C_INDEX VL53L1_POWER_MANAGEMENT__GO1_POWER_FORCE

#define	VL53L1_SYSTEM_CONTROL_I2C_SIZE_BYTES 5

#define	VL53L1_SYSTEM_RESULTS_I2C_INDEX VL53L1_RESULT__INTERRUPT_STATUS

#define	VL53L1_SYSTEM_RESULTS_I2C_SIZE_BYTES 44

#define	VL53L1_TIMING_CONFIG_I2C_INDEX VL53L1_MM_CONFIG__TIMEOUT_MACROP_A_HI

#define	VL53L1_TIMING_CONFIG_I2C_SIZE_BYTES 23

Detailed Description

VL53L1 Register Structure definitions.

Definition in file vl53l1_register_structs.h.

Macro Definition Documentation

◆ VL53L1_CORE_RESULTS_I2C_INDEX

#define VL53L1_CORE_RESULTS_I2C_INDEX VL53L1_RESULT_CORE__AMBIENT_WINDOW_EVENTS_SD0

Definition at line 82 of file vl53l1_register_structs.h.

◆ VL53L1_CORE_RESULTS_I2C_SIZE_BYTES

#define VL53L1_CORE_RESULTS_I2C_SIZE_BYTES 33

Definition at line 104 of file vl53l1_register_structs.h.

◆ VL53L1_CUSTOMER_NVM_MANAGED_I2C_INDEX

#define VL53L1_CUSTOMER_NVM_MANAGED_I2C_INDEX VL53L1_GLOBAL_CONFIG__SPAD_ENABLES_REF_0

Definition at line 75 of file vl53l1_register_structs.h.

◆ VL53L1_CUSTOMER_NVM_MANAGED_I2C_SIZE_BYTES

#define VL53L1_CUSTOMER_NVM_MANAGED_I2C_SIZE_BYTES 23

Definition at line 97 of file vl53l1_register_structs.h.

◆ VL53L1_DEBUG_RESULTS_I2C_INDEX

#define VL53L1_DEBUG_RESULTS_I2C_INDEX VL53L1_PHASECAL_RESULT__REFERENCE_PHASE

Definition at line 83 of file vl53l1_register_structs.h.

◆ VL53L1_DEBUG_RESULTS_I2C_SIZE_BYTES

#define VL53L1_DEBUG_RESULTS_I2C_SIZE_BYTES 56

Definition at line 105 of file vl53l1_register_structs.h.

◆ VL53L1_DYNAMIC_CONFIG_I2C_INDEX

#define VL53L1_DYNAMIC_CONFIG_I2C_INDEX VL53L1_SYSTEM__GROUPED_PARAMETER_HOLD_0

Definition at line 79 of file vl53l1_register_structs.h.

◆ VL53L1_DYNAMIC_CONFIG_I2C_SIZE_BYTES

#define VL53L1_DYNAMIC_CONFIG_I2C_SIZE_BYTES 18

Definition at line 101 of file vl53l1_register_structs.h.

◆ VL53L1_FW_INTERNAL_I2C_INDEX

#define VL53L1_FW_INTERNAL_I2C_INDEX VL53L1_FIRMWARE__INTERNAL_STREAM_COUNT_DIV

Definition at line 91 of file vl53l1_register_structs.h.

◆ VL53L1_FW_INTERNAL_I2C_SIZE_BYTES

#define VL53L1_FW_INTERNAL_I2C_SIZE_BYTES 2

Definition at line 113 of file vl53l1_register_structs.h.

◆ VL53L1_GENERAL_CONFIG_I2C_INDEX

#define VL53L1_GENERAL_CONFIG_I2C_INDEX VL53L1_GPH_CONFIG__STREAM_COUNT_UPDATE_VALUE

Definition at line 77 of file vl53l1_register_structs.h.

◆ VL53L1_GENERAL_CONFIG_I2C_SIZE_BYTES

#define VL53L1_GENERAL_CONFIG_I2C_SIZE_BYTES 22

Definition at line 99 of file vl53l1_register_structs.h.

◆ VL53L1_GPH_GENERAL_CONFIG_I2C_INDEX

#define VL53L1_GPH_GENERAL_CONFIG_I2C_INDEX VL53L1_GPH__SYSTEM__THRESH_RATE_HIGH

Definition at line 88 of file vl53l1_register_structs.h.

◆ VL53L1_GPH_GENERAL_CONFIG_I2C_SIZE_BYTES

#define VL53L1_GPH_GENERAL_CONFIG_I2C_SIZE_BYTES 5

Definition at line 110 of file vl53l1_register_structs.h.

◆ VL53L1_GPH_STATIC_CONFIG_I2C_INDEX

#define VL53L1_GPH_STATIC_CONFIG_I2C_INDEX VL53L1_GPH__DSS_CONFIG__ROI_MODE_CONTROL

Definition at line 89 of file vl53l1_register_structs.h.

◆ VL53L1_GPH_STATIC_CONFIG_I2C_SIZE_BYTES

#define VL53L1_GPH_STATIC_CONFIG_I2C_SIZE_BYTES 6

Definition at line 111 of file vl53l1_register_structs.h.

◆ VL53L1_GPH_TIMING_CONFIG_I2C_INDEX

#define VL53L1_GPH_TIMING_CONFIG_I2C_INDEX VL53L1_GPH__MM_CONFIG__TIMEOUT_MACROP_A_HI

Definition at line 90 of file vl53l1_register_structs.h.

◆ VL53L1_GPH_TIMING_CONFIG_I2C_SIZE_BYTES

#define VL53L1_GPH_TIMING_CONFIG_I2C_SIZE_BYTES 16

Definition at line 112 of file vl53l1_register_structs.h.

◆ VL53L1_NVM_COPY_DATA_I2C_INDEX

#define VL53L1_NVM_COPY_DATA_I2C_INDEX VL53L1_IDENTIFICATION__MODEL_ID

Definition at line 84 of file vl53l1_register_structs.h.

◆ VL53L1_NVM_COPY_DATA_I2C_SIZE_BYTES

#define VL53L1_NVM_COPY_DATA_I2C_SIZE_BYTES 49

Definition at line 106 of file vl53l1_register_structs.h.

◆ VL53L1_PATCH_DEBUG_I2C_INDEX

#define VL53L1_PATCH_DEBUG_I2C_INDEX VL53L1_RESULT__DEBUG_STATUS

Definition at line 87 of file vl53l1_register_structs.h.

◆ VL53L1_PATCH_DEBUG_I2C_SIZE_BYTES

#define VL53L1_PATCH_DEBUG_I2C_SIZE_BYTES 2

Definition at line 109 of file vl53l1_register_structs.h.

◆ VL53L1_PATCH_RESULTS_I2C_INDEX

#define VL53L1_PATCH_RESULTS_I2C_INDEX VL53L1_DSS_CALC__ROI_CTRL

Definition at line 92 of file vl53l1_register_structs.h.

◆ VL53L1_PATCH_RESULTS_I2C_SIZE_BYTES

#define VL53L1_PATCH_RESULTS_I2C_SIZE_BYTES 90

Definition at line 114 of file vl53l1_register_structs.h.

◆ VL53L1_PREV_SHADOW_CORE_RESULTS_I2C_INDEX

#define VL53L1_PREV_SHADOW_CORE_RESULTS_I2C_INDEX VL53L1_PREV_SHADOW_RESULT_CORE__AMBIENT_WINDOW_EVENTS_SD0

Definition at line 86 of file vl53l1_register_structs.h.

◆ VL53L1_PREV_SHADOW_CORE_RESULTS_I2C_SIZE_BYTES

#define VL53L1_PREV_SHADOW_CORE_RESULTS_I2C_SIZE_BYTES 33

Definition at line 108 of file vl53l1_register_structs.h.

◆ VL53L1_PREV_SHADOW_SYSTEM_RESULTS_I2C_INDEX

#define VL53L1_PREV_SHADOW_SYSTEM_RESULTS_I2C_INDEX VL53L1_PREV_SHADOW_RESULT__INTERRUPT_STATUS

Definition at line 85 of file vl53l1_register_structs.h.

◆ VL53L1_PREV_SHADOW_SYSTEM_RESULTS_I2C_SIZE_BYTES

#define VL53L1_PREV_SHADOW_SYSTEM_RESULTS_I2C_SIZE_BYTES 44

Definition at line 107 of file vl53l1_register_structs.h.

◆ VL53L1_SHADOW_CORE_RESULTS_I2C_INDEX

#define VL53L1_SHADOW_CORE_RESULTS_I2C_INDEX VL53L1_SHADOW_RESULT_CORE__AMBIENT_WINDOW_EVENTS_SD0

Definition at line 94 of file vl53l1_register_structs.h.

◆ VL53L1_SHADOW_CORE_RESULTS_I2C_SIZE_BYTES

#define VL53L1_SHADOW_CORE_RESULTS_I2C_SIZE_BYTES 33

Definition at line 116 of file vl53l1_register_structs.h.

◆ VL53L1_SHADOW_SYSTEM_RESULTS_I2C_INDEX

#define VL53L1_SHADOW_SYSTEM_RESULTS_I2C_INDEX VL53L1_SHADOW_PHASECAL_RESULT__VCSEL_START

Definition at line 93 of file vl53l1_register_structs.h.

◆ VL53L1_SHADOW_SYSTEM_RESULTS_I2C_SIZE_BYTES

#define VL53L1_SHADOW_SYSTEM_RESULTS_I2C_SIZE_BYTES 82

Definition at line 115 of file vl53l1_register_structs.h.

◆ VL53L1_STATIC_CONFIG_I2C_INDEX

#define VL53L1_STATIC_CONFIG_I2C_INDEX VL53L1_DSS_CONFIG__TARGET_TOTAL_RATE_MCPS

Definition at line 76 of file vl53l1_register_structs.h.

◆ VL53L1_STATIC_CONFIG_I2C_SIZE_BYTES

#define VL53L1_STATIC_CONFIG_I2C_SIZE_BYTES 32

Definition at line 98 of file vl53l1_register_structs.h.

◆ VL53L1_STATIC_NVM_MANAGED_I2C_INDEX

#define VL53L1_STATIC_NVM_MANAGED_I2C_INDEX VL53L1_I2C_SLAVE__DEVICE_ADDRESS

Definition at line 74 of file vl53l1_register_structs.h.

◆ VL53L1_STATIC_NVM_MANAGED_I2C_SIZE_BYTES

#define VL53L1_STATIC_NVM_MANAGED_I2C_SIZE_BYTES 11

Definition at line 96 of file vl53l1_register_structs.h.

◆ VL53L1_SYSTEM_CONTROL_I2C_INDEX

#define VL53L1_SYSTEM_CONTROL_I2C_INDEX VL53L1_POWER_MANAGEMENT__GO1_POWER_FORCE

Definition at line 80 of file vl53l1_register_structs.h.

◆ VL53L1_SYSTEM_CONTROL_I2C_SIZE_BYTES

#define VL53L1_SYSTEM_CONTROL_I2C_SIZE_BYTES 5

Definition at line 102 of file vl53l1_register_structs.h.

◆ VL53L1_SYSTEM_RESULTS_I2C_INDEX

#define VL53L1_SYSTEM_RESULTS_I2C_INDEX VL53L1_RESULT__INTERRUPT_STATUS

Definition at line 81 of file vl53l1_register_structs.h.

◆ VL53L1_SYSTEM_RESULTS_I2C_SIZE_BYTES

#define VL53L1_SYSTEM_RESULTS_I2C_SIZE_BYTES 44

Definition at line 103 of file vl53l1_register_structs.h.

◆ VL53L1_TIMING_CONFIG_I2C_INDEX

#define VL53L1_TIMING_CONFIG_I2C_INDEX VL53L1_MM_CONFIG__TIMEOUT_MACROP_A_HI

Definition at line 78 of file vl53l1_register_structs.h.

◆ VL53L1_TIMING_CONFIG_I2C_SIZE_BYTES

#define VL53L1_TIMING_CONFIG_I2C_SIZE_BYTES 23

Definition at line 100 of file vl53l1_register_structs.h.
