#include <system_clock.hpp>
Public Member Functions | |
| virtual void | adjustUtc (UtcDuration adjustment)=0 |
| virtual MonotonicTime | getMonotonic () const =0 |
| virtual UtcTime | getUtc () const =0 |
| virtual | ~ISystemClock () |
Detailed Description
System clock interface - monotonic and UTC.
Definition at line 19 of file system_clock.hpp.
Constructor & Destructor Documentation
◆ ~ISystemClock()
|
inlinevirtual |
Definition at line 22 of file system_clock.hpp.
Member Function Documentation
◆ adjustUtc()
|
pure virtual |
Adjust the network-synchronized clock. Refer to getUtc() for details.
For POSIX refer to adjtime(), settimeofday().
- Parameters
-
[in] adjustment Amount of time to add to the clock value.

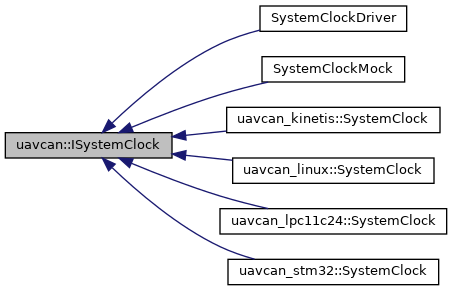

Implemented in uavcan_lpc11c24::SystemClock, uavcan_kinetis::SystemClock, uavcan_stm32::SystemClock, SystemClockDriver, SystemClockMock, and uavcan_linux::SystemClock.
◆ getMonotonic()
|
pure virtual |
Monototic system clock.
This clock shall never jump or change rate; the base time is irrelevant. This clock is mandatory and must remain functional at all times.
On POSIX systems use clock_gettime() with CLOCK_MONOTONIC.
Implemented in uavcan_linux::SystemClock, uavcan_lpc11c24::SystemClock, uavcan_kinetis::SystemClock, uavcan_stm32::SystemClock, SystemClockDriver, and SystemClockMock.
◆ getUtc()
|
pure virtual |
Global network clock. It doesn't have to be UTC, the name is a bit misleading - actual time base doesn't matter.
This clock can be synchronized with other nodes on the bus, hence it can jump and/or change rate occasionally. This clock is optional; if it is not supported, return zero. Also return zero if the UTC time is not available yet (e.g. the device has just started up with no battery clock).
For POSIX refer to clock_gettime(), gettimeofday().
Implemented in uavcan_linux::SystemClock, uavcan_lpc11c24::SystemClock, uavcan_kinetis::SystemClock, uavcan_stm32::SystemClock, SystemClockDriver, and SystemClockMock.
The documentation for this class was generated from the following file:
