Provides access to the low level functionality of the camera sensor. This includes sensor configuration as well as analog front end(AFE) configuration. More...

#include <depth_sensor_interface.h>

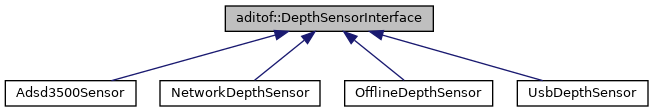

Inheritance diagram for aditof::DepthSensorInterface:

[legend]

Public Member Functions
virtual aditof::Status	adsd3500_get_status (int &chipStatus, int &imagerStatus)=0
	Returns the chip status. More...

virtual aditof::Status	adsd3500_read_cmd (uint16_t cmd, uint16_t *data, unsigned int usDelay=0)=0
	Send a read command to adsd3500. More...

virtual aditof::Status	adsd3500_read_payload (uint8_t *payload, uint16_t payload_len)=0
	Reads a chunk of data from adsd3500. This will perform a burst read making it useful for reading chunks of data. More...

virtual aditof::Status	adsd3500_read_payload_cmd (uint32_t cmd, uint8_t *readback_data, uint16_t payload_len)=0
	Send a read command to adsd3500. This will perform a burst read making it useful for reading chunks of data. More...

virtual aditof::Status	adsd3500_register_interrupt_callback (SensorInterruptCallback &cb)=0
	Register a function to be called when a ADSD3500 interrupt occurs. More...

virtual aditof::Status	adsd3500_reset ()=0
	Reset adsd3500 chip. More...

virtual aditof::Status	adsd3500_unregister_interrupt_callback (SensorInterruptCallback &cb)=0
	Unregister a function registered with adsd3500_register_interrupt_callback. More...

virtual aditof::Status	adsd3500_write_cmd (uint16_t cmd, uint16_t data, unsigned int usDelay=0)=0
	Send a write command to adsd3500. More...

virtual aditof::Status	adsd3500_write_payload (uint8_t *payload, uint16_t payload_len)=0
	Send a chunk of data (payload) to adsd3500. This will perform a burst write making it useful for writing chunks of data. More...

virtual aditof::Status	adsd3500_write_payload_cmd (uint32_t cmd, uint8_t *payload, uint16_t payload_len)=0
	Send a write command to adsd3500. This will perform a burst write making it useful for writing chunks of data. More...

virtual Status	getAvailableControls (std::vector< std::string > &controls) const =0
	Gets the sensors's list of controls. More...

virtual aditof::Status	getAvailableModes (std::vector< uint8_t > &modes)=0
	Return all modes that are supported by the sensor. More...

virtual Status	getControl (const std::string &control, std::string &value) const =0
	Gets the value of a specific sensor control. More...

virtual aditof::Status	getDepthComputeParams (std::map< std::string, std::string > &params)=0
	Get ini parameters for Depth Compute library. More...

virtual aditof::Status	getDetails (aditof::SensorDetails &details) const =0
	Get a structure that contains information about the instance of the sensor. More...

virtual aditof::Status	getFrame (uint16_t *buffer)=0
	Request a frame from the sensor. More...

virtual aditof::Status	getHandle (void **handle)=0
	Gets a handle to be used by other devices such as Storage, Temperature, etc. This handle will allow the other devices to communicate remotely with the embedded target. More...

virtual aditof::Status	getIniParamsArrayForMode (int mode, std::string &iniStr)=0
	Get ini parameters for Depth Compute library as string. More...

virtual aditof::Status	getModeDetails (const uint8_t &mode, aditof::DepthSensorModeDetails &details)=0
	Returns details of specified mode. More...

virtual aditof::Status	getName (std::string &name) const =0
	Get the name of the sensor. More...

virtual aditof::Status	initTargetDepthCompute (uint8_t iniFile, uint16_t iniFileLength, uint8_t calData, uint16_t calDataLength)=0
	Get the name of the sensor. More...

virtual aditof::Status	open ()=0
	Open the communication channels with the hardware. More...

virtual Status	setControl (const std::string &control, const std::string &value)=0
	Sets a specific sensor control. More...

virtual aditof::Status	setDepthComputeParams (const std::map< std::string, std::string > &params)=0
	Set ini parameters for Depth Compute library. More...

virtual aditof::Status	setHostConnectionType (std::string &connectionType)=0
	Set the host connection type for target sdk. More...

virtual aditof::Status	setMode (const aditof::DepthSensorModeDetails &type)=0
	Set the sensor frame mode to the given type. More...

virtual aditof::Status	setMode (const uint8_t &mode)=0
	Set the sensor frame mode to the given type. More...

virtual aditof::Status	setSensorConfiguration (const std::string &sensorConf)=0
	Set sensor configutation table. More...

virtual aditof::Status	start ()=0
	Start the streaming of data from the sensor. More...

virtual aditof::Status	stop ()=0
	Stop the sensor data stream. More...

virtual	~DepthSensorInterface ()=default
	Destructor. More...

Detailed Description

Provides access to the low level functionality of the camera sensor. This includes sensor configuration as well as analog front end(AFE) configuration.

Definition at line 57 of file depth_sensor_interface.h.

Constructor & Destructor Documentation

◆ ~DepthSensorInterface()

virtual aditof::DepthSensorInterface::~DepthSensorInterface ( )

virtualdefault

Destructor.

Member Function Documentation

◆ adsd3500_get_status()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_get_status	(	int &	chipStatus,
		int &	imagerStatus
	)

pure virtual

Returns the chip status.

Parameters

[out]	chipStatus	- chip status (error) value
[out]	imagerStatus	- imager status (error) value

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_read_cmd()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_read_cmd	(	uint16_t	cmd,
		uint16_t *	data,
		unsigned int	usDelay = `0`
	)

pure virtual

Send a read command to adsd3500.

Parameters

	cmd	- the command to be sent
[out]	data	- the variable where the read data will be stored
	usDelay	- the number of microseconds to wait between the host command and the actual read

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_read_payload()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_read_payload	(	uint8_t *	payload,
		uint16_t	payload_len
	)

pure virtual

Reads a chunk of data from adsd3500. This will perform a burst read making it useful for reading chunks of data.

Parameters

payload	- the location from where to take the data chunk and read it
payload_len	- the number of bytes to read

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_read_payload_cmd()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_read_payload_cmd	(	uint32_t	cmd,
		uint8_t *	readback_data,
		uint16_t	payload_len
	)

pure virtual

Send a read command to adsd3500. This will perform a burst read making it useful for reading chunks of data.

Parameters

	cmd	- the command to be sent
[out]	readback_data	- the location where the read data chunk will be stored
	payload_len	- the number of bytes to read

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_register_interrupt_callback()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_register_interrupt_callback ( SensorInterruptCallback & cb )

pure virtual

Register a function to be called when a ADSD3500 interrupt occurs.

Parameters

cb	- the function to be called whenever the interrupt occurs

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_reset()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_reset ( )

pure virtual

Reset adsd3500 chip.

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_unregister_interrupt_callback()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_unregister_interrupt_callback ( SensorInterruptCallback & cb )

pure virtual

Unregister a function registered with adsd3500_register_interrupt_callback.

Parameters

cb	- the function to be unregistred

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_write_cmd()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_write_cmd	(	uint16_t	cmd,
		uint16_t	data,
		unsigned int	usDelay = `0`
	)

pure virtual

Send a write command to adsd3500.

Parameters

cmd	- the command to be sent
data	- the data to be written
usDelay	- the number of microseconds to wait between the host command and the actual write

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_write_payload()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_write_payload	(	uint8_t *	payload,
		uint16_t	payload_len
	)

pure virtual

Send a chunk of data (payload) to adsd3500. This will perform a burst write making it useful for writing chunks of data.

Parameters

payload	- the location from where to take the data chunk and write it
payload_len	- the number of bytes to write

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ adsd3500_write_payload_cmd()

virtual aditof::Status aditof::DepthSensorInterface::adsd3500_write_payload_cmd	(	uint32_t	cmd,
		uint8_t *	payload,
		uint16_t	payload_len
	)

pure virtual

Send a write command to adsd3500. This will perform a burst write making it useful for writing chunks of data.

Parameters

cmd	- the command to be sent
payload	- the location from where to take the data chunk and write it
payload_len	- the number of bytes to write

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getAvailableControls()

virtual Status aditof::DepthSensorInterface::getAvailableControls ( std::vector< std::string > & controls ) const

pure virtual

Gets the sensors's list of controls.

Parameters

[out] controls

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getAvailableModes()

virtual aditof::Status aditof::DepthSensorInterface::getAvailableModes ( std::vector< uint8_t > & modes )

pure virtual

Return all modes that are supported by the sensor.

Parameters

[out] modes

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getControl()

virtual Status aditof::DepthSensorInterface::getControl	(	const std::string &	control,
		std::string &	value
	)		const

pure virtual

Gets the value of a specific sensor control.

Parameters

[in]	control	- Control name
[out]	value	- Control value

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getDepthComputeParams()

virtual aditof::Status aditof::DepthSensorInterface::getDepthComputeParams ( std::map< std::string, std::string > & params )

pure virtual

Get ini parameters for Depth Compute library.

Parameters

[in] params - a dictionary of parameters

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getDetails()

virtual aditof::Status aditof::DepthSensorInterface::getDetails ( aditof::SensorDetails & details ) const

pure virtual

Get a structure that contains information about the instance of the sensor.

Parameters

[out] details - the variable where the sensor details should be stored

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getFrame()

virtual aditof::Status aditof::DepthSensorInterface::getFrame ( uint16_t * buffer )

pure virtual

Request a frame from the sensor.

Parameters

buffer - a valid location where the new frame should be stored. The size of the frame is known (cached) internally and gets updated each time setMode() is called.

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getHandle()

virtual aditof::Status aditof::DepthSensorInterface::getHandle ( void ** handle )

pure virtual

Gets a handle to be used by other devices such as Storage, Temperature, etc. This handle will allow the other devices to communicate remotely with the embedded target.

Parameters

[out] handle - the handle which is owned by this instance

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getIniParamsArrayForMode()

virtual aditof::Status aditof::DepthSensorInterface::getIniParamsArrayForMode	(	int	mode,
		std::string &	iniStr
	)

pure virtual

Get ini parameters for Depth Compute library as string.

Parameters

[in]	mode	- desired mode
[out]	iniStr	- a string that contain ini params

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getModeDetails()

virtual aditof::Status aditof::DepthSensorInterface::getModeDetails	(	const uint8_t &	mode,
		aditof::DepthSensorModeDetails &	details
	)

pure virtual

Returns details of specified mode.

Parameters

	mode
[out]	details

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ getName()

virtual aditof::Status aditof::DepthSensorInterface::getName ( std::string & name ) const

pure virtual

Get the name of the sensor.

Parameters

[out] name - the string in which the name is stored

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ initTargetDepthCompute()

virtual aditof::Status aditof::DepthSensorInterface::initTargetDepthCompute	(	uint8_t *	iniFile,
		uint16_t	iniFileLength,
		uint8_t *	calData,
		uint16_t	calDataLength
	)

pure virtual

Get the name of the sensor.

Parameters

[in]	iniFile	- iniFile content parsed as uint8_t*
[in]	iniFileLength	- iniFile content length
[in]	calData	- calibration data parsed as uint8_t*
[in]	calDataLength	- calibration data content length

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ open()

virtual aditof::Status aditof::DepthSensorInterface::open ( )

pure virtual

Open the communication channels with the hardware.

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ setControl()

virtual Status aditof::DepthSensorInterface::setControl	(	const std::string &	control,
		const std::string &	value
	)

pure virtual

Sets a specific sensor control.

Parameters

[in]	control	- Control name
[in]	value	- Control value

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ setDepthComputeParams()

virtual aditof::Status aditof::DepthSensorInterface::setDepthComputeParams ( const std::map< std::string, std::string > & params )

pure virtual

Set ini parameters for Depth Compute library.

Parameters

[in] params - a dictionary of parameters

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ setHostConnectionType()

virtual aditof::Status aditof::DepthSensorInterface::setHostConnectionType ( std::string & connectionType )

pure virtual

Set the host connection type for target sdk.

Parameters

[in] connectionType - the string that sets the host type on the target

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ setMode() [1/2]

virtual aditof::Status aditof::DepthSensorInterface::setMode ( const aditof::DepthSensorModeDetails & type )

pure virtual

Set the sensor frame mode to the given type.

Parameters

type	- frame details structure containing the frame type

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ setMode() [2/2]

virtual aditof::Status aditof::DepthSensorInterface::setMode ( const uint8_t & mode )

pure virtual

Set the sensor frame mode to the given type.

Parameters

mode	- desired mode

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ setSensorConfiguration()

virtual aditof::Status aditof::DepthSensorInterface::setSensorConfiguration ( const std::string & sensorConf )

pure virtual

Set sensor configutation table.

Parameters

sensorConf - Configuration table name string like e.g. standard, standardraw, custom and customraw

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ start()

virtual aditof::Status aditof::DepthSensorInterface::start ( )

pure virtual

Start the streaming of data from the sensor.

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

◆ stop()

virtual aditof::Status aditof::DepthSensorInterface::stop ( )

pure virtual

Stop the sensor data stream.

Returns: Status

Implemented in Adsd3500Sensor, UsbDepthSensor, NetworkDepthSensor, and OfflineDepthSensor.

The documentation for this class was generated from the following file:

depth_sensor_interface.h

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~DepthSensorInterface()

Member Function Documentation

◆ adsd3500_get_status()

◆ adsd3500_read_cmd()

◆ adsd3500_read_payload()

◆ adsd3500_read_payload_cmd()

◆ adsd3500_register_interrupt_callback()

◆ adsd3500_reset()

◆ adsd3500_unregister_interrupt_callback()

◆ adsd3500_write_cmd()

◆ adsd3500_write_payload()

◆ adsd3500_write_payload_cmd()

◆ getAvailableControls()

◆ getAvailableModes()

◆ getControl()

◆ getDepthComputeParams()

◆ getDetails()

◆ getFrame()

◆ getHandle()

◆ getIniParamsArrayForMode()

◆ getModeDetails()

◆ getName()

◆ initTargetDepthCompute()

◆ open()

◆ setControl()

◆ setDepthComputeParams()

◆ setHostConnectionType()

◆ setMode() [1/2]

◆ setMode() [2/2]

◆ setSensorConfiguration()

◆ start()

◆ stop()
