#include <extensible_controllers.h>

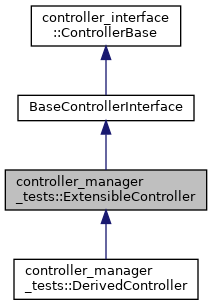

Inheritance diagram for controller_manager_tests::ExtensibleController:

[legend]

Public Member Functions
virtual int	helper ()

bool	init (hardware_interface::RobotHW *robot_hw, ros::NodeHandle &root_nh, ros::NodeHandle &controller_nh) override

void	update (const ros::Time &, const ros::Duration &) override

Public Member Functions inherited from controller_interface::MultiInterfaceController< T >
virtual bool	init (hardware_interface::RobotHW *, ros::NodeHandle &)

	MultiInterfaceController (bool allow_optional_interfaces=false)

Public Member Functions inherited from controller_interface::ControllerBase
virtual void	aborting (const ros::Time &)

virtual void	aborting (const ros::Time &)

bool	abortRequest (const ros::Time &time)

bool	abortRequest (const ros::Time &time)

	ControllerBase ()=default

	ControllerBase (const ControllerBase &)=delete

	ControllerBase (ControllerBase &&)=delete

bool	isAborted () const

bool	isAborted () const

bool	isInitialized () const

bool	isInitialized () const

bool	isRunning () const

bool	isRunning () const

bool	isStopped () const

bool	isStopped () const

bool	isWaiting () const

bool	isWaiting () const

ControllerBase &	operator= (const ControllerBase &)=delete

ControllerBase &	operator= (ControllerBase &&)=delete

virtual void	starting (const ros::Time &)

virtual void	starting (const ros::Time &)

bool	startRequest (const ros::Time &time)

bool	startRequest (const ros::Time &time)

virtual void	stopping (const ros::Time &)

virtual void	stopping (const ros::Time &)

bool	stopRequest (const ros::Time &time)

bool	stopRequest (const ros::Time &time)

void	updateRequest (const ros::Time &time, const ros::Duration &period)

void	updateRequest (const ros::Time &time, const ros::Duration &period)

virtual void	waiting (const ros::Time &)

virtual void	waiting (const ros::Time &)

bool	waitRequest (const ros::Time &time)

bool	waitRequest (const ros::Time &time)

virtual	~ControllerBase ()=default

Additional Inherited Members
Public Types inherited from controller_interface::ControllerBase
typedef std::vector< hardware_interface::InterfaceResources >	ClaimedResources

enum	ControllerState { ControllerState::CONSTRUCTED, ControllerState::INITIALIZED, ControllerState::RUNNING, ControllerState::STOPPED, ControllerState::WAITING, ControllerState::ABORTED }

Public Attributes inherited from controller_interface::ControllerBase
ControllerState	state_

Protected Member Functions inherited from controller_interface::MultiInterfaceController< T >
bool	initRequest (hardware_interface::RobotHW *robot_hw, ros::NodeHandle &root_nh, ros::NodeHandle &controller_nh, ClaimedResources &claimed_resources) override

Static Protected Member Functions inherited from controller_interface::MultiInterfaceController< T >
static void	clearClaims (hardware_interface::RobotHW *robot_hw)

static void	extractInterfaceResources (hardware_interface::RobotHW robot_hw_in, hardware_interface::RobotHW robot_hw_out)

static bool	hasRequiredInterfaces (hardware_interface::RobotHW *robot_hw)

static void	populateClaimedResources (hardware_interface::RobotHW *robot_hw, ClaimedResources &claimed_resources)

Protected Attributes inherited from controller_interface::MultiInterfaceController< T >
bool	allow_optional_interfaces_

hardware_interface::RobotHW	robot_hw_ctrl_

Detailed Description

Definition at line 42 of file extensible_controllers.h.

Member Function Documentation

◆ helper()

int ExtensibleController::helper ( )

virtual

Reimplemented in controller_manager_tests::DerivedController.

Definition at line 44 of file extensible_controllers.cpp.

◆ init()

bool ExtensibleController::init	(	hardware_interface::RobotHW *	robot_hw,
		ros::NodeHandle &	root_nh,
		ros::NodeHandle &	controller_nh
	)

overridevirtual

Reimplemented from controller_interface::MultiInterfaceController< T >.

Reimplemented in controller_manager_tests::DerivedController.

Definition at line 33 of file extensible_controllers.cpp.

◆ update()

void ExtensibleController::update	(	const ros::Time &	,
		const ros::Duration &
	)

overridevirtual

Implements controller_interface::ControllerBase.

Definition at line 49 of file extensible_controllers.cpp.

The documentation for this class was generated from the following files:
