#include <sl_lidar_driver.h>

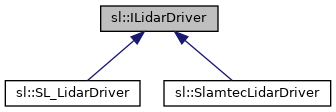

Inheritance diagram for sl::ILidarDriver:

Public Types
enum	{ DEFAULT_TIMEOUT = 2000 }

Public Member Functions
virtual sl_result	ascendScanData (sl_lidar_response_measurement_node_hq_t *nodebuffer, size_t count)=0

virtual sl_result	checkMotorCtrlSupport (MotorCtrlSupport &motorCtrlSupport, sl_u32 timeout=DEFAULT_TIMEOUT)=0

virtual sl_result	connect (IChannel *channel)=0

virtual void	disconnect ()=0

virtual sl_result	getAllSupportedScanModes (std::vector< LidarScanMode > &outModes, sl_u32 timeoutInMs=DEFAULT_TIMEOUT)=0
	Get all scan modes that supported by lidar. More...

virtual sl_result	getDeviceInfo (sl_lidar_response_device_info_t &info, sl_u32 timeout=DEFAULT_TIMEOUT)=0

virtual sl_result	getDeviceMacAddr (sl_u8 *macAddrArray, sl_u32 timeoutInMs=DEFAULT_TIMEOUT)=0

virtual sl_result	getFrequency (const LidarScanMode &scanMode, const sl_lidar_response_measurement_node_hq_t *nodes, size_t count, float &frequency)=0

virtual sl_result	getHealth (sl_lidar_response_device_health_t &health, sl_u32 timeout=DEFAULT_TIMEOUT)=0

virtual sl_result	getMotorInfo (LidarMotorInfo &motorInfo, sl_u32 timeoutInMs=DEFAULT_TIMEOUT)=0

virtual sl_result	getScanDataWithIntervalHq (sl_lidar_response_measurement_node_hq_t *nodebuffer, size_t &count)=0

virtual sl_result	getTypicalScanMode (sl_u16 &outMode, sl_u32 timeoutInMs=DEFAULT_TIMEOUT)=0
	Get typical scan mode of lidar. More...

virtual sl_result	grabScanDataHq (sl_lidar_response_measurement_node_hq_t *nodebuffer, size_t &count, sl_u32 timeout=DEFAULT_TIMEOUT)=0

virtual bool	isConnected ()=0

virtual sl_result	negotiateSerialBaudRate (sl_u32 requiredBaudRate, sl_u32 *baudRateDetected=NULL)=0

virtual sl_result	reset (sl_u32 timeoutInMs=DEFAULT_TIMEOUT)=0

virtual sl_result	setLidarIpConf (const sl_lidar_ip_conf_t &conf, sl_u32 timeout=DEFAULT_TIMEOUT)=0

virtual sl_result	setMotorSpeed (sl_u16 speed=DEFAULT_MOTOR_SPEED)=0

virtual sl_result	startScan (bool force, bool useTypicalScan, sl_u32 options=0, LidarScanMode *outUsedScanMode=nullptr)=0

virtual sl_result	startScanExpress (bool force, sl_u16 scanMode, sl_u32 options=0, LidarScanMode *outUsedScanMode=nullptr, sl_u32 timeout=DEFAULT_TIMEOUT)=0

virtual sl_result	stop (sl_u32 timeout=DEFAULT_TIMEOUT)=0

virtual	~ILidarDriver ()

Detailed Description

Definition at line 253 of file sl_lidar_driver.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
DEFAULT_TIMEOUT

Definition at line 277 of file sl_lidar_driver.h.

Constructor & Destructor Documentation

◆ ~ILidarDriver()

virtual sl::ILidarDriver::~ILidarDriver ( )

inlinevirtual

Definition at line 256 of file sl_lidar_driver.h.

Member Function Documentation

◆ ascendScanData()

virtual sl_result sl::ILidarDriver::ascendScanData	(	sl_lidar_response_measurement_node_hq_t *	nodebuffer,
		size_t	count
	)

pure virtual

Ascending the scan data according to the angle value in the scan.

Parameters

nodebuffer	Buffer provided by the caller application to do the reorder. Should be retrived from the grabScanData
count	The caller must initialize this parameter to set the max data count of the provided buffer (in unit of rplidar_response_measurement_node_t). Once the interface returns, this parameter will store the actual received data count. The interface will return SL_RESULT_OPERATION_FAIL when all the scan data is invalid.

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ checkMotorCtrlSupport()

virtual sl_result sl::ILidarDriver::checkMotorCtrlSupport	(	MotorCtrlSupport &	motorCtrlSupport,
		sl_u32	timeout = `DEFAULT_TIMEOUT`
	)

pure virtual

Check whether the device support motor control Note: this API will disable grab.

Parameters

motorCtrlSupport	Return the result.
timeout	The operation timeout value (in millisecond) for the serial port communication.

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ connect()

virtual sl_result sl::ILidarDriver::connect ( IChannel * channel )

pure virtual

Connect to LIDAR via channel

Parameters

channel The communication channel Note: you should manage the lifecycle of the channel object, make sure it is alive during lidar driver's lifecycle

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ disconnect()

virtual void sl::ILidarDriver::disconnect ( )

pure virtual

Disconnect from the LIDAR

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ getAllSupportedScanModes()

virtual sl_result sl::ILidarDriver::getAllSupportedScanModes	(	std::vector< LidarScanMode > &	outModes,
		sl_u32	timeoutInMs = `DEFAULT_TIMEOUT`
	)

pure virtual

Get all scan modes that supported by lidar.

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ getDeviceInfo()

virtual sl_result sl::ILidarDriver::getDeviceInfo	(	sl_lidar_response_device_info_t &	info,
		sl_u32	timeout = `DEFAULT_TIMEOUT`
	)

pure virtual

Get the device information of the RPLIDAR include the serial number, firmware version, device model etc.

Parameters

info	The device information returned from the RPLIDAR
timeout	The operation timeout value (in millisecond) for the serial port communication

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ getDeviceMacAddr()

virtual sl_result sl::ILidarDriver::getDeviceMacAddr	(	sl_u8 *	macAddrArray,
		sl_u32	timeoutInMs = `DEFAULT_TIMEOUT`
	)

pure virtual

Get LPX series lidar's MAC address

Parameters

macAddrArray The device MAC information returned from the LPX series lidar

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ getFrequency()

virtual sl_result sl::ILidarDriver::getFrequency	(	const LidarScanMode &	scanMode,
		const sl_lidar_response_measurement_node_hq_t *	nodes,
		size_t	count,
		float &	frequency
	)

pure virtual

Calculate LIDAR's current scanning frequency from the given scan data Please refer to the application note doc for details Remark: the calcuation will be incorrect if the specified scan data doesn't contains enough data

Parameters

scanMode	Lidar's current scan mode
nodes	Current scan's measurements
count	The number of sample nodes inside the given buffer

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ getHealth()

virtual sl_result sl::ILidarDriver::getHealth	(	sl_lidar_response_device_health_t &	health,
		sl_u32	timeout = `DEFAULT_TIMEOUT`
	)

pure virtual

Retrieve the health status of the RPLIDAR The host system can use this operation to check whether RPLIDAR is in the self-protection mode.

Parameters

health	The health status info returned from the RPLIDAR
timeout	The operation timeout value (in millisecond) for the serial port communication

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ getMotorInfo()

virtual sl_result sl::ILidarDriver::getMotorInfo	(	LidarMotorInfo &	motorInfo,
		sl_u32	timeoutInMs = `DEFAULT_TIMEOUT`
	)

pure virtual

Get the motor information of the RPLIDAR include the max speed, min speed, desired speed.

Parameters

motorInfo The motor information returned from the RPLIDAR

Implemented in sl::SlamtecLidarDriver.

◆ getScanDataWithIntervalHq()

virtual sl_result sl::ILidarDriver::getScanDataWithIntervalHq	(	sl_lidar_response_measurement_node_hq_t *	nodebuffer,
		size_t &	count
	)

pure virtual

Return received scan points even if it's not complete scan

Parameters

nodebuffer	Buffer provided by the caller application to store the scan data
count	Once the interface returns, this parameter will store the actual received data count.

The interface will return SL_RESULT_OPERATION_TIMEOUT to indicate that not even a single node can be retrieved since last call.

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ getTypicalScanMode()

virtual sl_result sl::ILidarDriver::getTypicalScanMode	(	sl_u16 &	outMode,
		sl_u32	timeoutInMs = `DEFAULT_TIMEOUT`
	)

pure virtual

Get typical scan mode of lidar.

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ grabScanDataHq()

virtual sl_result sl::ILidarDriver::grabScanDataHq	(	sl_lidar_response_measurement_node_hq_t *	nodebuffer,
		size_t &	count,
		sl_u32	timeout = `DEFAULT_TIMEOUT`
	)

pure virtual

Wait and grab a complete 0-360 degree scan data previously received. The grabbed scan data returned by this interface always has the following charactistics:

1) The first node of the grabbed data array (nodebuffer[0]) must be the first sample of a scan, i.e. the start_bit == 1 2) All data nodes are belong to exactly ONE complete 360-degrees's scan 3) Note, the angle data in one scan may not be ascending. You can use API ascendScanData to reorder the nodebuffer.

Parameters

nodebuffer	Buffer provided by the caller application to store the scan data
count	The caller must initialize this parameter to set the max data count of the provided buffer (in unit of rplidar_response_measurement_node_t). Once the interface returns, this parameter will store the actual received data count.
timeout	Max duration allowed to wait for a complete scan data, nothing will be stored to the nodebuffer if a complete 360-degrees' scan data cannot to be ready timely.

The interface will return SL_RESULT_OPERATION_TIMEOUT to indicate that no complete 360-degrees' scan can be retrieved withing the given timeout duration.

caller application can set the timeout value to Zero(0) to make this interface always returns immediately to achieve non-block operation.

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ isConnected()

virtual bool sl::ILidarDriver::isConnected ( )

pure virtual

Check if the connection is established

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ negotiateSerialBaudRate()

virtual sl_result sl::ILidarDriver::negotiateSerialBaudRate	(	sl_u32	requiredBaudRate,
		sl_u32 *	baudRateDetected = `NULL`
	)

pure virtual

Ask the LIDAR to use a new baudrate for serial communication The target LIDAR system must support such feature to work. This function does NOT check whether the target LIDAR works with the requiredBaudRate or not. In order to verifiy the result, use getDeviceInfo or other getXXXX functions instead.

Parameters

requiredBaudRate	The new baudrate required to be used. It MUST matches with the baudrate of the binded channel.
baudRateDetected	The actual baudrate detected by the LIDAR system

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ reset()

virtual sl_result sl::ILidarDriver::reset ( sl_u32 timeoutInMs = DEFAULT_TIMEOUT )

pure virtual

Ask the LIDAR core system to reset it self The host system can use the Reset operation to help LIDAR escape the self-protection mode.

Parameters

timeout The operation timeout value (in millisecond)

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ setLidarIpConf()

virtual sl_result sl::ILidarDriver::setLidarIpConf	(	const sl_lidar_ip_conf_t &	conf,
		sl_u32	timeout = `DEFAULT_TIMEOUT`
	)

pure virtual

Set LPX series lidar's static IP address

Parameters

conf	Network parameter that LPX series lidar owned
timeout	The operation timeout value (in millisecond) for the ethernet udp communication

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ setMotorSpeed()

virtual sl_result sl::ILidarDriver::setMotorSpeed ( sl_u16 speed = DEFAULT_MOTOR_SPEED )

pure virtual

Set lidar motor speed The host system can use this operation to set lidar motor speed.

Parameters

speed The speed value set to lidar

Note: The function will stop scan if speed is DEFAULT_MOTOR_SPEED.

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ startScan()

virtual sl_result sl::ILidarDriver::startScan	(	bool	force,
		bool	useTypicalScan,
		sl_u32	options = `0`,
		LidarScanMode *	outUsedScanMode = `nullptr`
	)

pure virtual

Start scan

Parameters

force	Force the core system to output scan data regardless whether the scanning motor is rotating or not.
useTypicalScan	Use lidar's typical scan mode or use the compatibility mode (2k sps)
options	Scan options (please use 0)
outUsedScanMode	The scan mode selected by lidar

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ startScanExpress()

virtual sl_result sl::ILidarDriver::startScanExpress	(	bool	force,
		sl_u16	scanMode,
		sl_u32	options = `0`,
		LidarScanMode *	outUsedScanMode = `nullptr`,
		sl_u32	timeout = `DEFAULT_TIMEOUT`
	)

pure virtual

Start scan in specific mode

Parameters

force	Force the core system to output scan data regardless whether the scanning motor is rotating or not.
scanMode	The scan mode id (use getAllSupportedScanModes to get supported modes)
options	Scan options (please use 0)
outUsedScanMode	The scan mode selected by lidar

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

◆ stop()

virtual sl_result sl::ILidarDriver::stop ( sl_u32 timeout = DEFAULT_TIMEOUT )

pure virtual

Ask the LIDAR core system to stop the current scan operation and enter idle state. The background thread will be terminated

Parameters

timeout The operation timeout value (in millisecond) for the serial port communication

Implemented in sl::SlamtecLidarDriver, and sl::SL_LidarDriver.

The documentation for this class was generated from the following file:

sl_lidar_driver.h
