Eigen::MatrixExponentialReturnValue< Derived > Struct Template Reference

Proxy for the matrix exponential of some matrix (expression). More...

#include <ForwardDeclarations.h>

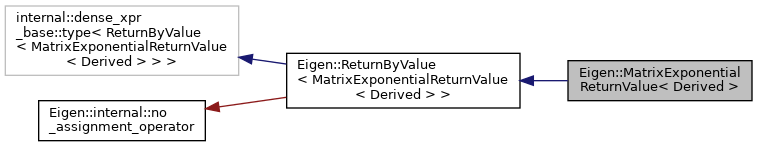

Inheritance diagram for Eigen::MatrixExponentialReturnValue< Derived >:

Public Member Functions
Index	cols () const
template<typename ResultType >
void	evalTo (ResultType &result) const
	Compute the matrix exponential. More...
	MatrixExponentialReturnValue (const Derived &src)
	Constructor. More...
Index	rows () const
Public Member Functions inherited from Eigen::ReturnByValue< MatrixExponentialReturnValue< Derived > >
const Unusable &	coeff (Index) const
const Unusable &	coeff (Index, Index) const
Unusable &	coeffRef (Index)
Unusable &	coeffRef (Index, Index)
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC void	evalTo (Dest &dst) const
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

Protected Attributes
const internal::ref_selector< Derived >::type	m_src

Additional Inherited Members
Public Types inherited from Eigen::ReturnByValue< MatrixExponentialReturnValue< Derived > >
typedef internal::dense_xpr_base< ReturnByValue >::type	Base
typedef internal::traits< MatrixExponentialReturnValue< Derived > >::ReturnType	ReturnType

Detailed Description

template<typename Derived>
struct Eigen::MatrixExponentialReturnValue< Derived >

Proxy for the matrix exponential of some matrix (expression).

Template Parameters

Derived

Type of the argument to the matrix exponential.

This class holds the argument to the matrix exponential until it is assigned or evaluated for some other reason (so the argument should not be changed in the meantime). It is the return type of MatrixBase::exp() and most of the time this is the only way it is used.

Definition at line 304 of file ForwardDeclarations.h.

Constructor & Destructor Documentation

MatrixExponentialReturnValue()

template<typename Derived >

Eigen::MatrixExponentialReturnValue< Derived >::MatrixExponentialReturnValue ( const Derived &  src )

inline

Constructor.

Parameters

src	Matrix (expression) forming the argument of the matrix exponential.

Definition at line 404 of file MatrixExponential.h.

Member Function Documentation

cols()

template<typename Derived >

Index Eigen::MatrixExponentialReturnValue< Derived >::cols ( void  ) const

inline

Definition at line 418 of file MatrixExponential.h.

evalTo()

template<typename Derived >

template<typename ResultType >

void Eigen::MatrixExponentialReturnValue< Derived >::evalTo ( ResultType &  result ) const

inline

Compute the matrix exponential.

Parameters

result

the matrix exponential of src in the constructor.

Definition at line 411 of file MatrixExponential.h.

rows()

template<typename Derived >

Index Eigen::MatrixExponentialReturnValue< Derived >::rows ( void  ) const

inline

Definition at line 417 of file MatrixExponential.h.

Member Data Documentation

m_src

template<typename Derived >

const internal::ref_selector<Derived>::type Eigen::MatrixExponentialReturnValue< Derived >::m_src

protected

Definition at line 421 of file MatrixExponential.h.

---

The documentation for this struct was generated from the following files:

• ForwardDeclarations.h
• MatrixExponential.h
