Eigen::MatrixPowerReturnValue< Derived > Class Template Reference

Proxy for the matrix power of some matrix (expression). More...

#include <ForwardDeclarations.h>

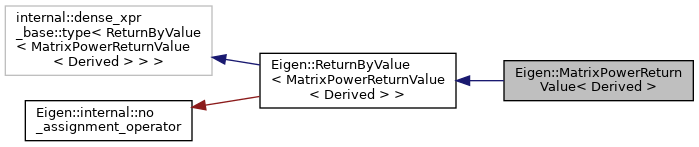

Inheritance diagram for Eigen::MatrixPowerReturnValue< Derived >:

Public Types
typedef Derived::PlainObject	PlainObject
typedef Derived::RealScalar	RealScalar
Public Types inherited from Eigen::ReturnByValue< MatrixPowerReturnValue< Derived > >
typedef internal::dense_xpr_base< ReturnByValue >::type	Base
typedef internal::traits< MatrixPowerReturnValue< Derived > >::ReturnType	ReturnType

Public Member Functions
Index	cols () const
template<typename ResultType >
void	evalTo (ResultType &result) const
	Compute the matrix power. More...
	MatrixPowerReturnValue (const Derived &A, RealScalar p)
	Constructor. More...
Index	rows () const
Public Member Functions inherited from Eigen::ReturnByValue< MatrixPowerReturnValue< Derived > >
const Unusable &	coeff (Index) const
const Unusable &	coeff (Index, Index) const
Unusable &	coeffRef (Index)
Unusable &	coeffRef (Index, Index)
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	cols () const EIGEN_NOEXCEPT
EIGEN_DEVICE_FUNC void	evalTo (Dest &dst) const
EIGEN_DEVICE_FUNC EIGEN_CONSTEXPR Index	rows () const EIGEN_NOEXCEPT

Private Attributes
const Derived &	m_A
const RealScalar	m_p

Detailed Description

template<typename Derived>
class Eigen::MatrixPowerReturnValue< Derived >

Proxy for the matrix power of some matrix (expression).

Template Parameters

Derived

type of the base, a matrix (expression).

This class holds the arguments to the matrix power until it is assigned or evaluated for some other reason (so the argument should not be changed in the meantime). It is the return type of MatrixBase::pow() and related functions and most of the time this is the only way it is used.

Definition at line 308 of file ForwardDeclarations.h.

Member Typedef Documentation

PlainObject

template<typename Derived >

typedef Derived::PlainObject Eigen::MatrixPowerReturnValue< Derived >::PlainObject

Definition at line 599 of file MatrixPower.h.

RealScalar

template<typename Derived >

typedef Derived::RealScalar Eigen::MatrixPowerReturnValue< Derived >::RealScalar

Definition at line 600 of file MatrixPower.h.

Constructor & Destructor Documentation

MatrixPowerReturnValue()

template<typename Derived >

Eigen::MatrixPowerReturnValue< Derived >::MatrixPowerReturnValue ( const Derived &  A, RealScalar  p  )

inline

Constructor.

Parameters

[in]	A	Matrix (expression), the base of the matrix power.
[in]	p	real scalar, the exponent of the matrix power.

Definition at line 608 of file MatrixPower.h.

Member Function Documentation

cols()

template<typename Derived >

Index Eigen::MatrixPowerReturnValue< Derived >::cols ( void  ) const

inline

Definition at line 622 of file MatrixPower.h.

evalTo()

template<typename Derived >

template<typename ResultType >

void Eigen::MatrixPowerReturnValue< Derived >::evalTo ( ResultType &  result ) const

inline

Compute the matrix power.

Parameters

[out]

result

where A and p are as in the constructor.

Definition at line 618 of file MatrixPower.h.

rows()

template<typename Derived >

Index Eigen::MatrixPowerReturnValue< Derived >::rows ( void  ) const

inline

Definition at line 621 of file MatrixPower.h.

Member Data Documentation

m_A

template<typename Derived >

const Derived& Eigen::MatrixPowerReturnValue< Derived >::m_A

private

Definition at line 625 of file MatrixPower.h.

m_p

template<typename Derived >

const RealScalar Eigen::MatrixPowerReturnValue< Derived >::m_p

private

Definition at line 626 of file MatrixPower.h.

---

The documentation for this class was generated from the following files:

• ForwardDeclarations.h
• MatrixPower.h
