Modules | Macros
DMA
STM32F4xx_HAL_Driver | STM32F7xx_HAL_Driver | STM32H7xx_HAL_Driver

DMA HAL module driver. More...

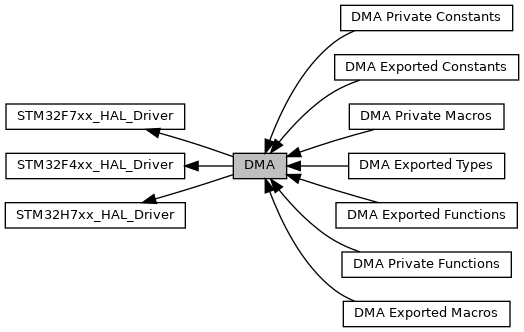

Collaboration diagram for DMA:

Modules

 DMA Exported Types
 DMA Exported Types.

 DMA Exported Constants
 DMA Exported constants.

 DMA Exported Functions
 DMA Exported functions.

 DMA Private Constants
 DMA private defines and constants.

 DMA Private Macros
 DMA private macros.

 DMA Private Functions
 DMA private functions.

 DMA Exported Macros


Macros

#define __HAL_DMA_CLEAR_FLAG(__HANDLE__, __FLAG__)
 Clear the DMA Stream pending flags. More...

#define __HAL_DMA_CLEAR_FLAG(__HANDLE__, __FLAG__)
 Clear the DMA Stream pending flags. More...

#define __HAL_DMA_CLEAR_FLAG(__HANDLE__, __FLAG__)
 Clear the DMA Stream pending flags. More...

#define __HAL_DMA_CLEAR_FLAG(__HANDLE__, __FLAG__)
 Clear the DMA Stream pending flags. More...

#define __HAL_DMA_DISABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)
 Disable the specified DMA Stream. More...

#define __HAL_DMA_DISABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)
 Disable the specified DMA Stream. More...

#define __HAL_DMA_DISABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)
 Disable the specified DMA Stream. More...

#define __HAL_DMA_DISABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)
 Disable the specified DMA Stream. More...

#define __HAL_DMA_DISABLE_IT(__HANDLE__, __INTERRUPT__)
 Disable the specified DMA Stream interrupts. More...

#define __HAL_DMA_DISABLE_IT(__HANDLE__, __INTERRUPT__)
 Disable the specified DMA Stream interrupts. More...

#define __HAL_DMA_DISABLE_IT(__HANDLE__, __INTERRUPT__)
 Disable the specified DMA Stream interrupts. More...

#define __HAL_DMA_DISABLE_IT(__HANDLE__, __INTERRUPT__)
 Disable the specified DMA Stream interrupts. More...

#define __HAL_DMA_ENABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)
 Enable the specified DMA Stream. More...

#define __HAL_DMA_ENABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)
 Enable the specified DMA Stream. More...

#define __HAL_DMA_ENABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)
 Enable the specified DMA Stream. More...

#define __HAL_DMA_ENABLE(__HANDLE__)   ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)
 Enable the specified DMA Stream. More...

#define __HAL_DMA_ENABLE_IT(__HANDLE__, __INTERRUPT__)
 Enable the specified DMA Stream interrupts. More...

#define __HAL_DMA_ENABLE_IT(__HANDLE__, __INTERRUPT__)
 Enable the specified DMA Stream interrupts. More...

#define __HAL_DMA_ENABLE_IT(__HANDLE__, __INTERRUPT__)
 Enable the specified DMA Stream interrupts. More...

#define __HAL_DMA_ENABLE_IT(__HANDLE__, __INTERRUPT__)
 Enable the specified DMA Stream interrupts. More...

#define __HAL_DMA_GET_COUNTER(__HANDLE__)   ((__HANDLE__)->Instance->NDTR)
 Returns the number of remaining data units in the current DMAy Streamx transfer. More...

#define __HAL_DMA_GET_COUNTER(__HANDLE__)   ((__HANDLE__)->Instance->NDTR)
 Returns the number of remaining data units in the current DMAy Streamx transfer. More...

#define __HAL_DMA_GET_COUNTER(__HANDLE__)   ((__HANDLE__)->Instance->NDTR)
 Returns the number of remaining data units in the current DMAy Streamx transfer. More...

#define __HAL_DMA_GET_COUNTER(__HANDLE__)   ((__HANDLE__)->Instance->NDTR)
 Returns the number of remaining data units in the current DMAy Streamx transfer. More...

#define __HAL_DMA_GET_DME_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream direct mode error flag. More...

#define __HAL_DMA_GET_DME_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream direct mode error flag. More...

#define __HAL_DMA_GET_DME_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream direct mode error flag. More...

#define __HAL_DMA_GET_DME_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream direct mode error flag. More...

#define __HAL_DMA_GET_FE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream FIFO error flag. More...

#define __HAL_DMA_GET_FE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream FIFO error flag. More...

#define __HAL_DMA_GET_FE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream FIFO error flag. More...

#define __HAL_DMA_GET_FE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream FIFO error flag. More...

#define __HAL_DMA_GET_FLAG(__HANDLE__, __FLAG__)
 Get the DMA Stream pending flags. More...

#define __HAL_DMA_GET_FLAG(__HANDLE__, __FLAG__)
 Get the DMA Stream pending flags. More...

#define __HAL_DMA_GET_FLAG(__HANDLE__, __FLAG__)
 Get the DMA Stream pending flags. More...

#define __HAL_DMA_GET_FLAG(__HANDLE__, __FLAG__)
 Get the DMA Stream pending flags. More...

#define __HAL_DMA_GET_FS(__HANDLE__)   (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))
 Return the current DMA Stream FIFO filled level. More...

#define __HAL_DMA_GET_FS(__HANDLE__)   (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))
 Return the current DMA Stream FIFO filled level. More...

#define __HAL_DMA_GET_FS(__HANDLE__)   (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))
 Return the current DMA Stream FIFO filled level. More...

#define __HAL_DMA_GET_FS(__HANDLE__)   (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))
 Return the current DMA Stream FIFO filled level. More...

#define __HAL_DMA_GET_HT_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream half transfer complete flag. More...

#define __HAL_DMA_GET_HT_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream half transfer complete flag. More...

#define __HAL_DMA_GET_HT_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream half transfer complete flag. More...

#define __HAL_DMA_GET_HT_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream half transfer complete flag. More...

#define __HAL_DMA_GET_IT_SOURCE(__HANDLE__, __INTERRUPT__)
 Check whether the specified DMA Stream interrupt is enabled or not. More...

#define __HAL_DMA_GET_IT_SOURCE(__HANDLE__, __INTERRUPT__)
 Check whether the specified DMA Stream interrupt is enabled or disabled. More...

#define __HAL_DMA_GET_IT_SOURCE(__HANDLE__, __INTERRUPT__)
 Check whether the specified DMA Stream interrupt is enabled or disabled. More...

#define __HAL_DMA_GET_IT_SOURCE(__HANDLE__, __INTERRUPT__)
 Check whether the specified DMA Stream interrupt is enabled or disabled. More...

#define __HAL_DMA_GET_TC_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer complete flag. More...

#define __HAL_DMA_GET_TC_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer complete flag. More...

#define __HAL_DMA_GET_TC_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer complete flag. More...

#define __HAL_DMA_GET_TC_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer complete flag. More...

#define __HAL_DMA_GET_TE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer error flag. More...

#define __HAL_DMA_GET_TE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer error flag. More...

#define __HAL_DMA_GET_TE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer error flag. More...

#define __HAL_DMA_GET_TE_FLAG_INDEX(__HANDLE__)
 Return the current DMA Stream transfer error flag. More...

#define __HAL_DMA_RESET_HANDLE_STATE(__HANDLE__)   ((__HANDLE__)->State = HAL_DMA_STATE_RESET)
 Reset DMA handle state. More...

#define __HAL_DMA_RESET_HANDLE_STATE(__HANDLE__)   ((__HANDLE__)->State = HAL_DMA_STATE_RESET)
 Reset DMA handle state. More...

#define __HAL_DMA_RESET_HANDLE_STATE(__HANDLE__)   ((__HANDLE__)->State = HAL_DMA_STATE_RESET)
 Reset DMA handle state. More...

#define __HAL_DMA_RESET_HANDLE_STATE(__HANDLE__)   ((__HANDLE__)->State = HAL_DMA_STATE_RESET)
 Reset DMA handle state. More...

#define __HAL_DMA_SET_COUNTER(__HANDLE__, __COUNTER__)   ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))
 Writes the number of data units to be transferred on the DMA Stream. More...

#define __HAL_DMA_SET_COUNTER(__HANDLE__, __COUNTER__)   ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))
 Writes the number of data units to be transferred on the DMA Stream. More...

#define __HAL_DMA_SET_COUNTER(__HANDLE__, __COUNTER__)   ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))
 Writes the number of data units to be transferred on the DMA Stream. More...

#define __HAL_DMA_SET_COUNTER(__HANDLE__, __COUNTER__)   ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))
 Writes the number of data units to be transferred on the DMA Stream. More...


Detailed Description

DMA HAL module driver.

Macro Definition Documentation

◆ __HAL_DMA_CLEAR_FLAG [1/4]

#define __HAL_DMA_CLEAR_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HIFCR = (__FLAG__)) : (DMA1->LIFCR = (__FLAG__)))

Clear the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>specifies the flag to clear. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
None

Definition at line 534 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_CLEAR_FLAG [2/4]

#define __HAL_DMA_CLEAR_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HIFCR = (__FLAG__)) : (DMA1->LIFCR = (__FLAG__)))

Clear the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>specifies the flag to clear. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
None

Definition at line 560 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_CLEAR_FLAG [3/4]

#define __HAL_DMA_CLEAR_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HIFCR = (__FLAG__)) : (DMA1->LIFCR = (__FLAG__)))

Clear the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>specifies the flag to clear. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
None

Definition at line 560 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_CLEAR_FLAG [4/4]

#define __HAL_DMA_CLEAR_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LIFCR = (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HIFCR = (__FLAG__)) : (DMA1->LIFCR = (__FLAG__)))

Clear the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>specifies the flag to clear. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
None

Definition at line 560 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_DISABLE [1/4]

#define __HAL_DMA_DISABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)

Disable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 399 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_DISABLE [2/4]

#define __HAL_DMA_DISABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)

Disable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 425 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_DISABLE [3/4]

#define __HAL_DMA_DISABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)

Disable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 425 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_DISABLE [4/4]

#define __HAL_DMA_DISABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR &= ~DMA_SxCR_EN)

Disable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 425 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_DISABLE_IT [1/4]

#define __HAL_DMA_DISABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR &= ~(__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR &= ~(__INTERRUPT__)))

Disable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be one of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 566 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_DISABLE_IT [2/4]

#define __HAL_DMA_DISABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR &= ~(__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR &= ~(__INTERRUPT__)))

Disable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be any combination of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 592 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_DISABLE_IT [3/4]

#define __HAL_DMA_DISABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR &= ~(__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR &= ~(__INTERRUPT__)))

Disable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be any combination of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 592 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_DISABLE_IT [4/4]

#define __HAL_DMA_DISABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR &= ~(__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR &= ~(__INTERRUPT__)))

Disable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be any combination of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 592 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_ENABLE [1/4]

#define __HAL_DMA_ENABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)

Enable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 392 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_ENABLE [2/4]

#define __HAL_DMA_ENABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)

Enable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 418 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_ENABLE [3/4]

#define __HAL_DMA_ENABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)

Enable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 418 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_ENABLE [4/4]

#define __HAL_DMA_ENABLE (   __HANDLE__)    ((__HANDLE__)->Instance->CR |= DMA_SxCR_EN)

Enable the specified DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
None

Definition at line 418 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_ENABLE_IT [1/4]

#define __HAL_DMA_ENABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR |= (__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR |= (__INTERRUPT__)))

Enable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be one of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 551 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_ENABLE_IT [2/4]

#define __HAL_DMA_ENABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR |= (__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR |= (__INTERRUPT__)))

Enable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be any combination of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 577 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_ENABLE_IT [3/4]

#define __HAL_DMA_ENABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR |= (__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR |= (__INTERRUPT__)))

Enable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be any combination of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 577 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_ENABLE_IT [4/4]

#define __HAL_DMA_ENABLE_IT (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR |= (__INTERRUPT__)) : ((__HANDLE__)->Instance->FCR |= (__INTERRUPT__)))

Enable the specified DMA Stream interrupts.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt sources to be enabled or disabled. This parameter can be any combination of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
None

Definition at line 577 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_COUNTER [1/4]

#define __HAL_DMA_GET_COUNTER (   __HANDLE__)    ((__HANDLE__)->Instance->NDTR)

Returns the number of remaining data units in the current DMAy Streamx transfer.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thenumber of remaining data units in the current DMA Stream transfer.

Definition at line 610 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_COUNTER [2/4]

#define __HAL_DMA_GET_COUNTER (   __HANDLE__)    ((__HANDLE__)->Instance->NDTR)

Returns the number of remaining data units in the current DMAy Streamx transfer.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thenumber of remaining data units in the current DMA Stream transfer.

Definition at line 636 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_COUNTER [3/4]

#define __HAL_DMA_GET_COUNTER (   __HANDLE__)    ((__HANDLE__)->Instance->NDTR)

Returns the number of remaining data units in the current DMAy Streamx transfer.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thenumber of remaining data units in the current DMA Stream transfer.

Definition at line 636 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_COUNTER [4/4]

#define __HAL_DMA_GET_COUNTER (   __HANDLE__)    ((__HANDLE__)->Instance->NDTR)

Returns the number of remaining data units in the current DMAy Streamx transfer.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thenumber of remaining data units in the current DMA Stream transfer.

Definition at line 636 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_DME_FLAG_INDEX [1/4]

#define __HAL_DMA_GET_DME_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_DMEIF2_6 :\
DMA_FLAG_DMEIF3_7)

Return the current DMA Stream direct mode error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified direct mode error flag index.

Definition at line 488 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_DME_FLAG_INDEX [2/4]

#define __HAL_DMA_GET_DME_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_DMEIF2_6 :\
DMA_FLAG_DMEIF3_7)

Return the current DMA Stream direct mode error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified direct mode error flag index.

Definition at line 514 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_DME_FLAG_INDEX [3/4]

#define __HAL_DMA_GET_DME_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_DMEIF2_6 :\
DMA_FLAG_DMEIF3_7)

Return the current DMA Stream direct mode error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified direct mode error flag index.

Definition at line 514 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_DME_FLAG_INDEX [4/4]

#define __HAL_DMA_GET_DME_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_DMEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_DMEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_DMEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_DMEIF2_6 :\
DMA_FLAG_DMEIF3_7)

Return the current DMA Stream direct mode error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified direct mode error flag index.

Definition at line 514 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FE_FLAG_INDEX [1/4]

#define __HAL_DMA_GET_FE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_FEIF2_6 :\
DMA_FLAG_FEIF3_7)

Return the current DMA Stream FIFO error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified FIFO error flag index.

Definition at line 468 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_FE_FLAG_INDEX [2/4]

#define __HAL_DMA_GET_FE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_FEIF2_6 :\
DMA_FLAG_FEIF3_7)

Return the current DMA Stream FIFO error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified FIFO error flag index.

Definition at line 494 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FE_FLAG_INDEX [3/4]

#define __HAL_DMA_GET_FE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_FEIF2_6 :\
DMA_FLAG_FEIF3_7)

Return the current DMA Stream FIFO error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified FIFO error flag index.

Definition at line 494 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FE_FLAG_INDEX [4/4]

#define __HAL_DMA_GET_FE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_FEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_FEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_FEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_FEIF2_6 :\
DMA_FLAG_FEIF3_7)

Return the current DMA Stream FIFO error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified FIFO error flag index.

Definition at line 494 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FLAG [1/4]

#define __HAL_DMA_GET_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HISR & (__FLAG__)) : (DMA1->LISR & (__FLAG__)))

Get the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>Get the specified flag. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
Thestate of FLAG (SET or RESET).

Definition at line 516 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_FLAG [2/4]

#define __HAL_DMA_GET_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HISR & (__FLAG__)) : (DMA1->LISR & (__FLAG__)))

Get the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>Get the specified flag. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
Thestate of FLAG (SET or RESET).

Definition at line 542 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FLAG [3/4]

#define __HAL_DMA_GET_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HISR & (__FLAG__)) : (DMA1->LISR & (__FLAG__)))

Get the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>Get the specified flag. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
Thestate of FLAG (SET or RESET).

Definition at line 542 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FLAG [4/4]

#define __HAL_DMA_GET_FLAG (   __HANDLE__,
  __FLAG__
)
Value:
(((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA2_Stream3)? (DMA2->HISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream7)? (DMA2->LISR & (__FLAG__)) :\
((uint32_t)((__HANDLE__)->Instance) > (uint32_t)DMA1_Stream3)? (DMA1->HISR & (__FLAG__)) : (DMA1->LISR & (__FLAG__)))

Get the DMA Stream pending flags.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>FLAG</strong>Get the specified flag. This parameter can be any combination of the following values:
  • DMA_FLAG_TCIFx: Transfer complete flag.
  • DMA_FLAG_HTIFx: Half transfer complete flag.
  • DMA_FLAG_TEIFx: Transfer error flag.
  • DMA_FLAG_DMEIFx: Direct mode error flag.
  • DMA_FLAG_FEIFx: FIFO error flag. Where x can be 0_4, 1_5, 2_6 or 3_7 to select the DMA Stream flag.
Return values
Thestate of FLAG (SET or RESET).

Definition at line 542 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FS [1/4]

#define __HAL_DMA_GET_FS (   __HANDLE__)    (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))

Return the current DMA Stream FIFO filled level.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
TheFIFO filling state.
  • DMA_FIFOStatus_Less1QuarterFull: when FIFO is less than 1 quarter-full and not empty.
  • DMA_FIFOStatus_1QuarterFull: if more than 1 quarter-full.
  • DMA_FIFOStatus_HalfFull: if more than 1 half-full.
  • DMA_FIFOStatus_3QuartersFull: if more than 3 quarters-full.
  • DMA_FIFOStatus_Empty: when FIFO is empty
  • DMA_FIFOStatus_Full: when FIFO is full

Definition at line 385 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_FS [2/4]

#define __HAL_DMA_GET_FS (   __HANDLE__)    (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))

Return the current DMA Stream FIFO filled level.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
TheFIFO filling state.
  • DMA_FIFOStatus_Less1QuarterFull: when FIFO is less than 1 quarter-full and not empty.
  • DMA_FIFOStatus_1QuarterFull: if more than 1 quarter-full.
  • DMA_FIFOStatus_HalfFull: if more than 1 half-full.
  • DMA_FIFOStatus_3QuartersFull: if more than 3 quarters-full.
  • DMA_FIFOStatus_Empty: when FIFO is empty
  • DMA_FIFOStatus_Full: when FIFO is full

Definition at line 411 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FS [3/4]

#define __HAL_DMA_GET_FS (   __HANDLE__)    (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))

Return the current DMA Stream FIFO filled level.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
TheFIFO filling state.
  • DMA_FIFOStatus_Less1QuarterFull: when FIFO is less than 1 quarter-full and not empty.
  • DMA_FIFOStatus_1QuarterFull: if more than 1 quarter-full.
  • DMA_FIFOStatus_HalfFull: if more than 1 half-full.
  • DMA_FIFOStatus_3QuartersFull: if more than 3 quarters-full.
  • DMA_FIFOStatus_Empty: when FIFO is empty
  • DMA_FIFOStatus_Full: when FIFO is full

Definition at line 411 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_FS [4/4]

#define __HAL_DMA_GET_FS (   __HANDLE__)    (((__HANDLE__)->Instance->FCR & (DMA_SxFCR_FS)))

Return the current DMA Stream FIFO filled level.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
TheFIFO filling state.
  • DMA_FIFOStatus_Less1QuarterFull: when FIFO is less than 1 quarter-full and not empty.
  • DMA_FIFOStatus_1QuarterFull: if more than 1 quarter-full.
  • DMA_FIFOStatus_HalfFull: if more than 1 half-full.
  • DMA_FIFOStatus_3QuartersFull: if more than 3 quarters-full.
  • DMA_FIFOStatus_Empty: when FIFO is empty
  • DMA_FIFOStatus_Full: when FIFO is full

Definition at line 411 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_HT_FLAG_INDEX [1/4]

#define __HAL_DMA_GET_HT_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_HTIF2_6 :\
DMA_FLAG_HTIF3_7)

Return the current DMA Stream half transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified half transfer complete flag index.

Definition at line 428 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_HT_FLAG_INDEX [2/4]

#define __HAL_DMA_GET_HT_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_HTIF2_6 :\
DMA_FLAG_HTIF3_7)

Return the current DMA Stream half transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified half transfer complete flag index.

Definition at line 454 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_HT_FLAG_INDEX [3/4]

#define __HAL_DMA_GET_HT_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_HTIF2_6 :\
DMA_FLAG_HTIF3_7)

Return the current DMA Stream half transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified half transfer complete flag index.

Definition at line 454 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_HT_FLAG_INDEX [4/4]

#define __HAL_DMA_GET_HT_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_HTIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_HTIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_HTIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_HTIF2_6 :\
DMA_FLAG_HTIF3_7)

Return the current DMA Stream half transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified half transfer complete flag index.

Definition at line 454 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_IT_SOURCE [1/4]

#define __HAL_DMA_GET_IT_SOURCE (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR & (__INTERRUPT__)) : \
((__HANDLE__)->Instance->FCR & (__INTERRUPT__)))

Check whether the specified DMA Stream interrupt is enabled or not.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt source to check. This parameter can be one of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
Thestate of DMA_IT.

Definition at line 581 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_IT_SOURCE [2/4]

#define __HAL_DMA_GET_IT_SOURCE (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR & (__INTERRUPT__)) : \
((__HANDLE__)->Instance->FCR & (__INTERRUPT__)))

Check whether the specified DMA Stream interrupt is enabled or disabled.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt source to check. This parameter can be one of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
Thestate of DMA_IT.

Definition at line 607 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_IT_SOURCE [3/4]

#define __HAL_DMA_GET_IT_SOURCE (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR & (__INTERRUPT__)) : \
((__HANDLE__)->Instance->FCR & (__INTERRUPT__)))

Check whether the specified DMA Stream interrupt is enabled or disabled.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt source to check. This parameter can be one of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
Thestate of DMA_IT.

Definition at line 607 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_IT_SOURCE [4/4]

#define __HAL_DMA_GET_IT_SOURCE (   __HANDLE__,
  __INTERRUPT__
)
Value:
(((__INTERRUPT__) != DMA_IT_FE)? \
((__HANDLE__)->Instance->CR & (__INTERRUPT__)) : \
((__HANDLE__)->Instance->FCR & (__INTERRUPT__)))

Check whether the specified DMA Stream interrupt is enabled or disabled.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>INTERRUPT</strong>specifies the DMA interrupt source to check. This parameter can be one of the following values:
  • DMA_IT_TC: Transfer complete interrupt mask.
  • DMA_IT_HT: Half transfer complete interrupt mask.
  • DMA_IT_TE: Transfer error interrupt mask.
  • DMA_IT_FE: FIFO error interrupt mask.
  • DMA_IT_DME: Direct mode error interrupt.
Return values
Thestate of DMA_IT.

Definition at line 607 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_TC_FLAG_INDEX [1/4]

#define __HAL_DMA_GET_TC_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TCIF2_6 :\
DMA_FLAG_TCIF3_7)

Return the current DMA Stream transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer complete flag index.

Definition at line 408 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_TC_FLAG_INDEX [2/4]

#define __HAL_DMA_GET_TC_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TCIF2_6 :\
DMA_FLAG_TCIF3_7)

Return the current DMA Stream transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer complete flag index.

Definition at line 434 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_TC_FLAG_INDEX [3/4]

#define __HAL_DMA_GET_TC_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TCIF2_6 :\
DMA_FLAG_TCIF3_7)

Return the current DMA Stream transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer complete flag index.

Definition at line 434 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_TC_FLAG_INDEX [4/4]

#define __HAL_DMA_GET_TC_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TCIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TCIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TCIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TCIF2_6 :\
DMA_FLAG_TCIF3_7)

Return the current DMA Stream transfer complete flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer complete flag index.

Definition at line 434 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_TE_FLAG_INDEX [1/4]

#define __HAL_DMA_GET_TE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TEIF2_6 :\
DMA_FLAG_TEIF3_7)

Return the current DMA Stream transfer error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer error flag index.

Definition at line 448 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_GET_TE_FLAG_INDEX [2/4]

#define __HAL_DMA_GET_TE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TEIF2_6 :\
DMA_FLAG_TEIF3_7)

Return the current DMA Stream transfer error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer error flag index.

Definition at line 474 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_TE_FLAG_INDEX [3/4]

#define __HAL_DMA_GET_TE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TEIF2_6 :\
DMA_FLAG_TEIF3_7)

Return the current DMA Stream transfer error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer error flag index.

Definition at line 474 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_GET_TE_FLAG_INDEX [4/4]

#define __HAL_DMA_GET_TE_FLAG_INDEX (   __HANDLE__)
Value:
(((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream0))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream4))? DMA_FLAG_TEIF0_4 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream1))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream5))? DMA_FLAG_TEIF1_5 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream2))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA1_Stream6))? DMA_FLAG_TEIF2_6 :\
((uint32_t)((__HANDLE__)->Instance) == ((uint32_t)DMA2_Stream6))? DMA_FLAG_TEIF2_6 :\
DMA_FLAG_TEIF3_7)

Return the current DMA Stream transfer error flag.

Parameters
<strong>HANDLE</strong>DMA handle
Return values
Thespecified transfer error flag index.

Definition at line 474 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_RESET_HANDLE_STATE [1/4]

#define __HAL_DMA_RESET_HANDLE_STATE (   __HANDLE__)    ((__HANDLE__)->State = HAL_DMA_STATE_RESET)

Reset DMA handle state.

Parameters
<strong>HANDLE</strong>specifies the DMA handle.
Return values
None

Definition at line 371 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_RESET_HANDLE_STATE [2/4]

#define __HAL_DMA_RESET_HANDLE_STATE (   __HANDLE__)    ((__HANDLE__)->State = HAL_DMA_STATE_RESET)

Reset DMA handle state.

Parameters
<strong>HANDLE</strong>specifies the DMA handle.
Return values
None

Definition at line 397 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_RESET_HANDLE_STATE [3/4]

#define __HAL_DMA_RESET_HANDLE_STATE (   __HANDLE__)    ((__HANDLE__)->State = HAL_DMA_STATE_RESET)

Reset DMA handle state.

Parameters
<strong>HANDLE</strong>specifies the DMA handle.
Return values
None

Definition at line 397 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_RESET_HANDLE_STATE [4/4]

#define __HAL_DMA_RESET_HANDLE_STATE (   __HANDLE__)    ((__HANDLE__)->State = HAL_DMA_STATE_RESET)

Reset DMA handle state.

Parameters
<strong>HANDLE</strong>specifies the DMA handle.
Return values
None

Definition at line 397 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_SET_COUNTER [1/4]

#define __HAL_DMA_SET_COUNTER (   __HANDLE__,
  __COUNTER__
)    ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))

Writes the number of data units to be transferred on the DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>COUNTER</strong>Number of data units to be transferred (from 0 to 65535) Number of data items depends only on the Peripheral data format.
Note
If Peripheral data format is Bytes: number of data units is equal to total number of bytes to be transferred.
If Peripheral data format is Half-Word: number of data units is
equal to total number of bytes to be transferred / 2.
If Peripheral data format is Word: number of data units is equal to total number of bytes to be transferred / 4.
Return values
Thenumber of remaining data units in the current DMAy Streamx transfer.

Definition at line 602 of file stm32f7xx_hal_dma.h.

◆ __HAL_DMA_SET_COUNTER [2/4]

#define __HAL_DMA_SET_COUNTER (   __HANDLE__,
  __COUNTER__
)    ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))

Writes the number of data units to be transferred on the DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>COUNTER</strong>Number of data units to be transferred (from 0 to 65535) Number of data items depends only on the Peripheral data format.
Note
If Peripheral data format is Bytes: number of data units is equal to total number of bytes to be transferred.
If Peripheral data format is Half-Word: number of data units is
equal to total number of bytes to be transferred / 2.
If Peripheral data format is Word: number of data units is equal to total number of bytes to be transferred / 4.
Return values
Thenumber of remaining data units in the current DMAy Streamx transfer.

Definition at line 628 of file stm32f407/stm32f407g-disc1/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_SET_COUNTER [3/4]

#define __HAL_DMA_SET_COUNTER (   __HANDLE__,
  __COUNTER__
)    ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))

Writes the number of data units to be transferred on the DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>COUNTER</strong>Number of data units to be transferred (from 0 to 65535) Number of data items depends only on the Peripheral data format.
Note
If Peripheral data format is Bytes: number of data units is equal to total number of bytes to be transferred.
If Peripheral data format is Half-Word: number of data units is
equal to total number of bytes to be transferred / 2.
If Peripheral data format is Word: number of data units is equal to total number of bytes to be transferred / 4.
Return values
Thenumber of remaining data units in the current DMAy Streamx transfer.

Definition at line 628 of file stm32f469/stm32f469i-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

◆ __HAL_DMA_SET_COUNTER [4/4]

#define __HAL_DMA_SET_COUNTER (   __HANDLE__,
  __COUNTER__
)    ((__HANDLE__)->Instance->NDTR = (uint16_t)(__COUNTER__))

Writes the number of data units to be transferred on the DMA Stream.

Parameters
<strong>HANDLE</strong>DMA handle
<strong>COUNTER</strong>Number of data units to be transferred (from 0 to 65535) Number of data items depends only on the Peripheral data format.
Note
If Peripheral data format is Bytes: number of data units is equal to total number of bytes to be transferred.
If Peripheral data format is Half-Word: number of data units is
equal to total number of bytes to be transferred / 2.
If Peripheral data format is Word: number of data units is equal to total number of bytes to be transferred / 4.
Return values
Thenumber of remaining data units in the current DMAy Streamx transfer.

Definition at line 628 of file stm32f411/stm32f411e-disco/Drivers/STM32F4xx_HAL_Driver/Inc/stm32f4xx_hal_dma.h.

DMA_FLAG_DMEIF2_6
#define DMA_FLAG_DMEIF2_6
Definition: stm32f7xx_hal_dma.h:348
DMA_FLAG_FEIF2_6
#define DMA_FLAG_FEIF2_6
Definition: stm32f7xx_hal_dma.h:347
DMA2_Stream3
#define DMA2_Stream3
Definition: stm32f407xx.h:1128
DMA_FLAG_FEIF0_4
#define DMA_FLAG_FEIF0_4
Definition: stm32f7xx_hal_dma.h:337
DMA2
#define DMA2
Definition: stm32f407xx.h:1124
DMA_FLAG_TEIF1_5
#define DMA_FLAG_TEIF1_5
Definition: stm32f7xx_hal_dma.h:344
DMA1_Stream4
#define DMA1_Stream4
Definition: stm32f407xx.h:1120
DMA2_Stream0
#define DMA2_Stream0
Definition: stm32f407xx.h:1125
DMA_FLAG_TCIF2_6
#define DMA_FLAG_TCIF2_6
Definition: stm32f7xx_hal_dma.h:351
DMA_FLAG_TEIF2_6
#define DMA_FLAG_TEIF2_6
Definition: stm32f7xx_hal_dma.h:349
DMA1_Stream7
#define DMA1_Stream7
Definition: stm32f407xx.h:1123
DMA_FLAG_HTIF1_5
#define DMA_FLAG_HTIF1_5
Definition: stm32f7xx_hal_dma.h:345
DMA_FLAG_HTIF2_6
#define DMA_FLAG_HTIF2_6
Definition: stm32f7xx_hal_dma.h:350
DMA1_Stream1
#define DMA1_Stream1
Definition: stm32f407xx.h:1117
DMA_FLAG_DMEIF1_5
#define DMA_FLAG_DMEIF1_5
Definition: stm32f7xx_hal_dma.h:343
DMA_FLAG_TCIF0_4
#define DMA_FLAG_TCIF0_4
Definition: stm32f7xx_hal_dma.h:341
DMA2_Stream4
#define DMA2_Stream4
Definition: stm32f407xx.h:1129
DMA2_Stream2
#define DMA2_Stream2
Definition: stm32f407xx.h:1127
DMA_IT_FE
#define DMA_IT_FE
Definition: stm32f7xx_hal_dma.h:328
DMA_FLAG_HTIF0_4
#define DMA_FLAG_HTIF0_4
Definition: stm32f7xx_hal_dma.h:340
DMA1
#define DMA1
Definition: stm32f407xx.h:1115
DMA1_Stream6
#define DMA1_Stream6
Definition: stm32f407xx.h:1122
DMA2_Stream6
#define DMA2_Stream6
Definition: stm32f407xx.h:1131
DMA1_Stream5
#define DMA1_Stream5
Definition: stm32f407xx.h:1121
DMA_FLAG_TEIF0_4
#define DMA_FLAG_TEIF0_4
Definition: stm32f7xx_hal_dma.h:339
DMA_FLAG_DMEIF0_4
#define DMA_FLAG_DMEIF0_4
Definition: stm32f7xx_hal_dma.h:338
DMA_FLAG_FEIF1_5
#define DMA_FLAG_FEIF1_5
Definition: stm32f7xx_hal_dma.h:342
DMA_FLAG_TCIF1_5
#define DMA_FLAG_TCIF1_5
Definition: stm32f7xx_hal_dma.h:346
DMA2_Stream1
#define DMA2_Stream1
Definition: stm32f407xx.h:1126
DMA1_Stream0
#define DMA1_Stream0
Definition: stm32f407xx.h:1116
DMA1_Stream2
#define DMA1_Stream2
Definition: stm32f407xx.h:1118
DMA2_Stream5
#define DMA2_Stream5
Definition: stm32f407xx.h:1130
DMA1_Stream3
#define DMA1_Stream3
Definition: stm32f407xx.h:1119

picovoice_driver
Author(s):
autogenerated on Fri Apr 1 2022 02:15:07
