#include "xsstring.h"
#include "xsbytearray.h"
#include "xsresultvalue.h"
#include "xstypedefs.h"

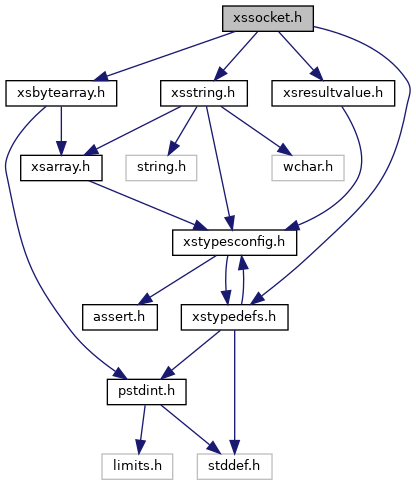

Include dependency graph for xssocket.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	XsSocket
	A platform independent socket implementation. More...

Macros
#define	XSSOCKET_INFINITE_TIMEOUT -1

#define	XSSOCKET_INITIALIZER { NULL }

Typedefs
typedef int	XSOCKET

typedef struct XsSocket	XsSocket

Enumerations
enum	IpProtocol { IP_UDP, IP_TCP }
	the protocol on top of IP More...

enum	NetworkLayerProtocol { NLP_IPV4, NLP_IPV6, NLP_IPVX }
	The network layer protocol, or IP address family. More...

enum	XsSocketOption { XSO_ReuseAddress, XSO_ReusePort }

Functions
XSTYPES_DLL_API XsSocket *	XsSocket_accept (XsSocket *thisPtr, int mstimeout)
	Accept an incoming connection. More...

XSTYPES_DLL_API XsSocket *	XsSocket_allocate ()
	Dynamically allocate an XsSocket. More...

XSTYPES_DLL_API XsResultValue	XsSocket_bind (XsSocket thisPtr, const XsString hostname, uint16_t port)
	Bind to the hostname and port combination. More...

XSTYPES_DLL_API int	XsSocket_broadcast (XsSocket thisPtr, const void buffer, XsSize size, uint16_t port)
	Broadcast data over the socket to the port indicated by port. More...

XSTYPES_DLL_API XsResultValue	XsSocket_close (XsSocket *thisPtr)

XSTYPES_DLL_API XsResultValue	XsSocket_connect (XsSocket thisPtr, const XsString host, uint16_t port)
	Connect to hostame on port. More...

XSTYPES_DLL_API void	XsSocket_create (XsSocket *thisPtr, enum NetworkLayerProtocol ip, enum IpProtocol protocol)
	Create socket thisPtr for IP version ip with protocol protocol. More...

XSTYPES_DLL_API void	XsSocket_createFromFileDescriptor (XsSocket *thisPtr, int sockfd, XsDataFlags flags)

XSTYPES_DLL_API void	XsSocket_destroy (XsSocket *thisPtr)
	Destroy the given socket. More...

XSTYPES_DLL_API int	XsSocket_enableBroadcasts (XsSocket *thisPtr, int enable)

XSTYPES_DLL_API void	XsSocket_flush (XsSocket *thisPtr)
	Flush the incoming data. More...

XSTYPES_DLL_API void	XsSocket_free (XsSocket *thisPtr)
	Free a socket returned from XsSocket_accept() or XsSocket_allocate() More...

XSTYPES_DLL_API int	XsSocket_getLastSystemError (const XsSocket *thisPtr)
	Return the system error code of the last socket operation. More...

XSTYPES_DLL_API void	XsSocket_getRemoteAddress (const XsSocket thisPtr, XsString address)
	Get the numeric IP address of remote host of this socket. More...

XSTYPES_DLL_API int	XsSocket_isUsable (const XsSocket *thisPtr)
	Return non-zero if the socket is usable for reading and writing data. More...

XSTYPES_DLL_API XsResultValue	XsSocket_listen (XsSocket *thisPtr, int maxPending)
	Start listening for incoming connections on this socket. More...

XSTYPES_DLL_API XSOCKET	XsSocket_nativeDescriptor (XsSocket const *thisPtr)
	Return the native file descriptor. More...

XSTYPES_DLL_API int	XsSocket_read (XsSocket thisPtr, void dest, XsSize size, int timeout)
	Read size data into dest. More...

XSTYPES_DLL_API int	XsSocket_read2ByteArray (XsSocket thisPtr, XsByteArray dest, int timeout)
	Read size data into dest. More...

XSTYPES_DLL_API int	XsSocket_readFrom (XsSocket thisPtr, void dest, XsSize size, XsString hostname, uint16_t port, int timeout)
	Read size data into dest. More...

XSTYPES_DLL_API int	XsSocket_readFrom2ByteArray (XsSocket thisPtr, XsByteArray dest, XsString hostname, uint16_t port, int timeout)
	Read size data into dest. More...

XSTYPES_DLL_API int	XsSocket_select (XsSocket thisPtr, int mstimeout, int canRead, int *canWrite)

XSTYPES_DLL_API XsResultValue	XsSocket_setSocketOption (XsSocket thisPtr, enum XsSocketOption option, void valuePtr, int valueSize)

XSTYPES_DLL_API int	XsSocket_write (XsSocket thisPtr, const void buffer, XsSize size)
	Write data to the socket. More...

XSTYPES_DLL_API int	XsSocket_writeTo (XsSocket thisPtr, const void buffer, XsSize size, const XsString *hostname, uint16_t port)
	Write data to the socket to the host indicated by hostname, port. More...

Macro Definition Documentation

◆ XSSOCKET_INFINITE_TIMEOUT

#define XSSOCKET_INFINITE_TIMEOUT -1

Definition at line 115 of file xssocket.h.

◆ XSSOCKET_INITIALIZER

#define XSSOCKET_INITIALIZER { NULL }

Definition at line 112 of file xssocket.h.

Typedef Documentation

◆ XSOCKET

typedef int XSOCKET

Definition at line 105 of file xssocket.h.

◆ XsSocket

typedef struct XsSocket XsSocket

Definition at line 75 of file xssocket.h.

Enumeration Type Documentation

◆ IpProtocol

enum IpProtocol

the protocol on top of IP

Enumerator
IP_UDP	The UDP/IP protocol.
IP_TCP	The TCP/IP protocol.

Definition at line 78 of file xssocket.h.

◆ NetworkLayerProtocol

enum NetworkLayerProtocol

The network layer protocol, or IP address family.

Enumerator
NLP_IPV4	IPv4 address family.
NLP_IPV6	IPv6 address family.
NLP_IPVX	any IP address family

Definition at line 85 of file xssocket.h.

◆ XsSocketOption

enum XsSocketOption

Enumerator
XSO_ReuseAddress	Allow bind to reuse a local port (using different local addresses)
XSO_ReusePort	Allow bind to reuse the exact local address.

Definition at line 92 of file xssocket.h.

Function Documentation

◆ XsSocket_accept()

XSTYPES_DLL_API XsSocket* XsSocket_accept	(	XsSocket *	thisPtr,
		int	mstimeout
	)

Accept an incoming connection.

This function requires that XsSocket_listen() has already been called.

The returned pointer should be freed using XsSocket_freeAcceptedSocket().

\param[in] mstimeout the timeout in milliseconds

\returns a pointer to a newly created socket for the new connection. NULL on error.
\relates XsSocket

Definition at line 1084 of file xssocket.c.

◆ XsSocket_allocate()

XSTYPES_DLL_API XsSocket* XsSocket_allocate ( )

Dynamically allocate an XsSocket.

After calling this function, it is still required to call
XsSocket_create or the internal function XsSocket_createFromNativeSocket

Use XsSocket_free to safely free the returned XsSocket.

\returns a pointer to a newly allocated XsSocket, or NULL on error

Definition at line 1126 of file xssocket.c.

◆ XsSocket_bind()

XSTYPES_DLL_API XsResultValue XsSocket_bind	(	XsSocket *	thisPtr,
		const XsString *	hostname,
		uint16_t	port
	)

Bind to the hostname and port combination.

\param[in] hostname the hostname to bind to, may be NULL, in which we will bind to any address
\param[in] port the port to bind to. Must be a value above 1023, unless we have elevated privileges

\return an XsResultValue indicating the result of the operation, possibly pointing towards a cause
\relates XsSocket

Definition at line 1220 of file xssocket.c.

◆ XsSocket_broadcast()

XSTYPES_DLL_API int XsSocket_broadcast	(	XsSocket *	thisPtr,
		const void *	data,
		XsSize	size,
		uint16_t	port
	)

Broadcast data over the socket to the port indicated by port.

\param[in] data the data to write
\param[in] size the size of the data
\param[in] port the port to send data to

\returns the number of bytes written, -1 on error, depending on whether the majority of sub broadcasts succeeded or failed.
\relates XsSocket

Definition at line 924 of file xssocket.c.

◆ XsSocket_close()

XSTYPES_DLL_API XsResultValue XsSocket_close ( XsSocket * thisPtr )

XSTYPES_DLL_API XsResultValue XsSocket_connect	(	XsSocket *	thisPtr,
		const XsString *	host,
		uint16_t	port
	)

Connect to hostame on port.

\param[in] host the hostname to connect to
\param[in] port the port to connect to

\returns an XsResultValue indicating the result of the operation
\relates XsSocket

Definition at line 1296 of file xssocket.c.

◆ XsSocket_create()

XSTYPES_DLL_API void XsSocket_create	(	XsSocket *	thisPtr,
		enum NetworkLayerProtocol	ip,
		enum IpProtocol	protocol
	)

Create socket thisPtr for IP version ip with protocol protocol.

\param[in] ip the IP version
\param[in] protocol the protocol. Currently supported are TCP and UDP
\relates XsSocket

Definition at line 350 of file xssocket.c.

◆ XsSocket_createFromFileDescriptor()

XSTYPES_DLL_API void XsSocket_createFromFileDescriptor	(	XsSocket *	thisPtr,
		int	sockfd,
		XsDataFlags	flags
	)

XSTYPES_DLL_API void XsSocket_destroy ( XsSocket * thisPtr )

Destroy the given socket.

After calling this function, the XsSocket will no longer be usable for socket communications.

It is safe to call this function twice on the same XsSocket.

If the socket was created from a file descriptor using
XsSocket_createFromFileDescriptor and had the XSDF_Managed flag set then
the underlying socket will be closed.

\relates XsSocket

Definition at line 457 of file xssocket.c.

◆ XsSocket_enableBroadcasts()

XSTYPES_DLL_API int XsSocket_enableBroadcasts	(	XsSocket *	thisPtr,
		int	enable
	)

XSTYPES_DLL_API void XsSocket_flush ( XsSocket * thisPtr )

Flush the incoming data.

Flush all data from the incoming buffer.

\relates XsSocket

Definition at line 1063 of file xssocket.c.

◆ XsSocket_free()

XSTYPES_DLL_API void XsSocket_free ( XsSocket * thisPtr )

Free a socket returned from XsSocket_accept() or XsSocket_allocate()

Use this function only on sockets returned from XsSocket_accept().

This function calls XsSocket_destroy() before freeing the memory.

\see XsSocket_destroy
\relates XsSocket

Definition at line 1140 of file xssocket.c.

◆ XsSocket_getLastSystemError()

XSTYPES_DLL_API int XsSocket_getLastSystemError ( const XsSocket * thisPtr )

Return the system error code of the last socket operation.

Returns: The error code

Definition at line 1324 of file xssocket.c.

◆ XsSocket_getRemoteAddress()

XSTYPES_DLL_API void XsSocket_getRemoteAddress	(	const XsSocket *	thisPtr,
		XsString *	address
	)

Get the numeric IP address of remote host of this socket.

Parameters

[in,out] address XsString to return the remote host IP address in

Definition at line 1315 of file xssocket.c.

◆ XsSocket_isUsable()

XSTYPES_DLL_API int XsSocket_isUsable ( const XsSocket * thisPtr )

Return non-zero if the socket is usable for reading and writing data.

\returns non-zero if the socket is usable for reading and writing data, zero otherwise
\relates XsSocket

Definition at line 1306 of file xssocket.c.

◆ XsSocket_listen()

XSTYPES_DLL_API XsResultValue XsSocket_listen	(	XsSocket *	thisPtr,
		int	maxPending
	)

Start listening for incoming connections on this socket.

\param[in] maxPending the maximum amount of pending connections

\return an XsResultValue indicating the result of the operation
\relates XsSocket

Definition at line 1259 of file xssocket.c.

◆ XsSocket_nativeDescriptor()

XSTYPES_DLL_API XSOCKET XsSocket_nativeDescriptor ( XsSocket const * thisPtr )

Return the native file descriptor.

 The native socket descriptor returned from this function should only be
 passed to third party libraries. However, it is possible to select, read and
 write on it, if you know what you're doing. Do remember that this object
 still manages the lifetime of the file descriptor.

Definition at line 422 of file xssocket.c.

◆ XsSocket_read()

XSTYPES_DLL_API int XsSocket_read	(	XsSocket *	thisPtr,
		void *	dest,
		XsSize	size,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer
\param[in] size the size of the buffer \a dest points to
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 545 of file xssocket.c.

◆ XsSocket_read2ByteArray()

XSTYPES_DLL_API int XsSocket_read2ByteArray	(	XsSocket *	thisPtr,
		XsByteArray *	dest,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer XsByteArray, may be NULL, in which case only the size of the pending data is reported.
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 609 of file xssocket.c.

◆ XsSocket_readFrom()

XSTYPES_DLL_API int XsSocket_readFrom	(	XsSocket *	thisPtr,
		void *	dest,
		XsSize	size,
		XsString *	hostname,
		uint16_t *	port,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer, may be NULL, in which case only the size of the pending data is reported.
\param[in] size the size of the buffer \a dest points to
\param[in,out] hostname a pointer to a string that contains the hostname of the sender after returning from this function. May be NULL.
\param[in,out] port a pointer that will contain the port of the sender after returning from this function. May be NULL.
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 574 of file xssocket.c.

◆ XsSocket_readFrom2ByteArray()

XSTYPES_DLL_API int XsSocket_readFrom2ByteArray	(	XsSocket *	thisPtr,
		XsByteArray *	dest,
		XsString *	hostname,
		uint16_t *	port,
		int	timeout
	)

Read size data into dest.

\param[in,out] dest a pointer to a data buffer XsByteArray, may be NULL, in which case only the size of the pending data is reported.
\param[in,out] hostname a pointer to a string that contains the hostname of the sender after returning from this function. May be NULL.
\param[in,out] port a pointer that will contain the port of the sender after returning from this function. May be NULL.
\param[in] timeout the amount of time in milliseconds to wait for data

\returns the size of the data read from the socket, -1 on error.
\relates XsSocket

Definition at line 624 of file xssocket.c.

◆ XsSocket_select()

XSTYPES_DLL_API int XsSocket_select	(	XsSocket *	thisPtr,
		int	mstimeout,
		int *	canRead,
		int *	canWrite
	)

XSTYPES_DLL_API XsResultValue XsSocket_setSocketOption	(	XsSocket *	thisPtr,
		enum XsSocketOption	option,
		void *	valuePtr,
		int	valueSize
	)

XSTYPES_DLL_API int XsSocket_write	(	XsSocket *	thisPtr,
		const void *	data,
		XsSize	size
	)

Write data to the socket.

\param[in] data a pointer to the data to write
\param[in] size the size of the data to write

\returns the number of bytes written, -1 or 0 on error
\relates XsSocket

Definition at line 665 of file xssocket.c.

◆ XsSocket_writeTo()

XSTYPES_DLL_API int XsSocket_writeTo	(	XsSocket *	thisPtr,
		const void *	data,
		XsSize	size,
		const XsString *	hostname,
		uint16_t	port
	)

Write data to the socket to the host indicated by hostname, port.

\param[in] data the data to write
\param[in] size the size of the data
\param[in] hostname the name of the host to send data to
\param[in] port the port to send data to

\returns the number of bytes written, -1 on error.
\relates XsSocket

Definition at line 861 of file xssocket.c.

Classes

Macros

Typedefs

Enumerations

Functions

Macro Definition Documentation

◆ XSSOCKET_INFINITE_TIMEOUT

◆ XSSOCKET_INITIALIZER

Typedef Documentation

◆ XSOCKET

◆ XsSocket

Enumeration Type Documentation

◆ IpProtocol

◆ NetworkLayerProtocol

◆ XsSocketOption

Function Documentation

◆ XsSocket_accept()

◆ XsSocket_allocate()

◆ XsSocket_bind()

◆ XsSocket_broadcast()

◆ XsSocket_close()

◆ XsSocket_connect()

◆ XsSocket_create()

◆ XsSocket_createFromFileDescriptor()

◆ XsSocket_destroy()

◆ XsSocket_enableBroadcasts()

◆ XsSocket_flush()

◆ XsSocket_free()

◆ XsSocket_getLastSystemError()

◆ XsSocket_getRemoteAddress()

◆ XsSocket_isUsable()

◆ XsSocket_listen()

◆ XsSocket_nativeDescriptor()

◆ XsSocket_read()

◆ XsSocket_read2ByteArray()

◆ XsSocket_readFrom()

◆ XsSocket_readFrom2ByteArray()

◆ XsSocket_select()

◆ XsSocket_setSocketOption()

◆ XsSocket_write()

◆ XsSocket_writeTo()
