visionary::ITransport Class Reference

#include <ITransport.h>

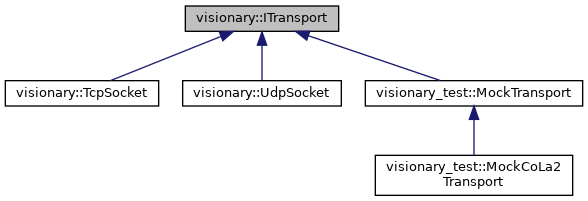

Inheritance diagram for visionary::ITransport:

Public Types
using	ByteBuffer = std::vector< std::uint8_t >
using	recv_return_t = ssize_t
using	send_return_t = ssize_t

Public Member Functions
virtual int	getLastError ()=0
virtual recv_return_t	read (ByteBuffer &buffer, std::size_t nBytesToReceive)=0
virtual recv_return_t	recv (ByteBuffer &buffer, std::size_t maxBytesToReceive)=0
template<typename T >
send_return_t	send (const std::vector< T > &buffer)
virtual int	shutdown ()=0
virtual	~ITransport ()=default

Protected Member Functions
virtual send_return_t	send (const char *pData, size_t size)=0

Detailed Description

Definition at line 19 of file ITransport.h.

Member Typedef Documentation

ByteBuffer

using visionary::ITransport::ByteBuffer = std::vector<std::uint8_t>

Definition at line 22 of file ITransport.h.

recv_return_t

using visionary::ITransport::recv_return_t = ssize_t

Definition at line 29 of file ITransport.h.

send_return_t

using visionary::ITransport::send_return_t = ssize_t

Definition at line 28 of file ITransport.h.

Constructor & Destructor Documentation

~ITransport()

virtual visionary::ITransport::~ITransport ( )

virtualdefault

Member Function Documentation

getLastError()

virtual int visionary::ITransport::getLastError ( )

pure virtual

Implemented in visionary_test::MockTransport, visionary::UdpSocket, and visionary::TcpSocket.

read()

virtual recv_return_t visionary::ITransport::read ( ByteBuffer &  buffer, std::size_t  nBytesToReceive  )

pure virtual

Read a number of bytes

Contrary to recv this method reads precisely nBytesToReceive bytes.

Parameters

[in]	buffer	buffer containing the bytes that shall be sent.
[in]	nBytesToReceive	maximum number of bytes to receive.

Returns

number of received bytes or (-1) on error

Implemented in visionary_test::MockTransport, visionary::UdpSocket, and visionary::TcpSocket.

recv()

virtual recv_return_t visionary::ITransport::recv ( ByteBuffer &  buffer, std::size_t  maxBytesToReceive  )

pure virtual

Receive data on socket to device

Receive at most maxBytesToReceive bytes.

Parameters

[in]	buffer	buffer containing the bytes that shall be sent.
[in]	maxBytesToReceive	maximum number of bytes to receive.

Returns

number of received bytes or (-1) on error

Implemented in visionary_test::MockTransport, visionary::UdpSocket, and visionary::TcpSocket.

send() [1/2]

virtual send_return_t visionary::ITransport::send ( const char *  pData, size_t  size  )

protectedpure virtual

Implemented in visionary::UdpSocket, visionary::TcpSocket, and visionary_test::MockTransport.

send() [2/2]

template<typename T >

send_return_t visionary::ITransport::send ( const std::vector< T > &  buffer )

inline

Send data on socket to device

All bytes are sent on the socket. It is regarded as error if this is not possible.

Parameters

[in]

buffer

buffer containing the bytes that shall be sent.

Returns

Number of bytes sent or (-1) on error

Definition at line 45 of file ITransport.h.

shutdown()

virtual int visionary::ITransport::shutdown ( )

pure virtual

Implemented in visionary_test::MockTransport, visionary::UdpSocket, and visionary::TcpSocket.

---

The documentation for this class was generated from the following file:

• ITransport.h
