Base class for loading a plugin with a valid PluginDefinition. More...
#include <gpp_plugin.hpp>

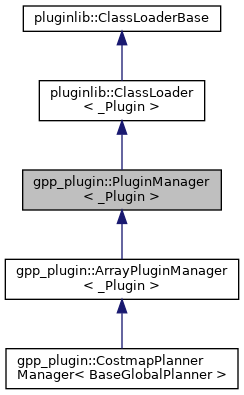

Inheritance diagram for gpp_plugin::PluginManager< _Plugin >:
Public Types | |
| using | Base = pluginlib::ClassLoader< _Plugin > |
| using | Definition = PluginDefinition< _Plugin > |
 Public Types inherited from pluginlib::ClassLoader< _Plugin > | |
| typedef std::map< std::string, ClassDesc >::iterator | ClassMapIterator |
Public Member Functions | |
| virtual pluginlib::UniquePtr< _Plugin > | createCustomInstance (const std::string &_type) |
| PluginManager () | |
| Public Member Functions inherited from pluginlib::ClassLoader< _Plugin > | |
| ClassLoader (std::string package, std::string base_class, std::string attrib_name=std::string("plugin"), std::vector< std::string > plugin_xml_paths=std::vector< std::string >()) | |
| T * | createClassInstance (const std::string &lookup_name, bool auto_load=true) |
| boost::shared_ptr< T > | createInstance (const std::string &lookup_name) |
| T * | createUnmanagedInstance (const std::string &lookup_name) |
| virtual std::string | getBaseClassType () const |
| virtual std::string | getClassDescription (const std::string &lookup_name) |
| virtual std::string | getClassLibraryPath (const std::string &lookup_name) |
| virtual std::string | getClassPackage (const std::string &lookup_name) |
| virtual std::string | getClassType (const std::string &lookup_name) |
| std::vector< std::string > | getDeclaredClasses () |
| virtual std::string | getName (const std::string &lookup_name) |
| virtual std::string | getPluginManifestPath (const std::string &lookup_name) |
| std::vector< std::string > | getPluginXmlPaths () |
| virtual std::vector< std::string > | getRegisteredLibraries () |
| virtual bool | isClassAvailable (const std::string &lookup_name) |
| bool | isClassLoaded (const std::string &lookup_name) |
| virtual void | loadLibraryForClass (const std::string &lookup_name) |
| virtual void | refreshDeclaredClasses () |
| virtual int | unloadLibraryForClass (const std::string &lookup_name) |
| ~ClassLoader () | |
| Public Member Functions inherited from pluginlib::ClassLoaderBase | |
| virtual std::string | getBaseClassType () const=0 |
| virtual | ~ClassLoaderBase () |
Detailed Description
template<typename _Plugin>
struct gpp_plugin::PluginManager< _Plugin >
Base class for loading a plugin with a valid PluginDefinition.
- Template Parameters
-
_Plugin Plugin-type. You need to provide a specialization of the PluginDefinition for the _Plugin for this to work.
The class firstly binds the pluginlib::ClassLoader to our PluginDefinition. Secondly it defined our way to load the plugins (namely by returning a unique ptr). This method is declared virtual, so we can load CostmapPlanner under the interface of BaseGlobalPlanners.
Definition at line 112 of file gpp_plugin.hpp.
Member Typedef Documentation
◆ Base
template<typename _Plugin >
| using gpp_plugin::PluginManager< _Plugin >::Base = pluginlib::ClassLoader<_Plugin> |
Definition at line 115 of file gpp_plugin.hpp.
◆ Definition
template<typename _Plugin >
| using gpp_plugin::PluginManager< _Plugin >::Definition = PluginDefinition<_Plugin> |
Definition at line 114 of file gpp_plugin.hpp.
Constructor & Destructor Documentation
◆ PluginManager()
template<typename _Plugin >
|
inline |
Definition at line 118 of file gpp_plugin.hpp.
Member Function Documentation
◆ createCustomInstance()
template<typename _Plugin >
|
inlinevirtual |
Reimplemented in gpp_plugin::CostmapPlannerManager.
Definition at line 121 of file gpp_plugin.hpp.
The documentation for this struct was generated from the following file:
