Detailed Description

This class is an abstract base class inherited by all the classes that provide a specific time representation. These time representations must ensure or provide a way for the user to verify their own self-consistency.

Definition at line 58 of file TimeTag.hpp.

#include <TimeTag.hpp>

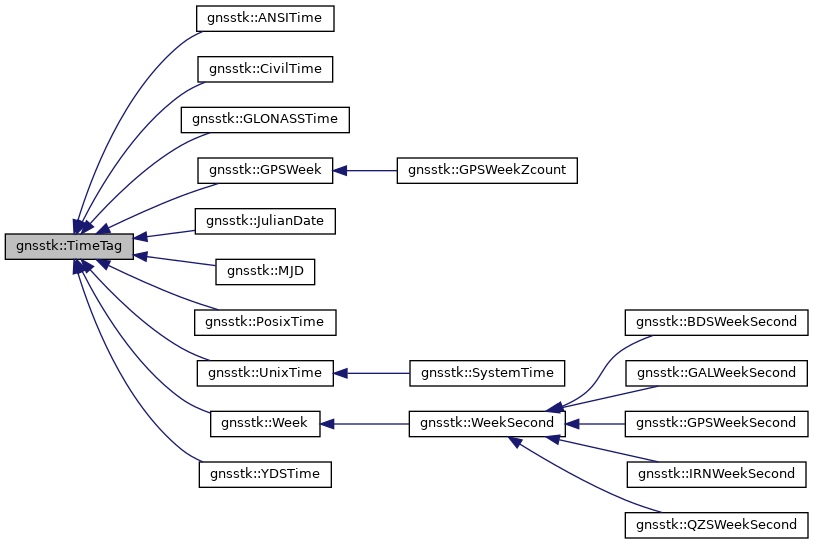

Inheritance diagram for gnsstk::TimeTag:

[legend]

Public Types
typedef std::map< char, std::string >	IdToValue

Public Member Functions
virtual std::string	asString () const

bool	changeTimeSystem (TimeSystem timeSys)

bool	changeTimeSystem (TimeSystem timeSys, TimeSystemConverter *conv)

virtual void	convertFromCommonTime (const CommonTime &ct)=0

virtual CommonTime	convertToCommonTime () const =0

virtual std::string	getDefaultFormat () const =0
	Return a string containing the default format to use in printing. More...

virtual std::string	getPrintChars () const =0

TimeSystem	getTimeSystem () const
	Obtain time system info (enum). More...

virtual bool	isValid () const =0
	Returns true if this object's members are valid, false otherwise. More...

virtual	operator CommonTime () const

virtual std::string	printError (const std::string &fmt) const =0

virtual std::string	printf (const std::string &fmt) const =0

virtual void	reset ()=0
	Reset this object to the default state. More...

virtual void	scanf (const std::string &str, const std::string &fmt)

virtual bool	setFromInfo (const IdToValue &info)=0

void	setTimeSystem (const TimeSystem &timeSys)
	Set method for internal variable timeSystem (enum). More...

	TimeTag ()
	Default constructor. More...

	TimeTag (const TimeSystem &ts)
	Constructor. More...

virtual	~TimeTag ()
	Virtual Destructor. More...

Static Public Member Functions
static void	checkTimeSystem (TimeSystem ts1, TimeSystem ts2)

static std::string	getError ()
	This returns the default error string for the TimeTag classes. More...

static std::string	getFormatPrefixFloat ()

static std::string	getFormatPrefixInt ()

static void	getInfo (const std::string &str, const std::string &fmt, IdToValue &info)

Protected Attributes
TimeSystem	timeSystem
	time system (representation) of the data More...

Member Typedef Documentation

◆ IdToValue

typedef std::map< char, std::string> gnsstk::TimeTag::IdToValue

This type maps a character ( from a time format ) to its corresponding value ( from a time string ).

Definition at line 103 of file TimeTag.hpp.

Constructor & Destructor Documentation

◆ TimeTag() [1/2]

gnsstk::TimeTag::TimeTag ( )

inline

Default constructor.

Definition at line 63 of file TimeTag.hpp.

◆ TimeTag() [2/2]

gnsstk::TimeTag::TimeTag ( const TimeSystem & ts )

inline

Constructor.

Definition at line 67 of file TimeTag.hpp.

◆ ~TimeTag()

virtual gnsstk::TimeTag::~TimeTag ( )

inlinevirtual

Virtual Destructor.

Definition at line 71 of file TimeTag.hpp.

Member Function Documentation

◆ asString()

virtual std::string gnsstk::TimeTag::asString ( ) const

inlinevirtual

Format this time as a string using a format specified by the inheriting class.

Definition at line 142 of file TimeTag.hpp.

◆ changeTimeSystem() [1/2]

bool gnsstk::TimeTag::changeTimeSystem ( TimeSystem timeSys )

Modify both the time value and time system to reflect a change in time system.

Parameters

[in] timeSystem The time system to convert this time to.

Returns: true if successful, false if the static converter CommonTime::tsConv has not been set or is unable to get/apply the time system offset.

Definition at line 194 of file TimeTag.cpp.

◆ changeTimeSystem() [2/2]

bool gnsstk::TimeTag::changeTimeSystem	(	TimeSystem	timeSys,
		TimeSystemConverter *	conv
	)

Modify both the time value and time system to reflect a change in time system.

Parameters

[in]	timeSystem	The time system to convert this time to.
[in,out]	conv	The converter object to use to get the offset between the current time system and the requested time system.

Returns: true if successful, false if unable to get/apply the time system offset.

Definition at line 181 of file TimeTag.cpp.

◆ checkTimeSystem()

void gnsstk::TimeTag::checkTimeSystem	(	TimeSystem	ts1,
		TimeSystem	ts2
	)

static

Check to see if two time systems are comparable (including "Any" handling).

Note: This method replicates the standard time system checking currently in most (all?) TimeTag classes.

Parameters

[in]	ts1	The first time system.
[in]	ts2	The second time system.

Exceptions

InvalidRequest if neither ts1 or ts2 are "Any" and they are not equal.

Definition at line 207 of file TimeTag.cpp.

◆ convertFromCommonTime()

virtual void gnsstk::TimeTag::convertFromCommonTime ( const CommonTime & ct )

pure virtual

Exceptions

InvalidRequest if ct cannot be correctly represented in this TimeTag object.

Implemented in gnsstk::GLONASSTime, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::WeekSecond, gnsstk::GPSWeekZcount, gnsstk::ANSITime, and gnsstk::MJD.

◆ convertToCommonTime()

virtual CommonTime gnsstk::TimeTag::convertToCommonTime ( ) const

pure virtual

Exceptions

InvalidRequest if this TimeTag cannot be correctly represented by a CommonTime object.

Implemented in gnsstk::GLONASSTime, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::WeekSecond, gnsstk::GPSWeekZcount, gnsstk::ANSITime, and gnsstk::MJD.

◆ getDefaultFormat()

virtual std::string gnsstk::TimeTag::getDefaultFormat ( ) const

pure virtual

Return a string containing the default format to use in printing.

Implemented in gnsstk::GLONASSTime, gnsstk::GPSWeek, gnsstk::Week, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::GPSWeekZcount, gnsstk::ANSITime, gnsstk::MJD, gnsstk::GPSWeekSecond, gnsstk::BDSWeekSecond, gnsstk::IRNWeekSecond, gnsstk::QZSWeekSecond, and gnsstk::GALWeekSecond.

◆ getError()

static std::string gnsstk::TimeTag::getError ( )

inlinestatic

This returns the default error string for the TimeTag classes.

Definition at line 161 of file TimeTag.hpp.

◆ getFormatPrefixFloat()

static std::string gnsstk::TimeTag::getFormatPrefixFloat ( )

inlinestatic

This returns the regular expression prefix that is used when searching for float specifiers.

Definition at line 157 of file TimeTag.hpp.

◆ getFormatPrefixInt()

static std::string gnsstk::TimeTag::getFormatPrefixInt ( )

inlinestatic

This returns the regular expression prefix that is used when searching for integer specifiers.

Definition at line 152 of file TimeTag.hpp.

◆ getInfo()

void gnsstk::TimeTag::getInfo	(	const std::string &	str,
		const std::string &	fmt,
		IdToValue &	info
	)

static

This is the workhorse for the scanf family of functions. It parses the given string str with the given format fmt in order to extract a time or part of a time from str.

Parameters

str	the string from which to cull time information
fmt	the string containing the time format
info	a mapping of all of the character identifier to their respective culled time information

Exceptions

StringException on problems parsing the strings.

Definition at line 66 of file TimeTag.cpp.

◆ getPrintChars()

virtual std::string gnsstk::TimeTag::getPrintChars ( ) const

pure virtual

Return a string containing the characters that this class understands when printing times.

Implemented in gnsstk::GLONASSTime, gnsstk::GPSWeek, gnsstk::Week, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::GPSWeekZcount, gnsstk::ANSITime, gnsstk::MJD, gnsstk::GPSWeekSecond, gnsstk::BDSWeekSecond, gnsstk::IRNWeekSecond, gnsstk::QZSWeekSecond, and gnsstk::GALWeekSecond.

◆ getTimeSystem()

TimeSystem gnsstk::TimeTag::getTimeSystem ( ) const

inline

Obtain time system info (enum).

Definition at line 169 of file TimeTag.hpp.

◆ isValid()

virtual bool gnsstk::TimeTag::isValid ( ) const

pure virtual

Returns true if this object's members are valid, false otherwise.

Implemented in gnsstk::GLONASSTime, gnsstk::GPSWeek, gnsstk::Week, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::GPSWeekZcount, gnsstk::ANSITime, gnsstk::MJD, and gnsstk::WeekSecond.

◆ operator CommonTime()

virtual gnsstk::TimeTag::operator CommonTime ( ) const

inlinevirtual

Hey, it's an implicit casting operator! Basically just a lazy way to get at convertToCommonTime().

Definition at line 147 of file TimeTag.hpp.

◆ printError()

virtual std::string gnsstk::TimeTag::printError ( const std::string & fmt ) const

pure virtual

This function works similarly to printf. Instead of filling the format with data, it fills with error messages.

Implemented in gnsstk::GLONASSTime, gnsstk::GPSWeek, gnsstk::GPSWeekSecond, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::BDSWeekSecond, gnsstk::IRNWeekSecond, gnsstk::YDSTime, gnsstk::QZSWeekSecond, gnsstk::CivilTime, gnsstk::GALWeekSecond, gnsstk::GPSWeekZcount, gnsstk::ANSITime, and gnsstk::MJD.

◆ printf()

virtual std::string gnsstk::TimeTag::printf ( const std::string & fmt ) const

pure virtual

This function formats this time to a string. The exceptions thrown would only be due to problems parsing the fmt string.

Implemented in gnsstk::GLONASSTime, gnsstk::GPSWeek, gnsstk::JulianDate, gnsstk::GPSWeekSecond, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::GPSWeekZcount, gnsstk::ANSITime, gnsstk::MJD, gnsstk::BDSWeekSecond, gnsstk::IRNWeekSecond, gnsstk::QZSWeekSecond, and gnsstk::GALWeekSecond.

◆ reset()

virtual void gnsstk::TimeTag::reset ( )

pure virtual

Reset this object to the default state.

Implemented in gnsstk::GLONASSTime, gnsstk::GPSWeek, gnsstk::Week, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::GPSWeekZcount, gnsstk::ANSITime, gnsstk::MJD, and gnsstk::WeekSecond.

◆ scanf()

void gnsstk::TimeTag::scanf	(	const std::string &	str,
		const std::string &	fmt
	)

virtual

This function sets this object to the time stored in the given string str.

Parameters

str	the string to parse
fmt	the string containing the time format

Exceptions

InvalidRequest	if an invalid time is given.
StringException	on problems parsing the strings.

Definition at line 44 of file TimeTag.cpp.

◆ setFromInfo()

virtual bool gnsstk::TimeTag::setFromInfo ( const IdToValue & info )

pure virtual

Set this object using the information provided in info.

Parameters

info	the IdToValue object to which this object shall be set.

Returns: true if this object was successfully set using the data in info, false if not.

Implemented in gnsstk::GPSWeek, gnsstk::GPSWeekSecond, gnsstk::BDSWeekSecond, gnsstk::IRNWeekSecond, gnsstk::GALWeekSecond, gnsstk::QZSWeekSecond, gnsstk::JulianDate, gnsstk::UnixTime, gnsstk::GLONASSTime, gnsstk::PosixTime, gnsstk::YDSTime, gnsstk::CivilTime, gnsstk::GPSWeekZcount, gnsstk::ANSITime, and gnsstk::MJD.

◆ setTimeSystem()

void gnsstk::TimeTag::setTimeSystem ( const TimeSystem & timeSys )

inline

Set method for internal variable timeSystem (enum).

Definition at line 165 of file TimeTag.hpp.

Member Data Documentation

◆ timeSystem

TimeSystem gnsstk::TimeTag::timeSystem

protected

time system (representation) of the data

Definition at line 204 of file TimeTag.hpp.

The documentation for this class was generated from the following files:
