mcap::IWritable Class Reference

An abstract interface for writing MCAP data. More...

#include <writer.hpp>

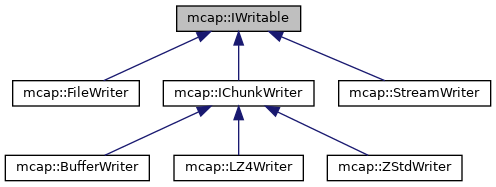

Inheritance diagram for mcap::IWritable:

Public Member Functions
uint32_t	crc ()
	Returns the CRC32 of the uncompressed data. More...
virtual void	end ()=0
	Called when the writer is finished writing data to the output MCAP file. More...
	IWritable () noexcept
void	resetCrc ()
	Resets the CRC32 calculation. More...
virtual uint64_t	size () const =0
	Returns the current size of the file in bytes. This must be equal to the sum of all size parameters passed to write(). More...
void	write (const std::byte *data, uint64_t size)
	Called whenever the writer needs to write data to the output MCAP file. More...
virtual	~IWritable ()=default

Public Attributes
bool	crcEnabled = false

Protected Member Functions
virtual void	handleWrite (const std::byte *data, uint64_t size)=0

Private Attributes
uint32_t	crc_

Detailed Description

An abstract interface for writing MCAP data.

Definition at line 98 of file writer.hpp.

Constructor & Destructor Documentation

IWritable()

mcap::IWritable::IWritable ( )

noexcept

~IWritable()

virtual mcap::IWritable::~IWritable ( )

virtualdefault

Member Function Documentation

crc()

uint32_t mcap::IWritable::crc

(

)

Returns the CRC32 of the uncompressed data.

end()

virtual void mcap::IWritable::end ( )

pure virtual

Called when the writer is finished writing data to the output MCAP file.

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, mcap::BufferWriter, mcap::IChunkWriter, mcap::StreamWriter, and mcap::FileWriter.

handleWrite()

virtual void mcap::IWritable::handleWrite ( const std::byte *  data, uint64_t  size  )

protectedpure virtual

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, mcap::BufferWriter, mcap::StreamWriter, and mcap::FileWriter.

resetCrc()

void mcap::IWritable::resetCrc

(

)

Resets the CRC32 calculation.

size()

virtual uint64_t mcap::IWritable::size ( ) const

pure virtual

Returns the current size of the file in bytes. This must be equal to the sum of all size parameters passed to write().

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, mcap::BufferWriter, mcap::IChunkWriter, mcap::StreamWriter, and mcap::FileWriter.

write()

void mcap::IWritable::write	(	const std::byte *	data,
		uint64_t	size
	)

Called whenever the writer needs to write data to the output MCAP file.

Parameters

data	A pointer to the data to write.
size	Size of the data in bytes.

Member Data Documentation

crc_

uint32_t mcap::IWritable::crc_

private

Definition at line 136 of file writer.hpp.

crcEnabled

bool mcap::IWritable::crcEnabled = false

Definition at line 100 of file writer.hpp.

---

The documentation for this class was generated from the following file:

• writer.hpp
