An abstract interface for writing Chunk data. Chunk data is buffered in memory and written to disk as a single record, to support optimal compression and calculating the final Chunk data size. More...

#include <writer.hpp>

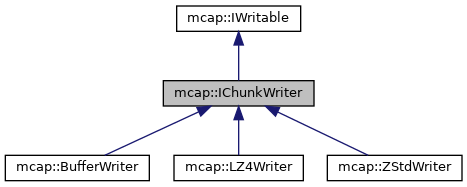

Inheritance diagram for mcap::IChunkWriter:

[legend]

Public Member Functions
void	clear ()
	Clear the internal state of the writer, discarding any input or output buffers. More...

virtual const std::byte *	compressedData () const =0
	Returns a pointer to the compressed data. This will only be called after `end()`. More...

virtual uint64_t	compressedSize () const =0
	Returns the size in bytes of the compressed data. This will only be called after `end()`. More...

virtual const std::byte *	data () const =0
	Returns a pointer to the uncompressed data. More...

virtual bool	empty () const =0
	Returns true if `write()` has never been called since initialization or the last call to `clear()`. More...

virtual void	end ()=0
	Called when the writer wants to close the current output Chunk. After this call, `data()` and `size()` should return the data and size of the compressed data. More...

virtual uint64_t	size () const =0
	Returns the size in bytes of the uncompressed data. More...

virtual	~IChunkWriter ()=default

Public Member Functions inherited from mcap::IWritable
uint32_t	crc ()
	Returns the CRC32 of the uncompressed data. More...

	IWritable () noexcept

void	resetCrc ()
	Resets the CRC32 calculation. More...

void	write (const std::byte *data, uint64_t size)
	Called whenever the writer needs to write data to the output MCAP file. More...

virtual	~IWritable ()=default

Protected Member Functions
virtual void	handleClear ()=0

Protected Member Functions inherited from mcap::IWritable
virtual void	handleWrite (const std::byte *data, uint64_t size)=0

Additional Inherited Members
Public Attributes inherited from mcap::IWritable
bool	crcEnabled = false

Detailed Description

An abstract interface for writing Chunk data. Chunk data is buffered in memory and written to disk as a single record, to support optimal compression and calculating the final Chunk data size.

Definition at line 182 of file writer.hpp.

Constructor & Destructor Documentation

◆ ~IChunkWriter()

virtual mcap::IChunkWriter::~IChunkWriter ( )

virtualdefault

Member Function Documentation

◆ clear()

void mcap::IChunkWriter::clear ( )

Clear the internal state of the writer, discarding any input or output buffers.

◆ compressedData()

virtual const std::byte* mcap::IChunkWriter::compressedData ( ) const

pure virtual

Returns a pointer to the compressed data. This will only be called after end().

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, and mcap::BufferWriter.

◆ compressedSize()

virtual uint64_t mcap::IChunkWriter::compressedSize ( ) const

pure virtual

Returns the size in bytes of the compressed data. This will only be called after end().

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, and mcap::BufferWriter.

◆ data()

virtual const std::byte* mcap::IChunkWriter::data ( ) const

pure virtual

Returns a pointer to the uncompressed data.

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, and mcap::BufferWriter.

◆ empty()

virtual bool mcap::IChunkWriter::empty ( ) const

pure virtual

Returns true if write() has never been called since initialization or the last call to clear().

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, and mcap::BufferWriter.

◆ end()

virtual void mcap::IChunkWriter::end ( )

pure virtual

Called when the writer wants to close the current output Chunk. After this call, data() and size() should return the data and size of the compressed data.

Implements mcap::IWritable.

Implemented in mcap::ZStdWriter, mcap::LZ4Writer, and mcap::BufferWriter.
