grpc_core::channelz::ServerNode Class Reference

#include <channelz.h>

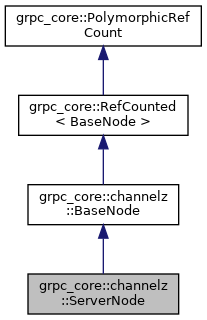

Inheritance diagram for grpc_core::channelz::ServerNode:

Public Member Functions
void	AddChildListenSocket (RefCountedPtr< ListenSocketNode > node)
void	AddChildSocket (RefCountedPtr< SocketNode > node)
void	AddTraceEvent (ChannelTrace::Severity severity, const grpc_slice &data)
void	AddTraceEventWithReference (ChannelTrace::Severity severity, const grpc_slice &data, RefCountedPtr< BaseNode > referenced_channel)
void	RecordCallFailed ()
void	RecordCallStarted ()
void	RecordCallSucceeded ()
void	RemoveChildListenSocket (intptr_t child_uuid)
void	RemoveChildSocket (intptr_t child_uuid)
Json	RenderJson () override
std::string	RenderServerSockets (intptr_t start_socket_id, intptr_t max_results)
	ServerNode (size_t channel_tracer_max_nodes)
	~ServerNode () override
Public Member Functions inherited from grpc_core::channelz::BaseNode
const std::string &	name () const
std::string	RenderJsonString ()
EntityType	type () const
intptr_t	uuid () const
	~BaseNode () override
Public Member Functions inherited from grpc_core::RefCounted< BaseNode >
RefCounted &	operator= (const RefCounted &)=delete
RefCountedPtr< BaseNode >	Ref () GRPC_MUST_USE_RESULT
RefCountedPtr< BaseNode >	Ref (const DebugLocation &location, const char *reason) GRPC_MUST_USE_RESULT
	RefCounted (const RefCounted &)=delete
RefCountedPtr< BaseNode >	RefIfNonZero () GRPC_MUST_USE_RESULT
RefCountedPtr< BaseNode >	RefIfNonZero (const DebugLocation &location, const char *reason) GRPC_MUST_USE_RESULT
void	Unref ()
void	Unref (const DebugLocation &location, const char *reason)
	~RefCounted ()=default
Public Member Functions inherited from grpc_core::PolymorphicRefCount
virtual	~PolymorphicRefCount ()=default

Private Attributes
CallCountingHelper	call_counter_
std::map< intptr_t, RefCountedPtr< ListenSocketNode > >	child_listen_sockets_
Mutex	child_mu_
std::map< intptr_t, RefCountedPtr< SocketNode > >	child_sockets_
ChannelTrace	trace_

Additional Inherited Members
Public Types inherited from grpc_core::channelz::BaseNode
enum	EntityType {   EntityType::kTopLevelChannel, EntityType::kInternalChannel, EntityType::kSubchannel, EntityType::kServer,   EntityType::kSocket }
Public Types inherited from grpc_core::RefCounted< BaseNode >
using	RefCountedChildType = BaseNode
Protected Member Functions inherited from grpc_core::channelz::BaseNode
	BaseNode (EntityType type, std::string name)
Protected Member Functions inherited from grpc_core::RefCounted< BaseNode >
	RefCounted (const char *trace=nullptr, intptr_t initial_refcount=1)

Detailed Description

Definition at line 239 of file channelz.h.

Constructor & Destructor Documentation

ServerNode()

grpc_core::channelz::ServerNode::ServerNode ( size_t  channel_tracer_max_nodes )

explicit

Definition at line 255 of file src/core/lib/channel/channelz.cc.

~ServerNode()

grpc_core::channelz::ServerNode::~ServerNode ( )

override

Definition at line 258 of file src/core/lib/channel/channelz.cc.

Member Function Documentation

AddChildListenSocket()

void grpc_core::channelz::ServerNode::AddChildListenSocket

(

RefCountedPtr< ListenSocketNode >

node

)

Definition at line 270 of file src/core/lib/channel/channelz.cc.

AddChildSocket()

void grpc_core::channelz::ServerNode::AddChildSocket

(

RefCountedPtr< SocketNode >

node

)

Definition at line 260 of file src/core/lib/channel/channelz.cc.

AddTraceEvent()

void grpc_core::channelz::ServerNode::AddTraceEvent ( ChannelTrace::Severity  severity, const grpc_slice &  data  )

inline

Definition at line 259 of file channelz.h.

AddTraceEventWithReference()

void grpc_core::channelz::ServerNode::AddTraceEventWithReference ( ChannelTrace::Severity  severity, const grpc_slice &  data, RefCountedPtr< BaseNode >  referenced_channel  )

inline

Definition at line 262 of file channelz.h.

RecordCallFailed()

void grpc_core::channelz::ServerNode::RecordCallFailed ( )

inline

Definition at line 269 of file channelz.h.

RecordCallStarted()

void grpc_core::channelz::ServerNode::RecordCallStarted ( )

inline

Definition at line 268 of file channelz.h.

RecordCallSucceeded()

void grpc_core::channelz::ServerNode::RecordCallSucceeded ( )

inline

Definition at line 270 of file channelz.h.

RemoveChildListenSocket()

void grpc_core::channelz::ServerNode::RemoveChildListenSocket

(

intptr_t

child_uuid

)

Definition at line 275 of file src/core/lib/channel/channelz.cc.

RemoveChildSocket()

void grpc_core::channelz::ServerNode::RemoveChildSocket

(

intptr_t

child_uuid

)

Definition at line 265 of file src/core/lib/channel/channelz.cc.

RenderJson()

Json grpc_core::channelz::ServerNode::RenderJson ( )

overridevirtual

Implements grpc_core::channelz::BaseNode.

Definition at line 307 of file src/core/lib/channel/channelz.cc.

RenderServerSockets()

std::string grpc_core::channelz::ServerNode::RenderServerSockets	(	intptr_t	start_socket_id,
		intptr_t	max_results
	)

Definition at line 280 of file src/core/lib/channel/channelz.cc.

Member Data Documentation

call_counter_

CallCountingHelper grpc_core::channelz::ServerNode::call_counter_

private

Definition at line 273 of file channelz.h.

child_listen_sockets_

std::map<intptr_t, RefCountedPtr<ListenSocketNode> > grpc_core::channelz::ServerNode::child_listen_sockets_

private

Definition at line 277 of file channelz.h.

child_mu_

Mutex grpc_core::channelz::ServerNode::child_mu_

private

Definition at line 275 of file channelz.h.

child_sockets_

std::map<intptr_t, RefCountedPtr<SocketNode> > grpc_core::channelz::ServerNode::child_sockets_

private

Definition at line 276 of file channelz.h.

trace_

ChannelTrace grpc_core::channelz::ServerNode::trace_

private

Definition at line 274 of file channelz.h.

---

The documentation for this class was generated from the following files:

• channelz.h
• src/core/lib/channel/channelz.cc
