grpc_core::channelz::BaseNode Class Reference

#include <channelz.h>

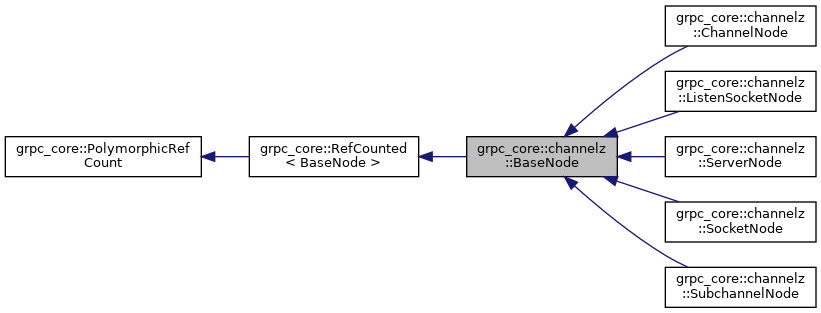

Inheritance diagram for grpc_core::channelz::BaseNode:

Public Types
enum	EntityType {   EntityType::kTopLevelChannel, EntityType::kInternalChannel, EntityType::kSubchannel, EntityType::kServer,   EntityType::kSocket }
Public Types inherited from grpc_core::RefCounted< BaseNode >
using	RefCountedChildType = BaseNode

Public Member Functions
const std::string &	name () const
virtual Json	RenderJson ()=0
std::string	RenderJsonString ()
EntityType	type () const
intptr_t	uuid () const
	~BaseNode () override
Public Member Functions inherited from grpc_core::RefCounted< BaseNode >
RefCounted &	operator= (const RefCounted &)=delete
RefCountedPtr< BaseNode >	Ref () GRPC_MUST_USE_RESULT
RefCountedPtr< BaseNode >	Ref (const DebugLocation &location, const char *reason) GRPC_MUST_USE_RESULT
	RefCounted (const RefCounted &)=delete
RefCountedPtr< BaseNode >	RefIfNonZero () GRPC_MUST_USE_RESULT
RefCountedPtr< BaseNode >	RefIfNonZero (const DebugLocation &location, const char *reason) GRPC_MUST_USE_RESULT
void	Unref ()
void	Unref (const DebugLocation &location, const char *reason)
	~RefCounted ()=default
Public Member Functions inherited from grpc_core::PolymorphicRefCount
virtual	~PolymorphicRefCount ()=default

Protected Member Functions
	BaseNode (EntityType type, std::string name)
Protected Member Functions inherited from grpc_core::RefCounted< BaseNode >
	RefCounted (const char *trace=nullptr, intptr_t initial_refcount=1)

Private Attributes
std::string	name_
const EntityType	type_
intptr_t	uuid_

Friends
class	ChannelzRegistry

Detailed Description

Definition at line 78 of file channelz.h.

Member Enumeration Documentation

EntityType

enum grpc_core::channelz::BaseNode::EntityType

strong

Enumerator
kTopLevelChannel
kInternalChannel
kSubchannel
kServer
kSocket

Definition at line 83 of file channelz.h.

Constructor & Destructor Documentation

BaseNode()

grpc_core::channelz::BaseNode::BaseNode ( EntityType  type, std::string  name  )

protected

Definition at line 59 of file src/core/lib/channel/channelz.cc.

~BaseNode()

grpc_core::channelz::BaseNode::~BaseNode ( )

override

Definition at line 65 of file src/core/lib/channel/channelz.cc.

Member Function Documentation

name()

const std::string& grpc_core::channelz::BaseNode::name ( ) const

inline

Definition at line 106 of file channelz.h.

RenderJson()

virtual Json grpc_core::channelz::BaseNode::RenderJson ( )

pure virtual

Implemented in grpc_core::channelz::ListenSocketNode, grpc_core::channelz::SocketNode, grpc_core::channelz::ServerNode, grpc_core::channelz::ChannelNode, and grpc_core::channelz::SubchannelNode.

RenderJsonString()

std::string grpc_core::channelz::BaseNode::RenderJsonString

(

)

Definition at line 67 of file src/core/lib/channel/channelz.cc.

type()

EntityType grpc_core::channelz::BaseNode::type ( ) const

inline

Definition at line 104 of file channelz.h.

uuid()

intptr_t grpc_core::channelz::BaseNode::uuid ( ) const

inline

Definition at line 105 of file channelz.h.

Friends And Related Function Documentation

ChannelzRegistry

friend class ChannelzRegistry

friend

Definition at line 110 of file channelz.h.

Member Data Documentation

name_

std::string grpc_core::channelz::BaseNode::name_

private

Definition at line 113 of file channelz.h.

type_

const EntityType grpc_core::channelz::BaseNode::type_

private

Definition at line 111 of file channelz.h.

uuid_

intptr_t grpc_core::channelz::BaseNode::uuid_

private

Definition at line 112 of file channelz.h.

---

The documentation for this class was generated from the following files:

• channelz.h
• src/core/lib/channel/channelz.cc
