b2_distance.h File Reference

#include "b2_api.h"
#include "b2_math.h"

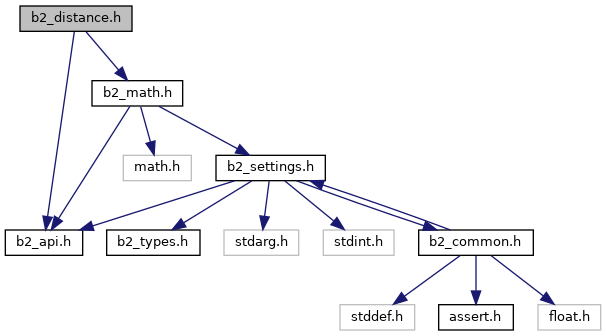

Include dependency graph for b2_distance.h:

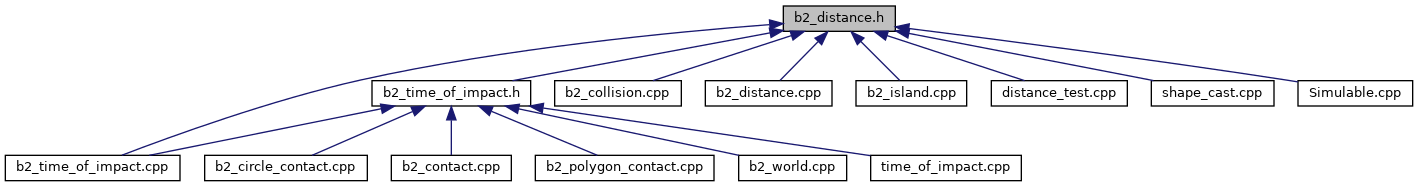

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	b2DistanceInput
struct	b2DistanceOutput
	Output for b2Distance. More...
struct	b2DistanceProxy
struct	b2ShapeCastInput
	Input parameters for b2ShapeCast. More...
struct	b2ShapeCastOutput
	Output results for b2ShapeCast. More...
struct	b2SimplexCache

Functions
B2_API void	b2Distance (b2DistanceOutput *output, b2SimplexCache *cache, const b2DistanceInput *input)
B2_API bool	b2ShapeCast (b2ShapeCastOutput *output, const b2ShapeCastInput *input)

Function Documentation

b2Distance()

B2_API void b2Distance	(	b2DistanceOutput *	output,
		b2SimplexCache *	cache,
		const b2DistanceInput *	input
	)

Compute the closest points between two shapes. Supports any combination of: b2CircleShape, b2PolygonShape, b2EdgeShape. The simplex cache is input/output. On the first call set b2SimplexCache.count to zero.

Definition at line 454 of file b2_distance.cpp.

b2ShapeCast()

B2_API bool b2ShapeCast	(	b2ShapeCastOutput *	output,
		const b2ShapeCastInput *	input
	)

Perform a linear shape cast of shape B moving and shape A fixed. Determines the hit point, normal, and translation fraction.

Returns

true if hit, false if there is no hit or an initial overlap

Definition at line 603 of file b2_distance.cpp.
