beluga::BaseDenseGrid2< Derived > Class Template Reference

Dense 2D grid base type. More...

#include <dense_grid.hpp>

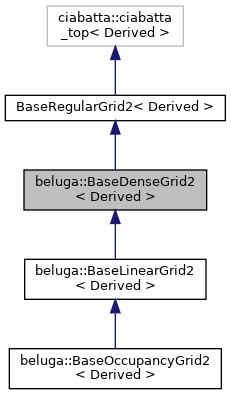

Inheritance diagram for beluga::BaseDenseGrid2< Derived >:

Public Member Functions
bool	contains (const Eigen::Vector2i &pi) const
	Checks if a cell is included in the grid. More...
bool	contains (int xi, int yi) const
	Checks if a cell is included in the grid. More...
auto	data_at (const Eigen::Vector2i &pi) const
	Gets cell data, if included. More...
auto	data_at (int xi, int yi) const
	Gets cell data, if included. More...
auto	data_near (const Eigen::Vector2d &p) const
	Gets nearest cell data, if included. More...
auto	data_near (double x, double y) const
	Gets nearest cell data, if included. More...
auto	neighborhood4 (const Eigen::Vector2i &pi) const
	Computes 4-connected neighborhood for cell. More...
auto	neighborhood4 (int xi, int yi) const
	Computes 4-connected neighborhood for cell. More...
Public Member Functions inherited from beluga::BaseRegularGrid< Derived, NDim >
Eigen::Vector< int, NDim >	cell_near (const Eigen::Vector< double, NDim > &p) const
	Compute nearest grid cell coordinates given plane coordinates. More...
Eigen::Vector< double, NDim >	coordinates_at (const Eigen::Vector< int, NDim > &pi) const
	Compute plane coordinates given grid cell coordinates. More...
template<class Range >
auto	coordinates_for (Range &&cells) const
	Compute plane coordinates given a range of cell coordinates. More...

Detailed Description

template<typename Derived>
class beluga::BaseDenseGrid2< Derived >

Dense 2D grid base type.

When instantiated, it satisfies Beluga named requirements: DenseGrid2.

Template Parameters

Derived

Concrete dense grid type. It must define Derived::width(), Derived::height(), Derived::resolution(), Derived::data_at(index), and Derived::index_at(int, int) as described in Beluga named requirements: DenseGrid2.

Definition at line 83 of file dense_grid.hpp.

Member Function Documentation

contains() [1/2]

template<typename Derived >

bool beluga::BaseDenseGrid2< Derived >::contains ( const Eigen::Vector2i &  pi ) const

inline

Checks if a cell is included in the grid.

Parameters

pi	Grid cell coordinates.

Definition at line 100 of file dense_grid.hpp.

contains() [2/2]

template<typename Derived >

bool beluga::BaseDenseGrid2< Derived >::contains ( int  xi, int  yi  ) const

inline

Checks if a cell is included in the grid.

Parameters

xi	Grid cell x-axis coordinate.
yi	Grid cell y-axis coordinate.

Definition at line 90 of file dense_grid.hpp.

data_at() [1/2]

template<typename Derived >

auto beluga::BaseDenseGrid2< Derived >::data_at ( const Eigen::Vector2i &  pi ) const

inline

Gets cell data, if included.

Parameters

pi	Grid cell coordinates.

Returns

Cell data if included, std::nullopt otherwise.

Definition at line 118 of file dense_grid.hpp.

data_at() [2/2]

template<typename Derived >

auto beluga::BaseDenseGrid2< Derived >::data_at ( int  xi, int  yi  ) const

inline

Gets cell data, if included.

Parameters

xi	Grid cell x-axis coordinate.
yi	Grid cell y-axis coordinate.

Returns

Cell data if included, std::nullopt otherwise.

Definition at line 108 of file dense_grid.hpp.

data_near() [1/2]

template<typename Derived >

auto beluga::BaseDenseGrid2< Derived >::data_near ( const Eigen::Vector2d &  p ) const

inline

Gets nearest cell data, if included.

Parameters

p	Plane coordinates.

Returns

Cell data if included, std::nullopt otherwise.

Definition at line 135 of file dense_grid.hpp.

data_near() [2/2]

template<typename Derived >

auto beluga::BaseDenseGrid2< Derived >::data_near ( double  x, double  y  ) const

inline

Gets nearest cell data, if included.

Parameters

x	Plane x-axis coordinate.
y	Plane y-axis coordinate.

Returns

Cell data if included, std::nullopt otherwise.

Definition at line 126 of file dense_grid.hpp.

neighborhood4() [1/2]

template<typename Derived >

auto beluga::BaseDenseGrid2< Derived >::neighborhood4 ( const Eigen::Vector2i &  pi ) const

inline

Computes 4-connected neighborhood for cell.

Parameters

pi	Grid cell coordinates.

Returns

range of neighbor cells.

Definition at line 165 of file dense_grid.hpp.

neighborhood4() [2/2]

template<typename Derived >

auto beluga::BaseDenseGrid2< Derived >::neighborhood4 ( int  xi, int  yi  ) const

inline

Computes 4-connected neighborhood for cell.

Parameters

xi	Grid cell x-axis coordinate.
yi	Grid cell y-axis coordinate.

Returns

range of neighbor cells.

Definition at line 143 of file dense_grid.hpp.

---

The documentation for this class was generated from the following file:

• dense_grid.hpp
